BAV23C datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> Small signal switching diode> BAV23C

BAV23C: Description0.225 A, 250 V, 2 ELEMENT, SILICON, SIGNAL DIODE; CategoryDiscrete semiconductor Small signal switching diode; File Size232KB，2 Pages; ManufacturerLGE; Websitehttp://www.luguang.cn/web_en/index.html

Download Datasheet Parametric Compare View All

BAV23C Overview

0.225 A, 250 V, 2 ELEMENT, SILICON, SIGNAL DIODE

BAV23C Parametric

Parameter Name	Attribute value
Case Style	SOT-23
IF（mA）	400
Maximum recurrent peak reverse voltage	250
TRR（nS)	50
Maximum instantaneous forward voltage	1.0
@IF（uA）	0.1
Maximum reverse curre	0.1
@VR	200
class	Diodes

Preview

Download Datasheet

View All

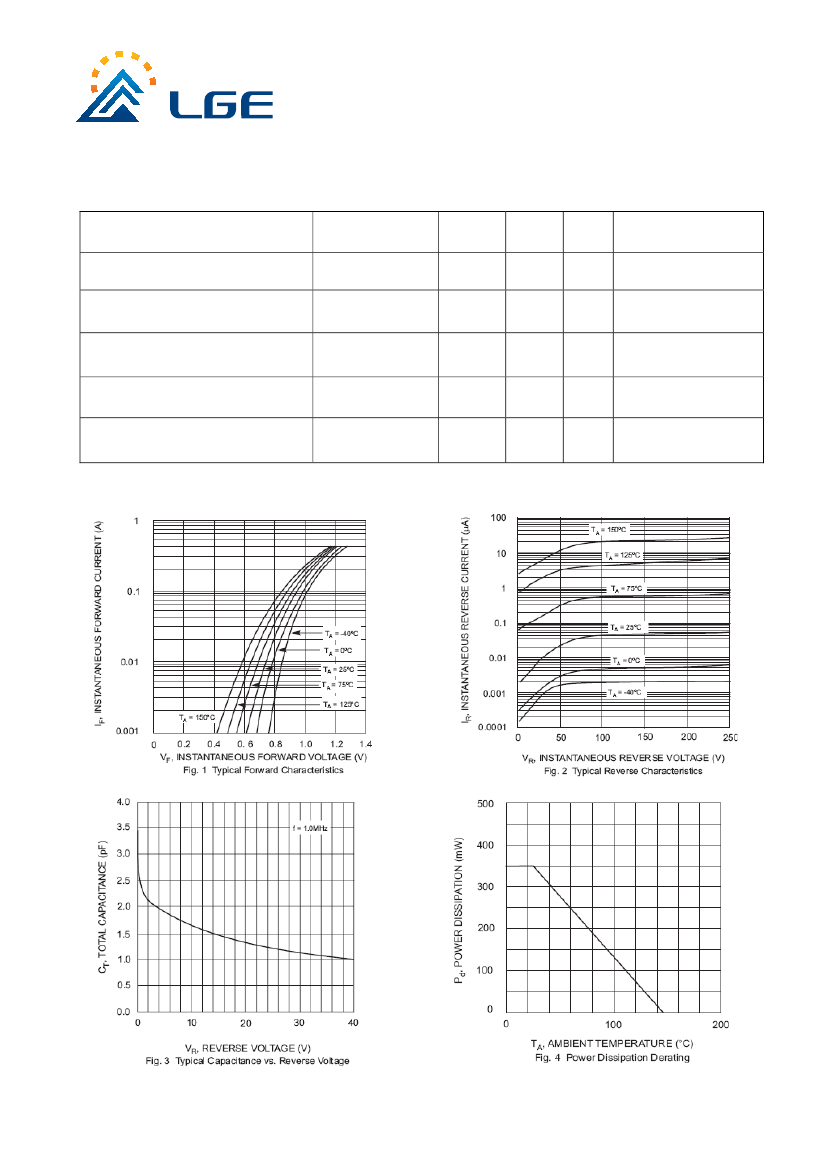

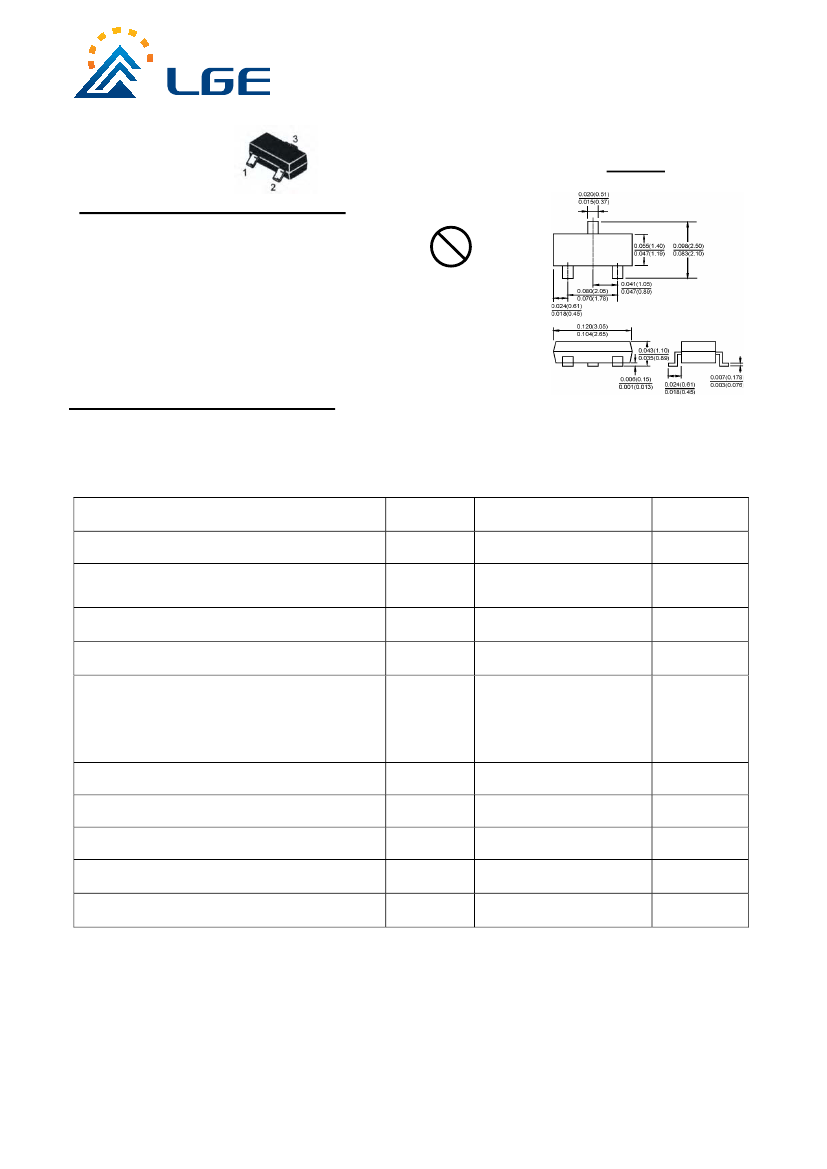

BAV23A/C/S

Surface mount switching diode

1. BASE

2. EMITTER

3. COLLECTOR

SOT-23

FEATURES

Fast switching speed.

Surface mount package ideally suited for

Automatic insertion.

For general purpose switching applications.

High conductance.

Lead-free

APPLICATIONS

High speed switching application.

Dimensions in inches and (millimeters)

MAXIMUM RATING

@ Ta=25. unless otherwise specified

Characteristic

Repetitive Peak Reverse Voltage

Working peak reverse voltage

DC reverse voltage

RSM Reverse Voltage

Forward Continuous Current(Max.)

Non-Repetitive Peak Forward Surge Current

@ t = 1.0μs

@ t = 100μs

@ t = 10ms

Repetitive Peak Forward Surge Current

Power Dissipation

Thermal Resistance Junction to Ambient Air

Operating Junction Temperature Range

Storage Temperature Range

Symbol

RRM

RWM

R(RMS)

Value

250

200

141

400

9.0

3.0

1.7

625

350

357

150

-65 to +150

Unit

FSM

FRM

θJA

STG

℃

http://www.luguang.cn

mail:lge@luguang.cn
