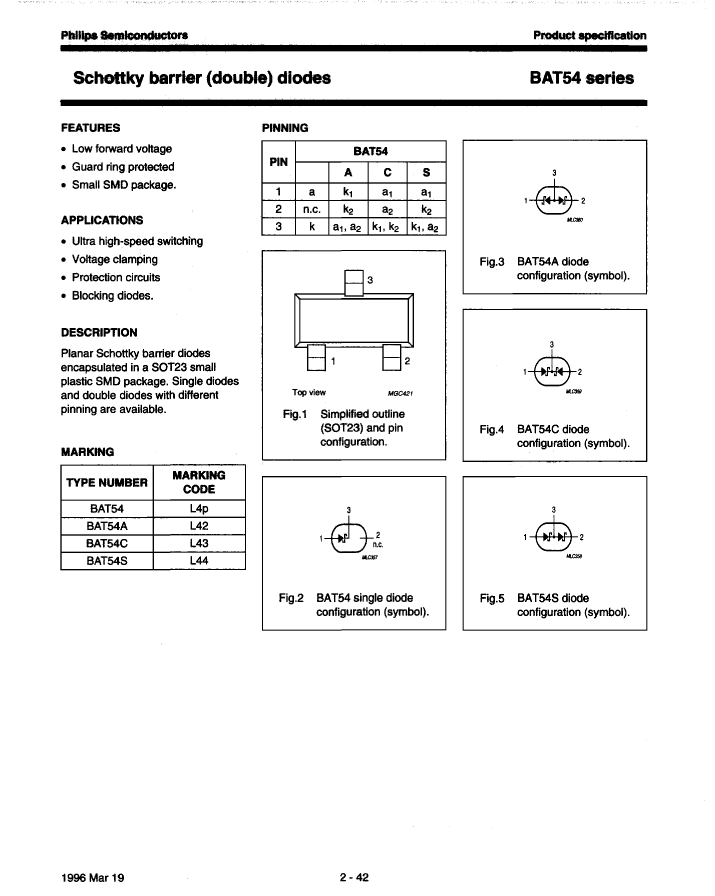

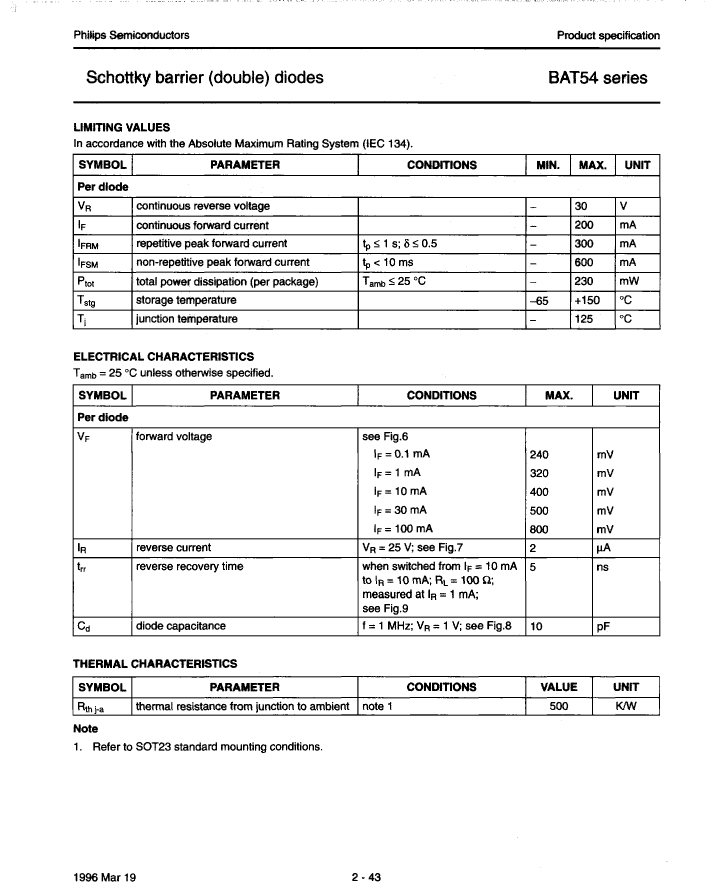

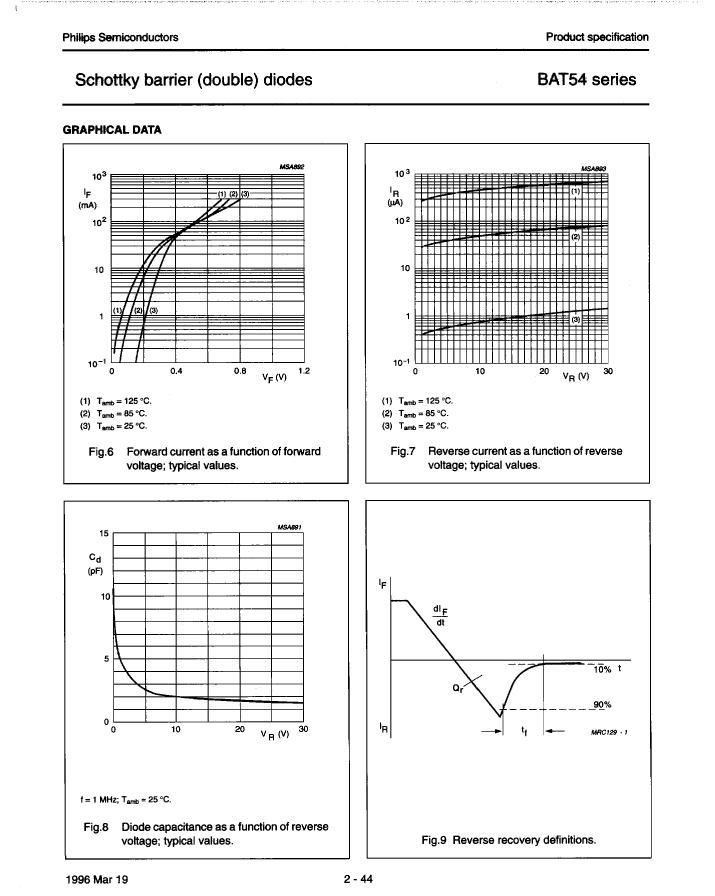

BAT54A212: Description0.2A, 2 ELEMENT, SILICON, SIGNAL DIODE; CategoryDiscrete semiconductor diode; File Size79KB，3 Pages; ManufacturerNXP; Websitehttps://www.nxp.com

Download Datasheet Parametric Compare View All

BAT54A212 Overview

0.2A, 2 ELEMENT, SILICON, SIGNAL DIODE

Parameter Name	Attribute value
Maker	NXP
package instruction	R-PDSO-G3
Reach Compliance Code	unknown
ECCN code	EAR99
Configuration	COMMON ANODE, 2 ELEMENTS
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
Maximum forward voltage (VF)	0.8 V
JESD-30 code	R-PDSO-G3
Maximum non-repetitive peak forward current	0.6 A
Number of components	2
Number of terminals	3
Maximum operating temperature	125 °C
Maximum output current	0.2 A
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Maximum power dissipation	0.23 W
Certification status	Not Qualified
Maximum reverse current	2 µA
Maximum reverse recovery time	0.005 µs
surface mount	YES
technology	SCHOTTKY
Terminal form	GULL WING
Terminal location	DUAL

	BAT54A212	BAT54212	BAT54C212	BAT54S212
Description	0.2A, 2 ELEMENT, SILICON, SIGNAL DIODE	0.2A, SILICON, SIGNAL DIODE	0.2A, 2 ELEMENT, SILICON, SIGNAL DIODE	0.2A, 2 ELEMENT, SILICON, SIGNAL DIODE
package instruction	R-PDSO-G3	R-PDSO-G3	R-PDSO-G3	R-PDSO-G3
Reach Compliance Code	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99
Configuration	COMMON ANODE, 2 ELEMENTS	SINGLE	COMMON CATHODE, 2 ELEMENTS	SERIES CONNECTED, CENTER TAP, 2 ELEMENTS
Diode component materials	SILICON	SILICON	SILICON	SILICON
Diode type	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE
Maximum forward voltage (VF)	0.8 V	0.8 V	0.8 V	0.8 V
JESD-30 code	R-PDSO-G3	R-PDSO-G3	R-PDSO-G3	R-PDSO-G3
Maximum non-repetitive peak forward current	0.6 A	0.6 A	0.6 A	0.6 A
Number of components	2	1	2	2
Number of terminals	3	3	3	3
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C
Maximum output current	0.2 A	0.2 A	0.2 A	0.2 A
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE
Maximum power dissipation	0.23 W	0.23 W	0.23 W	0.23 W
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum reverse current	2 µA	2 µA	2 µA	2 µA
Maximum reverse recovery time	0.005 µs	0.005 µs	0.005 µs	0.005 µs
surface mount	YES	YES	YES	YES
technology	SCHOTTKY	SCHOTTKY	SCHOTTKY	SCHOTTKY
Terminal form	GULL WING	GULL WING	GULL WING	GULL WING
Terminal location	DUAL	DUAL	DUAL	DUAL
Maker	NXP	-	NXP	NXP
