3.3V MULTI-QUEUE FLOW-CONTROL DEVICES
(32 QUEUES) 18 BIT WIDE CONFIGURATION
1,179,648 bits
2,359,296 bits
IDT72V51543
IDT72V51553
•
•
•
•
FEATURES:
•
•
•
•
•
•
•
•
•
•
•
Choose from among the following memory density options:
IDT72V51543
Total Available Memory = 1,179,648 bits
IDT72V51553
Total Available Memory = 2,359,296 bits
Configurable from 1 to 32 Queues
166 MHz High speed operation (6ns cycle time)
3.7ns access time
Queues may be configured at master reset from the pool of
Total Available Memory in blocks of 512 x 18 or 1,024 x 9
Independent Read and Write access per queue
User programmable via serial port
Default multi-queue device configurations
-IDT72V51543: 2,048 x 18 x 32Q or 4,096 x 9 x 32Q
-IDT72V51553: 4,096 x 18 x 32Q or 8,192 x 9 x 32Q
100% Bus Utilization, Read and Write on every clock cycle
Individual, Active queue flags (OV,
FF, PAE, PAF)
8 bit parallel flag status on both read and write ports
•
•
•
•
•
•
•
Shows
PAE
and
PAF
status of 8 Queues
Direct or polled operation of flag status bus
Global Bus Matching - (All Queues have same Input Bus Width
and Output Bus Width)
User Selectable Bus Matching Options:
- x18in to x18out
- x9in to x18out
- x18in to x9out
- x9in to x9out
FWFT mode of operation on read port
Partial Reset, clears data in single Queue
Expansion of up to 8 multi-queue devices in parallel is available
JTAG Functionality (Boundary Scan)

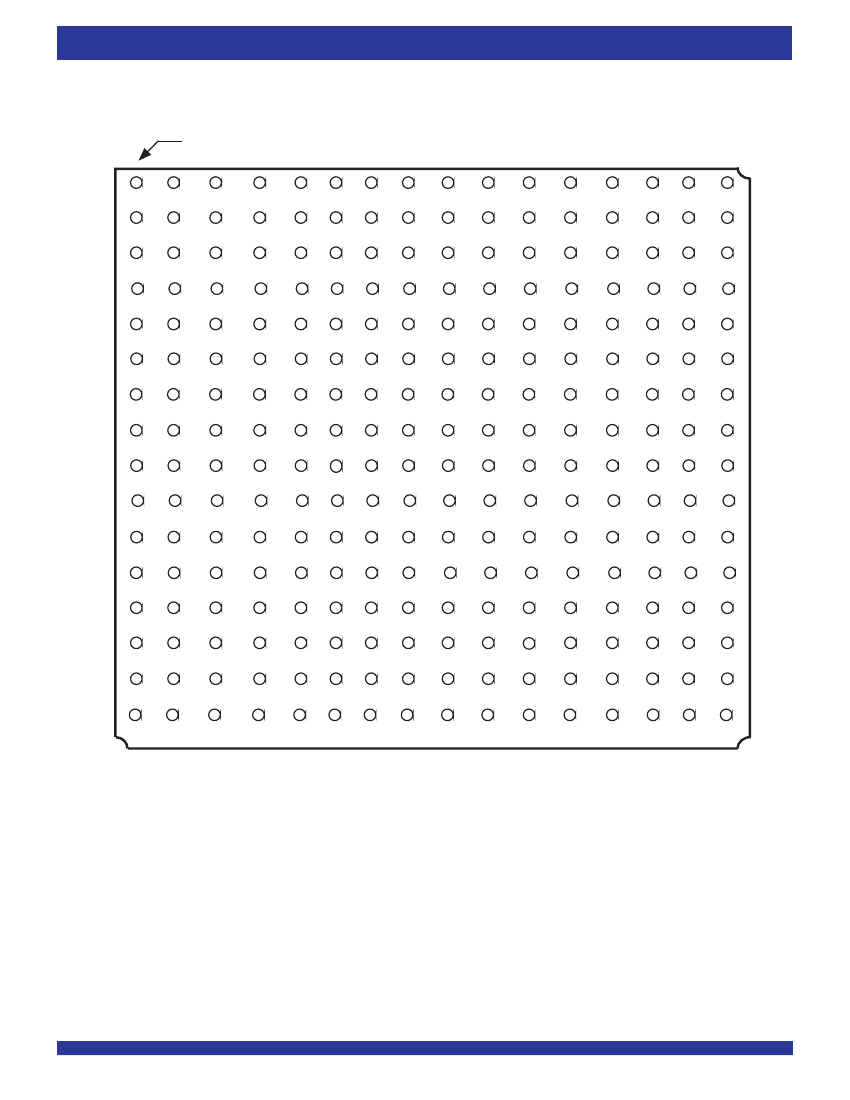

Available in a 256-pin PBGA, 1mm pitch, 17mm x 17mm
HIGH Performance submicron CMOS technology
Industrial temperature range (-40°C to +85°C) is available
FUNCTIONAL BLOCK DIAGRAM
MULTI-QUEUE FLOW-CONTROL DEVICE
Q
0
FSTR
WRADD
WEN
WCLK
8
READ CONTROL
WADEN
RADEN
ESTR
8
WRITE CONTROL
Q
1
RDADD
REN
RCLK
OE
Q
2
Din
Qout
x9, x18
DATA OUT
WRITE FLAGS
READ FLAGS
OV
PAE
PAEn
x9, x18
DATA IN
FF
PAF
PAFn
8
Q
31
8
5938 drw01
IDT and the IDT logo are registered trademarks of Integrated Device Technology, Inc
COMMERCIAL AND INDUSTRIAL TEMPERATURE RANGES
1
2003
Integrated Device Technology, Inc. All rights reserved. Product specifications subject to change without notice.
JUNE 2003
DSC-5938/8
IDT72V51543/72V51553 3.3V, MULTI-QUEUE FLOW-CONTROL DEVICES
(32 QUEUES) 18 BIT WIDE CONFIGURATION 1,179,648 and 2,359,296 bits
COMMERCIAL AND INDUSTRIAL
TEMPERATURE RANGES
DESCRIPTION:
The IDT72V51543/72V51553 multi-queue flow-control devices are single
chip within which anywhere between 1 and 32 discrete FIFO queues can be
setup. All queues within the device have a common data input bus, (write port)
and a common data output bus, (read port). Data written into the write port is
directed to a respective queue via an internal de-multiplex operation, ad-
dressed by the user. Data read from the read port is accessed from a respective
queue via an internal multiplex operation, addressed by the user. Data writes
and reads can be performed at high speeds up to 166MHz, with access times
of 3.7ns. Data write and read operations are totally independent of each other,
a queue maybe selected on the write port and a different queue on the read
port or both ports may select the same queue simultaneously.
The device provides Full flag and Output Valid flag status for the queue
selected for write and read operations respectively. Also a Programmable
Almost Full and Programmable Almost Empty flag for each queue is provided.
Two 8 bit programmable flag busses are available, providing status of queues
not selected for write or read operations. When 8 or less queues are configured
in the device these flag busses provide an individual flag per queue, when
more than 8 queues are used, either a Polled or Direct mode of bus operation
provides the flag busses with all queues status.
Bus Matching is available on this device, either port can be 9 bits or 18 bits
wide. When Bus Matching is used the device ensures the logical transfer of data
throughput in a Little Endian manner.
The user has full flexibility configuring queues within the device, being able
to program the total number of queues between 1 and 32, the individual queue
depths being independent of each other. The programmable flag positions are
also user programmable. All programming is done via a dedicated serial port.
If the user does not wish to program the multi-queue device, a default option is
available that configures the device in a predetermined manner.
Both Master Reset and Partial Reset pins are provided on this device. A Master
Reset latches in all configuration setup pins and must be performed before
programming of the device can take place. A Partial Reset will reset the read and
write pointers of an individual queue, provided that the queue is selected on both
the write port and read port at the time of partial reset.
A JTAG test port is provided, here the multi-queue flow-control device has a
fully functional Boundary Scan feature, compliant with IEEE 1149.1 Standard
Test Access Port and Boundary Scan Architecture.
See Figure 1,
Multi-Queue Flow-Control Device Block Diagram
for an outline
of the functional blocks within the device.
2
IDT72V51543/72V51553 3.3V, MULTI-QUEUE FLOW-CONTROL DEVICES
(32 QUEUES) 18 BIT WIDE CONFIGURATION 1,179,648 and 2,359,296 bits
COMMERCIAL AND INDUSTRIAL
TEMPERATURE RANGES
DETAILED DESCRIPTION
MULTI-QUEUE STRUCTURE
The IDT multi-queue flow-control device has a single data input port and
single data output port with up to 32 FIFO queues in parallel buffering between
the two ports. The user can setup between 1 and 32 Queues within the device.
These queues can be configured to utilize the total available memory, providing
the user with full flexibility and ability to configure the queues to be various depths,
independent of one another.
MEMORY ORGANIZATION/ ALLOCATION
The memory is organized into what is known as “blocks”, each block being
512 x 18 or 1,024 x 9 bits. When the user is configuring the number of queues
and individual queue sizes the user must allocate the memory to respective
queues, in units of blocks, that is, a single queue can be made up from 0 to m
blocks, where m is the total number of blocks available within a device. Also the
total size of any given queue must be in increments of 512 x 18 or 1,024 x 9.
For the IDT72V51543 and IDT72V51553 the Total Available Memory is 128
and 256 blocks respectively (a block being 512 x 18 or 1,024 x 9). If any port
is configured for x18 bus width, a block size is 512 x 18. If both the write and
read ports are configured for x9 bus width, a block size is 1,024 x 9. Queues
can be built from these blocks to make any size queue desired and any number
of queues desired.
BUS WIDTHS
The input port is common to all queues within the device, as is the output port.
The device provides the user with Bus Matching options such that the input port
and output port can be either x9 or x18 bits wide, the read and write port widths
being set independently of one another. Because the ports are common to all
queues the width of the queues is not individually set, so that the input width of
all queues are equal and the output width of all queues are equal.
WRITING TO & READING FROM THE MULTI-QUEUE
Data being written into the device via the input port is directed to a discrete
queue via the write queue select address inputs. Conversely, data being read
from the device read port is read from a queue selected via the read queue select
address inputs. Data can be simultaneously written into and read from the same
queue or different queues. Once a queue is selected for data writes or reads,
the writing and reading operation is performed in the same manner as a
conventional IDT synchronous FIFO, utilizing clocks and enables, there is a
single clock and enable per port. When a specific queue is addressed on the
write port, data placed on the data inputs is written to that queue sequentially
based on the rising edge of a write clock provided setup and hold times are met.
Conversely, data is read on to the output port after an access time from a rising
edge on a read clock.
The operation of the write port is comparable to the function of a conventional
FIFO operating in standard IDT mode. Write operations can be performed on
the write port provided that the queue currently selected is not full, a full flag output
provides status of the selected queue. The operation of the read port is
comparable to the function of a conventional FIFO operating in FWFT mode.
When a queue is selected on the output port, the next word in that queue will
automatically fall through to the output register. All subsequent words from that
queue require an enabled read cycle. Data cannot be read from a selected
queue if that queue is empty, the read port provides an Output Valid flag indicating
when data read out is valid. If the user switches to a queue that is empty, the
last word from the previous queue will remain on the output register.
As mentioned, the write port has a full flag, providing full status of the selected
queue. Along with the full flag a dedicated almost full flag is provided, this almost
full flag is similar to the almost full flag of a conventional IDT FIFO. The device
provides a user programmable almost full flag for all 32 queues and when a
respective queue is selected on the write port, the almost full flag provides status
for that queue. Conversely, the read port has an output valid flag, providing
status of the data being read from the queue selected on the read port. As well
as the output valid flag the device provides a dedicated almost empty flag. This
almost empty flag is similar to the almost empty flag of a conventional IDT FIFO.
The device provides a user programmable almost empty flag for all 32 queues
and when a respective queue is selected on the read port, the almost empty flag
provides status for that queue.
PROGRAMMABLE FLAG BUSSES
In addition to these dedicated flags, full & almost full on the write port and output
valid & almost empty on the read port, there are two flag status busses. An almost
full flag status bus is provided, this bus is 8 bits wide. Also, an almost empty flag
status bus is provided, again this bus is 8 bits wide. The purpose of these flag
busses is to provide the user with a means by which to monitor the data levels
within queues that may not be selected on the write or read port. As mentioned,
the device provides almost full and almost empty registers (programmable by
the user) for each of the 32 queues in the device.
In the IDT72V51543/72V51553 multi-queue flow-control devices the user
has the option of utilizing anywhere between 1 and 32 queues, therefore the
8 bit flag status busses are multiplexed between the 32 queues, a flag bus can
only provide status for 8 of the 32 queues at any moment, this is referred to as
a “Quadrant”, such that when the bus is providing status of queues 1 through
8, this is quadrant 1, when it is queues 9 through 16, this is quadrant 2 and so
on up to quadrant 4. If less than 32 queues are setup in the device, there are
still 4 quadrants, such that in “Polled” mode of operation the flag bus will still cycle
through 4 quadrants. If for example only 22 queues are setup, quadrants 1 and
2 will reflect status of queues 1 through 8 and 9 through 16 respectively.
Quadrant 3 will reflect the status of queues 17 through 22 on the least significant
6 bits, the most significant 2 bits of the flag bus are don’t care and the 4th quadrant
outputs will be don’t care also.
The flag busses are available in two user selectable modes of operation,
“Polled” or “Direct”. When operating in polled mode a flag bus provides status
of each quadrant sequentially, that is, on each rising edge of a clock the flag bus
is updated to show the status of each quadrant in order. The rising edge of the
write clock will update the almost full bus and a rising edge on the read clock will
update the almost empty bus. The mode of operation is always the same for both
the almost full and almost empty flag busses. When operating in direct mode, the
quadrant on the flag bus is selected by the user. So the user can actually address
the quadrant to be placed on the flag status busses, these flag busses operate
independently of one another. Addressing of the almost full flag bus is done via
the write port and addressing of the almost empty flag bus is done via the read port.
EXPANSION
Expansion of multi-queue devices is also possible, up to 8 devices can be
connected in a parallel fashion providing the possibility of both depth expansion
or queue expansion. Depth Expansion means expanding the depths of
individual queues. Queue expansion means increasing the total number of
queues available. Depth expansion is possible by virtue of the fact that more
memory blocks within a multi-queue device can be allocated to increase the
depth of a queue. For example, depth expansion of 8 devices provides the
possibility of 8 queues of 64K x 18 deep within the IDT72V51543, and 128k x
5
Microcontroller MCU
京公网安备 11010802033920号
EEWORLD
