CDRH125NP220MB datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> inductor> CDRH125NP220MB

CDRH125NP220MB: Description1 ELEMENT, 22uH, FERRITE-CORE, GENERAL PURPOSE INDUCTOR, SMD, ROHS COMPLIANT; CategoryPassive components inductor; File Size171KB，3 Pages; ManufacturerSUMIDA; Websitehttp://www.sumida.com/; Environmental Compliance

Download Datasheet Parametric View All

CDRH125NP220MB Overview

1 ELEMENT, 22uH, FERRITE-CORE, GENERAL PURPOSE INDUCTOR, SMD, ROHS COMPLIANT

CDRH125NP220MB Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	SUMIDA
Reach Compliance Code	unknown
core material	FERRITE
DC Resistance	0.036 Ω
Nominal inductance(L)	22 µH
Inductor Applications	POWER INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
Manufacturer's serial number	CDRH125
Number of functions	1
Number of terminals	2
Maximum rated current	2.8 A
Shape/Size Description	RECTANGULAR PACKAGE
shield	YES
surface mount	YES
Terminal location	DUAL ENDED
Terminal shape	WRAPAROUND
Test frequency	0.001 MHz
Tolerance	20%

Preview

Download Datasheet

View All

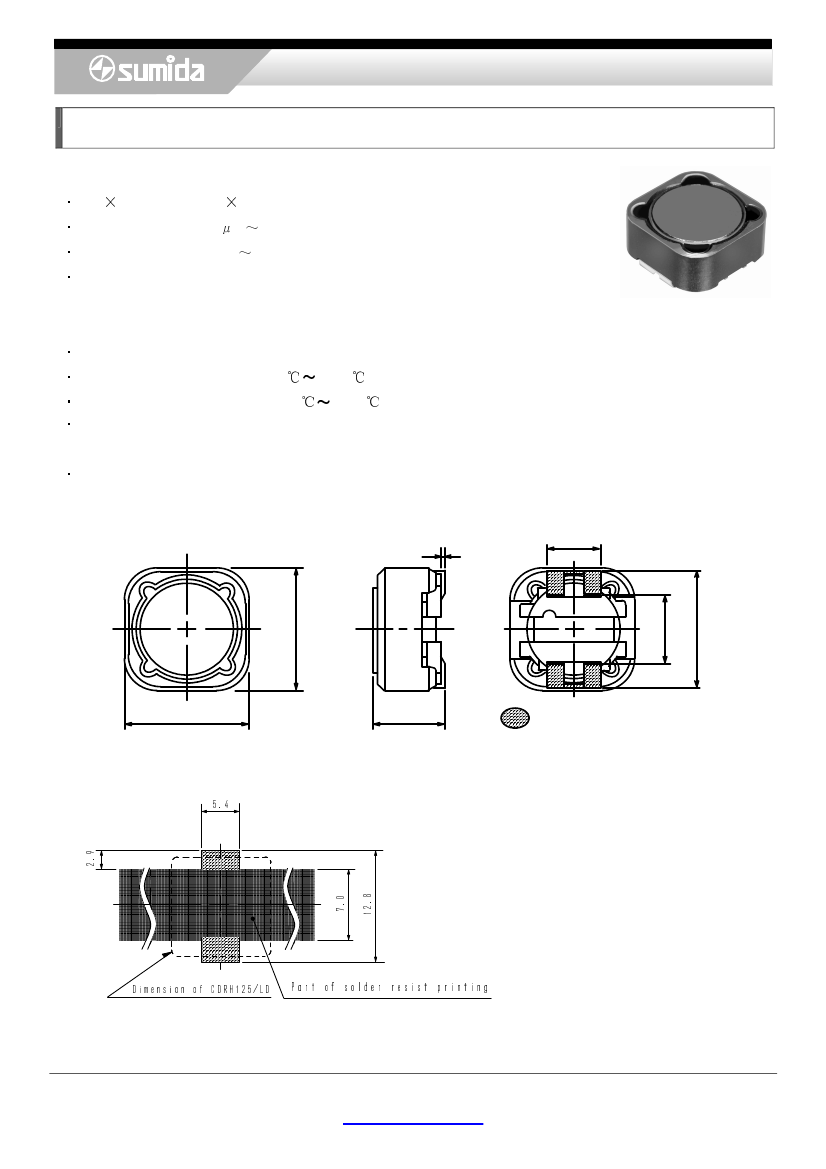

Power Inductors <SMD Type: CDRH Series>

Type: CDRH125

◆

Product Description

12.3 12.3mm Max.(L W ), 6.0mm Max. Height.

Inductance range:

1.3 H 1.0mH.

Rated current range:

0.4 8.0A.

Custom design is available.

◆

Feature

Magnetically shielded construction.

Operating temperature range: -40

+100 (Including coil’s self temperature rise).

Ideally used in Notebook PC, LCD TV,DVD, Game machine, STB ,Projector etc as DC-DC converter

inductors.

RoHS compliance and Halogen Free.

◆

Dimensions (mm)

12.0±0.3

Max.6.0

Electrode

◆

Land Pattern (mm)

4.5

◆

Specification

Please refer to the sales offices on our website for a representative near you

www.sumida.com

11.8±0.2

7.6±0.2

g ni t n i rp t s i se r r e dl o s fo t r a P

℃ ½℃

Storage temperature range: -40

DL/521HRDC fo noisnemiD

½μ

・

+100 .

0.2

5.0

1/3
