B7PS-BC-1: DescriptionBoard Connector, 7 Contact(s), 1 Row(s), Male, Right Angle, Solder Terminal,; CategoryThe connector The connector; File Size1MB，1 Pages; ManufacturerJST

Download Datasheet Parametric View All

B7PS-BC-1 Overview

Board Connector, 7 Contact(s), 1 Row(s), Male, Right Angle, Solder Terminal,

B7PS-BC-1 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	JST
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	SIDE ENTRY
Connector type	BOARD CONNECTOR
Contact to complete cooperation	TIN OVER COPPER
Contact completed and terminated	TIN OVER COPPER
Contact point gender	MALE
Contact material	BRASS
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e3
MIL compliance	NO
Manufacturer's serial number	BC
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of rows loaded	1
Options	GENERAL PURPOSE
Terminal pitch	2 mm
Termination type	SOLDER
Total number of contacts	7
UL Flammability Code	94V-0

Preview

Download Datasheet

View All

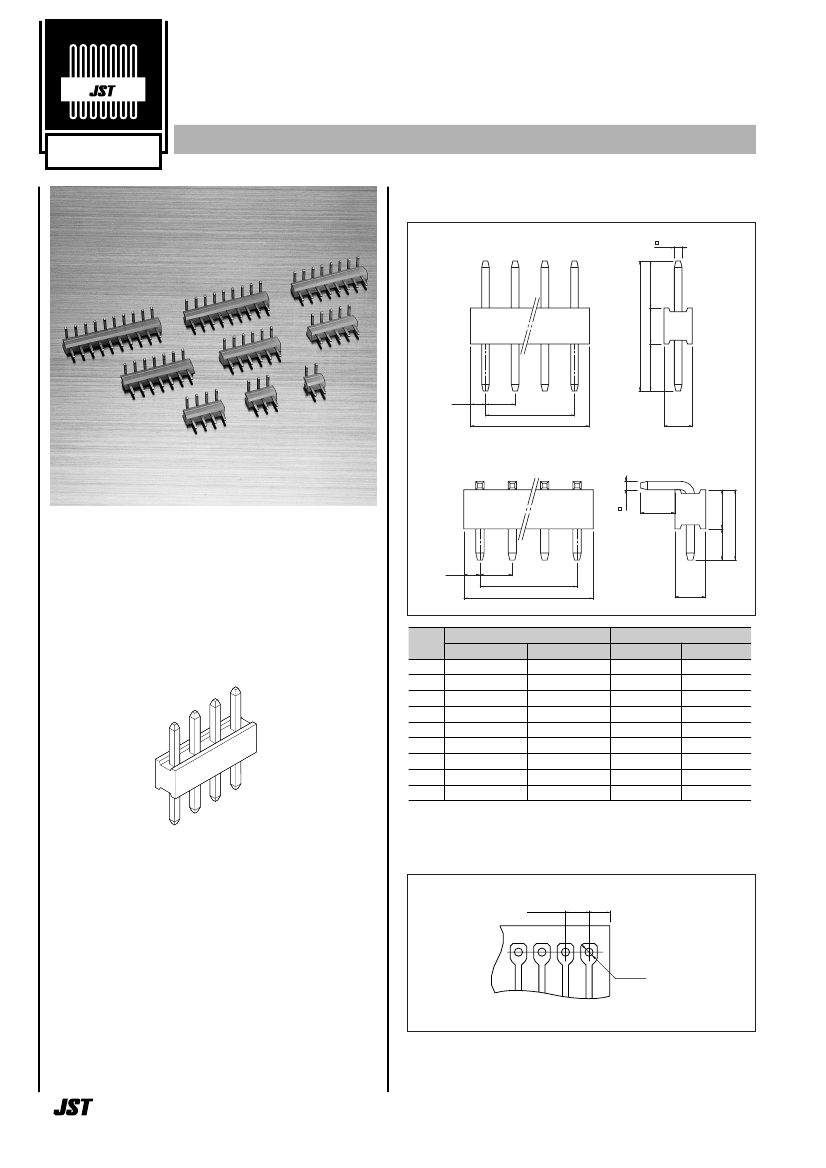

HEADER

2.0mm

pitch

Headers

Header –––––––––––––––––––––––––––––

Top enry type

0.5

(1.0)

2.0

Side entry type

0.5

3.0

8.5

2.5

3.0

2.5

Measuring 2.0mm in pitch, this compact

header is designed for direct board-to-

board connection. Available in two types:

the top entry type and the side entry type.

In addition to the BC header, JST also

offers the SB header having 2.5mm and

2.54mm pitches.

Only the standard specifications are listed

in this catalog. Contact JST for special

specifications.

2.5

2.0

(1.0)

2.0

Circuits

Model No.

Top entry type

B 2P-BC-2

B 3P-BC-2

B 4P-BC-2

B 5P-BC-2

B 6P-BC-2

B 7P-BC-2

B 8P-BC-2

B 9P-BC-2

B10P-BC-2

Side entry type

B 2PS-BC-1

B 3PS-BC-1

B 4PS-BC-1

B 5PS-BC-1

B 6PS-BC-1

B 7PS-BC-1

B 8PS-BC-1

B 9PS-BC-1

B10PS-BC-1

Dimensions (mm)

2.0

4.0

6.0

8.0

10.0

12.0

14.0

16.0

18.0

4.0

6.0

8.0

10.0

12.0

14.0

16.0

18.0

20.0

RoHS compliance

This product displays (LF)(SN) on a label.

Specifications –––––––––––––––––

• Temperature range: -25˚C to +85˚C

(including temperature rise in applying

electrical current)

• Material and finish: Post/Brass, copper-undercoated,

tin-plated (reflow treatment)

Wafer/PA 66, UL94V-0

• Applicable PC board thickness: 1.6mm

* Compliant with RoHS.

* Refer to "General Instruction and Notice when using

Terminals and Connectors" at the end of this catalog.

* Contact JST for details.

PC board layout

(viewed from soldering side)

––

2.0±0.05

1.0min.

0.7

+0.1

Standards ––––––––––––––––––––

Recognized E60389

Note:

1. Tolerances are non-cumulative: ±0.05mm for all centers.

2. Hole dimensions differ according to the kind of PC board and piercing

method. The dimensions above should serve as a guideline.

Contact JST for details.

2.5

5.0
