4Mb: 256K x 18, 128K x 32/36
3.3V I/O PIPELINED, DCD SYNCBURST SRAM
4Mb SYNCBURST
™
SRAM
FEATURES
• Fast clock and OE# access times
• Single +3.3V +0.3V/-0.165V power supply (V
DD
)
• Separate +3.3V isolated output buffer supply
(V
DD
Q)
• SNOOZE MODE for reduced-power standby
• Common data inputs and data outputs
• Individual BYTE WRITE control and GLOBAL
WRITE
• Three chip enables for simple depth expansion and
address pipelining
• Clock-controlled and registered addresses, data
I/Os and control signals
• Internally self-timed WRITE cycle
• Burst control pin (interleaved or linear burst)
• Automatic power-down for portable applications
• 165-pin FBGA package
• 100-pin TQFP package
• 119-pin BGA package
• Low capacitive bus loading
• x18, x32, and x36 versions available
MT58L256L18D1, MT58L128L32D1,
MT58L128L36D1
3.3V V
DD
, 3.3V I/O, Pipelined, Double-
Cycle Deselect

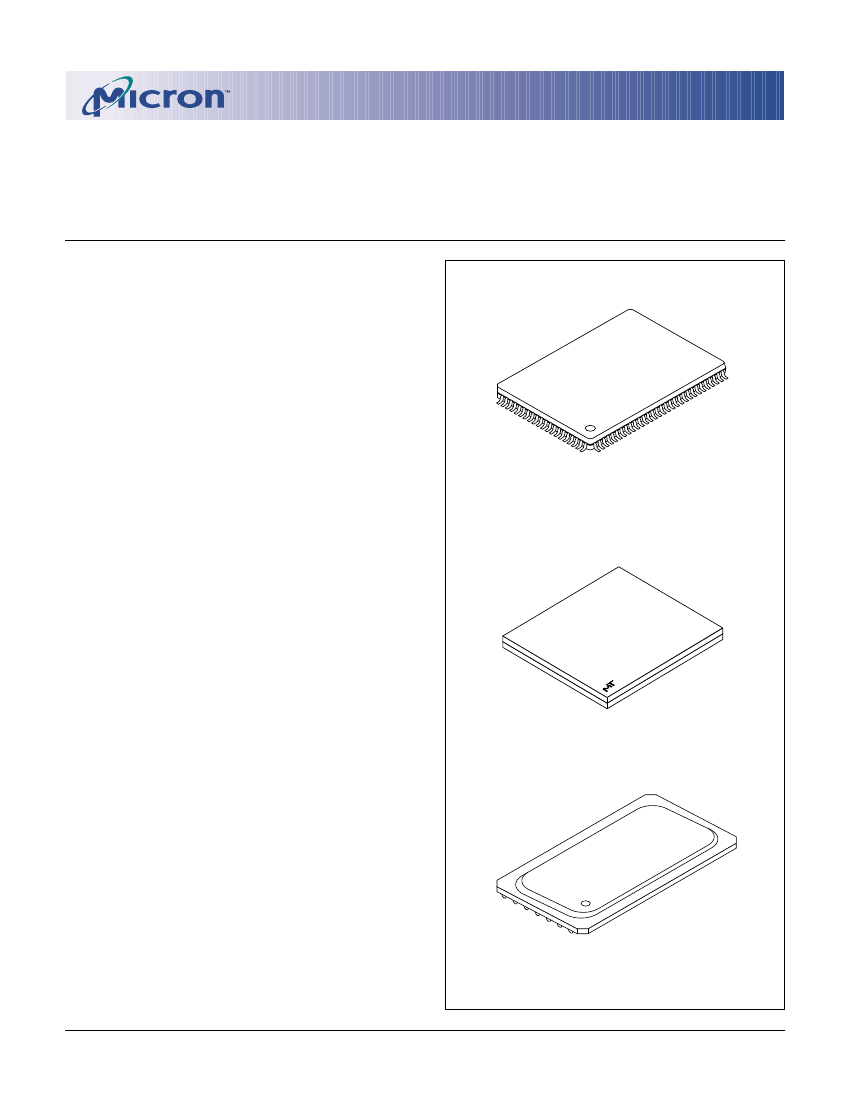

100-Pin TQFP
1
165-Pin FBGA
(Preliminary Package Data)
OPTIONS
• Timing (Access/Cycle/MHz)
3.5ns/6ns/166 MHz
4.0ns/7.5ns/133 MHz
5ns/10ns/100 MHz
• Configurations
256K x 18
128K x 32
128K x 36
• Packages
100-pin TQFP
165-pin FBGA
119-pin, 14mm x 22mm BGA
• Operating Temperature Range
Commercial (0°C to +70°C)
Industrial (-40°C to +85°C)**
Part Number Example:
MARKING
-6
-7.5
-10
MT58L256L18D1
MT58L128L32D1
MT58L128L36D1
T
F*
B
None
IT
119-Pin BGA
2
MT58L256L18D1T-6
* A Part Marking Guide for the FBGA devices can be found on Micron’s
Web site—http://www.micron.com/support/index.html.
** Industrial temperature range offered in specific speed grades and
configurations. Contact factory for more information.
NOTE:
1. JEDEC-standard MS-026 BHA (LQFP).
2. JEDEC-standard MS-028 BHA (PBGA).
4Mb: 256K x 18, 128K x 32/36 3.3V I/O Pipelined, DCD SyncBurst SRAM
MT58L256L18D1_D.p65 – Rev. 10/01
1
Micron Technology, Inc., reserves the right to change products or specifications without notice.
©2001, Micron Technology, Inc.
4Mb: 256K x 18, 128K x 32/36
3.3V I/O PIPELINED, DCD SYNCBURST SRAM

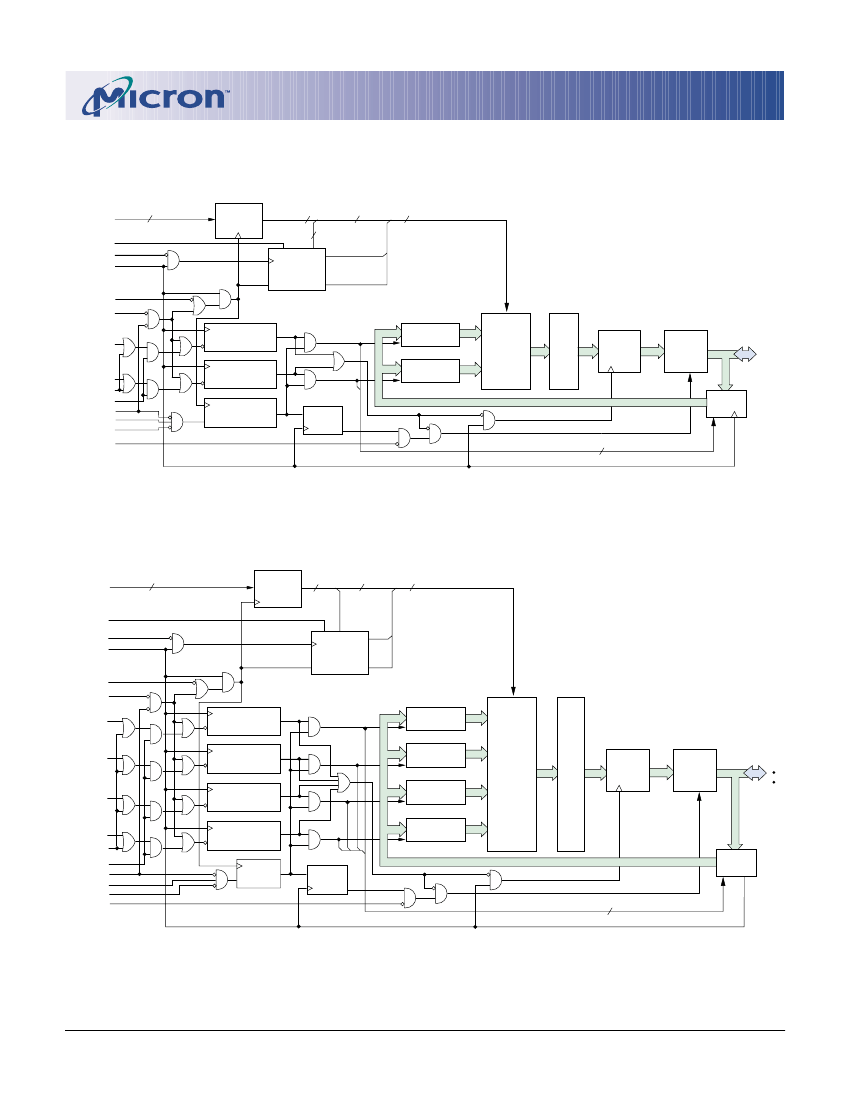

FUNCTIONAL BLOCK DIAGRAM
256K x 18
19
SA0, SA1, SA
MODE
ADV#
CLK
ADDRESS
REGISTER
19
17
19
2
SA0-SA1
SA1'
BINARY Q1
COUNTER AND
LOGIC
CLR
Q0
SA0'
ADSC#
ADSP#
BYTE “b”
WRITE REGISTER
9
BYTE “b”
WRITE DRIVER
9
512K x 9 x 2
MEMORY
ARRAY
9
18
SENSE 18
AMPS
BWb#
OUTPUT
18
REGISTERS
OUTPUT
BUFFERS
E
18
BWa#
BWE#
GW#
CE#
CE2
CE2#
OE#
BYTE “a”
WRITE REGISTER
9
BYTE “a”
WRITE DRIVER
DQs
DQPa
DQPb
ENABLE
REGISTER
18
PIPELINED
ENABLE
2
INPUT
REGISTERS
FUNCTIONAL BLOCK DIAGRAM
128K x 32/36
18
SA0, SA1, SA
ADDRESS
REGISTER
16
SA0-SA1
18
MODE
ADV#
CLK
Q1
SA1'
BINARY
COUNTER
SA0'
CLR
Q0
ADSC#
ADSP#
BWd#
BYTE “d”
WRITE REGISTER
BYTE “c”
WRITE REGISTER
9
BYTE
“d”
WRITE DRIVER
BYTE
“c”
WRITE DRIVER
BYTE
“b”
WRITE DRIVER
BYTE
“a”
WRITE DRIVER
9
BWc#
9
9
256K x 8 x 4
(x32)
256K x 9 x 4
(x36)
36
SENSE
AMPS
36
OUTPUT
REGISTERS
36
BWb#
BYTE “b”
WRITE REGISTER
9
9
MEMORY
ARRAY
OUTPUT
BUFFERS
E
DQs
DQPa
36
DQPd
BWa#
BWE#
GW#
CE#
CE2
CE2#
OE#
BYTE “a”
WRITE REGISTER
9
9
ENABLE
REGISTER
36
PIPELINED
ENABLE
4
INPUT
REGISTERS
NOTE:
Functional block diagrams illustrate simplified device operation. See truth tables, pin descriptions, and timing diagrams
for detailed information.
4Mb: 256K x 18, 128K x 32/36 3.3V I/O Pipelined, DCD SyncBurst SRAM
MT58L256L18D1_D.p65 – Rev. 10/01
2
Micron Technology, Inc., reserves the right to change products or specifications without notice.
©2001, Micron Technology, Inc.
4Mb: 256K x 18, 128K x 32/36
3.3V I/O PIPELINED, DCD SYNCBURST SRAM
GENERAL DESCRIPTION
The Micron
®
SyncBurst
™
SRAM family employs
high-speed, low-power CMOS designs that are fabri-
cated using an advanced CMOS process.
Micron’s 4Mb SyncBurst SRAMs integrate a 256K x
18, 128K x 32, or 128K x 36 SRAM core with advanced
synchronous peripheral circuitry and a 2-bit burst
counter. All synchronous inputs pass through registers
controlled by a positive-edge-triggered single clock
input (CLK). The synchronous inputs include all ad-
dresses, all data inputs, active LOW chip enable (CE#),
two additional chip enables for easy depth expansion
(CE2, CE2#), burst control inputs (ADSC#, ADSP#,
ADV#), byte write enables (BWx#) and global write
(GW#).
Asynchronous inputs include the output enable
(OE#), clock (CLK) and snooze enable (ZZ). There is also
a burst mode input (MODE) that selects between inter-
leaved and linear burst modes. The data-out (Q), en-
abled by OE#, is also asynchronous. WRITE cycles can
be from one to two bytes wide (x18) or from one to four
bytes wide (x32/x36), as controlled by the write control
inputs.
Burst operation can be initiated with either address
status processor (ADSP#) or address status controller
(ADSC#) inputs. Subsequent burst addresses can be
internally generated as controlled by the burst advance
input (ADV#).
Address and write control are registered on-chip to
simplify WRITE cycles. This allows self-timed write
cycles. Individual byte enables allow individual bytes
to be written. During WRITE cycles on the x18 device,
BWa# controls DQas and DQPa; BWb# controls DQbs
and DQPb. During WRITE cycles on the x32 and x36
devices, BWa# controls DQas and DQPa; BWb# con-
trols DQbs and DQPb; BWc# controls DQcs and DQPc;
BWd# controls DQds and DQPd. GW# LOW causes all
bytes to be written. Parity bits are only available on the
x18 and x36 versions.
This device incorporates an additional pipelined
enable register which delays turning off the output
buffer an additional cycle when a deselect is executed.
This feature allows depth expansion without penaliz-
ing system performance.
Micron’s 4Mb SyncBurst SRAMs operate from a
+3.3V V
DD
power supply, and all inputs and outputs are
TTL-compatible. The device is ideally suited for
Pentium
®
and PowerPC pipelined systems and systems
that benefit from a very wide, high-speed data bus. The
device is also ideal in generic 16-, 18-, 32-, 36-, 64-, and
72-bit-wide applications.
Please refer to Micron’s Web site (www.micron.com/
products/datasheets/syncds.html)
for the latest data
sheet.
4Mb: 256K x 18, 128K x 32/36 3.3V I/O Pipelined, DCD SyncBurst SRAM
MT58L256L18D1_D.p65 – Rev. 10/01
3
Micron Technology, Inc., reserves the right to change products or specifications without notice.
©2001, Micron Technology, Inc.
4Mb: 256K x 18, 128K x 32/36
3.3V I/O PIPELINED, DCD SYNCBURST SRAM
TQFP PIN ASSIGNMENT TABLE
PIN #
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
x32/x36
NC/DQPc*
DQc
DQc
V
DD
Q
V
SS
NC
DQc
NC
DQc
DQb
DQc
DQb
DQc
V
SS
V
DD
Q
DQb
DQc
DQb
DQc
V
DD
V
DD
NC
V
SS
DQb
DQd
DQb
DQd
V
DD
Q
V
SS
DQb
DQd
DQb
DQd
DQPb
DQd
NC
DQd
x18
NC
NC
NC
PIN #
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
x18
x32/x36
V
SS
V
DD
Q
NC
NC
NC
DQd
DQd
NC/DQPd*
MODE
SA
SA
SA
SA
SA1
SA0
DNU
DNU
V
SS
V
DD
NF**
NF**
SA
SA
SA
SA
SA
SA
SA
PIN #
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
x32/x36
NC/DQPa*
DQa
DQa
V
DD
Q
V
SS
NC
DQa
NC
DQa
DQa
DQa
V
SS
V
DD
Q
DQa
DQa
ZZ
V
DD
NC
V
SS
DQa
DQb
DQa
DQb
V
DD
Q
V
SS
DQa
DQb
DQa
DQb
DQPa
DQb
NC
DQb
x18
NC
NC
NC
PIN #
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
x18
x32/x36
V
SS
V
DD
Q
DQb
DQb
NC/DQPb*
SA
SA
ADV#
ADSP#
ADSC#
OE#
BWE#
GW#
CLK
V
SS
V
DD
CE2#
BWa#
BWb#
NC
BWc#
NC
BWd#
CE2
CE#
SA
SA
NC
NC
SA
*No Connect (NC) is used on the x32 version. Parity (DQPx) is used on the x36 version.
**Pins 43 and 42 are reserved for address expansion, 8Mb and 16Mb respectively.
4Mb: 256K x 18, 128K x 32/36 3.3V I/O Pipelined, DCD SyncBurst SRAM
MT58L256L18D1_D.p65 – Rev. 10/01
4
Micron Technology, Inc., reserves the right to change products or specifications without notice.
©2001, Micron Technology, Inc.
4Mb: 256K x 18, 128K x 32/36
3.3V I/O PIPELINED, DCD SYNCBURST SRAM
PIN ASSIGNMENT (TOP VIEW)
100-PIN TQFP
SA
NC
NC
V
DD
Q
V
SS
NC
DQPa
DQa
DQa
V
SS
V
DD
Q
DQa
DQa
V
SS
NC
V
DD
ZZ
DQa
DQa
V
DD
Q
V
SS
DQa
DQa
NC
NC
V
SS
V
DD
Q
NC
NC
NC
SA
SA
ADV#
ADSP#
ADSC#
OE#
BWE#
GW#
CLK
V
SS
V
DD
CE2#
BWa#
BWb#
NC
NC
CE2
CE#
SA
SA
80 79 78 77 76 75 74 73 72 71 70 69 68 67 66 65 64 63 62 61 60 59 58 57 56 55 54 53 52 51
50
81
49
82
48
83
47
84
46
85
45
86
44
87
43
88
42
89
41
90
40
91
39
92
38
93
37
94
36
95
35
96
34
97
33
98
32
99
31
100
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30
x18
SA
SA
SA
SA
SA
SA
SA
NF**
NF**
V
DD
V
SS
DNU
DNU
SA0
SA1
SA
SA
SA
SA
MODE
SA
SA
ADV#
ADSP#
ADSC#
OE#
BWE#
GW#
CLK
V
SS
V
DD
CE2#
BWa#
BWb#
BWc#
BWd#
CE2
CE#
SA
SA
80 79 78 77 76 75 74 73 72 71 70 69 68 67 66 65 64 63 62 61 60 59 58 57 56 55 54 53 52 51
50
81
49
82
48
83
47
84
46
85
45
86
44
87
43
88
42
89
41
90
40
91
39
92
38
93
37
94
36
95
35
96
34
97
33
98
32
99
31
100
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30
NC/DQPb*
DQb
DQb
V
DD
Q
V
SS
DQb
DQb
DQb
DQb
V
SS
V
DD
Q
DQb
DQb
V
SS
NC
V
DD
ZZ
DQa
DQa
V
DD
Q
V
SS
DQa
DQa
DQa
DQa
V
SS
V
DD
Q
DQa
DQa
NC/DQPa*
NC
NC
NC
V
DD
Q
V
SS
NC
NC
DQb
DQb
V
SS
V
DD
Q
DQb
DQb
V
DD
V
DD
NC
V
SS
DQb
DQb
V
DD
Q
V
SS
DQb
DQb
DQPb
NC
V
SS
V
DD
Q
NC
NC
NC
x32/x36
SA
SA
SA
SA
SA
SA
SA
NF**
NF**
V
DD
V
SS
DNU
DNU
SA0
SA1
SA
SA
SA
SA
MODE
*No Connect (NC) is used on the x32 version. Parity (DQPx) is used on the x36 version.
**Pins 43 and 42 are reserved for address expansion, 8Mb and 16Mb respectively.
4Mb: 256K x 18, 128K x 32/36 3.3V I/O Pipelined, DCD SyncBurst SRAM
MT58L256L18D1_D.p65 – Rev. 10/01
NC/DQPc*
DQc
DQc
V
DD
Q
V
SS
DQc
DQc
DQc
DQc
V
SS
V
DD
Q
DQc
DQc
V
DD
V
DD
NC
V
SS
DQd
DQd
V
DD
Q
V
SS
DQd
DQd
DQd
DQd
V
SS
V
DD
Q
DQd
DQd
NC/DQPd*
5
Micron Technology, Inc., reserves the right to change products or specifications without notice.
©2001, Micron Technology, Inc.
京公网安备 11010802033920号
EEWORLD
