ML598PTA331KLC datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> inductor> ML598PTA331KLC

ML598PTA331KLC: DescriptionGeneral Purpose Inductor, 0.33uH, 10%, 1 Element, Ferrite-Core, SMD, 5050, CHIP, 5050; CategoryPassive components inductor; File Size95KB，2 Pages; ManufacturerCOILCRAFT; Websitehttp://www.coilcraft.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

ML598PTA331KLC Overview

General Purpose Inductor, 0.33uH, 10%, 1 Element, Ferrite-Core, SMD, 5050, CHIP, 5050

ML598PTA331KLC Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	COILCRAFT
package instruction	5050
Reach Compliance Code	compliant
ECCN code	EAR99
uppercase and lowercase codes	5050
structure	Flat Top
core material	FERRITE
DC Resistance	0.00085 Ω
Nominal inductance(L)	0.33 µH
Inductor Applications	POWER INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
JESD-609 code	e3
Manufacturer's serial number	ML598PTA
Number of functions	1
Number of terminals	2
Maximum operating temperature	155 °C
Minimum operating temperature	-55 °C
Package height	5.45 mm
Package length	12.7 mm
Package form	SMT
Package width	12.6 mm
method of packing	TR, 13 Inch
Maximum rated current	16.9 A
self resonant frequency	140 MHz
series	ML598PTA
Shape/Size Description	RECTANGULAR PACKAGE
shield	NO
surface mount	YES
Terminal surface	Matte Tin (Sn) - with Nickel (Ni) barrier
Terminal location	DUAL ENDED
Terminal shape	WRAPAROUND
Test frequency	0.1 MHz
Tolerance	10%

ML598PTA331KLC Preview

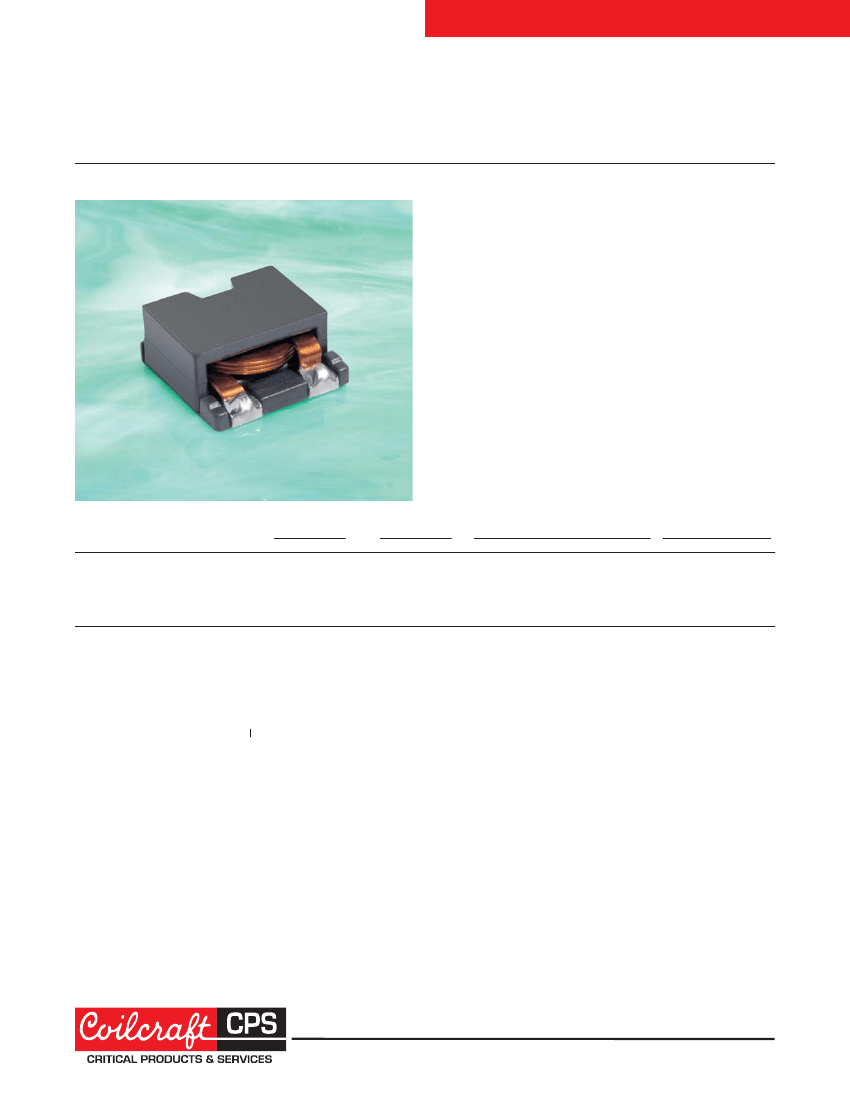

POWER INDUCTORS

High-Reliability Power Inductors

ML598PTA

■

High temperature materials allow operation in ambient

temperatures up to 155°C.

■

Excellent current handling; very low DCR

Core material

Ferrite

Terminations

Matte tin over nickel over phos bronze

Weight

2.6 – 2.8 g

Ambient temperature

–55°C to +105°C with

Irms

current, +105°C

to +155°C with derated current

Storage temperature

Component: –55°C to +155°C.

Packaging: –55°C to +80°C

Resistance to soldering heat

Max three 40 second reflows at

+260°C, parts cooled to room temperature between cycles

Moisture Sensitivity Level (MSL)

1 (unlimited floor life at <30°C /

85% relative humidity)

Enhanced crush-resistant packaging

500 per 13″ reel;

Plastic tape: 24 mm wide, 0.4 mm thick, 16 mm pocket spacing,

6.6 mm pocket depth

DCR (mOhm)

typ

max

0.77

2.36

5.50

9.83

0.85

2.60

6.05

10.81

SRF (MHz)

min

typ

140

112

52.5

35.0

29.4

23.8

22.4

19.6

18.2

16.8

200

160

75.0

50.0

42.0

34.0

32.0

28.0

26.0

24.0

Isat

(A)

10% drop 20% drop

9.5

8.0

7.5

6.2

9.0

8.5

7.0

Irms

(A)

20°C rise 40°C rise

13.0

9.5

7.1

5.5

4.4

16.9

13.0

9.4

7.6

7.2

Part number

ML598PTA331KLZ

ML598PTA651KLZ

ML598PTA102KLZ

ML598PTA182KLZ

ML598PTA272KLZ

ML598PTA402KLZ

ML598PTA472KLZ

ML598PTA602KLZ

ML598PTA802KLZ

ML598PTA103KLZ

Inductance

±10% (µH)

0.33

0.65

1.0

1.8

2.7

4.0

4.7

6.0

8.0

30% drop

33.5

9.5

9.0

7.5

1. When ordering, please specify

testing

code:

ML598PTA103KLZ

Testing: Z

= COTS

= Screening per Coilcraft CP-SA-10001

= Screening per Coilcraft CP-SA-10004

= Custom screening (please specify when ordering)

2. Inductance measured at 100 kHz, 0.1 Vrms, 0 Adc on an Agilent/HP 4284A or equivalent.

3. DCR measured on a micro-ohmmeter.

4. SRF measured using an Agilent/HP 8753D network analyzer.

5. Typical DC current at which the inductance drops 10% (typ) from its value without current.

6. Typical current that causes a 40°C temperature rise from 25°C ambient.

7. Electrical specifications at 25°C.

Refer to Doc 362 “Soldering Surface Mount Components” before soldering.

Specifications subject to change without notice.

Please check our website for latest information. Document ML290-1

Revised 09/27/10

1102 Silver Lake Road

Cary IL 60013

Phone 800-981-0363

Fax 847-639-1508

E-mail cps@coilcraft.com

Web www.coilcraft-cps.com

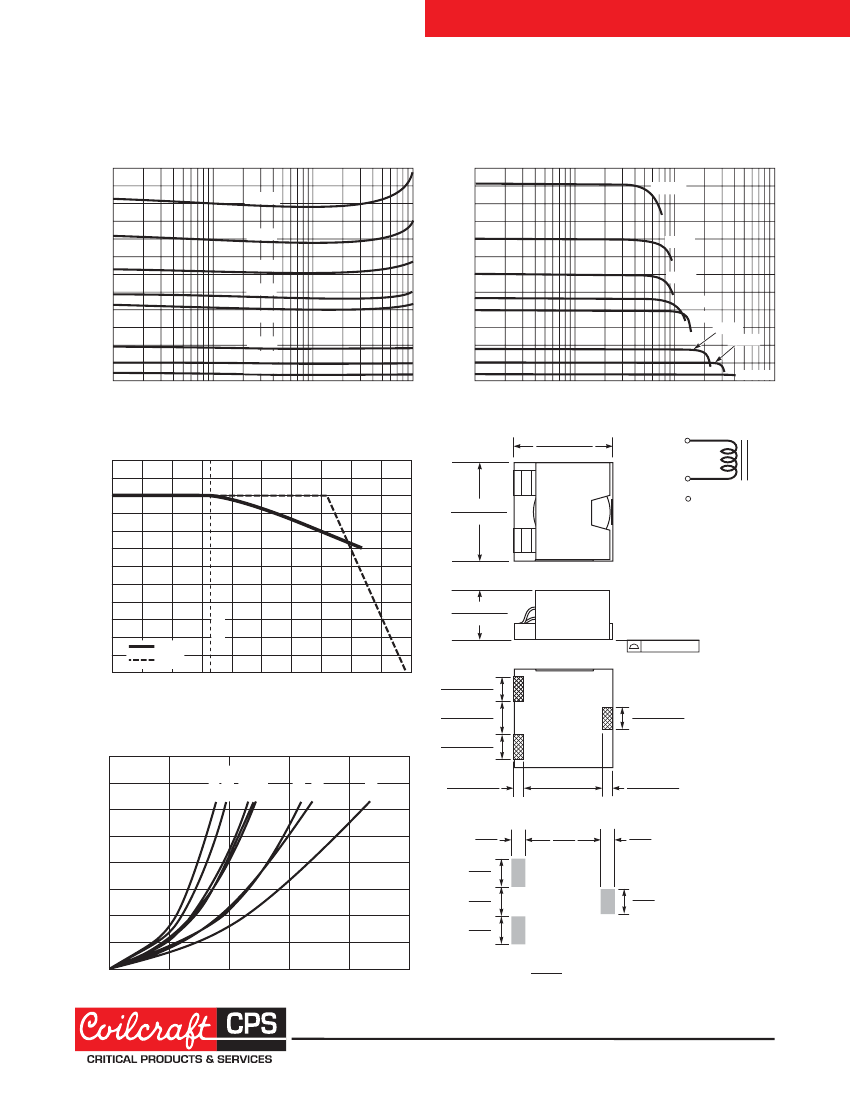

POWER INDUCTORS

ML598PTA Series

Typical L vs Frequency

10.0 µH

Typical L vs Current

6.0 µH

4.7 µH

4.0 µH

1.8 µH

1.0 µH

8.0 µH

10.0 µH

Inductance (µH)

0.01

0.1

8.0 µH

6.0 µH

4.7 µH

4.0 µH

1.8 µH

1.0 µH

0.33 µH

Inductance (µH)

0.33 µH

0.1

100

Frequency (MHz)

Current (A)

0.500 ±0.012

12,7 ±0,3

Current Derating

120

110

Percent of rated current

100

-40 -20

0.496 ±0.012

12,6 ±0,3

Terminal 3 is for

mounting stability only.

Isat

Irms

25°C

0.215 ±0.014

5,45 ±0,35

0.006 / 0,152

100

120 140 160

Ambient temperature (°C)

0.110 ±0.008

2,8 ±0,2

Temperature Rise vs Current

10.0 µH

8.0 µH

6.0 µH

4.7 µH

4.0 µH

1.8 µH

1.0 µH

0.33 µH

0.173 ±0.008

4,4 ±0,2

0.110 ±0.008

2,8 ±0,2

0.094 ±0.008

2,4 ±0,2

Temperature rise (from 25°C)

0.070 ±0.008

1,78 ±0,2

0.367 ±0.008

9,32 ±0,2

0.063 ±0.008

1,60 ±0,2

0.089

2,26

0.121

3,07

0.163

4,14

0.121

3,07

0.330

8,38

0.089

2,26

Recommended

Land Pattern

0.109

2,77

Dimensions are in

inches

Current (A rms)

Specifications subject to change without notice.

Please check our website for latest information. Document ML290-2

Revised 09/27/10

1102 Silver Lake Road

Cary IL 60013

Phone 800-981-0363

Fax 847-639-1508

E-mail cps@coilcraft.com

Web www.coilcraft-cps.com

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >

ML598PTA331KLC Related Products

	ML598PTA331KLC	ML598PTA272KLC	ML598PTA103KLC	ML598PTA651KLC	ML598PTA802KLC	ML598PTA472KLC	ML598PTA602KLC	ML598PTA402KLC	ML598PTA182KLC
Description	General Purpose Inductor, 0.33uH, 10%, 1 Element, Ferrite-Core, SMD, 5050, CHIP, 5050	General Purpose Inductor, 2.7uH, 10%, 1 Element, Ferrite-Core, SMD, 5050, CHIP, 5050	General Purpose Inductor, 10uH, 10%, 1 Element, Ferrite-Core, SMD, 5050, CHIP, 5050	General Purpose Inductor, 0.65uH, 10%, 1 Element, Ferrite-Core, SMD, 5050, CHIP, 5050	General Purpose Inductor, 8uH, 10%, 1 Element, Ferrite-Core, SMD, 5050, CHIP, 5050	General Purpose Inductor, 4.7uH, 10%, 1 Element, Ferrite-Core, SMD, 5050, CHIP, 5050	General Purpose Inductor, 6uH, 10%, 1 Element, Ferrite-Core, SMD, 5050, CHIP, 5050	General Purpose Inductor, 4uH, 10%, 1 Element, Ferrite-Core, SMD, 5050, CHIP, 5050	General Purpose Inductor, 1.8uH, 10%, 1 Element, Ferrite-Core, SMD, 5050, CHIP, 5050
Is it lead-free?	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to
Maker	COILCRAFT	COILCRAFT	COILCRAFT	COILCRAFT	COILCRAFT	COILCRAFT	COILCRAFT	COILCRAFT	COILCRAFT
package instruction	5050	5050	5050	5050	5050	5050	5050	5050	5050
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
uppercase and lowercase codes	5050	5050	5050	5050	5050	5050	5050	5050	5050
structure	Flat Top	Flat Top	Flat Top	Flat Top	Flat Top	Flat Top	Flat Top	Flat Top	Flat Top
core material	FERRITE	FERRITE	FERRITE	FERRITE	FERRITE	FERRITE	FERRITE	FERRITE	FERRITE
DC Resistance	0.00085 Ω	0.0026 Ω	0.01081 Ω	0.00085 Ω	0.01081 Ω	0.00605 Ω	0.00605 Ω	0.00605 Ω	0.0026 Ω
Nominal inductance(L)	0.33 µH	2.7 µH	10 µH	0.65 µH	8 µH	4.7 µH	6 µH	4 µH	1.8 µH
Inductor Applications	POWER INDUCTOR	POWER INDUCTOR	POWER INDUCTOR	POWER INDUCTOR	POWER INDUCTOR	POWER INDUCTOR	POWER INDUCTOR	POWER INDUCTOR	POWER INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR
JESD-609 code	e3	e3	e3	e3	e3	e3	e3	e3	e3
Manufacturer's serial number	ML598PTA	ML598PTA	ML598PTA	ML598PTA	ML598PTA	ML598PTA	ML598PTA	ML598PTA	ML598PTA
Number of functions	1	1	1	1	1	1	1	1	1
Number of terminals	2	2	2	2	2	2	2	2	2
Maximum operating temperature	155 °C	155 °C	155 °C	155 °C	155 °C	155 °C	155 °C	155 °C	155 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
Package height	5.45 mm	5.45 mm	5.45 mm	5.45 mm	5.45 mm	5.45 mm	5.45 mm	5.45 mm	5.45 mm
Package length	12.7 mm	12.7 mm	12.7 mm	12.7 mm	12.7 mm	12.7 mm	12.7 mm	12.7 mm	12.7 mm
Package form	SMT	SMT	SMT	SMT	SMT	SMT	SMT	SMT	SMT
Package width	12.6 mm	12.6 mm	12.6 mm	12.6 mm	12.6 mm	12.6 mm	12.6 mm	12.6 mm	12.6 mm
method of packing	TR, 13 Inch	TR, 13 Inch	TR, 13 Inch	TR, 13 Inch	TR, 13 Inch	TR, 13 Inch	TR, 13 Inch	TR, 13 Inch	TR, 13 Inch
Maximum rated current	16.9 A	13 A	7.2 A	16.9 A	7.6 A	9.4 A	9.4 A	9.4 A	13 A
self resonant frequency	140 MHz	29.4 MHz	16.8 MHz	112 MHz	18.2 MHz	22.4 MHz	19.6 MHz	23.8 MHz	35 MHz
series	ML598PTA	ML598PTA	ML598PTA	ML598PTA	ML598PTA	ML598PTA	ML598PTA	ML598PTA	ML598PTA
Shape/Size Description	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE
shield	NO	NO	NO	NO	NO	NO	NO	NO	NO
surface mount	YES	YES	YES	YES	YES	YES	YES	YES	YES
Terminal surface	Matte Tin (Sn) - with Nickel (Ni) barrier	Matte Tin (Sn) - with Nickel (Ni) barrier	Matte Tin (Sn) - with Nickel (Ni) barrier	Matte Tin (Sn) - with Nickel (Ni) barrier	Matte Tin (Sn) - with Nickel (Ni) barrier	Matte Tin (Sn) - with Nickel (Ni) barrier	Matte Tin (Sn) - with Nickel (Ni) barrier	Matte Tin (Sn) - with Nickel (Ni) barrier	Matte Tin (Sn) - with Nickel (Ni) barrier
Terminal location	DUAL ENDED	DUAL ENDED	DUAL ENDED	DUAL ENDED	DUAL ENDED	DUAL ENDED	DUAL ENDED	DUAL ENDED	DUAL ENDED
Terminal shape	WRAPAROUND	WRAPAROUND	WRAPAROUND	WRAPAROUND	WRAPAROUND	WRAPAROUND	WRAPAROUND	WRAPAROUND	WRAPAROUND
Test frequency	0.1 MHz	0.1 MHz	0.1 MHz	0.1 MHz	0.1 MHz	0.1 MHz	0.1 MHz	0.1 MHz	0.1 MHz
Tolerance	10%	10%	10%	10%	10%	10%	10%	10%	10%
