PTF51732R00FXR6 datasheet, PDF

Datasheet> All Categories > Passive components> The resistor> PTF51732R00FXR6

PTF51732R00FXR6: DescriptionRESISTOR, METAL FILM, 0.05 W, 1 %, 15 ppm, 732 ohm, THROUGH HOLE MOUNT, AXIAL LEADED; CategoryPassive components The resistor; File Size164KB，4 Pages; ManufacturerVishay; Websitehttp://www.vishay.com

Download Datasheet Parametric View All

PTF51732R00FXR6 Overview

RESISTOR, METAL FILM, 0.05 W, 1 %, 15 ppm, 732 ohm, THROUGH HOLE MOUNT, AXIAL LEADED

PTF51732R00FXR6 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Vishay
package instruction	Axial,
Reach Compliance Code	compliant
ECCN code	EAR99
structure	Rectangular
JESD-609 code	e0
Lead diameter	0.41 mm
Lead length	38.1 mm
Installation features	THROUGH HOLE MOUNT
Number of terminals	2
Maximum operating temperature	150 °C
Minimum operating temperature	-55 °C
Package diameter	1.78 mm
Package length	3.81 mm
Package shape	TUBULAR PACKAGE
Package form	Axial
method of packing	TR
Rated power dissipation(P)	85 W
Rated temperature	85 °C
resistance	732 Ω
Resistor type	FIXED RESISTOR
surface mount	NO
technology	METAL FILM
Temperature Coefficient	15 ppm/°C
Terminal surface	Tin/Lead (Sn/Pb)
Terminal shape	WIRE
Tolerance	1%
Operating Voltage	200 V

Preview

Download Datasheet

View All

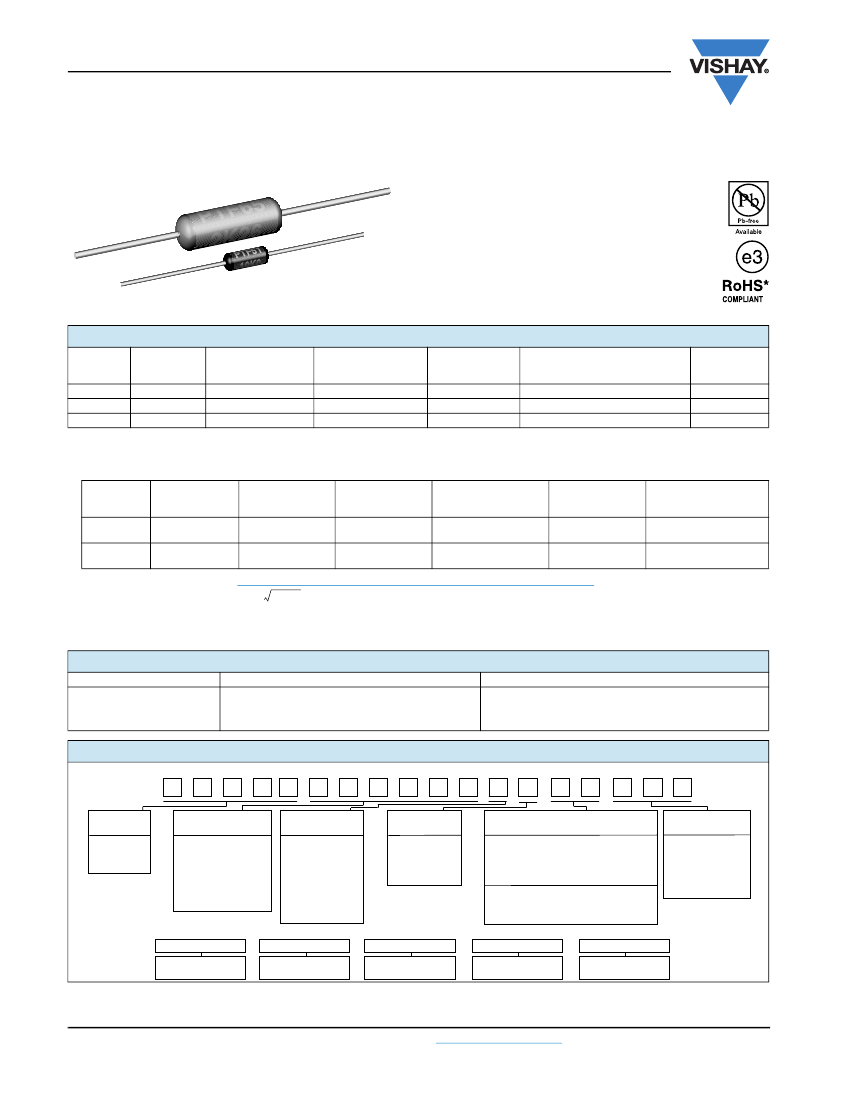

PTF

Vishay Dale

Metal Film Resistors, High Precision, High Stability

FEATURES

•

Extremely low temperature coefficient of resistance

Very low noise and voltage coefficient

Very good high frequency characteristics

Can replace wirewound bobbins

Proprietary epoxy coating provides superior

moisture protection

•

For surface mount product, see Vishay Dale’s PSF

datasheet

•

Compliant to RoHS Directive 2002/95/EC

STANDARD ELECTRICAL SPECIFICATIONS

GLOBAL HISTORICAL

MODEL

RESISTANCE

POWER RATING

(3)

LIMITING ELEMENT TEMPERATURE

TOLERANCE

RANGE

85 °C

VOLTAGE MAX.

(1)

COEFFICIENT

±%

± ppm/°C

0.05

200

5, 10, 15

0.02, 0.05, 0.1, 0.25, 0.5, 1

15 to 100K

0.125

300

5, 10, 15

0.01, 0.02, 0.05, 0.1, 0.25, 0.5, 1

15 to 500K

0.25

500

5, 10, 15

0.05, 0.1, 0.25, 0.5, 1

15 to 1M

PTF51

PTF-51

PTF56

PTF-56

PTF65

PTF-65

Notes

• Marking: Print-marked-model, value, tolerance, TC, date code

• DSCC has created a drawing to support the need for a precision axial-leaded product. Vishay Dale is listed as a resource on this drawing as

follows:

DSCC

DRAWING

NUMBER

89088

90038

VISHAY DALE

MODEL

PTF56..31,

PTF56..32

(2)

PTF65..16,

PTF65..14

(2)

POWER RATING

85 °C

0.100

0.250

RESISTANCE

RANGE

15 to 100K

TOLERANCE

±%

0.01, 0.05, 0.1, 0.5, 1

0.05, 0.1, 0.5, 1

TEMPERATURE

COEFFICIENT

± ppm/°C

5, 10

MAXIMUM WORKING

VOLTAGE

(1)

200

(1)

(2)

(3)

This drawing can be viewed at:

www.dscc.dla.mil/Programs/MilSpec/ListDwgs.asp?DocType=DSCCdwg

Continuous working voltage shall be

or maximum working voltage, whichever is less.

Hot solder dipped leads

For operation of the PTF resistors at higher power ratings, see the Load Life Shift Due to Power and Derating table. This table gives a

summary of the effects of using the PTF product at the more common combinations of power rating and case size, as well as quantifies the

load life stability under those conditions.

TEMPERATURE COEFFICIENT CODES

GLOBAL TC CODE

HISTORICAL TC CODE

T-16

T-13

T-10

TEMPERATURE COEFFICIENT

5 ppm/°C

10 ppm/°C

15 ppm/°C

GLOBAL PART NUMBER INFORMATION

New Global Part Numbering: PTF5620K500BYRE (preferred part numbering format)

GLOBAL

MODEL

PTF51

PTF56

PTF65

SPECIAL

Blank = Standard

(Dash number)

(Up to 3 digits)

From

1 to 999

as applicable

= Lead (Pb)-free,

bulk

= Lead (Pb)-free, T/R (full)

= Lead (Pb)-free,

T/R (1000 pieces)

= Tin/lead,

bulk

= Tin/lead, T/R (full)

= Tin/lead, T/R (1000 pieces)

Historical Part Number example: PTF-5620K5BT-13R36 (will continue to be accepted)

RESISTANCE

VALUE

= kΩ

= MΩ

15R000

= 15

500K00=

500 kΩ

1M0000=

1.0 MΩ

TOLERANCE

CODE

0.01

(4)

0.02

(4)

0.05

0.1

0.25

0.5

TEMP.

COEFFICIENT

= 5 ppm

= 10 ppm

= 15 ppm

= Special

PACKAGING

PTF-56

HISTORICAL

MODEL

20K5

RESISTANCE

VALUE

TOLERANCE

CODE

T-13

TEMP.

COEFFICIENT

R36

PACKAGING

Note

(4)

Historical tolerance codes were BB for 0.01 % and BC for 0.02 %

* Pb containing terminations are not RoHS compliant, exemptions may apply

www.vishay.com

For technical questions, contact:

ff2aresistors@vishay.com

Document Number: 31019

Revision: 18-Nov-10

Legal Disclaimer Notice

Vishay

Disclaimer

ALL PRODUCT, PRODUCT SPECIFICATIONS AND DATA ARE SUBJECT TO CHANGE WITHOUT NOTICE TO IMPROVE

RELIABILITY, FUNCTION OR DESIGN OR OTHERWISE.

Vishay Intertechnology, Inc., its affiliates, agents, and employees, and all persons acting on its or their behalf (collectively,

“Vishay”), disclaim any and all liability for any errors, inaccuracies or incompleteness contained in any datasheet or in any other

disclosure relating to any product.

Vishay makes no warranty, representation or guarantee regarding the suitability of the products for any particular purpose or

the continuing production of any product. To the maximum extent permitted by applicable law, Vishay disclaims (i) any and all

liability arising out of the application or use of any product, (ii) any and all liability, including without limitation special,

consequential or incidental damages, and (iii) any and all implied warranties, including warranties of fitness for particular

purpose, non-infringement and merchantability.

Statements regarding the suitability of products for certain types of applications are based on Vishay’s knowledge of typical

requirements that are often placed on Vishay products in generic applications. Such statements are not binding statements

about the suitability of products for a particular application. It is the customer’s responsibility to validate that a particular

product with the properties described in the product specification is suitable for use in a particular application. Parameters

provided in datasheets and/or specifications may vary in different applications and performance may vary over time. All

operating parameters, including typical parameters, must be validated for each customer application by the customer’s

technical experts. Product specifications do not expand or otherwise modify Vishay’s terms and conditions of purchase,

including but not limited to the warranty expressed therein.

Except as expressly indicated in writing, Vishay products are not designed for use in medical, life-saving, or life-sustaining

applications or for any other application in which the failure of the Vishay product could result in personal injury or death.

Customers using or selling Vishay products not expressly indicated for use in such applications do so at their own risk and agree

to fully indemnify and hold Vishay and its distributors harmless from and against any and all claims, liabilities, expenses and

damages arising or resulting in connection with such use or sale, including attorneys fees, even if such claim alleges that Vishay

or its distributor was negligent regarding the design or manufacture of the part. Please contact authorized Vishay personnel to

obtain written terms and conditions regarding products designed for such applications.

No license, express or implied, by estoppel or otherwise, to any intellectual property rights is granted by this document or by

any conduct of Vishay. Product names and markings noted herein may be trademarks of their respective owners.

Document Number: 91000

Revision: 11-Mar-11

www.vishay.com
