MH32V725AJ-5 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > storage> storage> MH32V725AJ-5

MH32V725AJ-5: DescriptionEDO DRAM Module, 32MX72, 50ns, CMOS, DIMM-168; Categorystorage storage; File Size655KB，22 Pages; ManufacturerMitsubishi; Websitehttp://www.mitsubishielectric.com/semiconductors/

Download Datasheet Parametric Compare View All

MH32V725AJ-5 Overview

EDO DRAM Module, 32MX72, 50ns, CMOS, DIMM-168

MH32V725AJ-5 Parametric

Parameter Name	Attribute value
Maker	Mitsubishi
Parts packaging code	DIMM
package instruction	DIMM, DIMM168
Contacts	168
Reach Compliance Code	unknown
ECCN code	EAR99
access mode	FAST PAGE WITH EDO
Maximum access time	50 ns
Other features	RAS ONLY/CAS BEFORE RAS/HIDDEN REFRESH
I/O type	COMMON
JESD-30 code	R-XDMA-N168
memory density	2415919104 bit
Memory IC Type	EDO DRAM MODULE
memory width	72
Number of functions	1
Number of ports	1
Number of terminals	168
word count	33554432 words
character code	32000000
Operating mode	ASYNCHRONOUS
Maximum operating temperature	70 °C
Minimum operating temperature
organize	32MX72
Output characteristics	3-STATE
Package body material	UNSPECIFIED
encapsulated code	DIMM
Encapsulate equivalent code	DIMM168
Package shape	RECTANGULAR
Package form	MICROELECTRONIC ASSEMBLY
power supply	3.3 V
Certification status	Not Qualified
refresh cycle	4096
Maximum seat height	41.91 mm
Maximum standby current	0.038 A
Maximum slew rate	2.378 mA
Maximum supply voltage (Vsup)	3.6 V
Minimum supply voltage (Vsup)	3 V
Nominal supply voltage (Vsup)	3.3 V
surface mount	NO
technology	CMOS
Temperature level	COMMERCIAL
Terminal form	NO LEAD
Terminal pitch	1.27 mm
Terminal location	DUAL

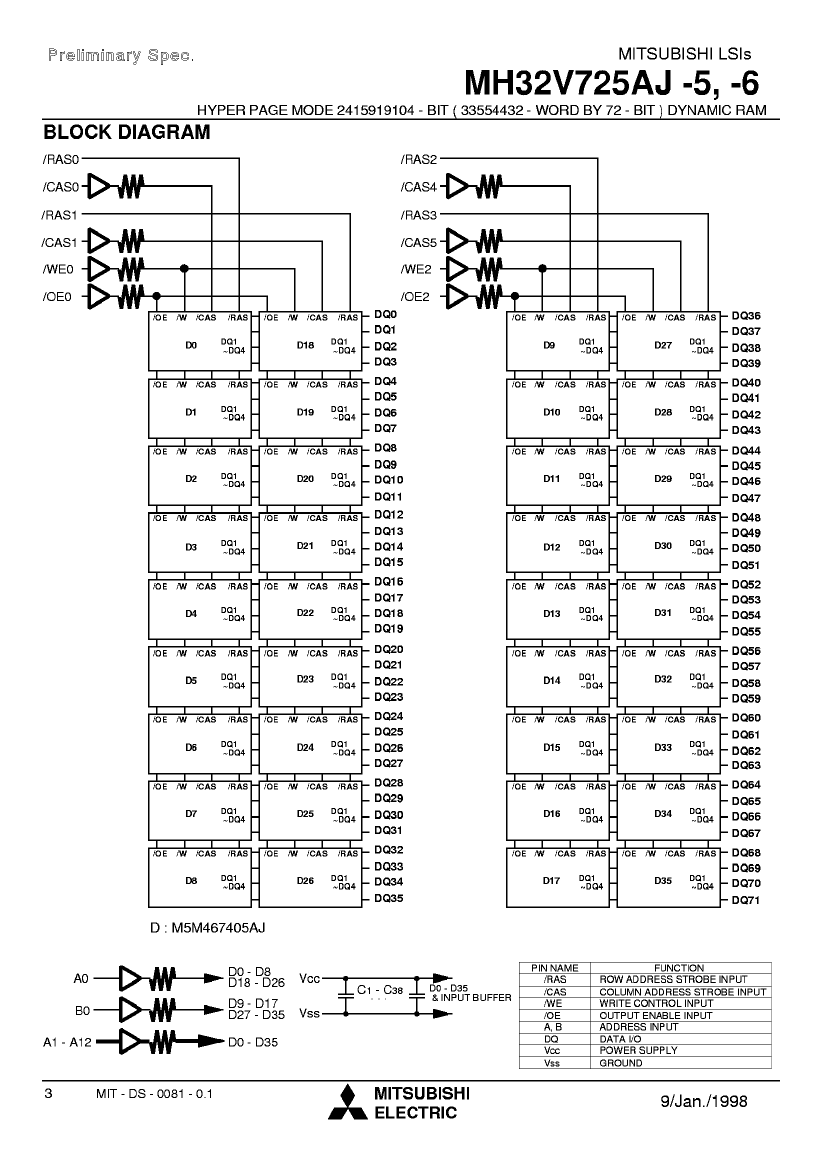

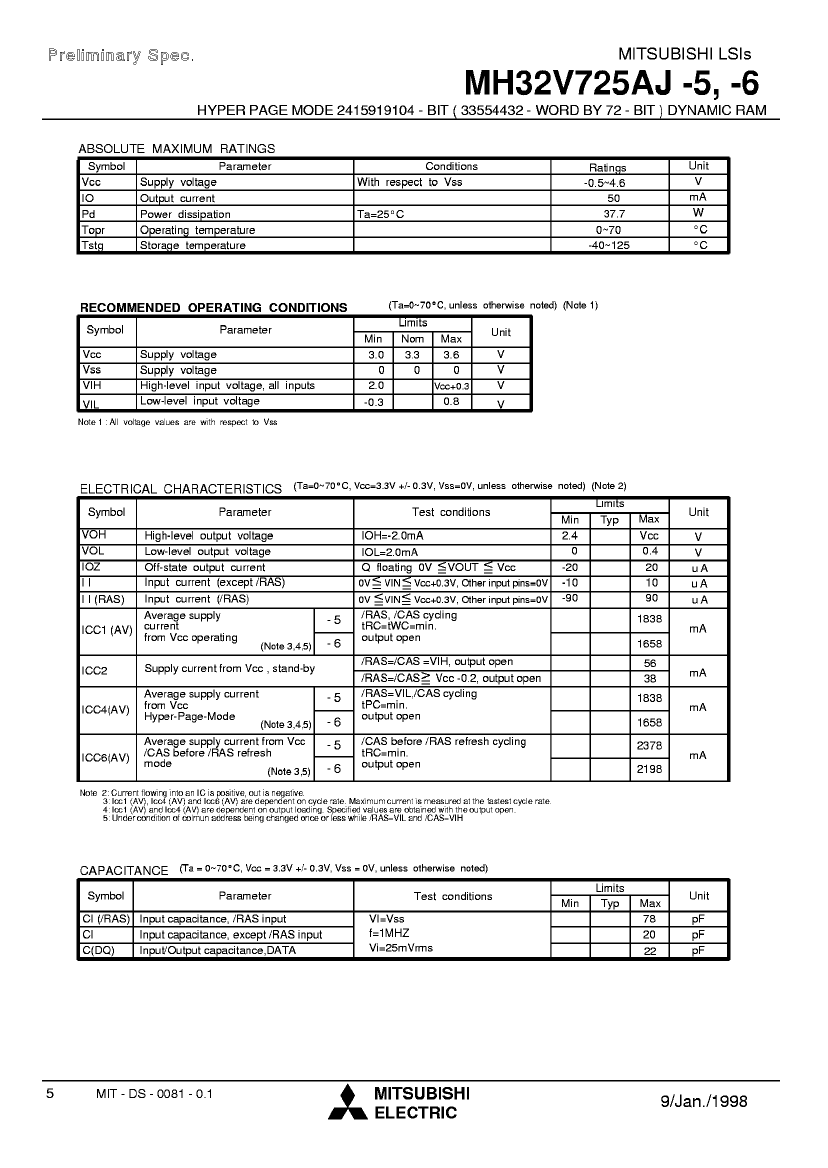

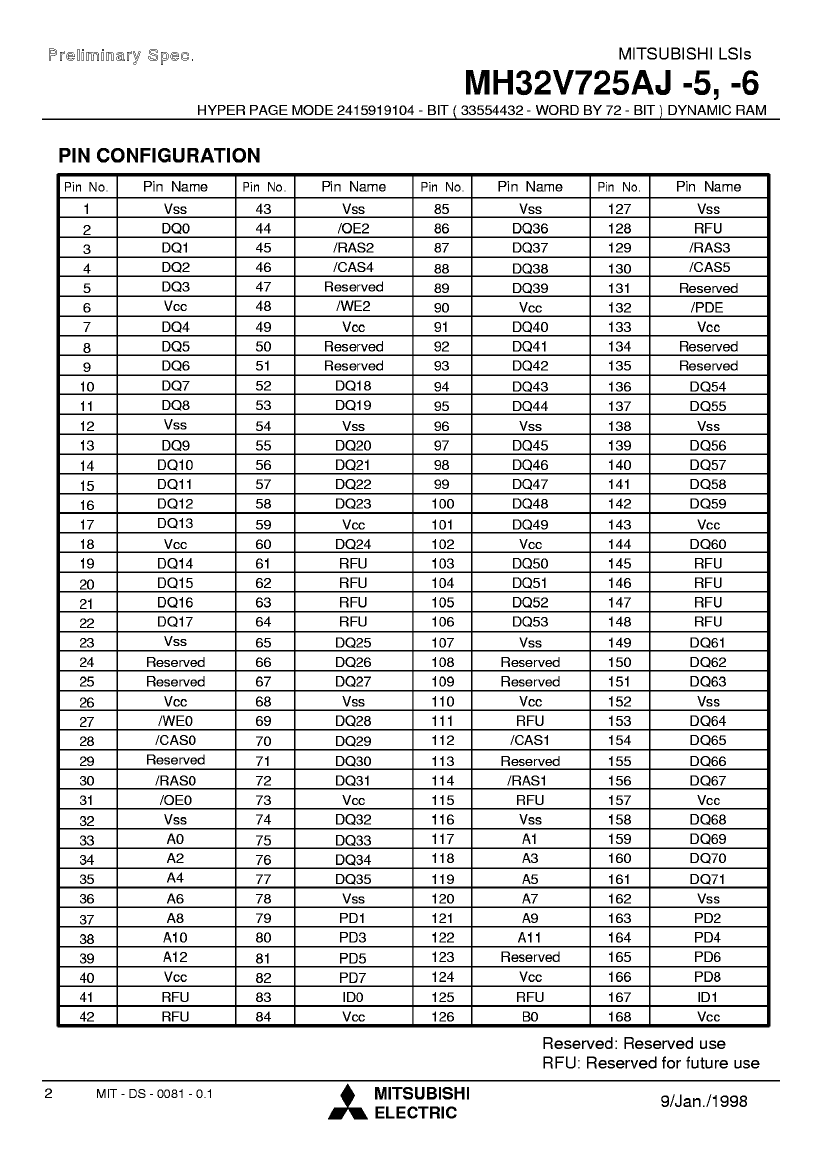

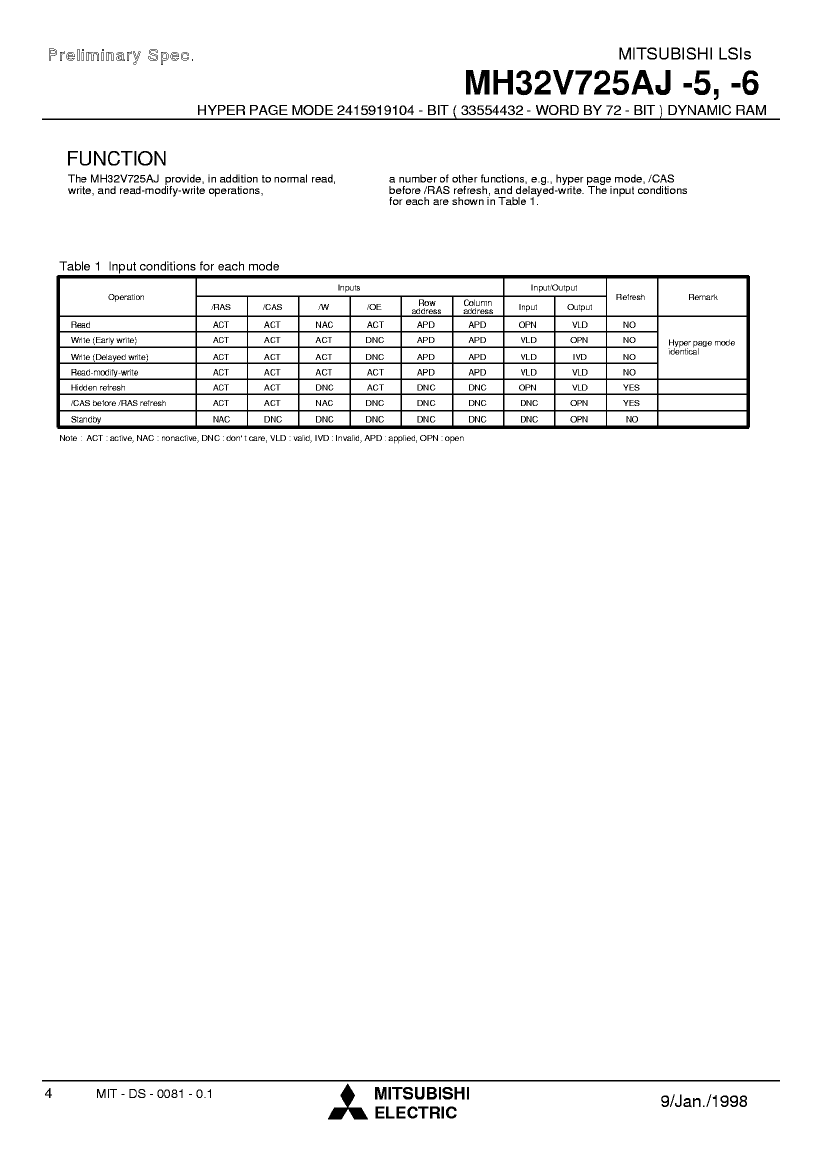

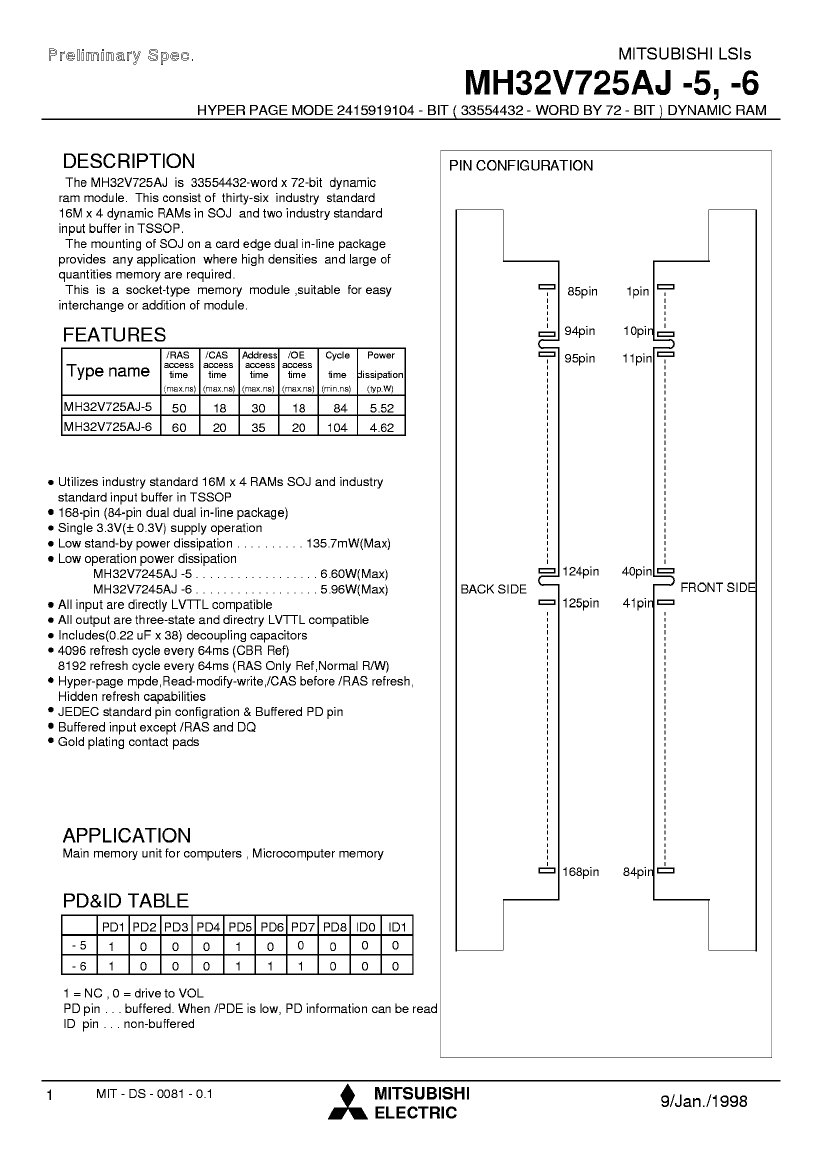

MH32V725AJ-5 Preview

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >

MH32V725AJ-5 Related Products

	MH32V725AJ-5	MH32V725AJ-6
Description	EDO DRAM Module, 32MX72, 50ns, CMOS, DIMM-168	EDO DRAM Module, 32MX72, 60ns, CMOS, DIMM-168
Maker	Mitsubishi	Mitsubishi
Parts packaging code	DIMM	DIMM
package instruction	DIMM, DIMM168	DIMM, DIMM168
Contacts	168	168
Reach Compliance Code	unknown	unknown
ECCN code	EAR99	EAR99
access mode	FAST PAGE WITH EDO	FAST PAGE WITH EDO
Maximum access time	50 ns	60 ns
Other features	RAS ONLY/CAS BEFORE RAS/HIDDEN REFRESH	RAS ONLY/CAS BEFORE RAS/HIDDEN REFRESH
I/O type	COMMON	COMMON
JESD-30 code	R-XDMA-N168	R-XDMA-N168
memory density	2415919104 bit	2415919104 bit
Memory IC Type	EDO DRAM MODULE	EDO DRAM MODULE
memory width	72	72
Number of functions	1	1
Number of ports	1	1
Number of terminals	168	168
word count	33554432 words	33554432 words
character code	32000000	32000000
Operating mode	ASYNCHRONOUS	ASYNCHRONOUS
Maximum operating temperature	70 °C	70 °C
organize	32MX72	32MX72
Output characteristics	3-STATE	3-STATE
Package body material	UNSPECIFIED	UNSPECIFIED
encapsulated code	DIMM	DIMM
Encapsulate equivalent code	DIMM168	DIMM168
Package shape	RECTANGULAR	RECTANGULAR
Package form	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY
power supply	3.3 V	3.3 V
Certification status	Not Qualified	Not Qualified
refresh cycle	4096	4096
Maximum seat height	41.91 mm	41.91 mm
Maximum standby current	0.038 A	0.038 A
Maximum slew rate	2.378 mA	2.198 mA
Maximum supply voltage (Vsup)	3.6 V	3.6 V
Minimum supply voltage (Vsup)	3 V	3 V
Nominal supply voltage (Vsup)	3.3 V	3.3 V
surface mount	NO	NO
technology	CMOS	CMOS
Temperature level	COMMERCIAL	COMMERCIAL
Terminal form	NO LEAD	NO LEAD
Terminal pitch	1.27 mm	1.27 mm
Terminal location	DUAL	DUAL
