FM150C

Description
Rectifier Diode, Schottky, 1 Element, 1A, 50V V(RRM), Silicon, DO-214AB,
CategoryDiscrete semiconductor    diode
File Size31KB,3 Pages
ManufacturerRectron Semiconductor
Websitehttp://www.rectron.com/
Environmental Compliance
Download Datasheet Parametric View All

FM150C Overview

Rectifier Diode, Schottky, 1 Element, 1A, 50V V(RRM), Silicon, DO-214AB,

FM150C Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
MakerRectron Semiconductor
Reach Compliance Codenot_compliant
ECCN codeEAR99
Other featuresHIGH RELIABILITY, LOW NOISE
ConfigurationSINGLE
Diode component materialsSILICON
Diode typeRECTIFIER DIODE
Maximum forward voltage (VF)0.7 V
JEDEC-95 codeDO-214AB
JESD-30 codeR-PDSO-C2
JESD-609 codee3
Maximum non-repetitive peak forward current40 A
Number of components1
Number of terminals2
Maximum operating temperature150 °C
Maximum output current1 A
Package body materialPLASTIC/EPOXY
Package shapeRECTANGULAR
Package formSMALL OUTLINE
Peak Reflow Temperature (Celsius)265
Certification statusNot Qualified
Maximum repetitive peak reverse voltage50 V
surface mountYES
technologySCHOTTKY
Terminal surfaceMatte Tin (Sn)
Terminal formC BEND
Terminal locationDUAL
Maximum time at peak reflow temperatureNOT SPECIFIED

FM150C Preview

RECTRON
SEMICONDUCTOR
TECHNICAL SPECIFICATION
FM120C
THRU
FM160C
SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER
VOLTAGE RANGE 20 to 60 Volts CURRENT 1.0 Ampere
FEATURES
*
*
*
*
*
*
Low switching noise
Low forward voltage drop
High current capability
High switching capability
High surge capabitity
High reliability
DO2-214AB
MECHANICAL DATA
*
*
*
*
*
*
Case: Molded plastic
Epoxy: Device has UL flammability classification 94V-O
Lead: MIL-STD-202E method 208C guaranteed
Metallurgically bonded construction
Mounting position: Any
Weight: 0.24 gram
0.125 (3.17)
0.115 (2.92)
0.280 (7.11)
0.260 (6.60)
0.245 (6.22)
0.220 (5.59)
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
Ratings at 25 C ambient temperature unless otherwise specified.
Single phase, half wave, 60 Hz, resistive or inductive load.
For capacitive load, derate current by 20%.
o
0.103 (2.62)
0.079 (2.06)
0.060 (1.52)
0.030 (0.76)
0.320 (8.13)
0.305 (7.75)
0.012 (0.305)
0.006 (0.152)
0.008 (0.203)
0.004 (0.102)
Dimensions in inches and (millimeters)
MAXIMUM RATINGS
(At T
A
= 25
o
C unless otherwise noted)
RATINGS
Maximum Recurrent Peak Reverse Voltage
Maximum RMS Voltage
Maximum DC Blocking Voltage
Maximum Average Forward Rectified Current
at Derating Lead temperature
Peak Forward Surge Current 8.3 ms single half sine-wave
superimposed on rated load (JEDEC method)
Typical Thermal Resistance (Note 1)
Typical Junction Capacitance (Note 2)
Operating Temperature Range
Storage Temperature Range
SYMBOL
V
RRM
V
RMS
V
DC
I
O
I
FSM
R
θ
JA
C
J
T
J
T
STG
-65 to + 125
-65 to + 150
FM120C
20
14
20
FM130C
30
21
30
FM140C
40
28
40
1.0
40
50
110
-65 to + 150
FM150C
50
35
50
FM160C
60
42
60
UNITS
Volts
Volts
Volts
Amps
Amps
0
C/ W
pF
0
0
C
C
ELECTRICAL CHARACTERISTICS
(At T
A
= 25
o
C unless otherwise noted)
CHARACTERISTICS
Maximum Instantaneous Forward Voltage at 1.0A DC
Maximum Average Reverse Current
at Rated DC Blocking Voltage
@T
A
= 25 C
@T
A
= 100
o
C
o
SYMBOL
V
F
I
R
FM120C
FM130C
.55
FM140C
1.0
10
FM150C
.70
FM160C
UNITS
Volts
mAmps
mAmps
2002-6
NOTES : 1. Thermal Resistance (Junction to Ambient): Vertical PC Board Mounting, 0.5” (12.7mm) Lead Length.
2. Measured at 1 MHz and applied reverse voltage of 4.0 volts.

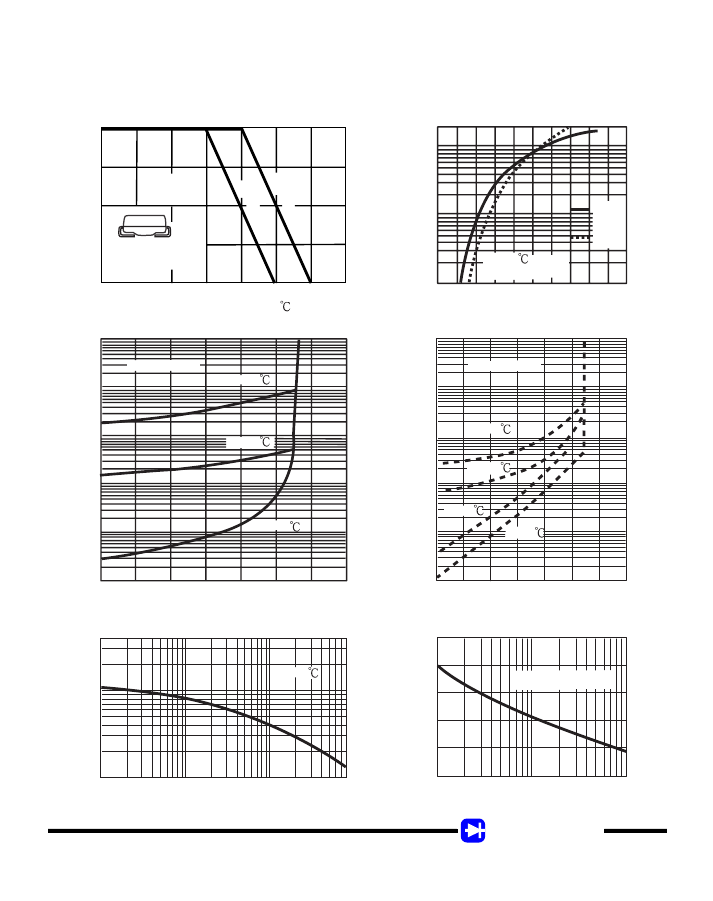

RATING AND CHARACTERISTIC CURVES ( FM120C THRU FM160C )
INSTANTANEOUS FORWARD CURRENT, (A)
FIG. 1 - TYPICAL FORWARD CURRENT DERATING CURVE
AVREAGE FORWARD CURRENT, (A)
FIG. 2 - TYPICAL INSTANTANEOUS
FORWARD CHARCTERISTICS
20
10
1.0
.75
.50
Single
Half Wave 60HZ
Resistive or
Inductive Load
FM
15
0C
16
-FM
0C
0C
12
FM
14
-FM
0C
1.0
.25
P.C.B Mounted on
0.4X0.4"(10X10mm)
copper pad areas
FM120C
FM130C
FM140C
FM150C
FM160C
TJ = 25
Pulse Width = 300uS
1% Duty Cycle
0
0
25
50
75
100
125
150
LEAD TEMPERATURE, (
)
175
.1
.1 .3 .5 .7 .9 1.1 1.3 1.5 1.7 1.9 2.1
INSTANTANEOUS FORWARD VOLTAGE, (V)
FIG. 3B - TYPICAL REVERSE CHARACTERISTICS
FIG. 3A - TYPICAL REVERSE CHARACTERISTICS
INSTANTANEOUS REVERSE CURRENT (mA)
FM120C-FM140C
INSTANTANEOUS REVERSE CURRENT (mA)
100
100
FM150C-FM160C
10
TJ = 125
10
1.0
TJ = 75
1.0
TJ = 150
TJ = 125
0.1
0.1
TJ = 75
.01
TJ = 25
.01
TJ = 25
.001
0
20
40
60
80
100
120
140
.001
0
20
40
60
80
100
120 140
PERCENT OF RATED PEAK REVERSE VOLTAGE, (%)
FIG. 5 - MAXIMUM NON-REPETITIVE FORWARD SURGE CURRENT
PERCENT OF RATED PEAK REVERSE VOLTAGE, (%)
JUNCTION CAPACITANCE, (pF)
FIG. 4 - TYPICAL JUNCTION CAPACITANCE
400
200
100
80
60
40
20
10
.1
.4
1.0
4
10
REVERSE VOLTAGE, (V)
40
80
TJ = 25
PEAK FORWARD SURGE
CURRENT, (A)
50
40
8.3ms Single Half Sine-Wave
30
20
10
0
1
JEDEC Method
2
4 6 810
20 40
80100
NUMBER OF CYCLES AT 60Hz
RECTRON
Mounting Pad Layout
0.185 MAX.
(4.69 MAX.)
0.121 MIN.
(3.07 MIN.)
0.060 MIN.
(1.52 MIN.)
0.320 REF
Dimensions in inches and (millimeters)
