5962F9863501VCC datasheet, PDF

Datasheet> All Categories > logic> logic> 5962F9863501VCC

5962F9863501VCC: DescriptionAC SERIES, POSITIVE EDGE TRIGGERED D FLIP-FLOP, COMPLEMENTARY OUTPUT, CDIP16, SIDE BRAZED, CERAMIC, DIP-16; Categorylogic logic; File Size38KB，2 Pages; ManufacturerRenesas Electronics Corporation; Websitehttps://www.renesas.com/

Download Datasheet Parametric Compare View All

5962F9863501VCC Overview

AC SERIES, POSITIVE EDGE TRIGGERED D FLIP-FLOP, COMPLEMENTARY OUTPUT, CDIP16, SIDE BRAZED, CERAMIC, DIP-16

5962F9863501VCC Parametric

Parameter Name	Attribute value
Maker	Renesas Electronics Corporation
Parts packaging code	DIP
package instruction	DIP,
Contacts	16
Reach Compliance Code	unknown
series	AC
JESD-30 code	R-CDIP-T16
JESD-609 code	e4
Logic integrated circuit type	D FLIP-FLOP
Number of digits	4
Number of functions	1
Number of terminals	16
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output polarity	COMPLEMENTARY
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DIP
Package shape	RECTANGULAR
Package form	IN-LINE
propagation delay (tpd)	22 ns
Certification status	Not Qualified
Filter level	MIL-PRF-38535 Class V
Maximum seat height	5.08 mm
surface mount	NO
technology	CMOS
Temperature level	MILITARY
Terminal surface	GOLD
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
total dose	300k Rad(Si) V
Trigger type	POSITIVE EDGE
width	7.62 mm

Preview

Download Datasheet

View All

ACS175MS

Data Sheet

July 1999

File Number

4763

Radiation Hardened Quad D-Type Flip-

Flop with Reset

The Radiation Hardened ACS175MS is a Quad D-Type

Flip-Flop with Reset. Information at the D input is

transferred to the Q and Q outputs on the positive-going

transition of the clock. All four flip-flops are controlled by a

common clock (CP) and a common reset (MR). Resetting is

accomplished by a LOW level independent of the clock. All

inputs are buffered and the outputs are designed for

balanced propagation delay and transition times.

The ACS175MS is fabricated on a CMOS Silicon on

Sapphire (SOS) process, which provides an immunity to

Single Event Latch-up and the capability of highly reliable

performance in any radiation environment. These devices

offer significant power reduction and faster performance

when compared to ALSTTL types.

Speciﬁcations for Rad Hard QML devices are controlled

by the Defense Supply Center in Columbus (DSCC). The

SMD numbers listed below must be used when ordering.

Detailed Electrical Speciﬁcations for the ACS175MS are

contained in SMD 5962-98635. A “hot-link” is provided

on our homepage for downloading.

http://www.intersil.com/spacedefense/spaceselect.htm

Features

• QML Qualiﬁed Per MIL-PRF-38535 Requirements

• 1.25 Micron Radiation Hardened SOS CMOS

• Radiation Environment

- Latch-Up Free Under Any Conditions

- Total Dose (Max.) . . . . . . . . . . . . . . . . . 3 x 10

RAD(Si)

- SEU Immunity . . . . . . . . . . . . . <1 x 10

-10

Errors/Bit/Day

- SEU LET Threshold . . . . . . . . . . . . >100MeV/(mg/cm

)

• Input Logic Levels. . . . V

= (0.3)(V

), V

= (0.7)(V

)

• Output Current

. . . . . . . . . . . . . . . . . . . . . . . . . . ±12mA

(Min)

• Quiescent Supply Current . . . . . . . . . . . . . . . 10µA (Max)

• Propagation Delay . . . . . . . . . . . . . . . . . . . . . . 22ns (Max)

Applications

• High Speed Control Circuits

• Sensor Monitoring

• Low Power Designs

Ordering Information

ORDERING NUMBER

5962F9863501VCC

ACS175D/SAMPLE-03

5962F9863501VXC

ACS175K/SAMPLE-03

5962F9863501V9A

INTERNAL MARKETING

NUMBER

ACS175DMSR-03

ACS175D/SAMPLE-03

ACS175KMSR-03

ACS175K/SAMPLE-03

ACS175HMSR-03

TEMP. RANGE (

-55 to 125

PACKAGE

16 Ld SBDIP

16 Ld Flatpack

Die

DESIGNATOR

CDIP2-T16

CDFP4-F16

Pinouts

ACS175MS

(SBDIP)

TOP VIEW

MR 1

Q0 2

Q0 3

D0 4

D1 5

Q1 6

Q1 7

GND 8

16 V

15 Q3

14 Q3

13 D3

12 D2

11 Q2

10 Q2

9 CP

GND

ACS175MS

(FLATPACK)

TOP VIEW

CAUTION: These devices are sensitive to electrostatic discharge; follow proper IC Handling Procedures.

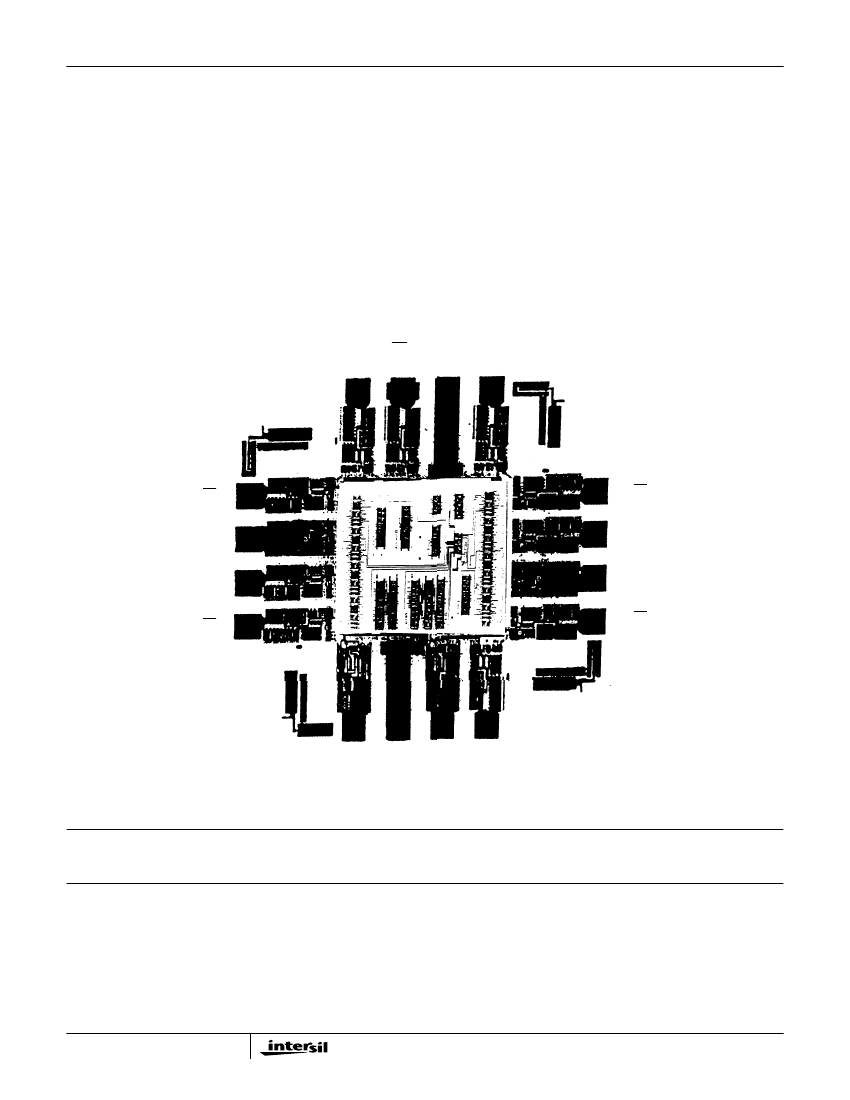

5962F9863501VCC Related Products

	5962F9863501VCC	5962F9863501V9A	ACS175HMSR-03	5962F9863501VXC	ACS175DMSR-03	ACS175KMSR-03
Description	AC SERIES, POSITIVE EDGE TRIGGERED D FLIP-FLOP, COMPLEMENTARY OUTPUT, CDIP16, SIDE BRAZED, CERAMIC, DIP-16	AC SERIES, POSITIVE EDGE TRIGGERED D FLIP-FLOP, COMPLEMENTARY OUTPUT, UUC16, DIE-16	AC SERIES, POSITIVE EDGE TRIGGERED D FLIP-FLOP, COMPLEMENTARY OUTPUT, UUC16, DIE-16	AC SERIES, POSITIVE EDGE TRIGGERED D FLIP-FLOP, COMPLEMENTARY OUTPUT, CDFP16, CERAMIC, DFP-16	AC SERIES, POSITIVE EDGE TRIGGERED D FLIP-FLOP, COMPLEMENTARY OUTPUT, CDIP16, SIDE BRAZED, CERAMIC, DIP-16	AC SERIES, POSITIVE EDGE TRIGGERED D FLIP-FLOP, COMPLEMENTARY OUTPUT, CDFP16, CERAMIC, DFP-16
Parts packaging code	DIP	DIE	DIE	DFP	DIP	DFP
package instruction	DIP,	DIE,	DIE,	DFP, FL16,.3	DIP,	DFP,
Contacts	16	16	16	16	16	16
Reach Compliance Code	unknown	unknown	unknown	not_compliant	unknown	unknown
series	AC	AC	AC	AC	AC	AC
JESD-30 code	R-CDIP-T16	S-XUUC-N16	X-XUUC-N16	R-CDFP-F16	R-CDIP-T16	R-CDFP-F16
Logic integrated circuit type	D FLIP-FLOP	D FLIP-FLOP	D FLIP-FLOP	D FLIP-FLOP	D FLIP-FLOP	D FLIP-FLOP
Number of digits	4	4	4	4	4	4
Number of functions	1	1	1	1	1	1
Number of terminals	16	16	16	16	16	16
Output polarity	COMPLEMENTARY	COMPLEMENTARY	COMPLEMENTARY	COMPLEMENTARY	COMPLEMENTARY	COMPLEMENTARY
Package body material	CERAMIC, METAL-SEALED COFIRED	UNSPECIFIED	UNSPECIFIED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DIP	DIE	DIE	DFP	DIP	DFP
Package shape	RECTANGULAR	SQUARE	UNSPECIFIED	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	UNCASED CHIP	UNCASED CHIP	FLATPACK	IN-LINE	FLATPACK
propagation delay (tpd)	22 ns	22 ns	22 ns	22 ns	22 ns	22 ns
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Filter level	MIL-PRF-38535 Class V	MIL-PRF-38535 Class V	MIL-PRF-38535 Class V	MIL-PRF-38535 Class V	MIL-PRF-38535 Class V	MIL-PRF-38535 Class V
surface mount	NO	YES	YES	YES	NO	YES
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Terminal form	THROUGH-HOLE	NO LEAD	NO LEAD	FLAT	THROUGH-HOLE	FLAT
Terminal location	DUAL	UPPER	UPPER	DUAL	DUAL	DUAL
total dose	300k Rad(Si) V	300k Rad(Si) V	300k Rad(Si) V	300k Rad(Si) V	300k Rad(Si) V	300k Rad(Si) V
Trigger type	POSITIVE EDGE	POSITIVE EDGE	POSITIVE EDGE	POSITIVE EDGE	POSITIVE EDGE	POSITIVE EDGE
Maker	Renesas Electronics Corporation	-	Renesas Electronics Corporation	Renesas Electronics Corporation	Renesas Electronics Corporation	Renesas Electronics Corporation
Maximum operating temperature	125 °C	125 °C	-	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-	-55 °C	-55 °C	-55 °C
Maximum seat height	5.08 mm	-	-	2.92 mm	5.08 mm	2.92 mm
Temperature level	MILITARY	MILITARY	-	MILITARY	MILITARY	MILITARY
Terminal pitch	2.54 mm	-	-	1.27 mm	2.54 mm	1.27 mm
width	7.62 mm	-	-	6.73 mm	7.62 mm	6.73 mm
