A20-108-663-310 datasheet, PDF

Datasheet> All Categories > The connector> A20-108-663-310

A20-108-663-310: Description8 CONTACT(S), FEMALE, RIGHT ANGLE TELECOM AND DATACOM CONNECTOR, SOLDER, JACK; CategoryThe connector; File Size288KB，2 Pages; ManufacturerETC2

Download Datasheet Parametric View All

A20-108-663-310 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	A20-108-663-310	-	-	View	Buy Now

A20-108-663-310 Overview

8 CONTACT(S), FEMALE, RIGHT ANGLE TELECOM AND DATACOM CONNECTOR, SOLDER, JACK

A20-108-663-310 Parametric

Parameter Name	Attribute value
Total number of contacts	8
state	CONSULT MFR
Options	GENERAL PURPOSE
Shell style	JACK
Manufacturer Series	A20
Contact surface matching	GOLD FLASH OVER NICKEL
Contact coated terminals	GOLD FLASH OVER NICKEL
Connection Type	Telecommunications and Datacom Connectors
Connector male and female	Jack
insert material	Nylon/thermoplastic PBT
Installation method	right angle
Installation type	BOARD
Shell material	Metal
Terminal type	welding
UL flammability code	94V-0

Preview

Download Datasheet

View All

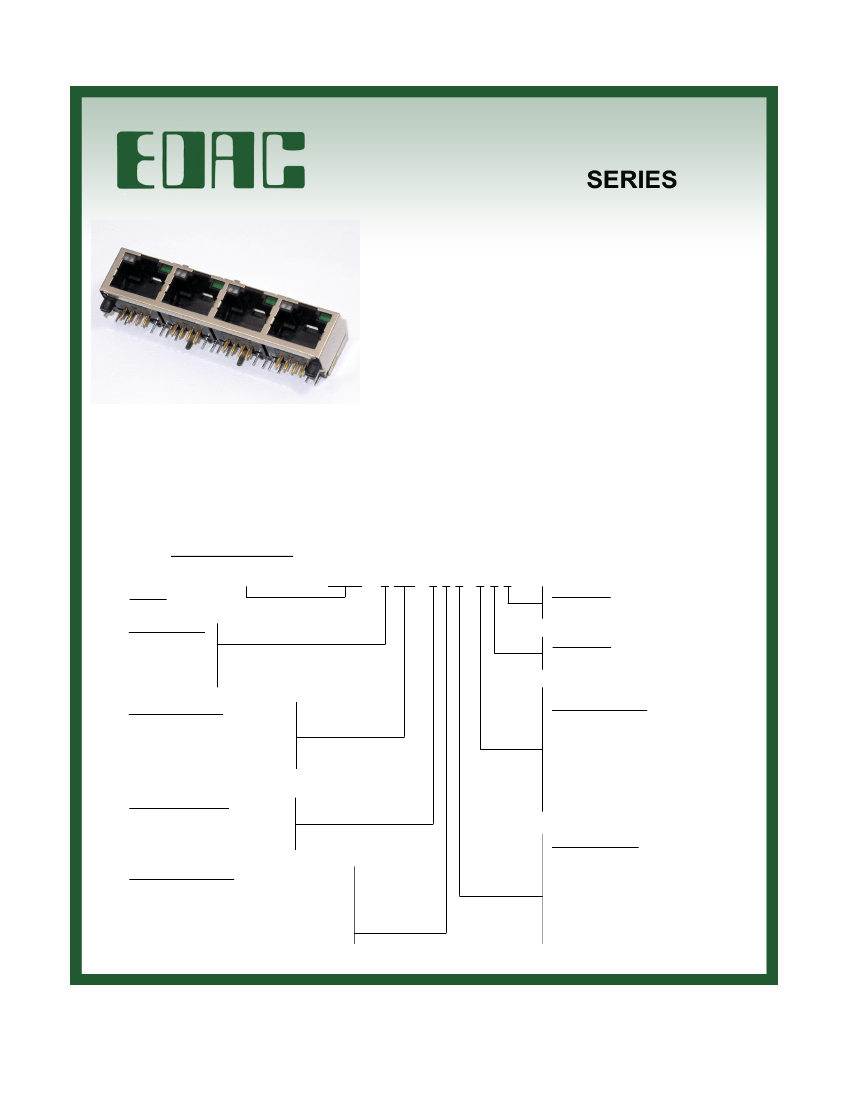

RJ45 MODULAR JACK WITH LED

A20

FEATURES:

Combined functionality of series A00 RJ45 Cat.5 Jacks with the signal

capabilities of independent LED's mounted within the jack housing

Each jack can have one or two LED's

LED's available as either a single color with matching colored lens, or

as a bi-color variant that utilizes a clear lens

Bi-color LED's can be made to change color simply by reversing the

voltage polarity

Custom LED color combinations are available, as well as, the selective

loading of contacts, custom contact plating and special shielding

Right angle jacks can be made with a larger housing that allows

custom specified filter components

SPECIFICATIONS:

FCC Compliance: Part 68 Sub Part F

Insulator Housing: Black thermoplastic PBT or Nylon, UL 94V-0

Contact Material: Phosphor Bronze

Contact Plating: Gold Flash or Selective Gold Plating over Nickel

Contact Resistance: 20 milliOHMS maximum

Insulation Resistance: 500 MEGOHMS minimium

Current Rating: 1.5 Amps maximum

Example Part Number:

A20-108-261-310

SERIES:

RJ45 MODULAR JACK W/ LED

NO. OF PORTS:

1 - 1 PORT

2 - 2 PORTS

8 - 8 PORTS

NO. OF CONTACTS

08 - 8 CONTACTS ON 1PORT

16 - 16 CONTACTS ON 2 PORTS

64 - 64 CONTACTS ON 8 PORTS

AA - 128 CONTACTS ON DUAL ROW 8 PORTS

CONTACT PLATING:

2 - GOLD FLASH

3 - 15 MICROINCHES OF GOLD

6 - 30 MICROINCHES OF GOLD

9 - 50 MICROINCHES OF GOLD

CONTACT TAIL TYPE:

2 - VERTICAL

6 - RIGHT ANGLE

7 - VERTICAL SURFACE MOUNT

8 - RIGHT ANGLE SURFACE MOUNT

9 - SURFACE MOUNT ONLY IN SINGLE PORT

PORT TYPE:

SINGLE ROW OF PORT

TWO ROW OF PORTS

SHIELDING:

0 - NO SHIELD

1 - METAL SHIELD

RIGHT LED COLOR:

0 - BLANK

1 - YELLOW

2 - RED

3 - GREEN

4 - BI-COLOR (GREEN/YELLOW)

5 - BI-COLOR (RED/GREEN)

6 - BI-COLOR (GREEN/ORANGE)

7 - BI-COLOR (RED/YELLOW)

8 - ORANGE

LEFT LED COLOR:

0 - BLANK

1 - YELLOW

2 - RED

3 - GREEN

4 - BI-COLOR (GREEN/YELLOW)

5 - BI-COLOR (RED/GREEN)

6 - BI-COLOR (GREEN/ORANGE)

7 - BI-COLOR (RED/YELLOW)

8 - ORANGE

Phone: (416) - 754 - 3322

Fax: (416) - 754 - 3299

Email: CustomerService@edac.net

Website: www.edac.net
