EMC filters
2-line filters
for converters and power electronics
Rated current 10 to 60 A
Series/Type:
Date:
B84142A*R000, G075
January 2006
EPCOS AG 2006. Reproduction, publication and dissemination of this data sheet and the
information contained therein without EPCOS’ prior express consent is prohibited.
2-line filters
for converters and power electronics
Power line filters for 1-phase systems
Rated voltage 250 V DC/AC, 50/60 Hz
Rated current 10 to 60 A
Construction
■
2-line filters
■
Metal case
B84142A*R000, G075
Features
■
■
■
■
■
High insertion loss
Easy to install
Degree of protection IP 20
1)
for *R000
Very compact design
Optimized for long motor cables
and operation under full load
■
ENEC10, UL and cUL approval
Applications
■
Frequency converters for motor drives, e.g.
– elevators
– conveyor systems
– pumps
– traction systems
– HVAC systems (heating, ventilation and air conditioning)
■
Power supplies
■
DC applications
Terminals
■
Finger-safe terminal blocks
■
Screw thread M6
Marking
Marking on component:
Manufacturer’s logo, ordering code,
rated voltage, rated current, rated temperature,
climatic category, terminal assignment, date code
Minimum marking on packaging:
Manufacturer’s logo, ordering code
1) To IEC 60529
Please read
Cautions and warnings
and
Important notes
at the end of this document.
2
01/06
2-line filters
for converters and power electronics
Typical circuit diagram
LINE
L
LOAD
L’
B84142A*R000, G075
N
N’
SSB1515-U
Technical data and measuring conditions
Rated voltage V
R
Rated current I
R
Test voltage V
test
Overload capability (thermal)
Leakage current I
leak
Climatic category (IEC 60068-1)
Approvals
250 V DC/AC, 50/60 Hz
Referred to 40
°C
ambient temperature
1770 V DC, 2 s (line/line)
2700 V DC, 2 s (lines/case)
1.5 · I
R
for 3 min per hour or
2.5 · I
R
for 30 s per hour
At 250 V AC, 50 Hz
R000: 25/100/21 (–25
°C/+100 °C/21
days damp heat test)
G075: 25/085/21 (–25
°C/+85 °C/21
days damp heat test)
EN 133200, UL 1283, CSA C22.2 No.8
Characteristics and ordering codes
V
R
AC/DC
V
250
I
R
A
10
20
30
40
50
60
60
Terminal
I
leak
cross section
mm
2
4
4
6
6
16
16
Screw stud
M6
<
26
1.4
2.5
B84142A0060G075 —
—
mA
<
8
<
8
<
8
<
17
<
26
<
26
R
typ
mΩ
18
10
5
3.6
1.8
1.4
Approx.
weight
kg
0.55
1.0
1.0
1.0
2.5
2.5
B84142A0010R000
B84142A0020R000
B84142A0030R000
B84142A0040R000
B84142A0050R000
B84142A0060R000
×
×
×
×
×
×
×
×
×
×
×
×
Ordering code
Approvals
×
= approval granted
Please read
Cautions and warnings
and
Important notes
at the end of this document.
3
01/06
2-line filters
for converters and power electronics

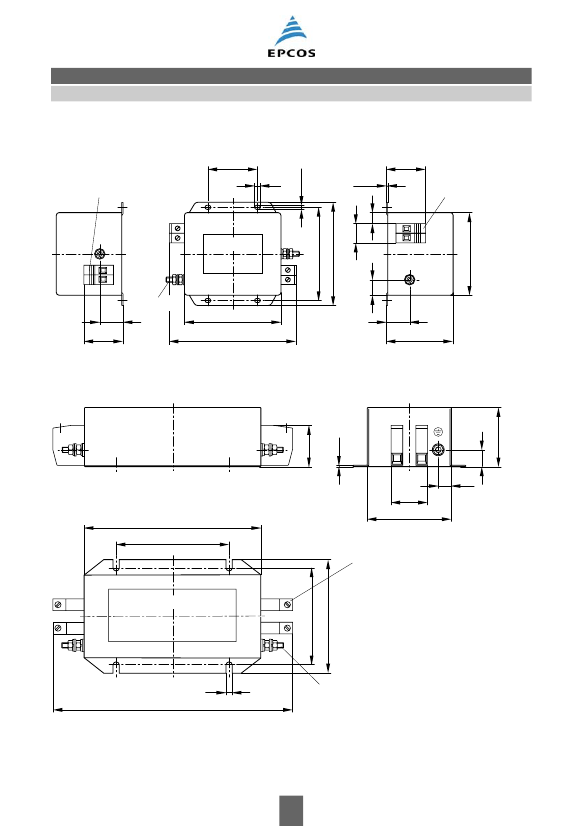

Dimensional drawings
B84142A0010R000 (10 A)
_
0.6
44.5
+1
B84142A*R000, G075
30
19
0.8±0.1
7.5
50.8
70
101.6±0.3
PE M4 x 15
Marking
LINE
LOAD
ø4.7±0.1
133
154.8
_
0.5
60.4
+0.1
Terminal blocks 4 mm
2
Tightening torque 0.6 ... 0.8 Nm
SSB1522-C-E
B84142A0020R000 (20 A)
4.3±0.1
50.8±0.3
Terminal blocks 4
Tightening torque 0.6 ... 0.8 Nm
mm
2
6.3
35±1 Terminal
blocks 4 mm
2
0.8±0.1
Tightening
torque 0.6 ... 0.8 Nm
PE
M5 x 20
105
Marking
LINE
LOAD
_
0.5
95.2
+0.1
20
11
16±1
24±1
35±1
99
121+1
24±1
_
0.6
68
+1
84
SSB1523-K-E
Please read
Cautions and warnings
and
Important notes
at the end of this document.
4
01/06
2-line filters
for converters and power electronics
B84142A0030R000, B84142A0040R000 (30 and 40 A)
Terminal
blocks 6 mm
2
Tightening
torque 1.5 ... 1.8 Nm
50.8±0.3
6.3
B84142A*R000, G075
4.3±0.1
40±1
0.8±0.1
Terminal
blocks 6 mm
2
Tightening
torque 1.5 ... 1.8 Nm
105
LINE LOAD
PE M5 x 20
24±1
40±1
16±1
99
130
24±1
_
0.6
68
+1
SSB1524-T-E
B84142A0050R000, B84142A0060R000 (50 and 60 A)
84
13±1
36
85
Marking
_
0.5
95.2
+0.1
20
11
1+0.1
42
180
115±0.2
Terminal blocks 16 mm
2
Tightening torque 2 ... 2.3 Nm
100±0.3
Marking
Line
Load
6.6
PE M6 x 25
SSB1525-2-E
245
Please read
Cautions and warnings
and
Important notes
at the end of this document.
5
01/06
115
17
60
