160472K630C datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> capacitor> 160472K630C

160472K630C: DescriptionFilm Capacitor, Polyester, 630V, 10% +Tol, 10% -Tol, 0.0047uF, Through Hole Mount, 5116, RADIAL LEADED; CategoryPassive components capacitor; File Size87KB，6 Pages; ManufacturerCDE [ CORNELL DUBILIER ELECTRONICS ]

Download Datasheet Parametric Compare View All

160472K630C Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	160472K630C	-	-	View	Buy Now

160472K630C Overview

Film Capacitor, Polyester, 630V, 10% +Tol, 10% -Tol, 0.0047uF, Through Hole Mount, 5116, RADIAL LEADED

160472K630C Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	CDE [ CORNELL DUBILIER ELECTRONICS ]
package instruction	, 5116
Reach Compliance Code	compliant
ECCN code	EAR99
capacitance	0.0047 µF
Capacitor type	FILM CAPACITOR
dielectric materials	POLYESTER
high	9.5 mm
length	13 mm
Installation features	THROUGH HOLE MOUNT
negative tolerance	10%
Number of terminals	2
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
Package shape	RECTANGULAR PACKAGE
Package form	Radial
method of packing	BULK
positive tolerance	10%
Rated (AC) voltage (URac)	220 V
Rated (DC) voltage (URdc)	630 V
size code	5116
surface mount	NO
Terminal pitch	10 mm
Terminal shape	WIRE
width	4 mm

Preview

Download Datasheet

View All

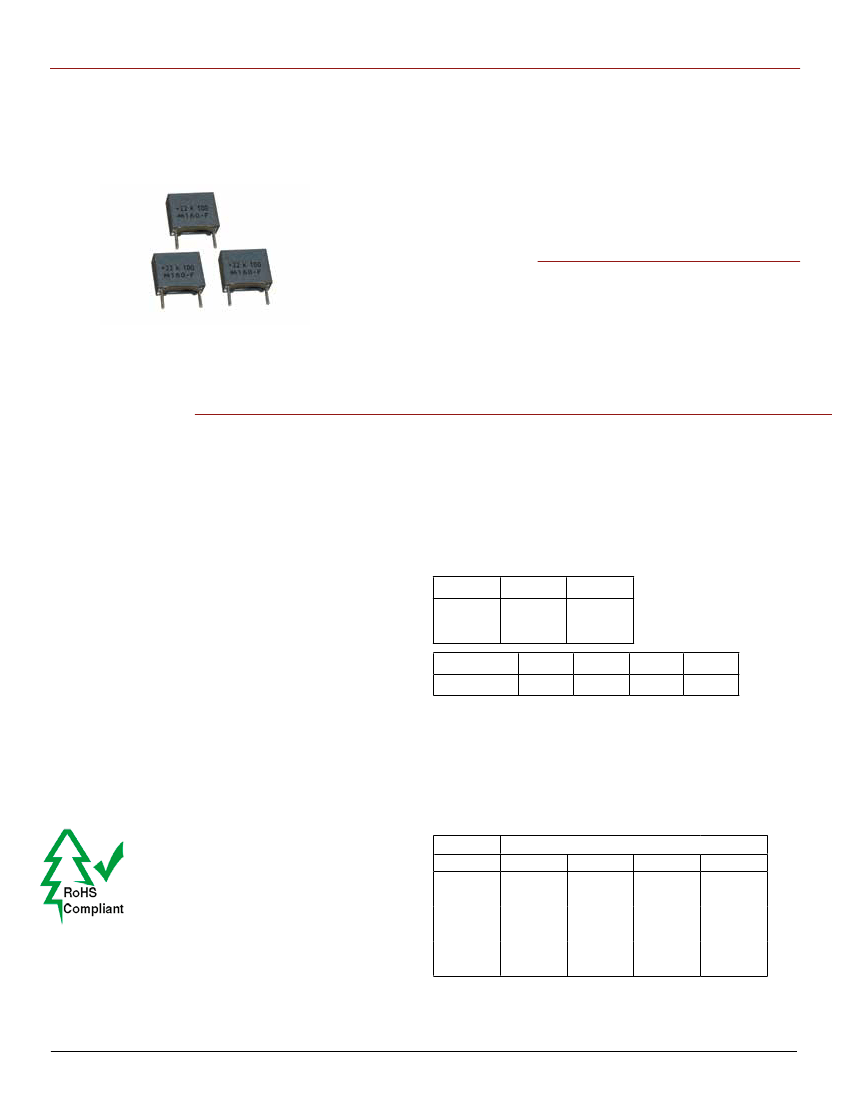

Type 160

Metallized Polyester Radial Lead Capacitors

Radial Box Metallized Polyester Capacitors

The Type 160 series radial lead metallized polyester box

capacitors are constructed in rugged rectangular plastic

cases with lead spacings that are standard in the electron-

ics industry. All Type 160 capacitors are available in bulk

with a .217” ±.039” lead length, and they are good for

general purpose applications such as bypass, decoupling,

energy storage/discharge and arc suppression.

Highlights

•

Capacitance Range:

Voltage Range:

Capacitance Tolerance:

Operating Temperature Range:

Specifications

RoHS compliant

Rugged plastic case

Case and epoxy fill meets UL94V0

10 mm through 27.5 mm lead spacings

Non-inductively wound

Non-polar

Wire lead material, tinned copper clad steel

0.0022 µF to 10.0 µF

63 Vdc to 1000 Vdc

±5%, ±10%, ±20%

–55 ºC to +105 ºC (derating voltage to 1.25% per ºC above

85 ºC)

Dielectric Withstand Voltage:

1.6 x rated voltage for 2 sec @ +25 ºC ±5 ºC

Dissipation Factor (DF):

tanδ x 10

–4

at 25 ºC ±5 ºC

kHz

C ≤1 µF

≤100

≥150

22.5

27.5

C >1 µF

≤100

Total Self Inductance (L):

Pitch (mm)

L (nH)

≈

Long Term Stability (after two years):

Corona (Partial Discharge Inception Voltage):

Capacitance change ∆C/C ≤ ±3% under standard

environmental conditions

200 Vac for 100 Vdc, 200 Vdc

250 Vac for 400 Vdc, 630 Vdc

300 Vac for 1000 Vdc

Pitch (mm)

100/160

250

400

630

1000

6/8

1.5

22.5

5.5

27.5

Maximum Pulse Rise Time (dv/dt):

Complies with the EU Directive 2002/95/

EC requirement restricting the use of

Lead (Pb), Mercury (Hg), Cadmium

(Cd), Hexavalent chromium (Cr(VI)),

PolyBrominated Biphenyls (PBB) and

PolyBrominated Diphenyl Ethers (PBDE).

If the working voltage (V) is less than the nominal voltage (Vn),

the capacitor can work at higher dv/dt. In this case, the maximum

value allowed is obtained by multiplying the above value with

the ratio Vn/V.

CDE Cornell Dubilier

•

1605 E. Rodney French Blvd.

•

New Bedford, MA 02744

•

Phone: (508)996-8561

•

Fax: (508)996-3830

•

www.cde.com

160472K630C Related Products

	160472K630C	160332K1000C	160274J100D	160184J100C
Description	Film Capacitor, Polyester, 630V, 10% +Tol, 10% -Tol, 0.0047uF, Through Hole Mount, 5116, RADIAL LEADED	Film Capacitor, Polyester, 1000V, 10% +Tol, 10% -Tol, 0.0033uF, Through Hole Mount, 5116, RADIAL LEADED	Film Capacitor, Polyester, 100V, 5% +Tol, 5% -Tol, 0.27uF, Through Hole Mount, 5120, RADIAL LEADED	Film Capacitor, Polyester, 100V, 5% +Tol, 5% -Tol, 0.18uF, Through Hole Mount, 5116, RADIAL LEADED
Is it lead-free?	Contains lead	Contains lead	Contains lead	Contains lead
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible
package instruction	, 5116	, 5116	, 5120	, 5116
Reach Compliance Code	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99
capacitance	0.0047 µF	0.0033 µF	0.27 µF	0.18 µF
Capacitor type	FILM CAPACITOR	FILM CAPACITOR	FILM CAPACITOR	FILM CAPACITOR
dielectric materials	POLYESTER	POLYESTER	POLYESTER	POLYESTER
high	9.5 mm	9.5 mm	11 mm	9.5 mm
length	13 mm	13 mm	13 mm	13 mm
Installation features	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT
negative tolerance	10%	10%	5%	5%
Number of terminals	2	2	2	2
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C
Package shape	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE
Package form	Radial	Radial	Radial	Radial
method of packing	BULK	BULK	BULK	BULK
positive tolerance	10%	10%	5%	5%
Rated (DC) voltage (URdc)	630 V	1000 V	100 V	100 V
size code	5116	5116	5120	5116
surface mount	NO	NO	NO	NO
Terminal pitch	10 mm	10 mm	10 mm	10 mm
Terminal shape	WIRE	WIRE	WIRE	WIRE
width	4 mm	4 mm	5 mm	4 mm
Maker	CDE [ CORNELL DUBILIER ELECTRONICS ]	CDE [ CORNELL DUBILIER ELECTRONICS ]	-	CDE [ CORNELL DUBILIER ELECTRONICS ]
Rated (AC) voltage (URac)	220 V	250 V	-	63 V
