AM26LS33DM datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Analog mixed-signal IC> Drivers and interfaces> AM26LS33DM

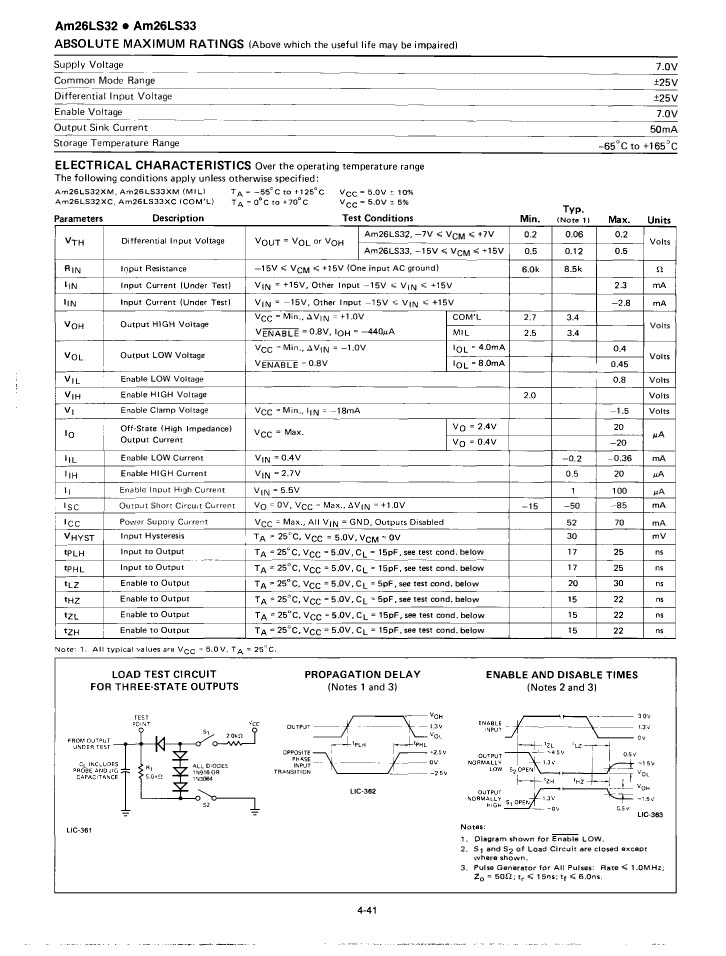

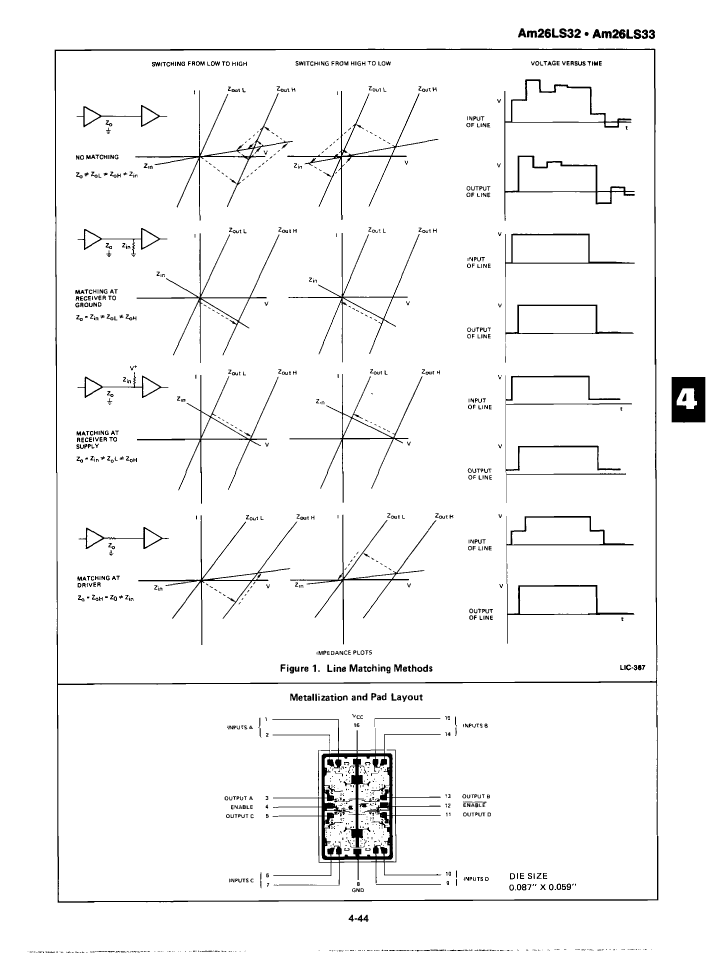

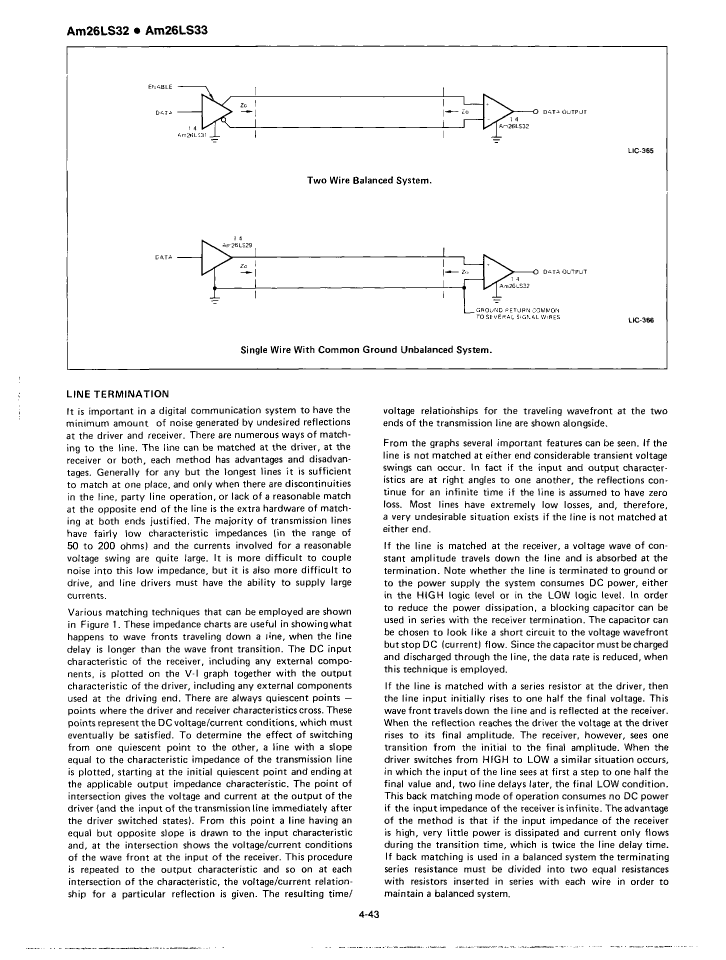

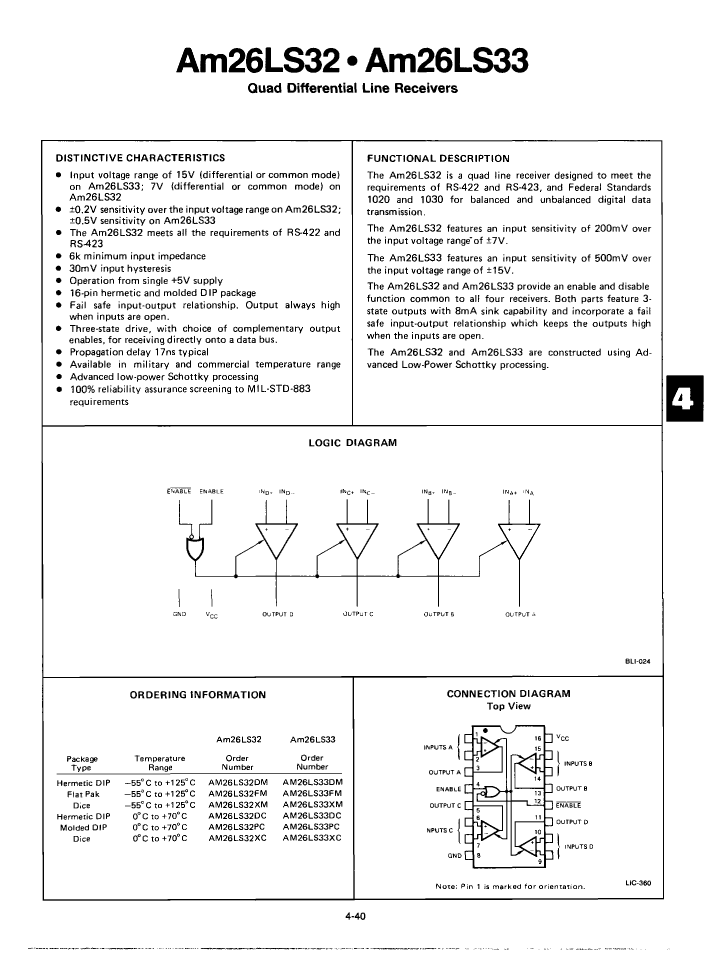

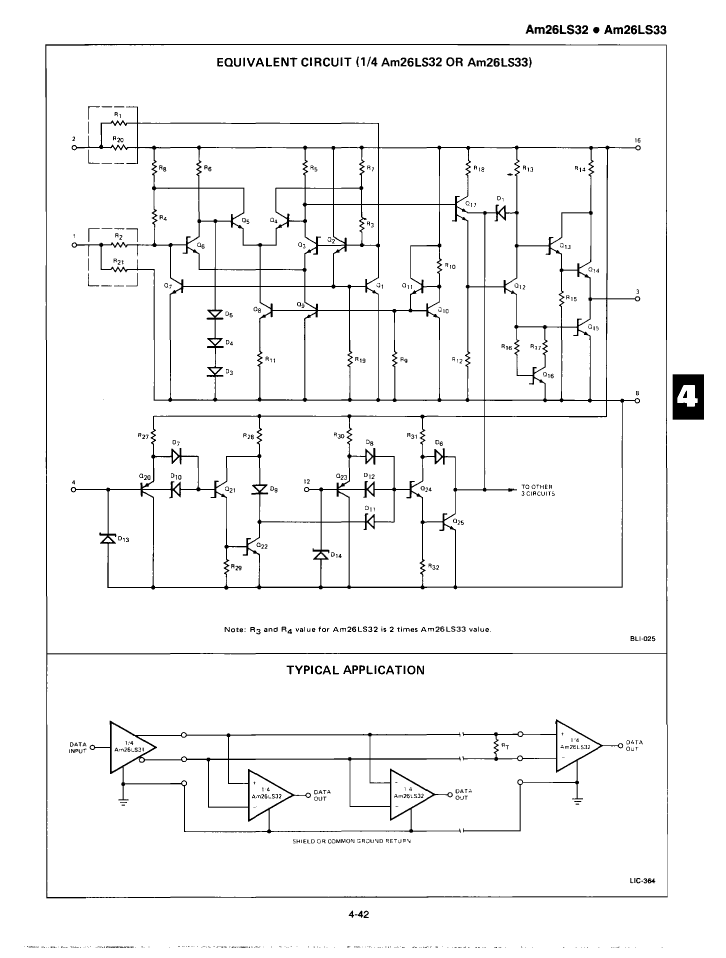

Preview

AM26LS33DM: DescriptionLine Receiver, 4 Func, 4 Rcvr, BIPolar, CDIP16, HERMETIC SEALED, DIP-16; CategoryAnalog mixed-signal IC Drivers and interfaces; File Size182KB，5 Pages; ManufacturerAMD; Websitehttp://www.amd.com

Download Datasheet Parametric Compare View All

AM26LS33DM Overview

Line Receiver, 4 Func, 4 Rcvr, BIPolar, CDIP16, HERMETIC SEALED, DIP-16

AM26LS33DM Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	AMD
Parts packaging code	DIP
package instruction	DIP, DIP16,.3
Contacts	16
Reach Compliance Code	unknown
ECCN code	EAR99
Input properties	DIFFERENTIAL SCHMITT TRIGGER
Interface integrated circuit type	LINE RECEIVER
Interface standards	GENERAL PURPOSE
JESD-30 code	R-CDIP-T16
JESD-609 code	e0
length	19.431 mm
Number of functions	4
Number of terminals	16
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output characteristics	3-STATE
Maximum output low current	0.008 A
Output polarity	TRUE
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DIP
Encapsulate equivalent code	DIP16,.3
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	5 V
Certification status	Not Qualified
Maximum receive delay
Number of receiver bits	4
Filter level	MIL-STD-883 Class C
Maximum seat height	5.08 mm
Maximum slew rate	70 mA
Nominal supply voltage	5 V
surface mount	NO
technology	BIPOLAR
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	7.62 mm

Preview

Download Datasheet

View All

AM26LS33DM Related Products

	AM26LS33DM	AM26LS32DM	AM26LS32DM8	AM26LS33XC	AM26LS33XM	AM26LS32FM	AM26LS33FM	AM26LS32XM	AM26LS32XC
Description	Line Receiver, 4 Func, 4 Rcvr, BIPolar, CDIP16, HERMETIC SEALED, DIP-16	Line Receiver, 4 Func, 4 Rcvr, BIPolar, CDIP16, HERMETIC SEALED, DIP-16	Line Receiver, 4 Func, 4 Rcvr, BIPolar, CDIP16, HERMETIC SEALED, DIP-16	Line Receiver, 4 Func, 4 Rcvr, BIPolar, 0.087 X 0.059 INCH, DIE-16	Line Receiver, 4 Func, 4 Rcvr, BIPolar, 0.087 X 0.059 INCH, DIE-16	Line Receiver, 4 Func, 4 Rcvr, BIPolar, CDFP16, CERPACK-16	Line Receiver, 4 Func, 4 Rcvr, BIPolar, CDFP16, CERPACK-16	Line Receiver, 4 Func, 4 Rcvr, BIPolar, 0.087 X 0.059 INCH, DIE-16	Line Receiver, 4 Func, 4 Rcvr, BIPolar, 0.087 X 0.059 INCH, DIE-16
Parts packaging code	DIP	DIP	DIP	DIE	DIE	DFP	DFP	DIE	DIE
package instruction	DIP, DIP16,.3	DIP, DIP16,.3	DIP,	DIE,	DIE, DIE OR CHIP	DFP, FL16,.3	CERPACK-16	DIE, DIE OR CHIP	DIE, DIE OR CHIP
Contacts	16	16	16	16	16	16	16	16	16
Reach Compliance Code	unknown	unknow	unknow	unknown	unknown	unknown	unknown	unknown	unknow
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Input properties	DIFFERENTIAL SCHMITT TRIGGER	DIFFERENTIAL SCHMITT TRIGGER	DIFFERENTIAL SCHMITT TRIGGER	DIFFERENTIAL SCHMITT TRIGGER	DIFFERENTIAL SCHMITT TRIGGER	DIFFERENTIAL SCHMITT TRIGGER	DIFFERENTIAL SCHMITT TRIGGER	DIFFERENTIAL SCHMITT TRIGGER	DIFFERENTIAL SCHMITT TRIGGER
Interface integrated circuit type	LINE RECEIVER	LINE RECEIVER	LINE RECEIVER	LINE RECEIVER	LINE RECEIVER	LINE RECEIVER	LINE RECEIVER	LINE RECEIVER	LINE RECEIVER
Interface standards	GENERAL PURPOSE	EIA-422; EIA-423; FED STD 1020; FED STD 1030	EIA-422; EIA-423; FED STD 1020; FED STD 1030	GENERAL PURPOSE	GENERAL PURPOSE	EIA-422; EIA-423; FED STD 1020; FED STD 1030	GENERAL PURPOSE	EIA-422; EIA-423; FED STD 1020; FED STD 1030	EIA-422; EIA-423; FED STD 1020; FED STD 1030
JESD-30 code	R-CDIP-T16	R-CDIP-T16	R-CDIP-T16	R-XUUC-N16	R-XUUC-N16	R-CDFP-F16	R-CDFP-F16	R-XUUC-N16	R-XUUC-N16
Number of functions	4	4	4	4	4	4	4	4	4
Number of terminals	16	16	16	16	16	16	16	16	16
Maximum operating temperature	125 °C	125 °C	125 °C	70 °C	125 °C	125 °C	125 °C	125 °C	70 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-	-55 °C	-55 °C	-55 °C	-55 °C	-
Output characteristics	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE
Output polarity	TRUE	TRUE	TRUE	TRUE	TRUE	TRUE	TRUE	TRUE	TRUE
Package body material	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	UNSPECIFIED	UNSPECIFIED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	UNSPECIFIED	UNSPECIFIED
encapsulated code	DIP	DIP	DIP	DIE	DIE	DFP	DFP	DIE	DIE
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE	IN-LINE	UNCASED CHIP	UNCASED CHIP	FLATPACK	FLATPACK	UNCASED CHIP	UNCASED CHIP
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Number of receiver bits	4	4	4	4	4	4	4	4	4
Nominal supply voltage	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	NO	NO	NO	YES	YES	YES	YES	YES	YES
technology	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR
Temperature level	MILITARY	MILITARY	MILITARY	COMMERCIAL	MILITARY	MILITARY	MILITARY	MILITARY	COMMERCIAL
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	NO LEAD	NO LEAD	FLAT	FLAT	NO LEAD	NO LEAD
Terminal location	DUAL	DUAL	DUAL	UPPER	UPPER	DUAL	DUAL	UPPER	UPPER
length	19.431 mm	19.431 mm	19.431 mm	-	-	10.0965 mm	10.0965 mm	-	-
Maximum output low current	0.008 A	0.008 A	-	-	0.008 A	0.008 A	0.008 A	0.008 A	0.008 A
Encapsulate equivalent code	DIP16,.3	DIP16,.3	-	-	DIE OR CHIP	FL16,.3	FL16,.3	DIE OR CHIP	DIE OR CHIP
power supply	5 V	5 V	-	-	5 V	5 V	5 V	5 V	5 V
Filter level	MIL-STD-883 Class C	MIL-STD-883 Class C	-	-	MIL-STD-883 Class C	MIL-STD-883 Class C	MIL-STD-883 Class C	MIL-STD-883 Class C	-
Maximum seat height	5.08 mm	5.08 mm	5.08 mm	-	-	2.159 mm	2.159 mm	-	-
Maximum slew rate	70 mA	70 mA	-	70 mA	70 mA	70 mA	70 mA	70 mA	70 mA
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	-	-	1.27 mm	1.27 mm	-	-
width	7.62 mm	7.62 mm	7.62 mm	-	-	6.731 mm	6.731 mm	-	-
Base Number Matches	-	1	1	1	1	1	-	-	-
