Spec Sheet
Multilayer Ceramic Capacitors (High dielectric type)
AMK063C6474MP-F
Features
Item Summary
0.47uF±20%, 4V,
X6S, 0201/0603 (EIA/JIS)
Lifecycle Stage
Mass Production
Standard packaging quantity (minimum)
Taping paper 15000pcs
Products characteristics table
Capacitance
Case Size (EIA/JIS)
Rated Voltage
tanδ (max)
Temperature Characteristic (EIA)
Operating Temp. Range (EIA)
High Temperature Loading
(% Rated Voltage)
Insulation Resistance (min)
RoHS2 Compliance (10 subst.)
REACH Compliance (181 subst.)
Halogen Free
Soldering
100 MΩ·μF
Yes
Yes
Yes
Reflow
0.47 uF ± 20 %
0201/0603
4V
10 %
X6S
-55 to +105 ℃
150 %
External Dimensions
Dimension L
Dimension W
Dimension T
Dimension e
0.6 ±0.03 mm
0.3 ±0.03 mm
0.3 ±0.03 mm
0.15 ±0.05 mm
2018.11.24
The data is reference only. Electrical characteristics vary depending on environment or measurement condition.
TAIYO YUDEN reserves the right to make change to the data at any time without notice.
Before making final selection, please check product specification.
http://www.ty-top.com
Powered by TCPDF (www.tcpdf.org)
Multi Layer Ceramic Capacitor
○AMK063C6474MP
4V 0603 X6S 0.47uF +/- 20% t=0.33mmMAX
4V 0201 X6S 0.47uF +/- 20% t=0.013inchMAX

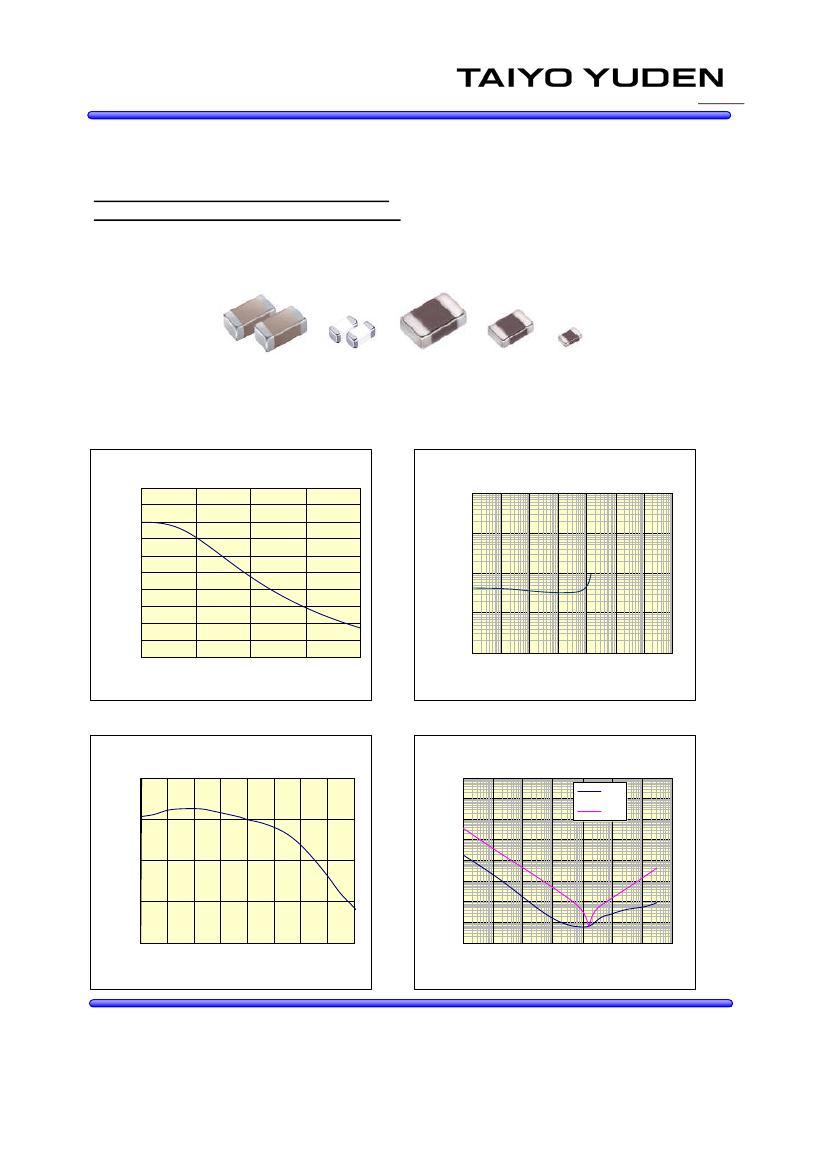

-Electrical Characteristics Data-
16SC04
RoHS compliance product
20
10
0
-10
-20
-30
-40
-50
-60
-70
-80
0
1
AMK063C6474MP
DC Bias Char.
100
AMK063C6474MP
Capacitance Freq.
10
Capacitance[uF]
dC/C[%]
1
0.1
2
3
DC Bias Voltage[V]
4
0.01
0.001 0.01 0.1
1
10
100 100010000
Frequency[MHz]
AMK063C6474MP
Capacitance Temp.
10
100000
10000
0
1000
AMK063C6474MP
Impedance,ESR Freq.
ESR
Z
-10
Z,ESR[OHM]
-55 -35 -15 5
25 45 65
Temperature[degreeC]
85 105
dC/C[%]
100
10
1
0.1
-20
0.01
-30
0.001
0.001 0.01
0.1
1
10 100 1000 10000
Frequency[MHz]
部品特性は設½環境、測定条件等により変化する場合があります。本データをご½用される際は実際の½品特性に対する参考
データとしてご活用ください。また、本データは予告無く½加½削除及び変更を行う場合があります。ご注文の際は、納入仕様書の
ご確認をお願いします。
The data is reference only. Electrical characteristics vary depending on environment or measurement condition.
TAIYO YUDEN reserves the right to make change to the data at any time without notice.
Before making final selection, please check product specification.
■
