B6020T datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> filter> B6020T

B6020T: DescriptionTip/Ring Filter, 1 Function(s); CategoryAnalog mixed-signal IC filter; File Size122KB，2 Pages; ManufacturerPulse Electronics

Download Datasheet Parametric Compare View All

B6020T Overview

Tip/Ring Filter, 1 Function(s)

B6020T Parametric

Parameter Name	Attribute value
Maker	Pulse Electronics
Reach Compliance Code	compliant
ECCN code	EAR99
filter type	TIP/RING FILTER
high	6.22 mm
length	29.08 mm
Manufacturer's serial number	B6020
Installation type	SURFACE MOUNT
Number of functions	1
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
method of packing	TAPE AND REEL
physical size	L29.08XB15.88XH6.22 (mm)/L1.145XB0.625XH0.245 (inch)
width	15.88 mm

Preview

Download Datasheet

View All

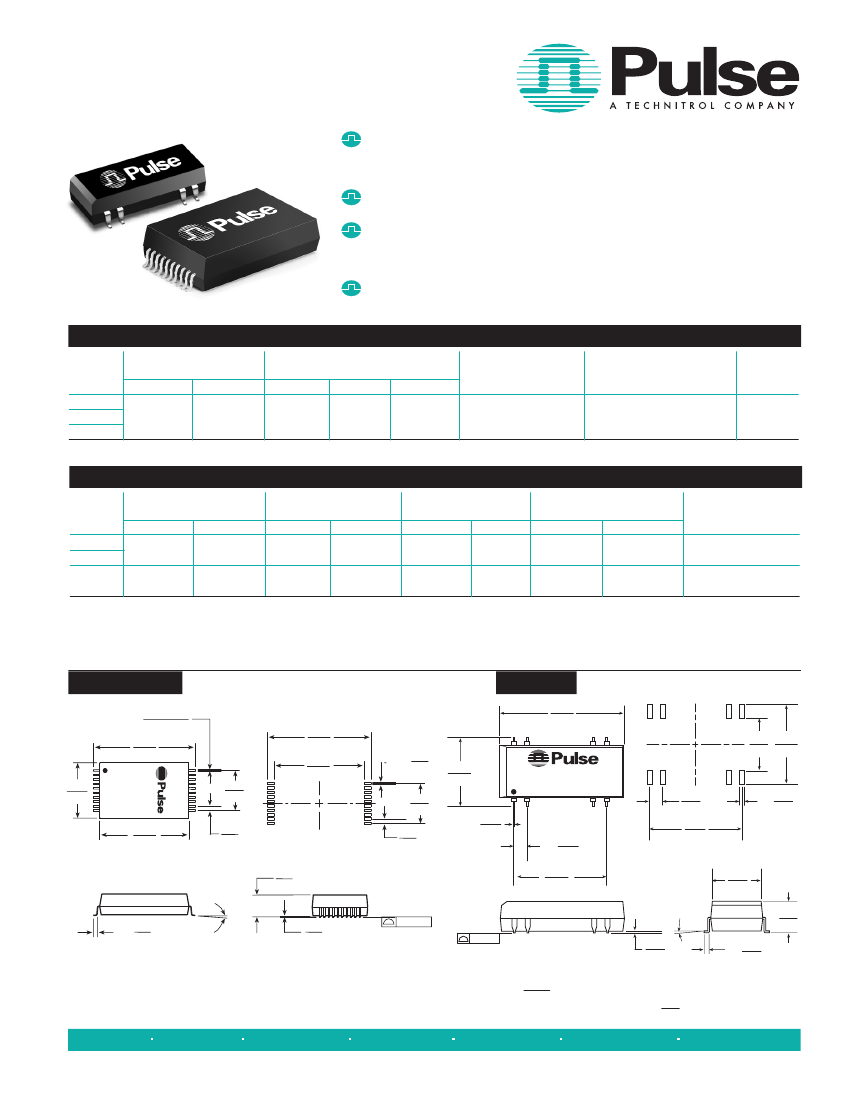

HOME PHONE NETWORKING

BANDPASS FILTER

For use with Broadcom’s

iLine 10

™

Chipset

(BCM4100 and BCM4210)

Includes isolation and EMI filtering

Designed to withstand 235°C peak infrared

reflow temperature

B6019 is designed with a 2 kV, 1000 pf capacitor

Electrical Specifications @ 25°C — Operating Temperature -40°C to +85°C

Part

Number

Insertion Loss

@ 4.75 to 9.25 MHz

(MIN)

(MAX)

Attenuation

(MIN)

1.1 MHz 22 MHz

54 MHz

Return Loss

@ 4.75 to 9.25 MHz

(MIN)

12 dB

Common to Differential

Mode Rejection

@ 200 kHz to 22 MHz

40 dB

Isolation

Voltage

(Vrms)

1500

B6019

B6020

1.0 dB

2.0 dB

60 dB

35 dB

50 dB

BX6031

NOTE:

Input Impedance data is provided on the back of this page.

Test Conditions

Part

Number

B6019

B6020

Insertion Loss

Input

(1-3)

Output

(20-18)

Attenuation

Input

(1-3)

Output

(20-18)

Return Loss

Input

(20-18)

Output

(1-3)

Common to Differential

Mode Rejection

Input

Output

(1-3)

(20-18)

Isolation

Voltage

(1-3-5-7) shorted

to (18-20) shorted

(1-2-15-16) shorted

BX6031

(1-2)

(8-9)

(1-2)

(8-9)

(1-2)

(8-9)

to (8-9-10) shorted

NOTES:

Filters are shipped in trays, unless Tape & Reel packaging is specified. Please add the suffix "T" (ex: B6019T) for Tape & Reel orders.

Compliance with FCC Part 68 metallic and longitudinal voltage surge is provided by an external Teccor P3100SB sidactor across tip and ring.

Mechanicals

B6019/B6020

20X

.018 ± .002

0,46 ± 0,05

BX6031

.918

23,32

16 15

10 9

1.145

29.08

B6019/B6020

COUNTRY OF ORIGIN

DATE CODE (REV)

1.170

29.72

1.015

25.78

20X

.028

0,71

.450

11,43

.390 .530

9,91 13,46

.625

15,88

.450

11,43

.050

1,27

.500

12,70

DATE CODE

COUNTRY OF ORIGIN

BX6031

.100

2,54

.700

17,78

.040

8X 1,02

1.005

25.53

SUGGESTED PAD LAYOUT

.245

6,22

.050

1,27

.018

8X 0,46

4X .100

2,54

.700

17,78

SUGGESTED PAD LAYOUT

.380

9,65

0° 8°

.225

5,72

.035

8X 0,89

0° 8°

20X

.045

1,14

.010

0,25

.004/0,10

20 SURFACES

.004/0,10

8 SURFACES

.010

0,25

B6019/B6020

BX6031

Weight

......................4.5 grams .............2.5 grams

Tape & Reel.................250/reel

................250/reel

Tube

..............................30/tray ..................20/tray

Dimensions:

Inches

Unless otherwise specified, all tolerances are ± .010

0,25

US 858 674 8100 UK 44 1483 401 700 France 33 3 84 35 04 04 Singapore 65 287 8998 Taiwan 886 2 2698 0228 Hong Kong 852 2788 6588 http://www.pulseeng.com

B964.A (1/02)

B6020T Related Products

	B6020T	B6019T	BX6031T	B6020
Description	Tip/Ring Filter, 1 Function(s)	Tip/Ring Filter, 1 Function(s)	Tip/Ring Filter, 1 Function(s)	Tip/Ring Filter, 1 Function(s)
Reach Compliance Code	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99
filter type	TIP/RING FILTER	TIP/RING FILTER	TIP/RING FILTER	TIP/RING FILTER
high	6.22 mm	6.22 mm	5.72 mm	6.22 mm
length	29.08 mm	29.08 mm	23.32 mm	29.08 mm
Manufacturer's serial number	B6020	B6019	BX6031	B6020
Installation type	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Number of functions	1	1	1	1
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C
method of packing	TAPE AND REEL	TAPE AND REEL	TAPE AND REEL	TRAY
physical size	L29.08XB15.88XH6.22 (mm)/L1.145XB0.625XH0.245 (inch)	L29.08XB15.88XH6.22 (mm)/L1.145XB0.625XH0.245 (inch)	L23.32XB9.65XH5.72 (mm)/L0.918XB0.38XH0.225 (inch)	L29.08XB15.88XH6.22 (mm)/L1.145XB0.625XH0.245 (inch)
width	15.88 mm	15.88 mm	9.65 mm	15.88 mm
Base Number Matches	-	1	1	1
