BAT54W /AW /CW /SW
SURFACE MOUNT SCHOTTKY BARRIER DIODE
Features
Low Forward Voltage Drop
Fast Switching
Ultra-Small Surface Mount Package
PN Junction Guard Ring for Transient and ESD Protection
Qualified to AEC-Q101 Standards for High Reliability
Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
Halogen and Antimony Free. “Green” Device (Notes 3 & 4)
Mechanical Data
Case: SOT323
Case Material: Molded Plastic, "Green" Molding Compound,
Note 5. UL Flammability Classification Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020
Terminals: Matte Tin Finish annealed over Alloy 42 leadframe
(Lead Free Plating). Solderable per MIL-STD-202, Method 208

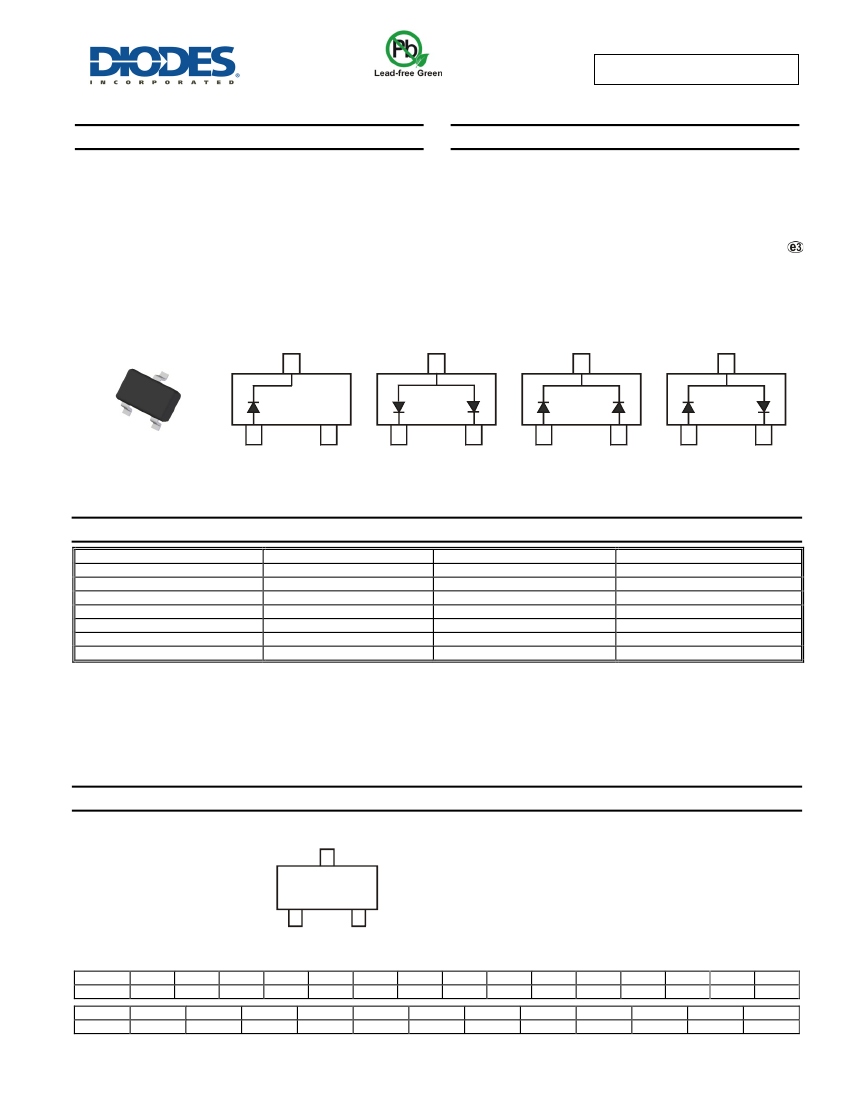

Polarity: See Diagrams Below
Weight: 0.006 grams (approximate)
SOT323
Top View
BAT54W-KL5
BAT54AW-KL6
BAT54CW-KL7
BAT54SW-KL8
Ordering Information
(Note 5)
Part Number
BAT54W-7-F
BAT54WQ-7-F
BAT54AW-7-F
BAT54AWQ-7-F
BAT54CW-7-F
BAT54SW-7-F
BAT54SWQ-7-F
Notes:
Compliance
Standard
Automotive
Standard
Automotive
Standard
Standard
Automotive
Case
SOT323
SOT323
SOT323
SOT323
SOT323
SOT323
SOT323
Packaging
3000/Tape & Reel
3000/Tape & Reel
3000/Tape & Reel
3000/Tape & Reel
3000/Tape & Reel
3000/Tape & Reel
3000/Tape & Reel
1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.
2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"
and Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. Product manufactured with Date Code 1327 (week 27, 2013) and newer are built with Green Molding Compound. Product manufactured prior to Date
Code 0627 are built with Non-Green Molding Compound and may contain Halogens or Sb2O3 Fire Retardants.
5. For packaging details, go to our website at http://www.diodes.com/products/packages.html
Marking Information
xxx = Product Type Marking Code
KL5 = BAT54W
KL6 = BAT54AW
KL7 = BAT54CW
KL8 = BAT54SW
YM = Date Code Marking
Y = Year (ex: A = 2013)
M = Month (ex: 9 = September)
xxx
Date Code Key
Year
2000
Code
L
Month
Code
Jan
1
2001
M
Feb
2
2002
N
2003
P
Mar
3
2004
R
Apr
4
YM
…
…
May
5
2010
X
Jun
6
2011
Y
2012
Z
Jul
7
2013
A
Aug
8
2014
B
Sep
9
2015
C
Oct
O
2016
D
2017
E
Nov
N
2018
F
Dec
D
BAT54W /AW /CW /SW
Document number: DS30065 Rev. 13 - 2
1 of 4
www.diodes.com
October 2013
© Diodes Incorporated
BAT54W /AW /CW /SW
Maximum Ratings
(@T
A
= +25°C, unless otherwise specified.)
Characteristic
Peak Repetitive Reverse Voltage
Working Peak Reverse Voltage
DC Blocking Voltage
Forward Continuous Current (Note 6)
Repetitive Peak Forward Current (Note 6)
Forward Surge Current (Note 6)
@ t < 1.0s
Symbol
V
RRM
V
RWM
V
R
I
F
I
FRM
I
FSM
Value
30
200
300
600
Unit
V
mA
mA
mA
Thermal Characteristics
Characteristic
Power Dissipation (Note 6)
Thermal Resistance Junction to Ambient Air (Note 6)
Operating and Storage Temperature Range
Symbol
P
D
R
θJA
T
J
, T
STG
Value
200
625
-65 to +125
Unit
mW
°C/W
°C
Electrical Characteristics
(@T
A
= +25°C, unless otherwise specified.)
Characteristic
Reverse Breakdown Voltage (Note 7)
Symbol
V
(BR)R
Min
30
Typ
Max
240
320
400
500
1000
2.0
10
5.0
Unit
V
Test Condition
I
R
= 100µA
I
F
= 0.1mA
I
F
= 1mA
I
F
= 10mA
I
F
= 30mA
I
F
= 100mA
V
R
= 25V
V
R
= 1.0V, f = 1.0MHz
I
F
= 10mA through I
R
= 10mA
to I
R
= 1.0mA, R
L
= 100Ω
Forward Voltage
V
F
mV
Reverse Leakage Current (Note 7)
Total Capacitance
Reverse Recovery Time
Notes:
I
R
C
T
t
rr
μA
pF
ns
6. Mounted on FR-4 PC board with recommended pad layout which can be found on our website at http://www.diodes.com.
7. Short duration pulse test used to minimize self-heating effect.
I
F
, INSTANTANEOUS FORWARD CURRENT (A)
1
100
0.1
10
1
0.01
0.1
0.001
0.01
0.0001
0.4
1.0
0.2
0.8
0
0.6
V
F
, INSTANTANEOUS FORWARD VOLTAGE (V)

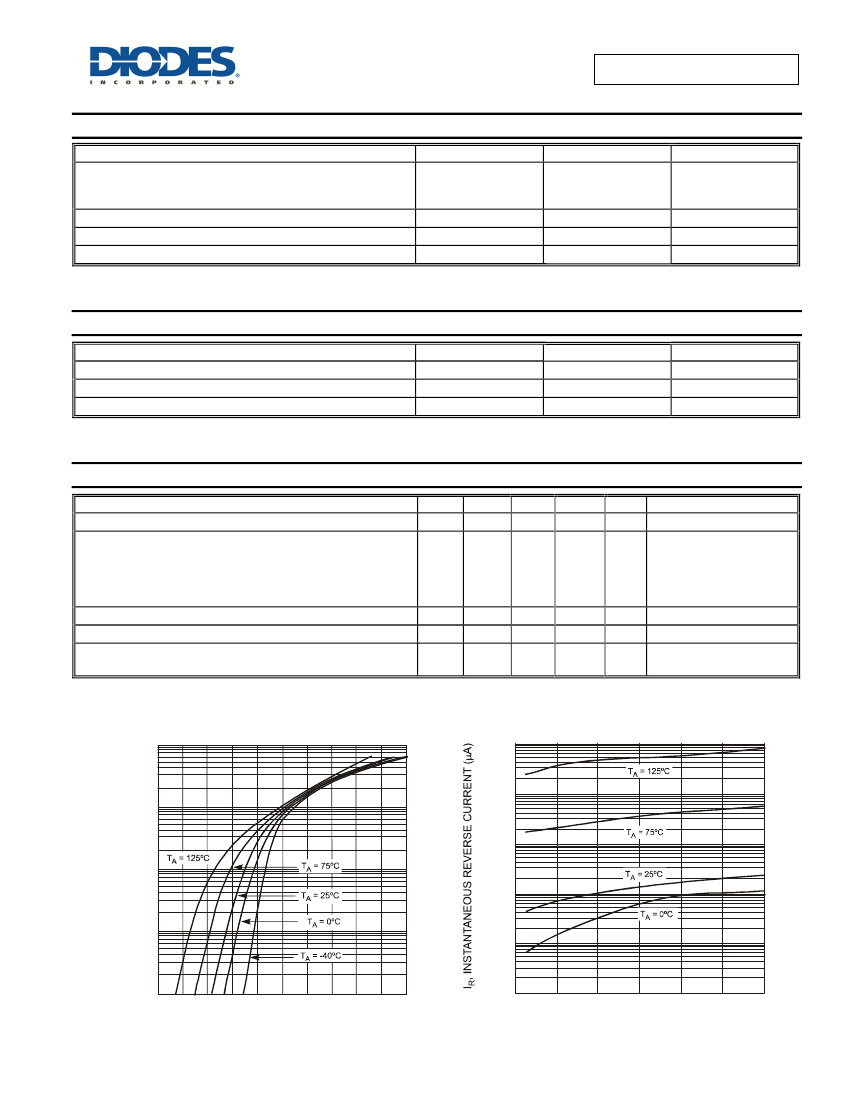

Fig. 1 Typical Forward Characteristics
0.001
0
5
10
15
20
30
25
V
R
, INSTANTANEOUS REVERSE VOLTAGE (V)
Fig. 2 Typical Reverse Characteristics
BAT54W /AW /CW /SW
Document number: DS30065 Rev. 13 - 2
2 of 4
www.diodes.com
October 2013
© Diodes Incorporated
BAT54W /AW /CW /SW
12
300
P
D
, POWER DISSIPATION (mW)
250
C
T
, TOTAL CAPACITANCE (pF)
10
8
200
Note 6
6
4
150
100
2
50
0
0
5
10
15
20
25
30
0
0
25
50
75
100
125
T
A
, AMBIENT TEMPERATURE (
°
C)
Fig. 4 Power Derating Curve
150

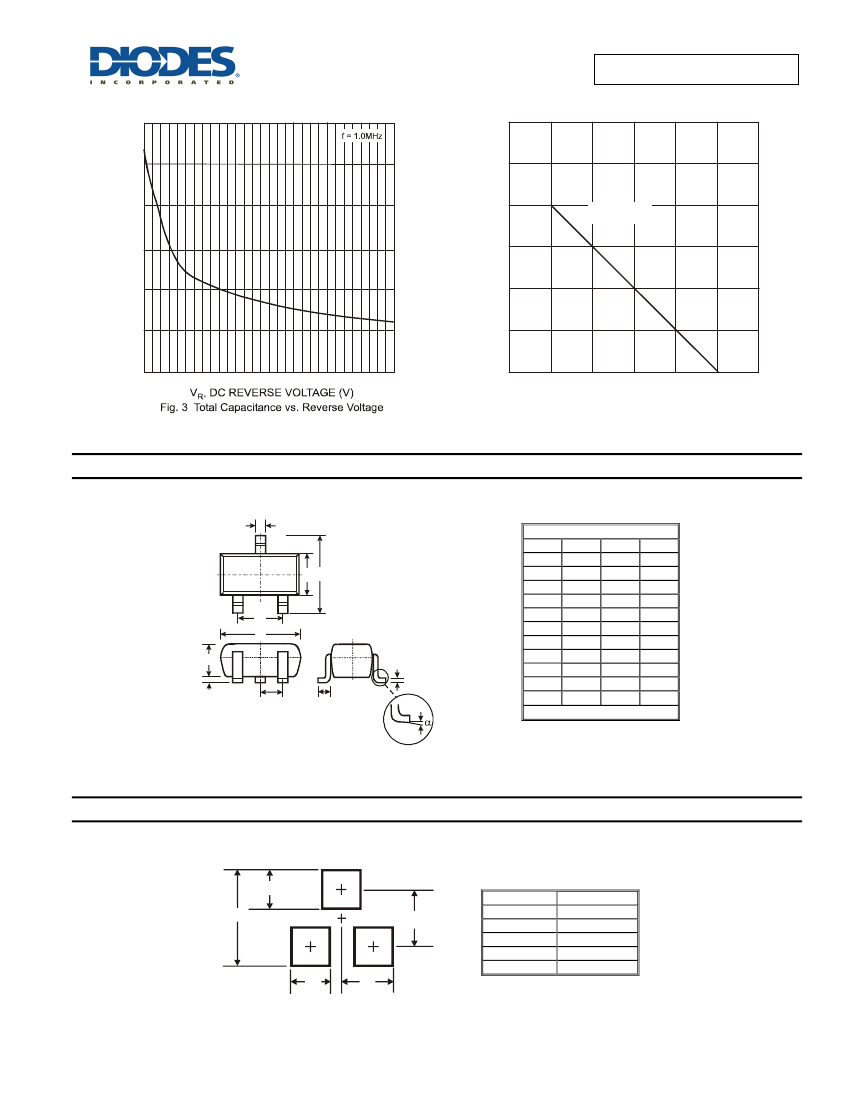

Package Outline Dimensions
Please see AP02002 at http://www.diodes.com/datasheets/ap02002.pdf for latest version.
A
B C
G
H
K
M
J
D
L
SOT323
Dim
Min
Max
Typ
A
0.25
0.40
0.30
B
1.15
1.35
1.30
C
2.00
2.20
2.10
D
-
-
0.65
G
1.20
1.40
1.30
H
1.80
2.20
2.15
J
0.0
0.10
0.05
K
0.90
1.00
1.00
L
0.25
0.40
0.30
M
0.10
0.18
0.11
0°
8°
-
All Dimensions in mm
Suggested Pad Layout
Please see AP02001 at http://www.diodes.com/datasheets/ap02001.pdf for the latest version.
Y
Z
C
Dimensions Value (in mm)
Z
2.8
X
0.7
Y
0.9
C
1.9
E
1.0
X
E
BAT54W /AW /CW /SW
Document number: DS30065 Rev. 13 - 2
3 of 4
www.diodes.com
October 2013
© Diodes Incorporated
BAT54W /AW /CW /SW
