BAT54W-7 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> BAT54W-7

BAT54W-7: DescriptionRectifier Diode, Schottky, 1 Element, 0.2A, 30V V(RRM), Silicon, ULTRA SMALL, PLASTIC PACKAGE-3; CategoryDiscrete semiconductor diode; File Size185KB，4 Pages; ManufacturerDiodes Incorporated

Download Datasheet Parametric View All

BAT54W-7 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	BAT54W-7	-	-	View	Buy Now

BAT54W-7 Overview

Rectifier Diode, Schottky, 1 Element, 0.2A, 30V V(RRM), Silicon, ULTRA SMALL, PLASTIC PACKAGE-3

BAT54W-7 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Diodes Incorporated
package instruction	R-PDSO-G3
Contacts	3
Reach Compliance Code	unknown
ECCN code	EAR99
Configuration	SINGLE
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
JESD-30 code	R-PDSO-G3
JESD-609 code	e0
Humidity sensitivity level	1
Number of components	1
Number of terminals	3
Maximum operating temperature	125 °C
Minimum operating temperature	-65 °C
Maximum output current	0.2 A
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	235
Maximum power dissipation	0.2 W
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	30 V
Maximum reverse recovery time	0.005 µs
surface mount	YES
technology	SCHOTTKY
Terminal surface	TIN LEAD
Terminal form	GULL WING
Terminal location	DUAL
Maximum time at peak reflow temperature	10

BAT54W-7 Preview

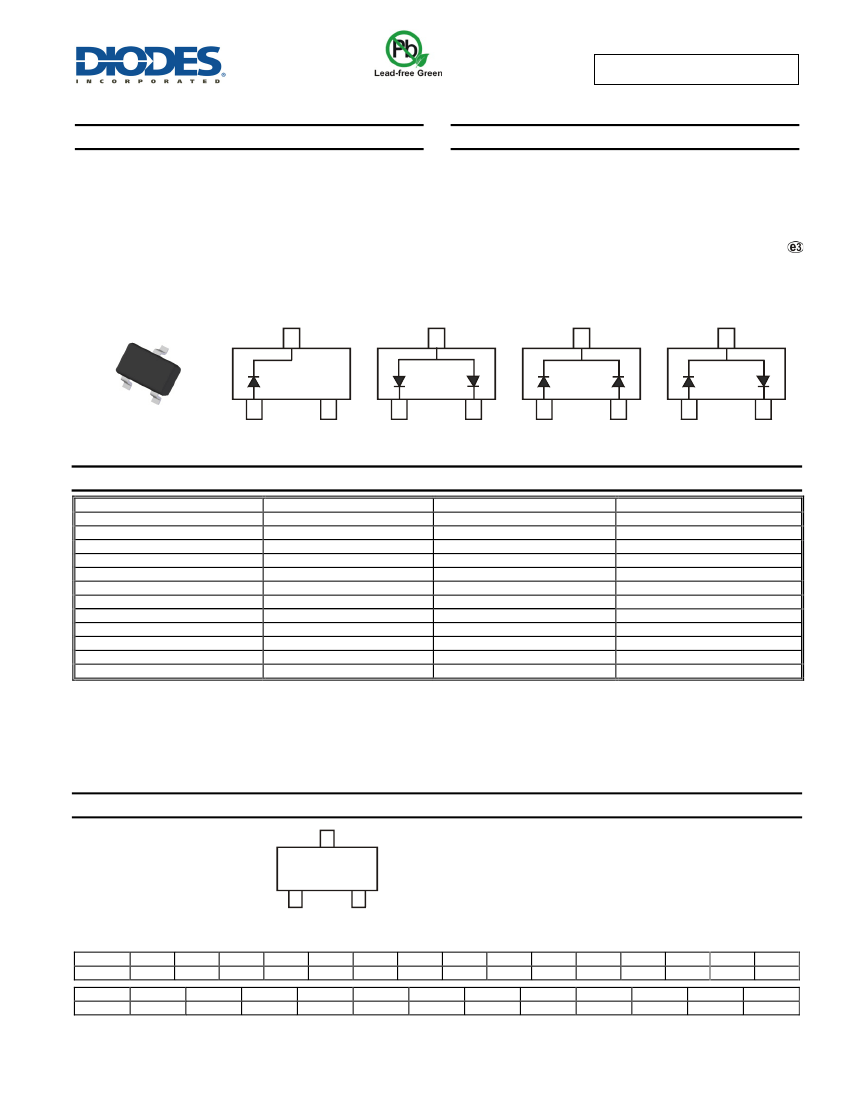

BAT54W /AW /CW /SW

SURFACE MOUNT SCHOTTKY BARRIER DIODE

Features



Low Forward Voltage Drop

Fast Switching

Ultra-Small Surface Mount Package

PN Junction Guard Ring for Transient and ESD Protection

Qualified to AEC-Q101 Standards for High Reliability

Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)

Halogen and Antimony Free. “Green” Device (Notes 3 & 4)

Mechanical Data



Case: SOT323

Case Material: Molded Plastic, "Green" Molding Compound,

Note 5. UL Flammability Classification Rating 94V-0

Moisture Sensitivity: Level 1 per J-STD-020

Terminals: Matte Tin Finish annealed over Alloy 42 leadframe

(Lead Free Plating). Solderable per MIL-STD-202, Method 208

Polarity: See Diagrams Below

Weight: 0.006 grams (approximate)

SOT323

Top View

BAT54W-KL5

BAT54AW-KL6

BAT54CW-KL7

BAT54SW-KL8

Ordering Information

(Note 5)

Part Number

BAT54W-7-F

BAT54W-13-F

BAT54WQ-7-F

BAT54AW-7-F

BAT54AW-13-F

BAT54AWQ-7-F

BAT54CW-7-F

BAT54CW-13-F

BAT54CWQ-7-F

BAT54SW-7-F

BAT54SW-13-F

BAT54SWQ-7-F

Notes:

Compliance

Standard

Automotive

Standard

Automotive

Standard

Automotive

Standard

Automotive

Case

SOT323

Packaging

3000/Tape & Reel

10000/Tape & Reel

3000/Tape & Reel

10000/Tape & Reel

3000/Tape & Reel

10000/Tape & Reel

3000/Tape & Reel

10000/Tape & Reel

3000/Tape & Reel

1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.

2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"

and Lead-free.

3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and

<1000ppm antimony compounds.

4. Product manufactured with Date Code 1327 (week 27, 2013) and newer are built with Green Molding Compound. Product manufactured prior to Date

Code 0627 are built with Non-Green Molding Compound and may contain Halogens or Sb2O3 Fire Retardants.

5. For packaging details, go to our website at http://www.diodes.com/products/packages.html

Marking Information

xxx = Product Type Marking Code

KL5 = BAT54W

KL6 = BAT54AW

KL7 = BAT54CW

KL8 = BAT54SW

YM = Date Code Marking

Y = Year (ex: A = 2014)

M = Month (ex: 9 = September)

2010

Jun

2011

2012

Jul

2013

Aug

2014

Sep

2015

Oct

2016

2017

Nov

2018

Dec

xxx

Date Code Key

Year

2000

Code

Month

Code

Jan

2001

Feb

2002

2003

Mar

2004

Apr

…

May

BAT54W /AW /CW /SW

Document number: DS30065 Rev. 15 - 2

1 of 4

www.diodes.com

March 2014

BAT54W /AW /CW /SW

Maximum Ratings

(@T

= +25°C, unless otherwise specified.)

Characteristic

Peak Repetitive Reverse Voltage

Working Peak Reverse Voltage

DC Blocking Voltage

Forward Continuous Current (Note 6)

Repetitive Peak Forward Current (Note 6)

Forward Surge Current (Note 6)

@ t < 1.0s

Symbol

RRM

RWM

FRM

FSM

Value

200

300

600

Unit

Thermal Characteristics

Characteristic

Power Dissipation (Note 6)

Thermal Resistance Junction to Ambient Air (Note 6)

Operating and Storage Temperature Range

Symbol

θJA

, T

STG

Value

200

625

-65 to +125

Unit

°C/W

°C

Electrical Characteristics

(@T

= +25°C, unless otherwise specified.)

Characteristic

Reverse Breakdown Voltage (Note 7)

Symbol

(BR)R

Min

Typ



Max



240

320

400

500

1000

2.0

5.0

Unit

Test Condition

= 100µA

= 0.1mA

= 1mA

= 10mA

= 30mA

= 100mA

= 25V

= 1.0V, f = 1.0MHz

= 10mA through I

= 10mA

to I

= 1.0mA, R

= 100Ω

Forward Voltage



Reverse Leakage Current (Note 7)

Total Capacitance

Reverse Recovery Time

Notes:



μA

6. Mounted on FR-4 PC board with recommended pad layout which can be found on our website at http://www.diodes.com.

7. Short duration pulse test used to minimize self-heating effect.

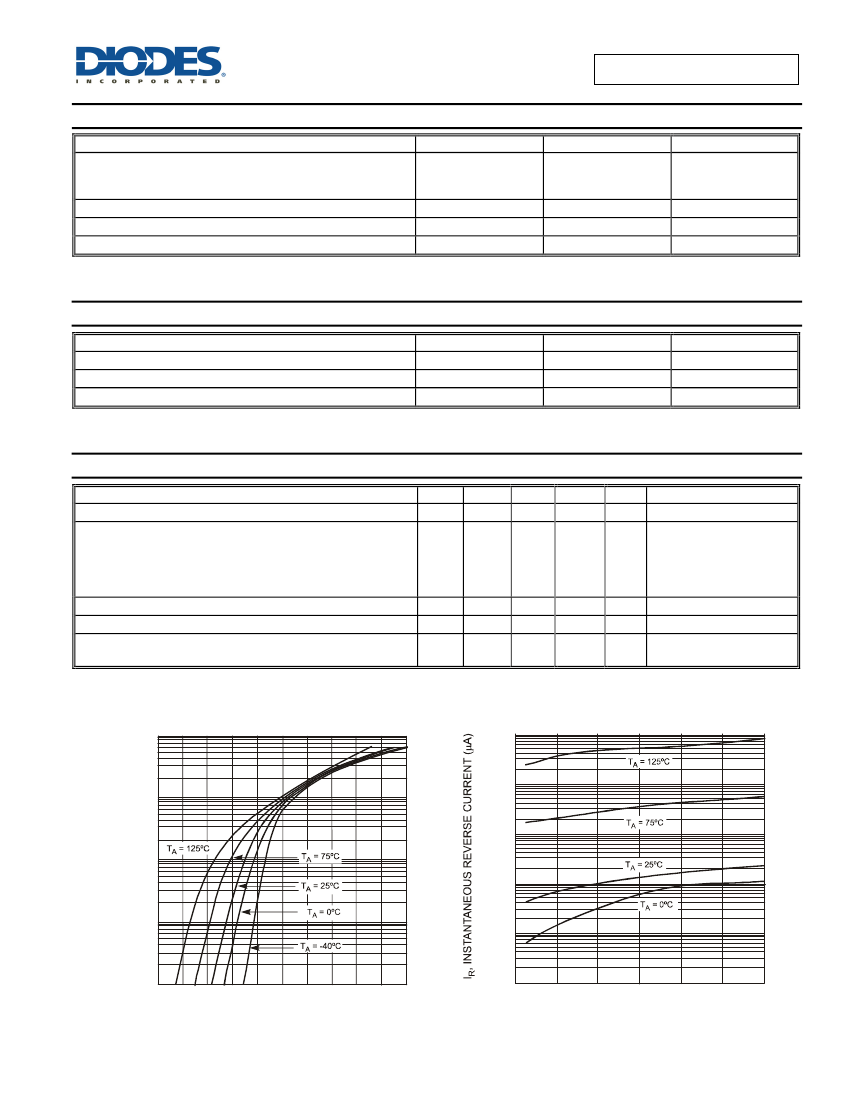

, INSTANTANEOUS FORWARD CURRENT (A)

100

0.1

0.01

0.1

0.001

0.01

0.0001

0.4

1.0

0.2

0.8

0.6

, INSTANTANEOUS FORWARD VOLTAGE (V)

Fig. 1 Typical Forward Characteristics

0.001

, INSTANTANEOUS REVERSE VOLTAGE (V)

Fig. 2 Typical Reverse Characteristics

BAT54W /AW /CW /SW

Document number: DS30065 Rev. 15 - 2

2 of 4

www.diodes.com

March 2014

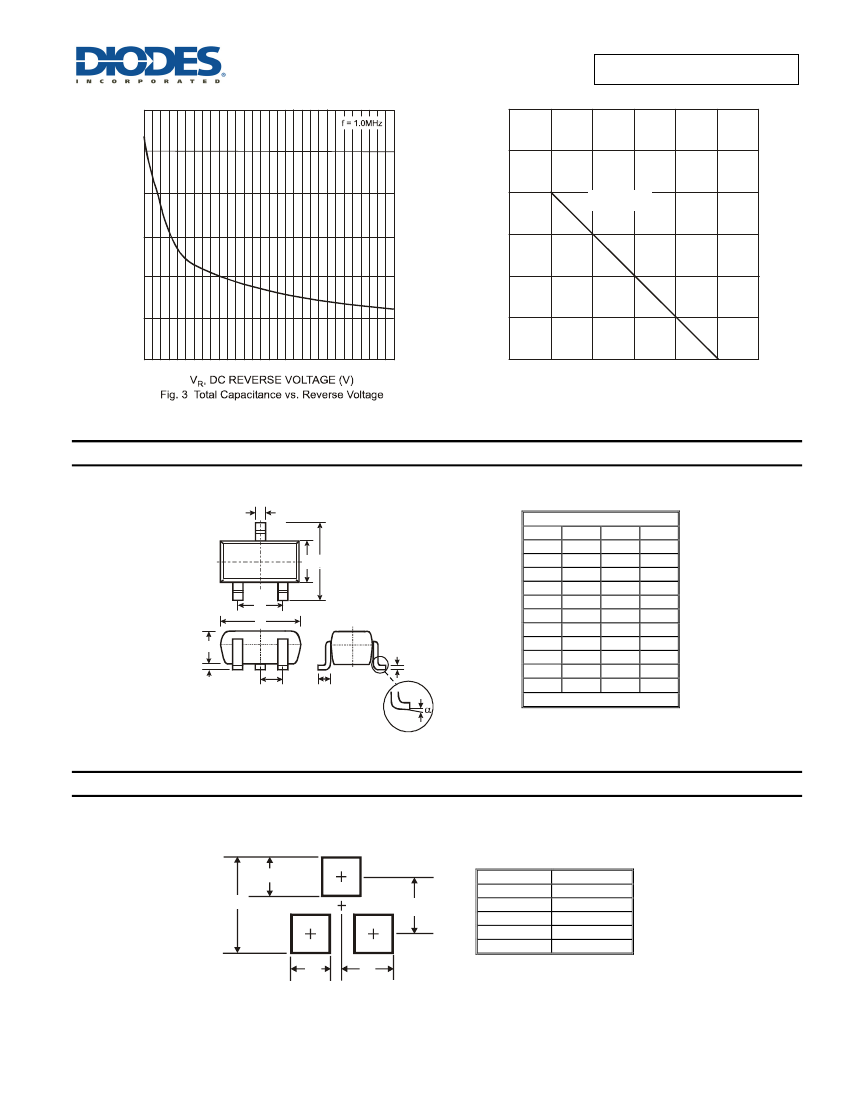

BAT54W /AW /CW /SW

300

, POWER DISSIPATION (mW)

250

, TOTAL CAPACITANCE (pF)

200

Note 6

150

100

125

, AMBIENT TEMPERATURE (

Fig. 4 Power Derating Curve

150

Package Outline Dimensions

Please see AP02002 at http://www.diodes.com/datasheets/ap02002.pdf for latest version.

B C

SOT323

Dim

Min

Max

Typ

0.25

0.40

0.30

1.15

1.35

1.30

2.00

2.20

2.10

0.65

1.20

1.40

1.30

1.80

2.20

2.15

0.0

0.10

0.05

0.90

1.00

0.25

0.40

0.30

0.10

0.18

0.11

0°

8°



All Dimensions in mm

Suggested Pad Layout

Please see AP02001 at http://www.diodes.com/datasheets/ap02001.pdf for the latest version.

Dimensions Value (in mm)

2.8

0.7

0.9

1.9

1.0

BAT54W /AW /CW /SW

Document number: DS30065 Rev. 15 - 2

3 of 4

www.diodes.com

March 2014

BAT54W /AW /CW /SW

IMPORTANT NOTICE

DIODES INCORPORATED MAKES NO WARRANTY OF ANY KIND, EXPRESS OR IMPLIED, WITH REGARDS TO THIS DOCUMENT,

INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE

(AND THEIR EQUIVALENTS UNDER THE LAWS OF ANY JURISDICTION).

Diodes Incorporated and its subsidiaries reserve the right to make modifications, enhancements, improvements, corrections or other changes

without further notice to this document and any product described herein. Diodes Incorporated does not assume any liability arising out of the

application or use of this document or any product described herein; neither does Diodes Incorporated convey any license under its patent or

trademark rights, nor the rights of others. Any Customer or user of this document or products described herein in such applications shall assume

all risks of such use and will agree to hold Diodes Incorporated and all the companies whose products are represented on Diodes Incorporated

website, harmless against all damages.

Diodes Incorporated does not warrant or accept any liability whatsoever in respect of any products purchased through unauthorized sales channel.

Should Customers purchase or use Diodes Incorporated products for any unintended or unauthorized application, Customers shall indemnify and

hold Diodes Incorporated and its representatives harmless against all claims, damages, expenses, and attorney fees arising out of, directly or

indirectly, any claim of personal injury or death associated with such unintended or unauthorized application.

Products described herein may be covered by one or more United States, international or foreign patents pending. Product names and markings

noted herein may also be covered by one or more United States, international or foreign trademarks.

This document is written in English but may be translated into multiple languages for reference. Only the English version of this document is the

final and determinative format released by Diodes Incorporated.

LIFE SUPPORT

Diodes Incorporated products are specifically not authorized for use as critical components in life support devices or systems without the express

written approval of the Chief Executive Officer of Diodes Incorporated. As used herein:

A. Life support devices or systems are devices or systems which:

1. are intended to implant into the body, or

2. support or sustain life and whose failure to perform when properly used in accordance with instructions for use provided in the

labeling can be reasonably expected to result in significant injury to the user.

B. A critical component is any component in a life support device or system whose failure to perform can be reasonably expected to cause the

failure of the life support device or to affect its safety or effectiveness.

Customers represent that they have all necessary expertise in the safety and regulatory ramifications of their life support devices or systems, and

acknowledge and agree that they are solely responsible for all legal, regulatory and safety-related requirements concerning their products and any

use of Diodes Incorporated products in such safety-critical, life support devices or systems, notwithstanding any devices- or systems-related

information or support that may be provided by Diodes Incorporated. Further, Customers must fully indemnify Diodes Incorporated and its

representatives against any damages arising out of the use of Diodes Incorporated products in such safety-critical, life support devices or systems.

www.diodes.com

BAT54W /AW /CW /SW

Document number: DS30065 Rev. 15 - 2

4 of 4

www.diodes.com

March 2014
