The SP761X driver family provides a simple solution for a matched current source for any color LED.
The current in the LEDs can be programmed by an external resistor. The SP7611A is capable of
driving four LEDs, while the SP7612A can drive three LEDs. The SP7614A is designed to drive two
high current LEDs. LED1 should always be connected to an LED and never left open in order to have
the other LEDs driven with a matched current to LED1. The SP7612A and SP7614A feature Enable
pins for flexible on/off control and PWM dimming. SP7612A/4A has extremely low (0.01uA typical)
shutdown current, prolonging the battery life and giving the longest standby period possible in today's
modern design. SP761X driver family is available in a small footprint 6-pin SC-70 package as well as
the 6-pin 2x2 TDFN.

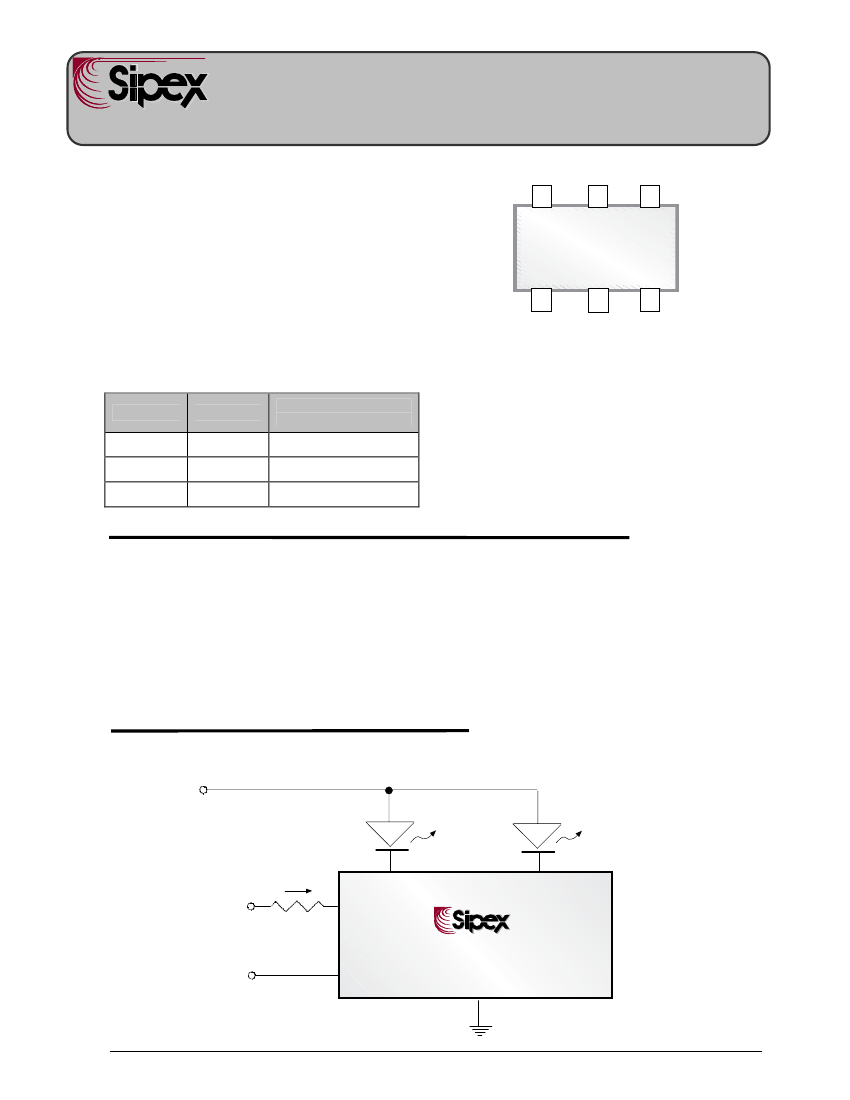

TYPICAL APPLICATION SCHEMATIC
VIN
I SET
VCONTROL
RSET
LED1
CTRL
SP7614A
ENABLE
GND
LED2
®
®
Jul31-07 RevT
SP7611A/7612A/7614A Low Dropout Linear LED driver
Page 1
2007 Sipex Corporation
ABSOLUTE MAXIMUM RATINGS
These are stress ratings only and functional operation of the device at these ratings or any other above those indicated in the
operation sections of the specifications below is not implied. Exposure to absolute maximum rating conditions for extended periods
of time may affect reliability.
V
LED1
, V
LED2
, V
LED3,
V
LED4
and ENABLE Voltage to GND............................................................................... -0.3V to 6V
CTRL Voltage to GND . ..................................................................................................................................... .-0.5V
Output Current (I
OUT
) (SP7611A and 7612A)....................................................................................................... 40mA
Junction Temperature ...................................................................................................................................... +150°
C
Storage Temperature.......................................................................................................................... -55° to +150°
