PAL16L8BCNL datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Programmable logic devices> Programmable logic> PAL16L8BCNL

PAL16L8BCNL: DescriptionOT PLD, 15ns, TTL, PQCC20, PLASTIC, LCC-20; CategoryProgrammable logic devices Programmable logic; File Size3MB，34 Pages; ManufacturerRochester Electronics; Websitehttps://www.rocelec.com/

Download Datasheet Parametric View All

PAL16L8BCNL Overview

OT PLD, 15ns, TTL, PQCC20, PLASTIC, LCC-20

PAL16L8BCNL Parametric

Parameter Name	Attribute value
Maker	Rochester Electronics
package instruction	QCCJ,
Reach Compliance Code	unknown
Other features	PAL
JESD-30 code	S-PQCC-J20
length	8.9662 mm
Dedicated input times	10
Number of I/O lines	6
Number of terminals	20
Maximum operating temperature	75 °C
Minimum operating temperature
organize	10 DEDICATED INPUTS, 6 I/O
Output function	COMBINATORIAL
Package body material	PLASTIC/EPOXY
encapsulated code	QCCJ
Package shape	SQUARE
Package form	CHIP CARRIER
Programmable logic type	OT PLD
propagation delay	15 ns
Maximum seat height	4.57 mm
Maximum supply voltage	5.25 V
Minimum supply voltage	4.75 V
Nominal supply voltage	5 V
surface mount	YES
technology	TTL
Temperature level	COMMERCIAL EXTENDED
Terminal form	J BEND
Terminal pitch	1.27 mm
Terminal location	QUAD
width	8.9662 mm

Preview

Download Datasheet

View All

REI Datasheet

PAL16R8

20-Pin TTL Programmable Array Logic

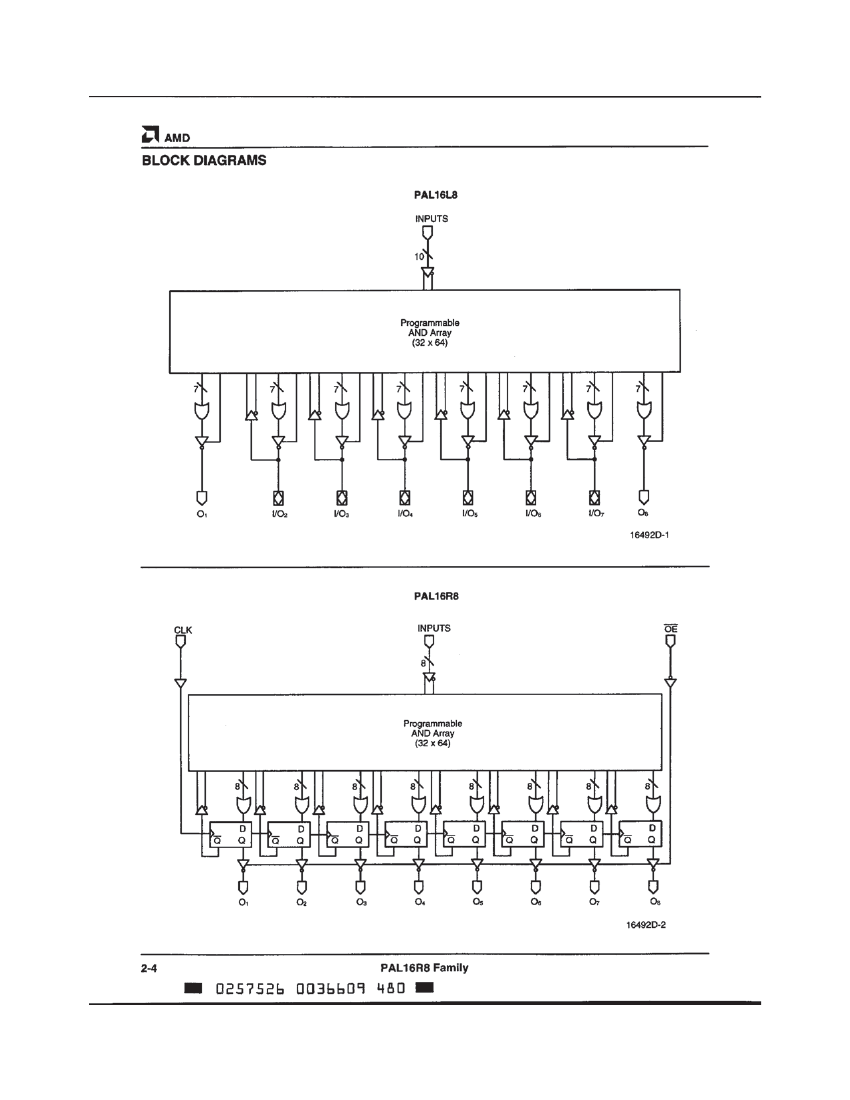

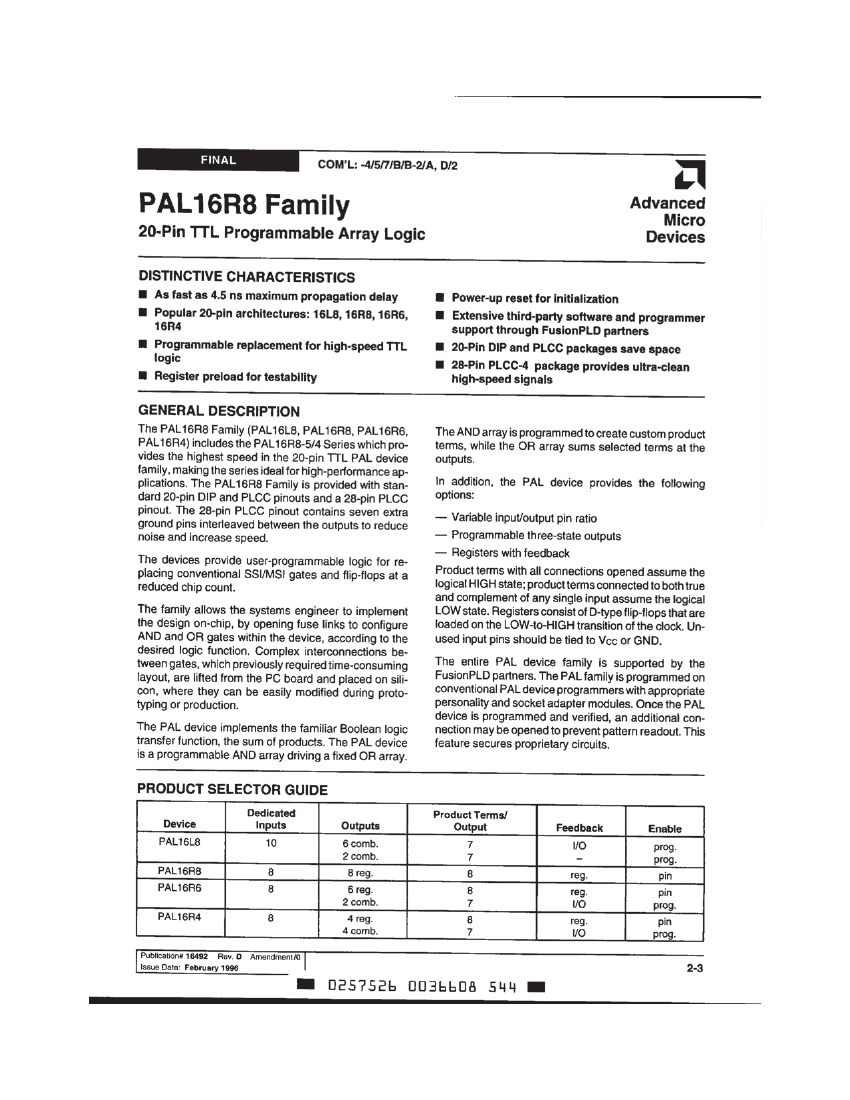

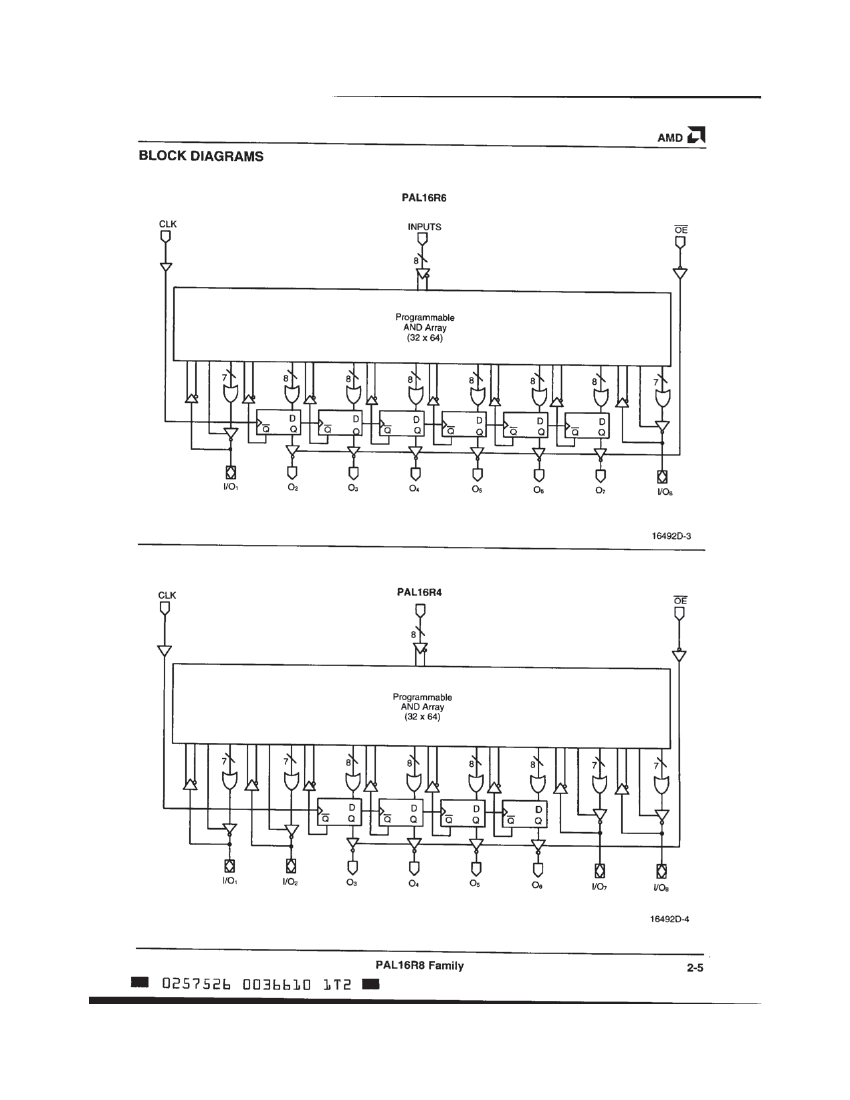

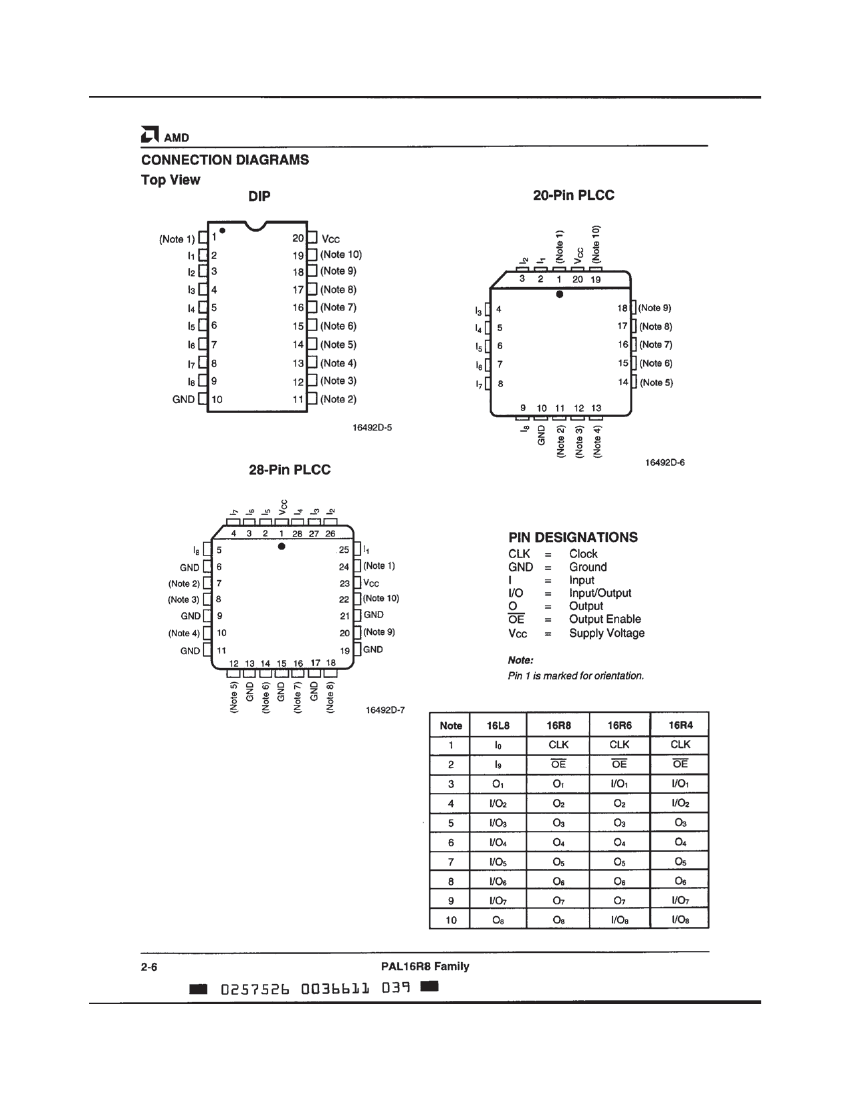

The PAL16R8 Family (PAL16L8, PAL16R8, PAL16R6, PAL16R4) includes the PAL16R8-5/4 Series

which provides the highest speed in the 20-pin TTL PAL device family, making the series ideal for

high-performance applications. The PAL16R8 Family is provided with standard 20-pin DIP and

PLCC pinouts and a 28-pin PLCC pinout. The 28-pin PLCC pinout contains seven extra ground pins

interleaved between the outputs to reduce noise and increase speed.

The devices provide user-programmable logic for replacing conventional SSI/MSI gates and flip-flops

at a reduced chip count.
