PD51258-20 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > storage> storage> PD51258-20

Preview

PD51258-20: DescriptionStandard SRAM, 64KX4, 20ns, CMOS, PDIP24, 0.300 INCH, PLASTIC, DIP-24; Categorystorage storage; File Size147KB，7 Pages; ManufacturerIntel; Websitehttp://www.intel.com/

Download Datasheet Parametric Compare View All

PD51258-20 Overview

Standard SRAM, 64KX4, 20ns, CMOS, PDIP24, 0.300 INCH, PLASTIC, DIP-24

PD51258-20 Parametric

Parameter Name	Attribute value
Maker	Intel
Parts packaging code	DIP
package instruction	DIP,
Contacts	24
Reach Compliance Code	compliant
ECCN code	EAR99
Maximum access time	20 ns
Other features	POWER-DOWN
JESD-30 code	R-PDIP-T24
length	31.495 mm
memory density	262144 bit
Memory IC Type	STANDARD SRAM
memory width	4
Number of functions	1
Number of ports	1
Number of terminals	24
word count	65536 words
character code	64000
Operating mode	ASYNCHRONOUS
Maximum operating temperature	70 °C
Minimum operating temperature
organize	64KX4
Output characteristics	3-STATE
Exportable	NO
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Package shape	RECTANGULAR
Package form	IN-LINE
Parallel/Serial	PARALLEL
Certification status	Not Qualified
Maximum seat height	4.32 mm
Minimum standby current	2 V
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	CMOS
Temperature level	COMMERCIAL
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
width	7.62 mm

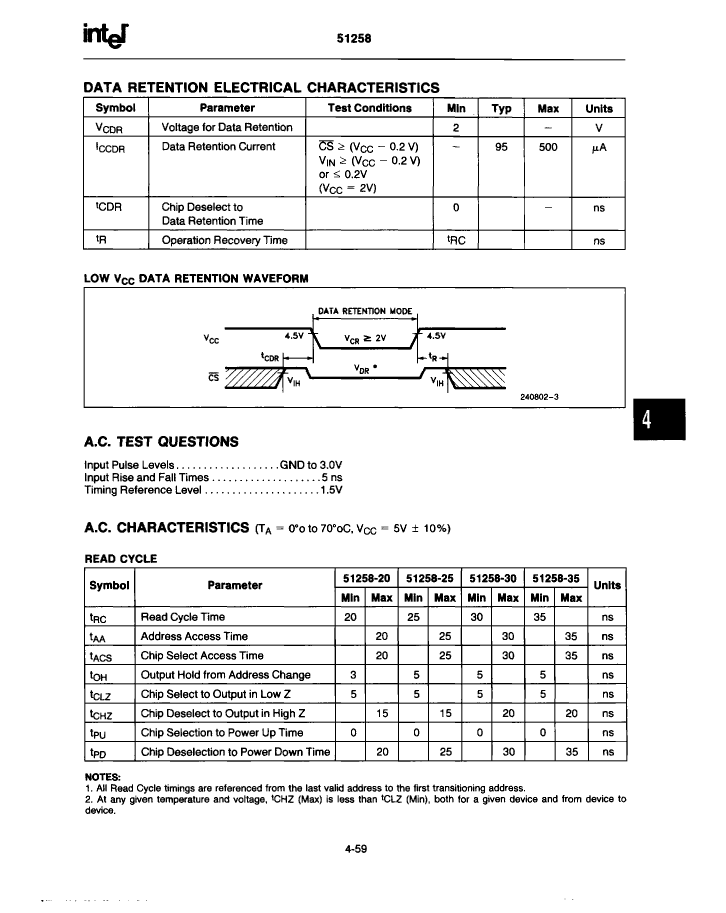

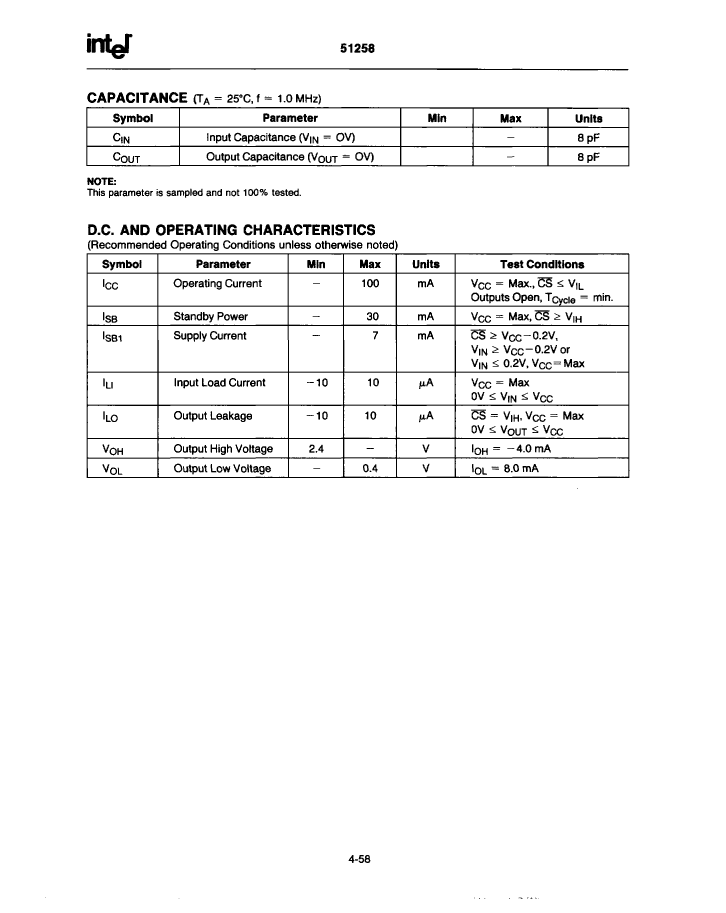

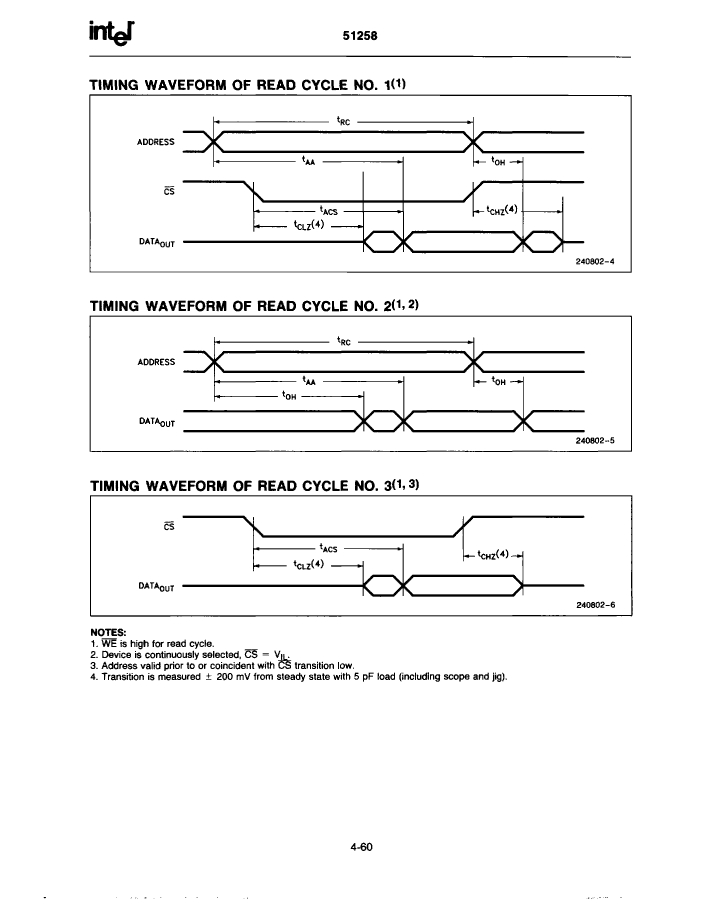

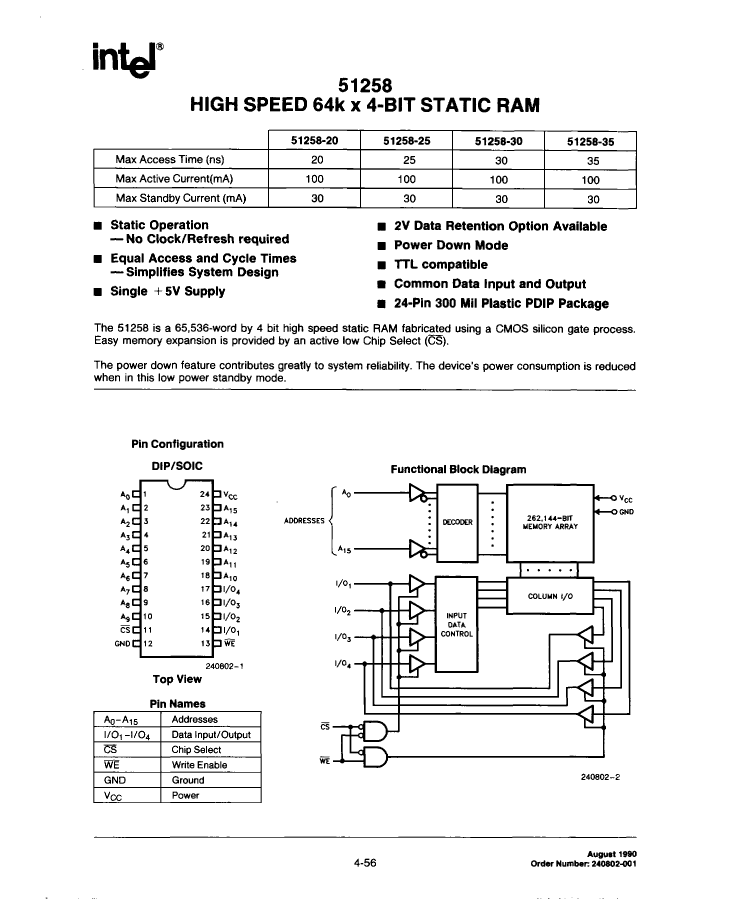

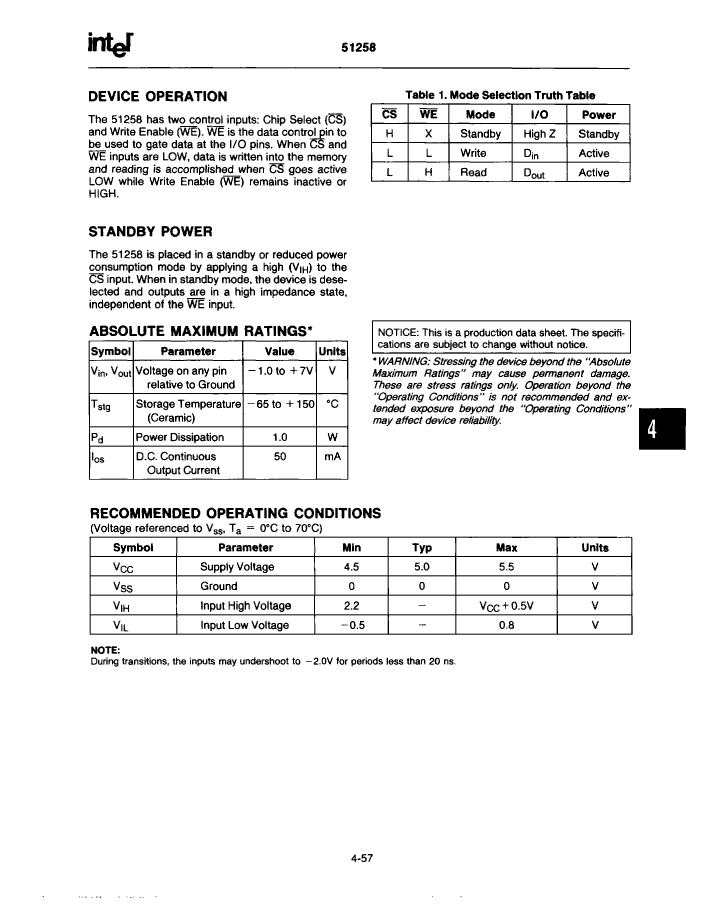

PD51258-20 Preview

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >

PD51258-20 Related Products

	PD51258-20	PD51258-25	PD51258-30	PD51258-35
Description	Standard SRAM, 64KX4, 20ns, CMOS, PDIP24, 0.300 INCH, PLASTIC, DIP-24	Standard SRAM, 64KX4, 25ns, CMOS, PDIP24, 0.300 INCH, PLASTIC, DIP-24	Standard SRAM, 64KX4, 30ns, CMOS, PDIP24, 0.300 INCH, PLASTIC, DIP-24	Standard SRAM, 64KX4, 35ns, CMOS, PDIP24, 0.300 INCH, PLASTIC, DIP-24
Maker	Intel	Intel	Intel	Intel
Parts packaging code	DIP	DIP	DIP	DIP
package instruction	DIP,	DIP,	DIP,	DIP,
Contacts	24	24	24	24
Reach Compliance Code	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99
Maximum access time	20 ns	25 ns	30 ns	35 ns
Other features	POWER-DOWN	POWER-DOWN	POWER-DOWN	POWER-DOWN
JESD-30 code	R-PDIP-T24	R-PDIP-T24	R-PDIP-T24	R-PDIP-T24
length	31.495 mm	31.495 mm	31.495 mm	31.495 mm
memory density	262144 bit	262144 bit	262144 bit	262144 bit
Memory IC Type	STANDARD SRAM	STANDARD SRAM	STANDARD SRAM	STANDARD SRAM
memory width	4	4	4	4
Number of functions	1	1	1	1
Number of ports	1	1	1	1
Number of terminals	24	24	24	24
word count	65536 words	65536 words	65536 words	65536 words
character code	64000	64000	64000	64000
Operating mode	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C
organize	64KX4	64KX4	64KX4	64KX4
Output characteristics	3-STATE	3-STATE	3-STATE	3-STATE
Exportable	NO	NO	NO	NO
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	DIP	DIP	DIP	DIP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE	IN-LINE	IN-LINE
Parallel/Serial	PARALLEL	PARALLEL	PARALLEL	PARALLEL
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	4.32 mm	4.32 mm	4.32 mm	4.32 mm
Minimum standby current	2 V	2 V	2 V	2 V
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V
surface mount	NO	NO	NO	NO
technology	CMOS	CMOS	CMOS	CMOS
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Terminal location	DUAL	DUAL	DUAL	DUAL
width	7.62 mm	7.62 mm	7.62 mm	7.62 mm
