1-1926739-0 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> 1-1926739-0

1-1926739-0: Description35 CONTACT(S), FEMALE, RIGHT ANGLE TWO PART BOARD CONNECTOR, SOLDER, RECEPTACLE; CategoryThe connector; File Size570KB，3 Pages; ManufacturerMACOM; Websitehttp://www.macom.com

Download Datasheet Parametric Compare View All

1-1926739-0 Overview

35 CONTACT(S), FEMALE, RIGHT ANGLE TWO PART BOARD CONNECTOR, SOLDER, RECEPTACLE

1-1926739-0 Parametric

Parameter Name	Attribute value
Contact materials	PHOSPHOR BRONZE/COPPER ALLOY
Terminal spacing	2 mm
Total number of contacts	35
Lead-free	Yes
EU RoHS regulations	Yes
China RoHS regulations	Yes
state	ACTIVE
Options	GENERAL PURPOSE
Shell style	RECEPTACLE
Manufacturer Series	1926739
Contact surface matching	GOLD (3) OVER PALLADIUM NICKEL (30)
Contact coated terminals	MATTE TIN (20) OVER NICKEL (50)
Connection Type	TWO PART BOARD CONNECTOR
Connector male and female	FEMALE
hybrid connection	Yes
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of load rows	5
Terminal type	SOLDER
UL flammability code	94V-0

Preview

Download Datasheet

View All

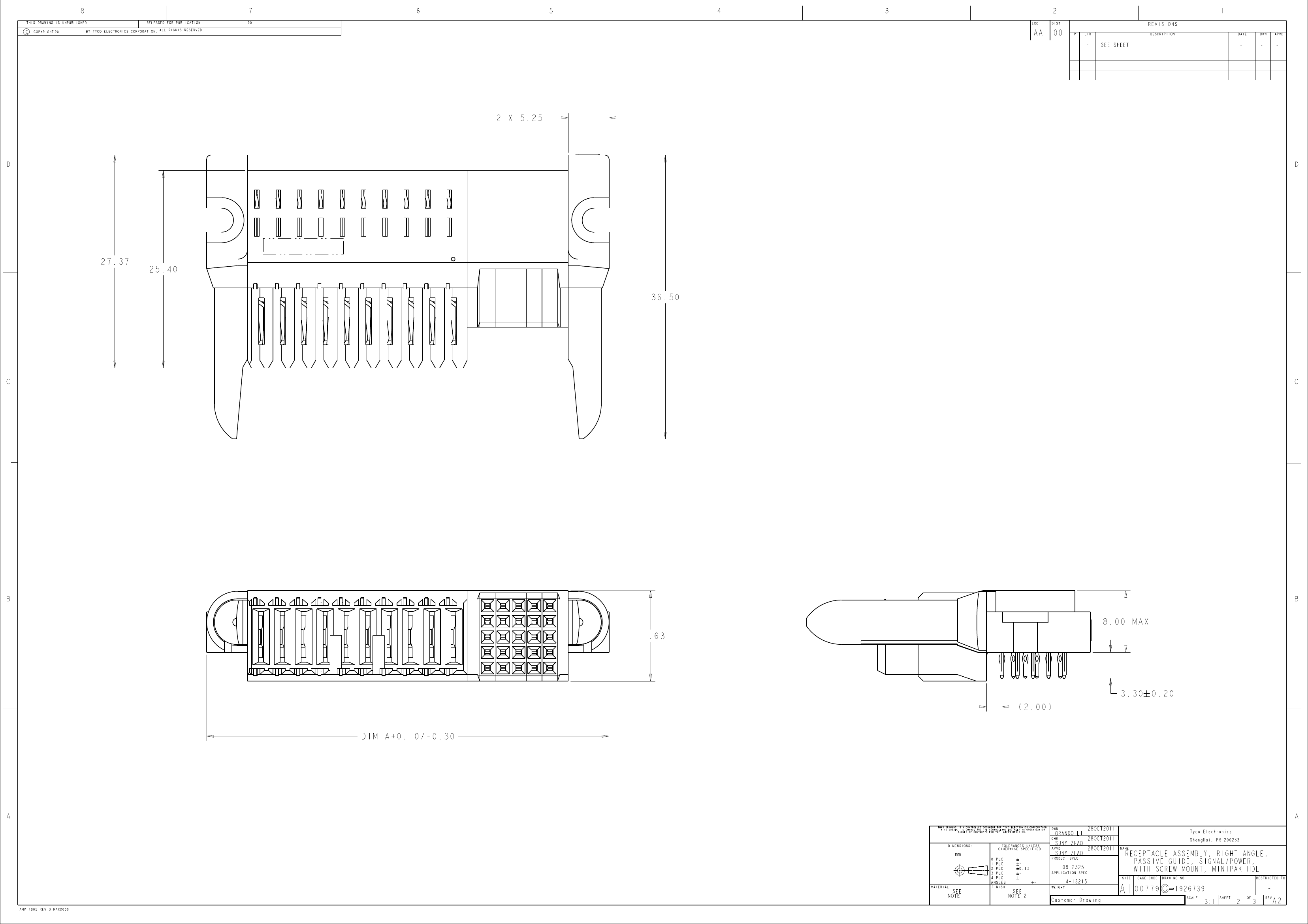

THIS DRAWING IS UNPUBLISHED.

RELEASED FOR PUBLICATION

BY TYCO ELECTRONICS CORPORATION.

LOC

DIST

REVISIONS

LTR

DESCRIPTION

DATE

DWN

APVD

REV PER ECR-12-009211

REV PER ECR-12-018079

REV PER ECO-13-015117

18MAY2012

18OCT2012

16SEP2013

TE PART NUMBER AND DATE CODE

HOUSING

FIRST CIRCUIT

INDICATOR

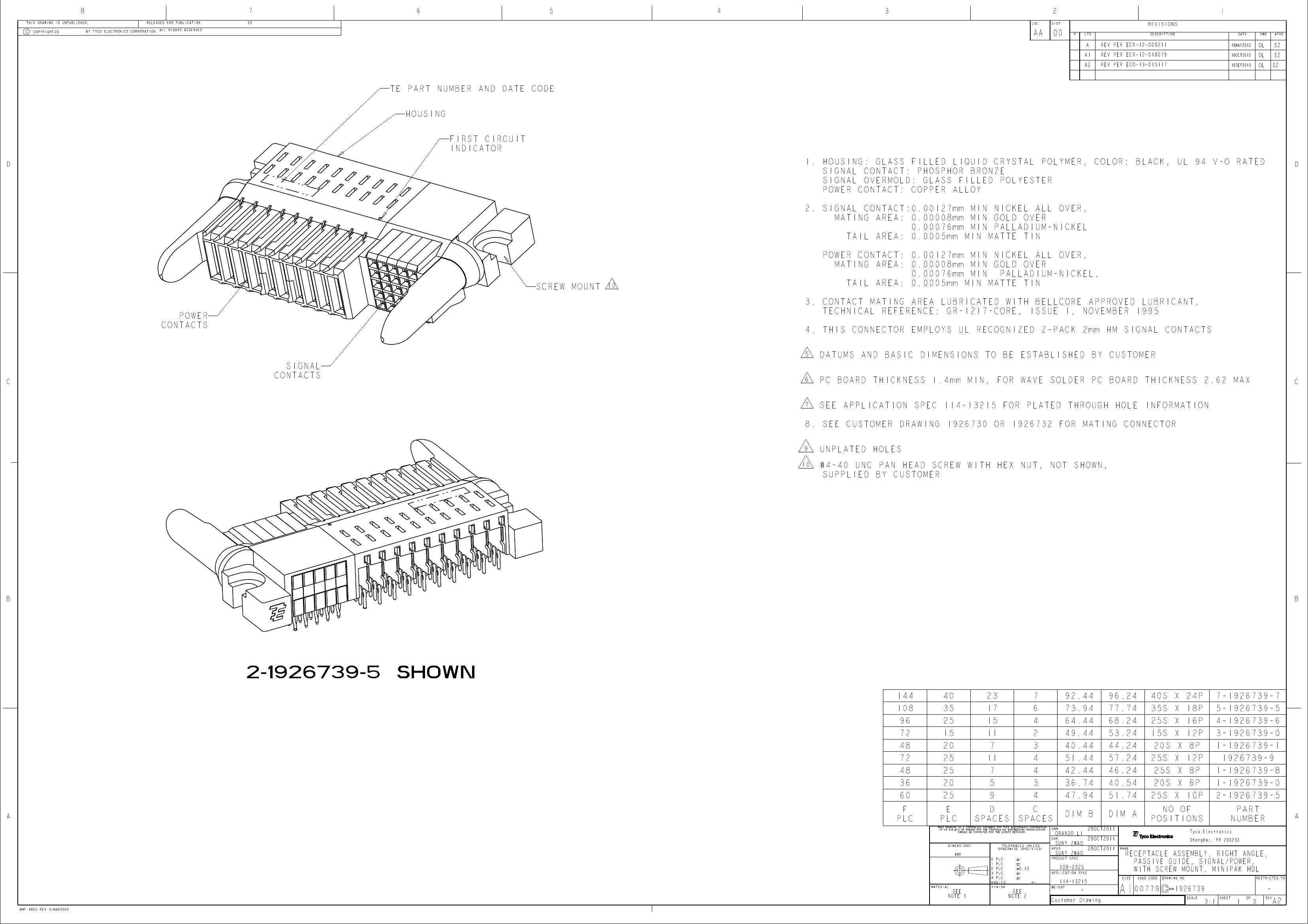

1. HOUSING: GLASS FILLED LIQUID CRYSTAL POLYMER, COLOR: BLACK, UL 94 V-O RATED

SIGNAL CONTACT: PHOSPHOR BRONZE

SIGNAL OVERMOLD: GLASS FILLED POLYESTER

POWER CONTACT: COPPER ALLOY

2. SIGNAL CONTACT:0.00127mm MIN NICKEL ALL OVER,

MATING AREA: 0.00008mm MIN GOLD OVER

0.00076mm MIN PALLADIUM-NICKEL

TAIL AREA: 0.0005mm MIN MATTE TIN

POWER CONTACT: 0.00127mm MIN NICKEL ALL OVER,

MATING AREA: 0.00008mm MIN GOLD OVER

0.00076mm MIN PALLADIUM-NICKEL,

TAIL AREA: 0.0005mm MIN MATTE TIN

3. CONTACT MATING AREA LUBRICATED WITH BELLCORE APPROVED LUBRICANT,

TECHNICAL REFERENCE: GR-1217-CORE, ISSUE 1, NOVEMBER 1995

4. THIS CONNECTOR EMPLOYS UL RECOGNIZED Z-PACK 2mm HM SIGNAL CONTACTS

SCREW MOUNT

POWER

CONTACTS

SIGNAL

CONTACTS

DATUMS AND BASIC DIMENSIONS TO BE ESTABLISHED BY CUSTOMER

PC BOARD THICKNESS 1.4mm MIN, FOR WAVE SOLDER PC BOARD THICKNESS 2.62 MAX

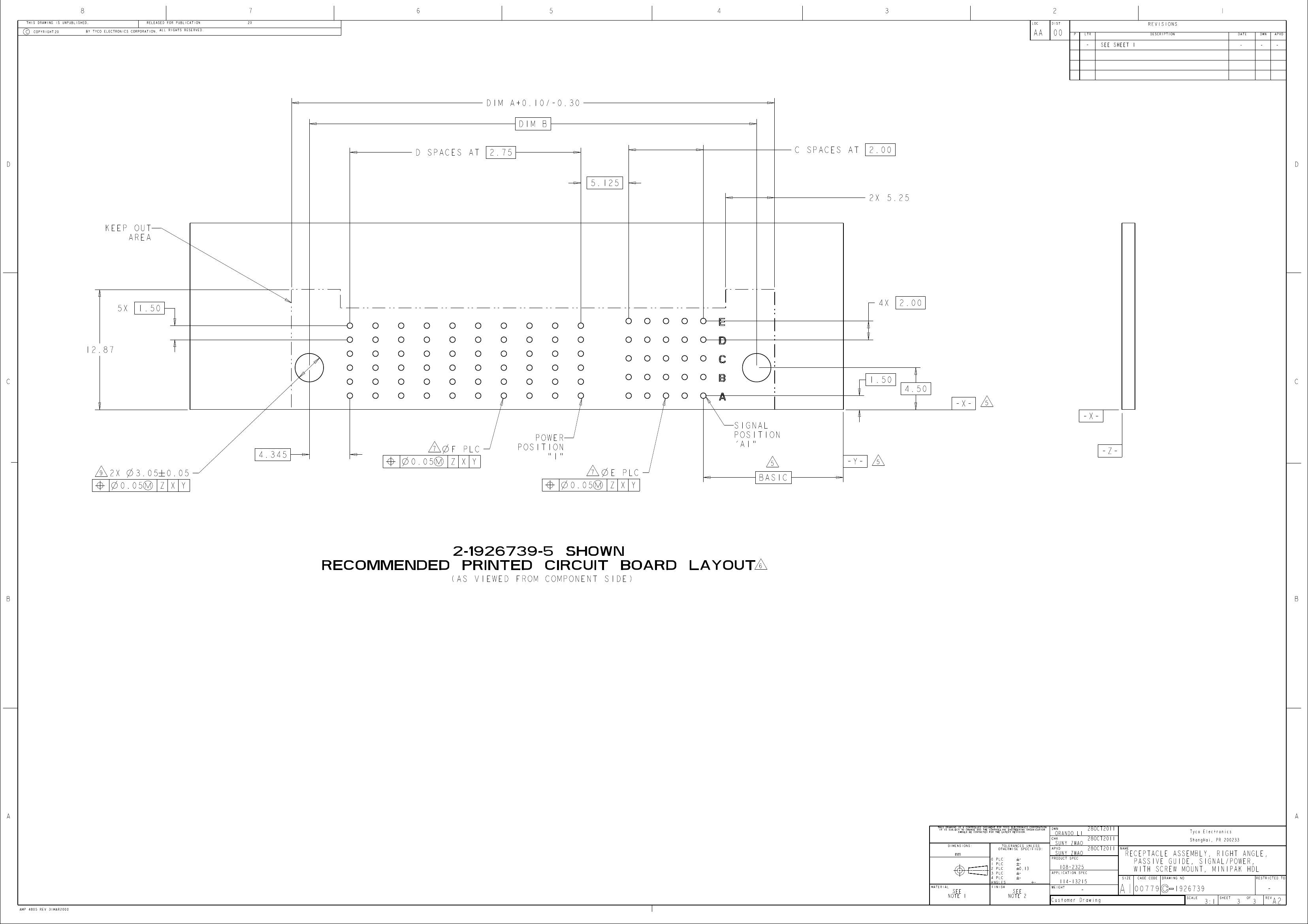

SEE APPLICATION SPEC 114-13215 FOR PLATED THROUGH HOLE INFORMATION

8. SEE CUSTOMER DRAWING 1926730 OR 1926732 FOR MATING CONNECTOR

UNPLATED HOLES

#4-40 UNC PAN HEAD SCREW WITH HEX NUT, NOT SHOWN,

SUPPLIED BY CUSTOMER

2-1926739-5 SHOWN

144

108

92.44

73.94

64.44

49.44

40.44

51.44

42.44

47.94

DIM B

DWN

CHK

96.24

77.74

68.24

53.24

44.24

57.24

46.24

40.54

51.74

DIM A

40S X 24P

35S X 18P

25S X 16P

15S X 12P

25S X 12P

25S X 8P

20S X 6P

20S X 8P

7-1926739-7

5-1926739-5

4-1926739-6

3-1926739-0

1-1926739-1

1-1926739-8

1-1926739-0

PART

NUMBER

2-1926739-5

1926739-9

36.74

25S X 10P

NO OF

POSITIONS

PLC

THIS DRAWING IS A CONTROLLED DOCUMENT FOR TYCO ELECTRONICS CORPORATION

IT IS SUBJECT TO CHANGE AND THE CONTROLLING ENGINEERING ORGANIZATION

SHOULD BE CONTACTED FOR THE LATEST REVISION.

SPACES

ORANDO LI

SUNY ZHAO

108-2325

28OCT2011

NAME

Tyco Electronics

ShangHai, PR 200233

DIMENSIONS:

TOLERANCES UNLESS

OTHERWISE SPECIFIED:

APVD

MATERIAL

0 PLC

1 PLC

2 PLC

3 PLC

4 PLC

ANGLES

FINISH

0.13

PRODUCT SPEC

APPLICATION SPEC

SEE

NOTE 1

SEE

NOTE 2

WEIGHT

114-13215

Customer Drawing

00779

SIZE

RECEPTACLE ASSEMBLY, RIGHT ANGLE,

PASSIVE GUIDE, SIGNAL/POWER,

WITH SCREW MOUNT, MINIPAK HDL

CAGE CODE

DRAWING NO

RESTRICTED TO

1926739

SCALE

AMP 4805 REV 31MAR2000

3:1

SHEET

REV

1-1926739-0 Related Products

	1-1926739-0	1-1926739-1	1-1926739-8	1926739-9	2-1926739-5	3-1926739-0	4-1926739-6	5-1926739-5	7-1926739-7
Description	35 CONTACT(S), FEMALE, RIGHT ANGLE TWO PART BOARD CONNECTOR, SOLDER, RECEPTACLE	35 CONTACT(S), FEMALE, RIGHT ANGLE TWO PART BOARD CONNECTOR, SOLDER, RECEPTACLE	35 CONTACT(S), FEMALE, RIGHT ANGLE TWO PART BOARD CONNECTOR, SOLDER, RECEPTACLE	35 CONTACT(S), FEMALE, RIGHT ANGLE TWO PART BOARD CONNECTOR, SOLDER, RECEPTACLE	35 CONTACT(S), FEMALE, RIGHT ANGLE TWO PART BOARD CONNECTOR, SOLDER, RECEPTACLE	35 CONTACT(S), FEMALE, RIGHT ANGLE TWO PART BOARD CONNECTOR, SOLDER, RECEPTACLE	35 CONTACT(S), FEMALE, RIGHT ANGLE TWO PART BOARD CONNECTOR, SOLDER, RECEPTACLE	35 CONTACT(S), FEMALE, RIGHT ANGLE TWO PART BOARD CONNECTOR, SOLDER, RECEPTACLE	35 CONTACT(S), FEMALE, RIGHT ANGLE TWO PART BOARD CONNECTOR, SOLDER, RECEPTACLE
Contact materials	PHOSPHOR BRONZE/COPPER ALLOY	PHOSPHOR BRONZE/COPPER ALLOY	PHOSPHOR BRONZE/COPPER ALLOY	PHOSPHOR BRONZE/COPPER ALLOY	PHOSPHOR BRONZE/COPPER ALLOY	PHOSPHOR BRONZE/COPPER ALLOY	PHOSPHOR BRONZE/COPPER ALLOY	PHOSPHOR BRONZE/COPPER ALLOY	PHOSPHOR BRONZE/COPPER ALLOY
Terminal spacing	2 mm	2 mm	2 mm	2 mm	2 mm	2 mm	2 mm	2 mm	2 mm
Total number of contacts	35	35	35	35	35	35	35	35	35
Lead-free	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes
EU RoHS regulations	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes
China RoHS regulations	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes
state	ACTIVE	ACTIVE	ACTIVE	ACTIVE	ACTIVE	ACTIVE	ACTIVE	ACTIVE	ACTIVE
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Shell style	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE
Manufacturer Series	1926739	1926739	1926739	1926739	1926739	1926739	1926739	1926739	1926739
Contact surface matching	GOLD (3) OVER PALLADIUM NICKEL (30)	GOLD (3) OVER PALLADIUM NICKEL (30)	GOLD (3) OVER PALLADIUM NICKEL (30)	GOLD (3) OVER PALLADIUM NICKEL (30)	GOLD (3) OVER PALLADIUM NICKEL (30)	GOLD (3) OVER PALLADIUM NICKEL (30)	GOLD (3) OVER PALLADIUM NICKEL (30)	GOLD (3) OVER PALLADIUM NICKEL (30)	GOLD (3) OVER PALLADIUM NICKEL (30)
Contact coated terminals	MATTE TIN (20) OVER NICKEL (50)	MATTE TIN (20) OVER NICKEL (50)	MATTE TIN (20) OVER NICKEL (50)	MATTE TIN (20) OVER NICKEL (50)	MATTE TIN (20) OVER NICKEL (50)	MATTE TIN (20) OVER NICKEL (50)	MATTE TIN (20) OVER NICKEL (50)	MATTE TIN (20) OVER NICKEL (50)	MATTE TIN (20) OVER NICKEL (50)
Connection Type	TWO PART BOARD CONNECTOR	TWO PART BOARD CONNECTOR	TWO PART BOARD CONNECTOR	TWO PART BOARD CONNECTOR	TWO PART BOARD CONNECTOR	TWO PART BOARD CONNECTOR	TWO PART BOARD CONNECTOR	TWO PART BOARD CONNECTOR	TWO PART BOARD CONNECTOR
Connector male and female	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE
hybrid connection	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes
Installation method	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Number of load rows	5	5	5	5	5	5	5	5	5
Terminal type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
UL flammability code	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0
