1-776163-5 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> 1-776163-5

1-776163-5: Description35 CONTACT(S), MALE, COMBINATION LINE CONNECTOR, SOLDER; CategoryThe connector; File Size314KB，2 Pages; ManufacturerMACOM; Websitehttp://www.macom.com

Download Datasheet Parametric Compare View All

1-776163-5 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	1-776163-5	-	-	View	Buy Now

1-776163-5 Overview

35 CONTACT(S), MALE, COMBINATION LINE CONNECTOR, SOLDER

1-776163-5 Parametric

Parameter Name	Attribute value
Contact materials	BRASS
Total number of contacts	35
Lead-free	Yes
EU RoHS regulations	Yes
state	TRANSFERRED
Options	GENERAL PURPOSE
Manufacturer Series	776163
Contact surface matching	NOT SPECIFIED
Contact coated terminals	NOT SPECIFIED
Connection Type	Combination line connector
Connector male and female	Pin
Installation type	BOARD AND PANEL
Shell material	Polybutylene terephthalate
Terminal type	welding
UL flammability code	94V-0

Preview

Download Datasheet

View All

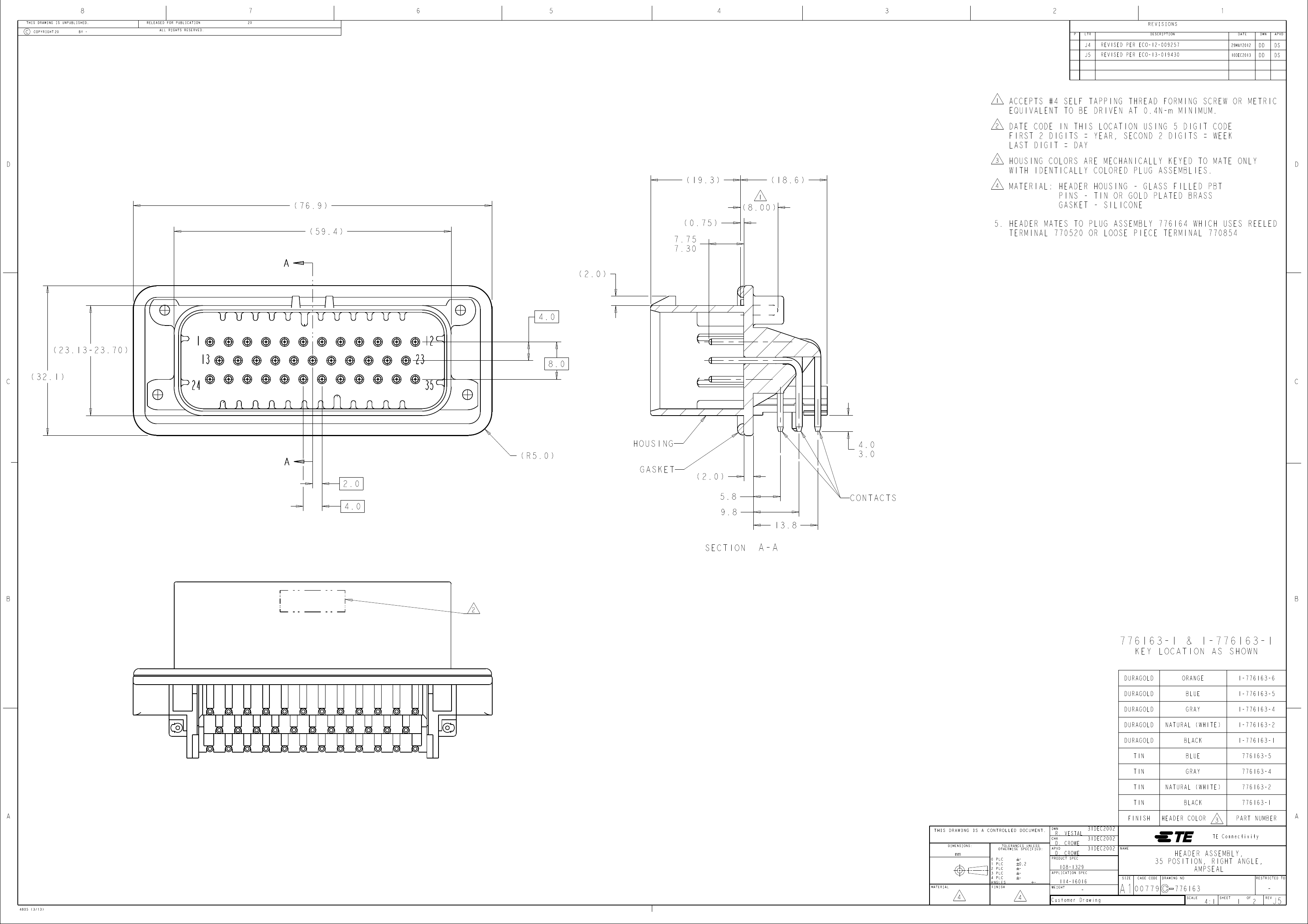

THIS DRAWING IS UNPUBLISHED.

RELEASED FOR PUBLICATION

BY -

REVISIONS

LTR

DESCRIPTION

DATE

DWN

APVD

REVISED PER ECO-12-009257

REVISED PER ECO-13-019430

29MAY2012

10DEC2013

ACCEPTS #4 SELF TAPPING THREAD FORMING SCREW OR METRIC

EQUIVALENT TO BE DRIVEN AT 0.4N-m MINIMUM.

DATE CODE IN THIS LOCATION USING 5 DIGIT CODE

FIRST 2 DIGITS = YEAR, SECOND 2 DIGITS = WEEK

LAST DIGIT = DAY

HOUSING COLORS ARE MECHANICALLY KEYED TO MATE ONLY

WITH IDENTICALLY COLORED PLUG ASSEMBLIES.

MATERIAL: HEADER HOUSING - GLASS FILLED PBT

PINS - TIN OR GOLD PLATED BRASS

GASKET - SILICONE

( 19.3 )

( 76.9 )

( 59.4 )

( 0.75 )

7.75

7.30

( 2.0 )

( 18.6 )

( 8.00 )

5. HEADER MATES TO PLUG ASSEMBLY 776164 WHICH USES REELED

TERMINAL 770520 OR LOOSE PIECE TERMINAL 770854

4.0

( 23.13-23.70)

( 32.1 )

8.0

( R 5.0 )

2.0

4.0

HOUSING

GASKET

( 2.0 )

5.8

9.8

13.8

4.0

3.0

CONTACTS

SECTION

A-A

776163-1

DURAGOLD

TIN

KEY LOCATION AS SHOWN

ORANGE

BLUE

GRAY

NATURAL (WHITE)

BLACK

BLUE

GRAY

NATURAL (WHITE)

BLACK

HEADER COLOR

& 1-776163-1

1-776163-6

1-776163-5

1-776163-4

1-776163-2

1-776163-1

776163-5

776163-4

776163-2

776163-1

PART NUMBER

THIS DRAWING IS A CONTROLLED DOCUMENT.

DIMENSIONS:

TOLERANCES UNLESS

OTHERWISE SPECIFIED:

DWN

CHK

FINISH

R. VESTAL

D. CROWE

108-1329

31DEC2002

NAME

TE Connectivity

APVD

MATERIAL

0 PLC

1 PLC

2 PLC

3 PLC

4 PLC

ANGLES

FINISH

0.2

PRODUCT SPEC

APPLICATION SPEC

WEIGHT

114-16016

4805 (3/13)

Customer Drawing

00779

SIZE

CAGE CODE

HEADER ASSEMBLY,

35 POSITION, RIGHT ANGLE,

AMPSEAL

DRAWING NO

RESTRICTED TO

776163

SCALE

4:1

SHEET

REV

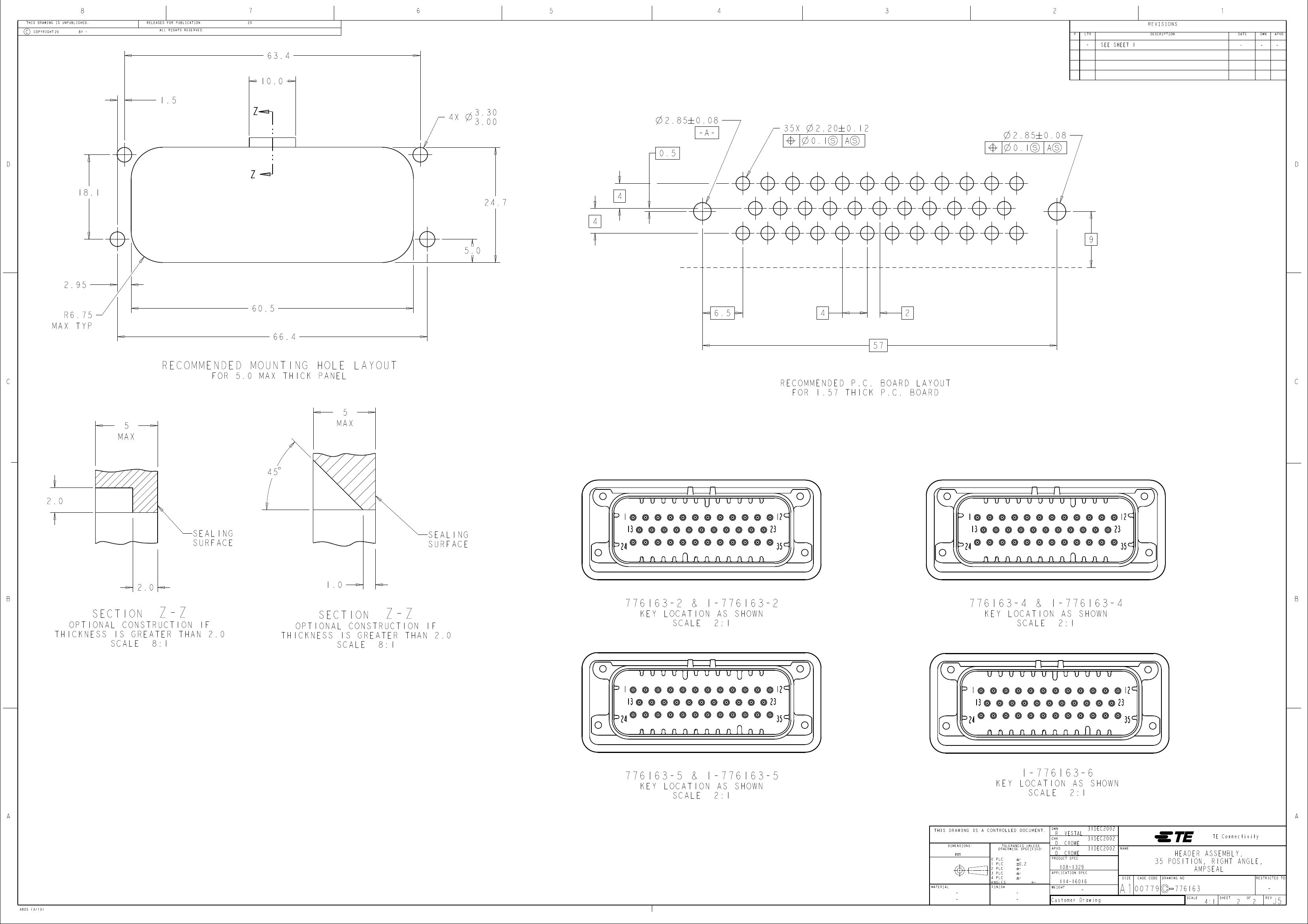

1-776163-5 Related Products

	1-776163-5	1-776163-1	1-776163-2	1-776163-4	1-776163-6	776163-1	776163-4	776163-5
Description	35 CONTACT(S), MALE, COMBINATION LINE CONNECTOR, SOLDER	TE CONNECTIVITY / AMP - 1-776163-1 - AUTOMOTIVE CONNECTOR; PLUG; 35POS; R/A PCB	35 CONTACT(S), MALE, COMBINATION LINE CONNECTOR, SOLDER	TE CONNECTIVITY / AMP - 1-776163-4 - CONNECTOR; RECTANGULAR; HEADER; 35POS; 2MM	35 CONTACT(S), MALE, COMBINATION LINE CONNECTOR, SOLDER	35 CONTACT(S), MALE, COMBINATION LINE CONNECTOR, SOLDER	35 CONTACT(S), MALE, COMBINATION LINE CONNECTOR, SOLDER	35 CONTACT(S), MALE, COMBINATION LINE CONNECTOR, SOLDER
Total number of contacts	35	-	35	-	35	35	-	35
state	TRANSFERRED	-	ACTIVE	-	ACTIVE	TRANSFERRED	-	ACTIVE
Options	GENERAL PURPOSE	-	GENERAL PURPOSE	-	GENERAL PURPOSE	GENERAL PURPOSE	-	GENERAL PURPOSE
Manufacturer Series	776163	-	776163	-	776163	776163	-	776163
Contact surface matching	NOT SPECIFIED	-	NOT SPECIFIED	-	gold	NOT SPECIFIED	-	NOT SPECIFIED
Contact coated terminals	NOT SPECIFIED	-	NOT SPECIFIED	-	Tin Lead OVER Nickel	NOT SPECIFIED	-	NOT SPECIFIED
Connection Type	Combination line connector	-	Combination line connector	-	Combination line connector	Combination line connector	-	COMBINATION LINE CONNECTOR
Connector male and female	Pin	-	Pin	-	Pin	Pin	-	MALE
Installation type	BOARD AND PANEL	-	BOARD AND PANEL	-	BOARD AND PANEL	BOARD AND PANEL	-	BOARD AND PANEL
Shell material	Polybutylene terephthalate	-	Polybutylene terephthalate	-	Polybutylene terephthalate	Polybutylene terephthalate	-	POLYBUTYLENE TEREPHTHALATE
Terminal type	welding	-	welding	-	welding	welding	-	SOLDER
