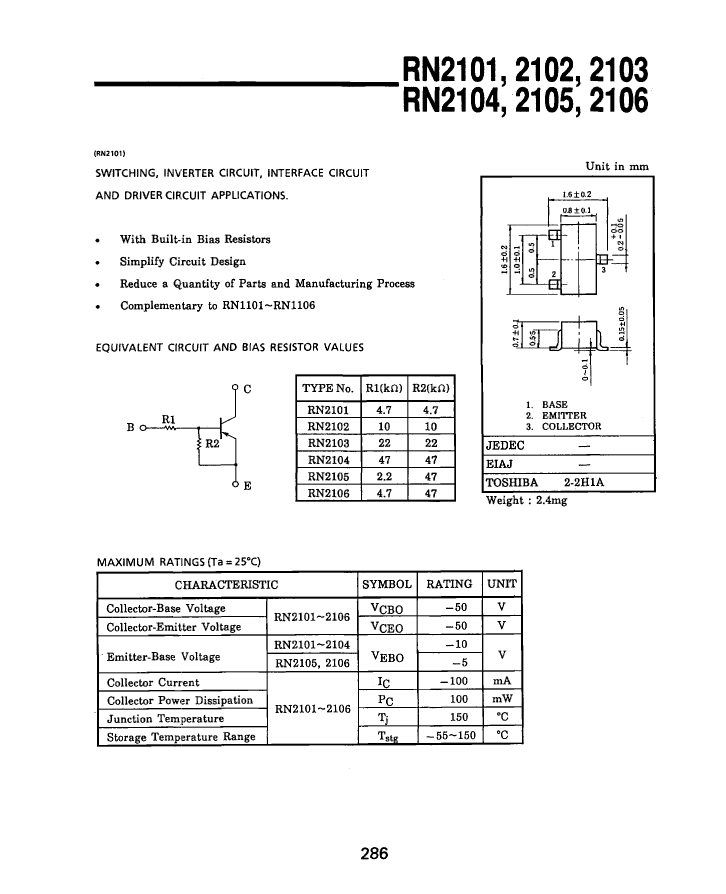

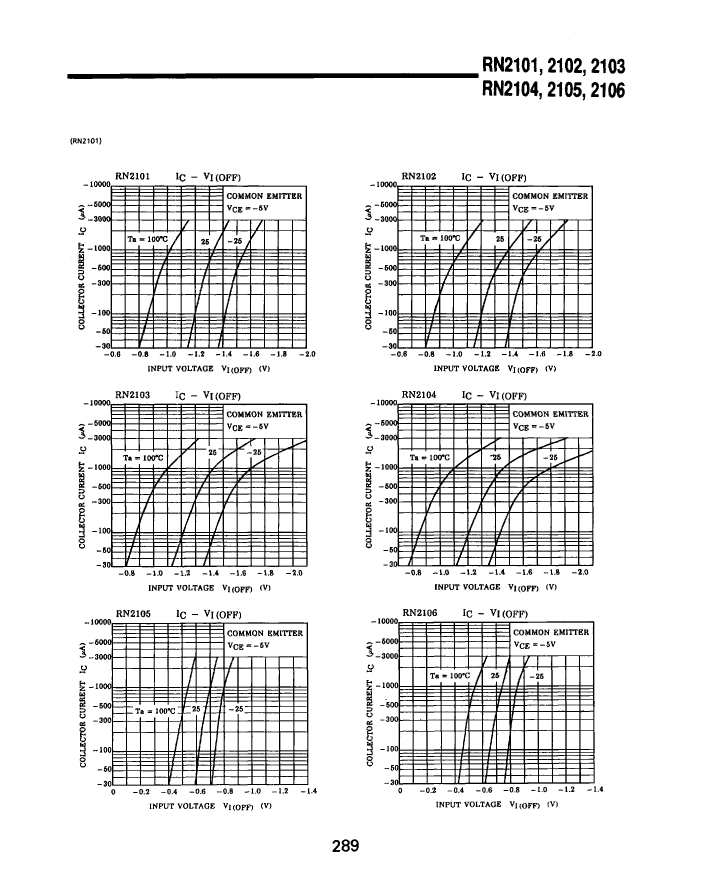

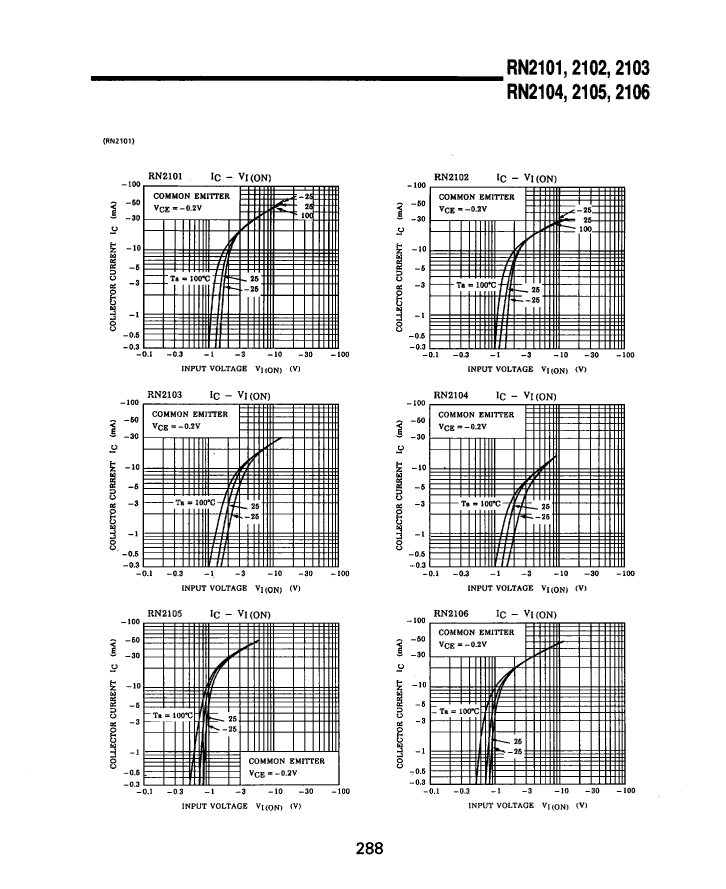

TRANSISTOR 100 mA, 50 V, PNP, Si, SMALL SIGNAL TRANSISTOR, 2-2H1A, 3 PIN, BIP General Purpose Small Signal

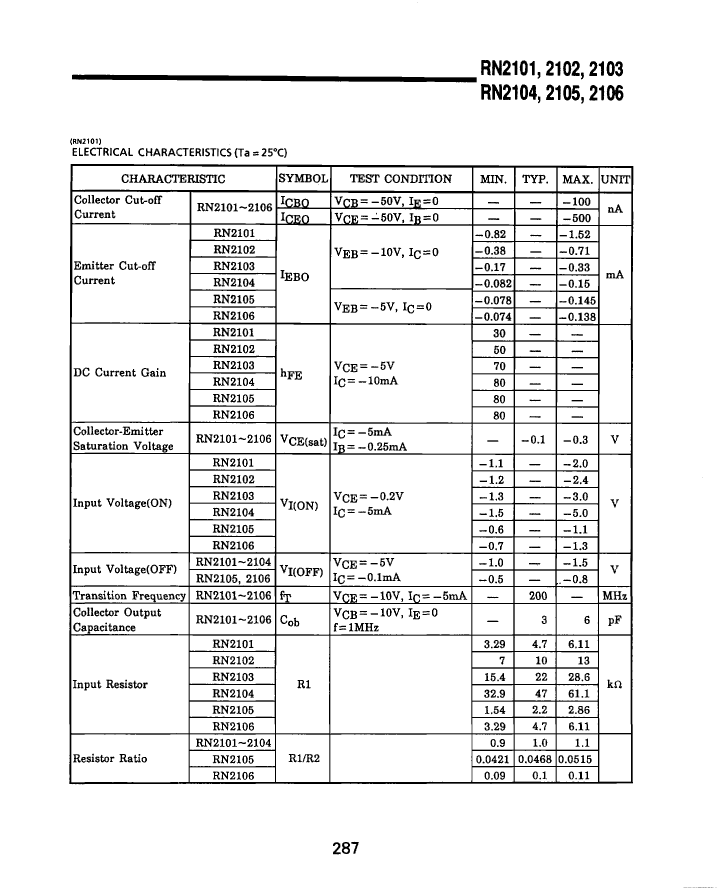

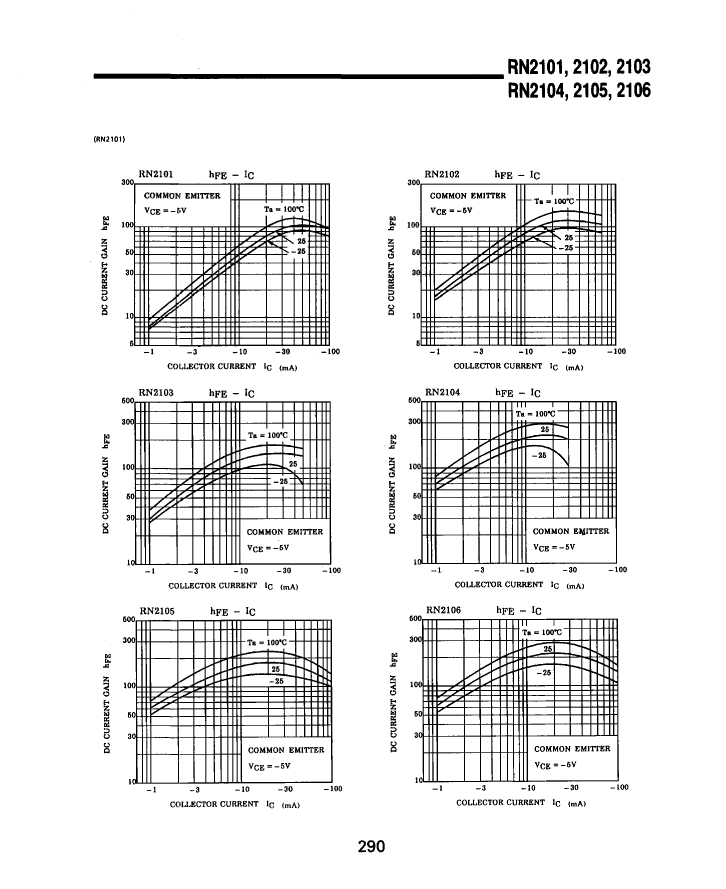

| Parameter Name | Attribute value |
| Is it Rohs certified? | incompatible |
| Maker | Toshiba Semiconductor |
| package instruction | SMALL OUTLINE, R-PDSO-G3 |
| Contacts | 3 |
| Reach Compliance Code | unknown |
| ECCN code | EAR99 |
| Other features | BUILT-IN BIAS RESISTOR RATIO IS 1 |
| Maximum collector current (IC) | 0.1 A |
| Collector-emitter maximum voltage | 50 V |
| Configuration | SINGLE WITH BUILT-IN RESISTOR |
| Minimum DC current gain (hFE) | 50 |
| JESD-30 code | R-PDSO-G3 |
| Number of components | 1 |
| Number of terminals | 3 |
| Package body material | PLASTIC/EPOXY |
| Package shape | RECTANGULAR |
| Package form | SMALL OUTLINE |
| Polarity/channel type | PNP |
| Certification status | Not Qualified |
| surface mount | YES |
| Terminal form | GULL WING |
| Terminal location | DUAL |
| transistor applications | SWITCHING |
| Transistor component materials | SILICON |
| Nominal transition frequency (fT) | 200 MHz |
| RN2102(TE85L) | RN2104(TE85L) | RN2104(TE85R) | RN2103(TE85L) | RN2103(TE85R) | RN2106(TE85R) | RN2102(TE85R) | RN2105(TE85L) | RN2105(TE85R) | RN2106(TE85L) | |
|---|---|---|---|---|---|---|---|---|---|---|
| Description | TRANSISTOR 100 mA, 50 V, PNP, Si, SMALL SIGNAL TRANSISTOR, 2-2H1A, 3 PIN, BIP General Purpose Small Signal | TRANSISTOR 100 mA, 50 V, PNP, Si, SMALL SIGNAL TRANSISTOR, 2-2H1A, 3 PIN, BIP General Purpose Small Signal | TRANSISTOR 100 mA, 50 V, PNP, Si, SMALL SIGNAL TRANSISTOR, 2-2H1A, 3 PIN, BIP General Purpose Small Signal | TRANSISTOR 100 mA, 50 V, PNP, Si, SMALL SIGNAL TRANSISTOR, 2-2H1A, 3 PIN, BIP General Purpose Small Signal | TRANSISTOR 100 mA, 50 V, PNP, Si, SMALL SIGNAL TRANSISTOR, 2-2H1A, 3 PIN, BIP General Purpose Small Signal | TRANSISTOR 100 mA, 50 V, PNP, Si, SMALL SIGNAL TRANSISTOR, 2-2H1A, 3 PIN, BIP General Purpose Small Signal | TRANSISTOR 100 mA, 50 V, PNP, Si, SMALL SIGNAL TRANSISTOR, 2-2H1A, 3 PIN, BIP General Purpose Small Signal | TRANSISTOR 100 mA, 50 V, PNP, Si, SMALL SIGNAL TRANSISTOR, 2-2H1A, 3 PIN, BIP General Purpose Small Signal | TRANSISTOR 100 mA, 50 V, PNP, Si, SMALL SIGNAL TRANSISTOR, 2-2H1A, 3 PIN, BIP General Purpose Small Signal | TRANSISTOR 100 mA, 50 V, PNP, Si, SMALL SIGNAL TRANSISTOR, 2-2H1A, 3 PIN, BIP General Purpose Small Signal |
| package instruction | SMALL OUTLINE, R-PDSO-G3 | SMALL OUTLINE, R-PDSO-G3 | SMALL OUTLINE, R-PDSO-G3 | SMALL OUTLINE, R-PDSO-G3 | SMALL OUTLINE, R-PDSO-G3 | SMALL OUTLINE, R-PDSO-G3 | SMALL OUTLINE, R-PDSO-G3 | SMALL OUTLINE, R-PDSO-G3 | SMALL OUTLINE, R-PDSO-G3 | SMALL OUTLINE, R-PDSO-G3 |
| Contacts | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 |
| Reach Compliance Code | unknown | unknown | unknown | unknown | unknown | unknown | unknown | unknown | unknow | unknow |
| ECCN code | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 |
| Other features | BUILT-IN BIAS RESISTOR RATIO IS 1 | BUILT-IN BIAS RESISTOR RATIO IS 1 | BUILT-IN BIAS RESISTOR RATIO IS 1 | BUILT-IN BIAS RESISTOR RATIO IS 1 | BUILT-IN BIAS RESISTOR RATIO IS 1 | BUILT-IN BIAS RESISTOR RATIO IS 0.1 | BUILT-IN BIAS RESISTOR RATIO IS 1 | BUILT-IN BIAS RESISTOR RATIO IS 0.0468 | BUILT-IN BIAS RESISTOR RATIO IS 0.0468 | BUILT-IN BIAS RESISTOR RATIO IS 0.1 |
| Maximum collector current (IC) | 0.1 A | 0.1 A | 0.1 A | 0.1 A | 0.1 A | 0.1 A | 0.1 A | 0.1 A | 0.1 A | 0.1 A |
| Collector-emitter maximum voltage | 50 V | 50 V | 50 V | 50 V | 50 V | 50 V | 50 V | 50 V | 50 V | 50 V |
| Configuration | SINGLE WITH BUILT-IN RESISTOR | SINGLE WITH BUILT-IN RESISTOR | SINGLE WITH BUILT-IN RESISTOR | SINGLE WITH BUILT-IN RESISTOR | SINGLE WITH BUILT-IN RESISTOR | SINGLE WITH BUILT-IN RESISTOR | SINGLE WITH BUILT-IN RESISTOR | SINGLE WITH BUILT-IN RESISTOR | SINGLE WITH BUILT-IN RESISTOR | SINGLE WITH BUILT-IN RESISTOR |
| Minimum DC current gain (hFE) | 50 | 80 | 80 | 70 | 70 | 80 | 50 | 80 | 80 | 80 |
| JESD-30 code | R-PDSO-G3 | R-PDSO-G3 | R-PDSO-G3 | R-PDSO-G3 | R-PDSO-G3 | R-PDSO-G3 | R-PDSO-G3 | R-PDSO-G3 | R-PDSO-G3 | R-PDSO-G3 |
| Number of components | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Number of terminals | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 |
| Package body material | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY |
| Package shape | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR |
| Package form | SMALL OUTLINE | SMALL OUTLINE | SMALL OUTLINE | SMALL OUTLINE | SMALL OUTLINE | SMALL OUTLINE | SMALL OUTLINE | SMALL OUTLINE | SMALL OUTLINE | SMALL OUTLINE |
| Polarity/channel type | PNP | PNP | PNP | PNP | PNP | PNP | PNP | PNP | PNP | PNP |
| Certification status | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified |
| surface mount | YES | YES | YES | YES | YES | YES | YES | YES | YES | YES |
| Terminal form | GULL WING | GULL WING | GULL WING | GULL WING | GULL WING | GULL WING | GULL WING | GULL WING | GULL WING | GULL WING |
| Terminal location | DUAL | DUAL | DUAL | DUAL | DUAL | DUAL | DUAL | DUAL | DUAL | DUAL |
| transistor applications | SWITCHING | SWITCHING | SWITCHING | SWITCHING | SWITCHING | SWITCHING | SWITCHING | SWITCHING | SWITCHING | SWITCHING |
| Transistor component materials | SILICON | SILICON | SILICON | SILICON | SILICON | SILICON | SILICON | SILICON | SILICON | SILICON |
| Nominal transition frequency (fT) | 200 MHz | 200 MHz | 200 MHz | 200 MHz | 200 MHz | 200 MHz | 200 MHz | 200 MHz | 200 MHz | 200 MHz |
| Maker | Toshiba Semiconductor | - | - | Toshiba Semiconductor | Toshiba Semiconductor | Toshiba Semiconductor | Toshiba Semiconductor | Toshiba Semiconductor | Toshiba Semiconductor | Toshiba Semiconductor |
