AT29C040A-15DI datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > storage> storage> AT29C040A-15DI

AT29C040A-15DI: DescriptionFlash, 512KX8, 150ns, CDIP32, 0.600 INCH, CERDIP-32; Categorystorage storage; File Size51KB，2 Pages; ManufacturerAtmel (Microchip)

Download Datasheet Parametric Compare View All

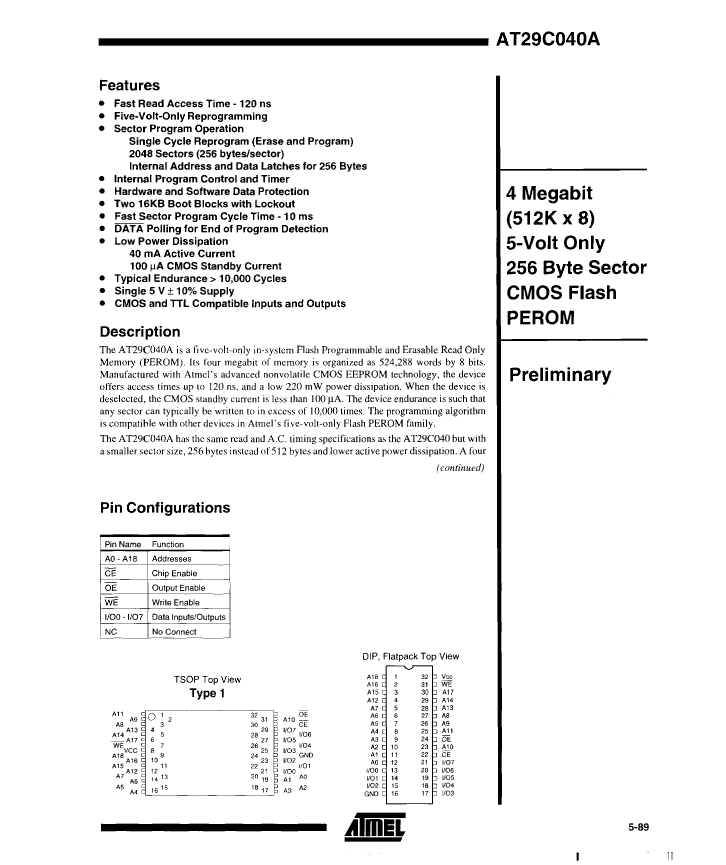

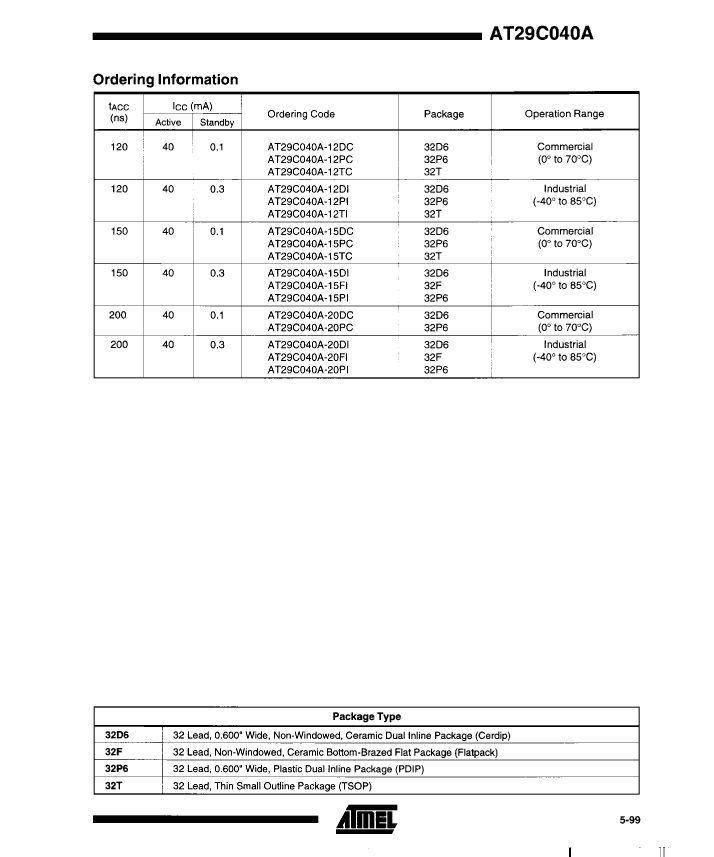

AT29C040A-15DI Overview

Flash, 512KX8, 150ns, CDIP32, 0.600 INCH, CERDIP-32

AT29C040A-15DI Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Atmel (Microchip)
Parts packaging code	DIP
package instruction	0.600 INCH, CERDIP-32
Contacts	32
Reach Compliance Code	compliant
ECCN code	EAR99
Maximum access time	150 ns
Other features	AUTOMATIC WRITE; HARDWARE & SOFTWARE DATA PROTECTION
startup block	BOTTOM/TOP
command user interface	NO
Data polling	YES
JESD-30 code	R-GDIP-T32
JESD-609 code	e0
length	42.2 mm
memory density	4194304 bit
Memory IC Type	FLASH
memory width	8
Number of functions	1
Number of departments/size	2K
Number of terminals	32
word count	524288 words
character code	512000
Operating mode	ASYNCHRONOUS
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
organize	512KX8
Output characteristics	3-STATE
Package body material	CERAMIC, GLASS-SEALED
encapsulated code	DIP
Encapsulate equivalent code	DIP32,.6
Package shape	RECTANGULAR
Package form	IN-LINE
page size	256 words
Parallel/Serial	PARALLEL
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	5 V
Programming voltage	5 V
Certification status	Not Qualified
Maximum seat height	5.72 mm
Department size	256
Maximum standby current	0.0003 A
Maximum slew rate	0.04 mA
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	CMOS
Temperature level	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
switch bit	YES
type	NOR TYPE
width	15.24 mm

Preview

Download Datasheet

View All

AT29C040A-15DI Related Products

	AT29C040A-15DI	AT29C040A-20DI	AT29C040A-15DC	AT29C040A-12DC	AT29C040A-12DI	AT29C040A-20DC	AT29C040A-20FI	AT29C040A-15FI
Description	Flash, 512KX8, 150ns, CDIP32, 0.600 INCH, CERDIP-32	Flash, 512KX8, 200ns, CDIP32, 0.600 INCH, CERDIP-32	Flash, 512KX8, 150ns, CDIP32, 0.600 INCH, CERDIP-32	Flash, 512KX8, 120ns, CDIP32, 0.600 INCH, CERDIP-32	Flash, 512KX8, 120ns, CDIP32, 0.600 INCH, CERDIP-32	Flash, 512KX8, 200ns, CDIP32, 0.600 INCH, CERDIP-32	Flash, 512KX8, 200ns, CDFP32, BOTTOM BRAZED, CERAMIC, FP-32	Flash, 512KX8, 150ns, CDFP32, BOTTOM BRAZED, CERAMIC, FP-32
Is it lead-free?	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Parts packaging code	DIP	DIP	DIP	DIP	DIP	DIP	DFP	DFP
package instruction	0.600 INCH, CERDIP-32	DIP, DIP32,.6	0.600 INCH, CERDIP-32	0.600 INCH, CERDIP-32	0.600 INCH, CERDIP-32	DIP, DIP32,.6	DFP, FL32,.5	DFP, FL32,.5
Contacts	32	32	32	32	32	32	32	32
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Maximum access time	150 ns	200 ns	150 ns	120 ns	120 ns	200 ns	200 ns	150 ns
Other features	AUTOMATIC WRITE; HARDWARE & SOFTWARE DATA PROTECTION	AUTOMATIC WRITE; HARDWARE & SOFTWARE DATA PROTECTION	AUTOMATIC WRITE; HARDWARE & SOFTWARE DATA PROTECTION	AUTOMATIC WRITE; HARDWARE & SOFTWARE DATA PROTECTION	AUTOMATIC WRITE; HARDWARE & SOFTWARE DATA PROTECTION	AUTOMATIC WRITE; HARDWARE & SOFTWARE DATA PROTECTION	AUTOMATIC WRITE; HARDWARE & SOFTWARE DATA PROTECTION	AUTOMATIC WRITE; HARDWARE & SOFTWARE DATA PROTECTION
startup block	BOTTOM/TOP	BOTTOM/TOP	BOTTOM/TOP	BOTTOM/TOP	BOTTOM/TOP	BOTTOM/TOP	BOTTOM/TOP	BOTTOM/TOP
command user interface	NO	NO	NO	NO	NO	NO	NO	NO
Data polling	YES	YES	YES	YES	YES	YES	YES	YES
JESD-30 code	R-GDIP-T32	R-GDIP-T32	R-GDIP-T32	R-GDIP-T32	R-GDIP-T32	R-GDIP-T32	R-CDFP-F32	R-CDFP-F32
JESD-609 code	e0	e0	e0	e0	e0	e0	e0	e0
length	42.2 mm	42.2 mm	42.2 mm	42.2 mm	42.2 mm	42.2 mm	20.85 mm	20.85 mm
memory density	4194304 bit	4194304 bit	4194304 bit	4194304 bit	4194304 bit	4194304 bit	4194304 bit	4194304 bit
Memory IC Type	FLASH	FLASH	FLASH	FLASH	FLASH	FLASH	FLASH	FLASH
memory width	8	8	8	8	8	8	8	8
Number of functions	1	1	1	1	1	1	1	1
Number of departments/size	2K	2K	2K	2K	2K	2K	2K	2K
Number of terminals	32	32	32	32	32	32	32	32
word count	524288 words	524288 words	524288 words	524288 words	524288 words	524288 words	524288 words	524288 words
character code	512000	512000	512000	512000	512000	512000	512000	512000
Operating mode	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS
Maximum operating temperature	85 °C	85 °C	70 °C	70 °C	85 °C	70 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-	-	-40 °C	-	-40 °C	-40 °C
organize	512KX8	512KX8	512KX8	512KX8	512KX8	512KX8	512KX8	512KX8
Output characteristics	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE
Package body material	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DIP	DIP	DIP	DIP	DIP	DIP	DFP	DFP
Encapsulate equivalent code	DIP32,.6	DIP32,.6	DIP32,.6	DIP32,.6	DIP32,.6	DIP32,.6	FL32,.5	FL32,.5
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE	FLATPACK	FLATPACK
page size	256 words	256 words	256 words	256 words	256 words	256 words	256 words	256 words
Parallel/Serial	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
power supply	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V
Programming voltage	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	5.72 mm	5.72 mm	5.72 mm	5.72 mm	5.72 mm	5.72 mm	3.05 mm	3.05 mm
Department size	256	256	256	256	256	256	256	256
Maximum standby current	0.0003 A	0.0003 A	0.0001 A	0.0001 A	0.0003 A	0.0001 A	0.0003 A	0.0003 A
Maximum slew rate	0.04 mA	0.04 mA	0.04 mA	0.04 mA	0.04 mA	0.04 mA	0.04 mA	0.04 mA
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	NO	NO	NO	NO	NO	NO	YES	YES
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	INDUSTRIAL	INDUSTRIAL	COMMERCIAL	COMMERCIAL	INDUSTRIAL	COMMERCIAL	INDUSTRIAL	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	FLAT	FLAT
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	1.27 mm	1.27 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
switch bit	YES	YES	YES	YES	YES	YES	YES	YES
type	NOR TYPE	NOR TYPE	NOR TYPE	NOR TYPE	NOR TYPE	NOR TYPE	NOR TYPE	NOR TYPE
width	15.24 mm	15.24 mm	15.24 mm	15.24 mm	15.24 mm	15.24 mm	12.2 mm	12.2 mm
Maker	Atmel (Microchip)	-	-	Atmel (Microchip)	Atmel (Microchip)	Atmel (Microchip)	Atmel (Microchip)	Atmel (Microchip)
