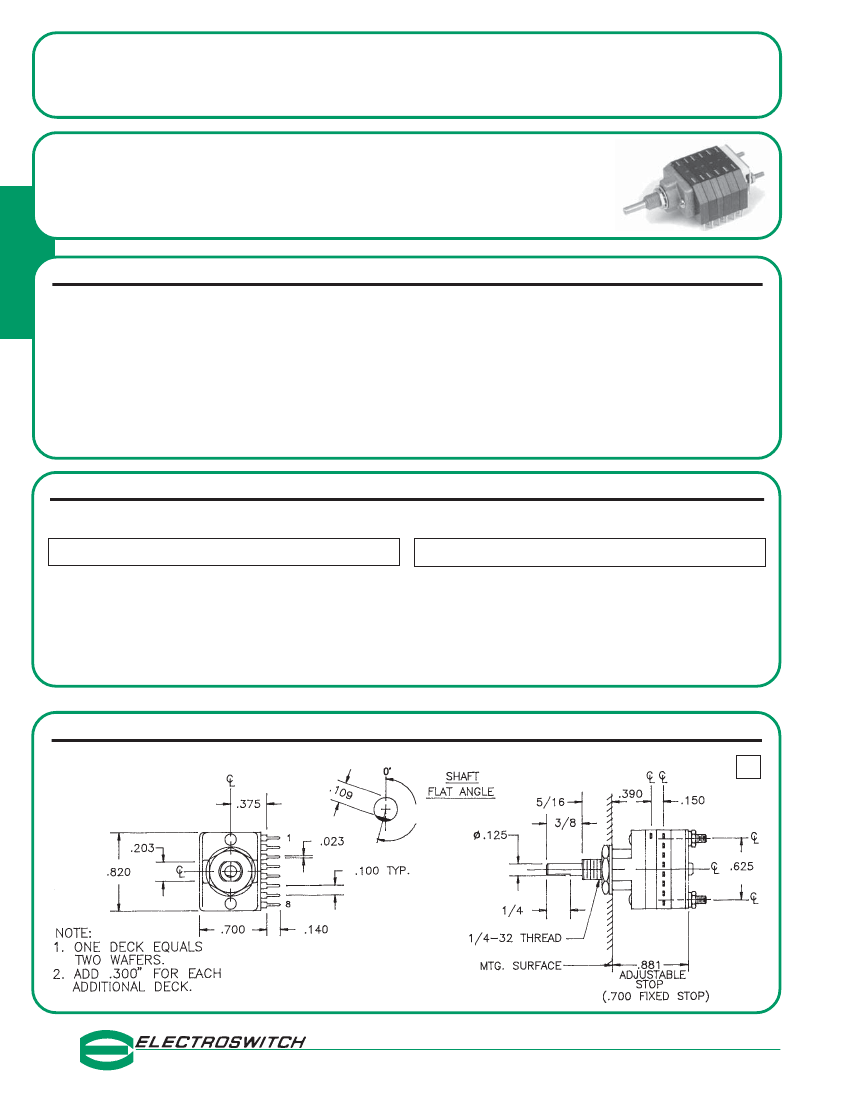

C2/C3 - SERIES
0.82 / 1.2" WIDE
0.25 AMP @ 28 VDC
SPECIFICATIONS AND ORDERING INFORMATION
The C2/C3 Series offers an 8 position and a 12 position vertical P.C. board
mountable design. Standard designs utilize a 30° index angle and polyester
insulation.
C
SPECIFICATIONS
ELECTRICAL
Current and Voltage Rating:
Make and break resistive load
0.25 amp @ 28 VDC; 0.1 amp @ 125 VAC.
Current Carrying Capacity:
6 amps.
Dielectric Strength:
1,000 VAC between current carrying parts and
ground.
Contact Resistance:
Average initial 30 milliohms.
Insulation Resistance:
In excess of 10,000 megohms.
Hardware:
Mounting nut and lockwasher are shipped assembled.
MECHANICAL
Materials and Finishes:
All parts utilize non-corrosive materials
as standard.
Terminals and Contacts:
Brass with silver plate as standard.
Insulation:
Polyester.
Index:
Dual-ball, hill and valley.
Index Life:
25,000 cycles minimum.
Index Torque:
Switches have lowest practical torque consistent
with crisp detenting and smooth, reliable operation.
Index Angles:
Positive 30° standard, 60°, and 90° available.
Index Stops:
Fixed standard, adjustable, or continuous available.
Stop Strength:
8 in. lbs. minimum.
STANDARD PART NUMBER
C2 - 8 PIN CONSTRUCTION
SWITCHES - 30° INDEXING
ADJUSTABLE STOPS SET @ 2 POS. - P.C. TERMINALS
C3 - 12 PIN CONSTRUCTION
SWITCHES - 30° INDEXING
ADJUSTABLE STOPS SET @ 2 POS. - P.C. TERMINALS
ACTIVE
POLES/
POLES POSITIONS DECK
01
02
02
03
04
04
05
06
02-08
02-08
02-04
02-08
02-04
02-08
02-08
02-04
1
1
2
1
2
1
1
2
NO. OF
DECKS
1
2
1
3
2
4
5
3
SHORTING
C2P0108S - A
C2P0208S - A
C2P0204S - A
C2P0308S - A
C2P0404S - A
C2P0408S - A
C2P0508S - A
C2P0604S - A
NON-
SHORTING
C2P0108N - A
C2P0208N - A
C2P0204N - A
C2P0308N - A
C2P0404N - A
C2P0408N - A
C2P0508N - A
C2P0604N - A
FIG.
CD
CD
CI
CD
CI
CD
CD
CI
*
ACTIVE
POLES/
POLES POSITIONS DECK
01
02
02
03
03
04
04
06
02-12
02-12
02-06
02-04
02-12
02-06
02-12
02-04
1
1
2
3
1
2
1
3
NO. OF
DECKS
1
2
1
1
3
2
4
2
SHORTING
C3P0112S - A
C3P0212S - A
C3P0206S - A
C3P0304S - A
C3P0312S - A
C3P0406S - A
C3P0412S - A
C3P0604S - A
NON-
SHORTING
C3P0112N - A
C3P0212N - A
C3P0206N - A
C3P0304N - A
C3P0312N - A
C3P0406N - A
C3P0412N - A
C3P0604N - A
FIG.
*
CA
CA
CH
CK
CA
CH
CA
CK
* FIGURES ARE SHOWN ON PAGE 55.
C
2
-

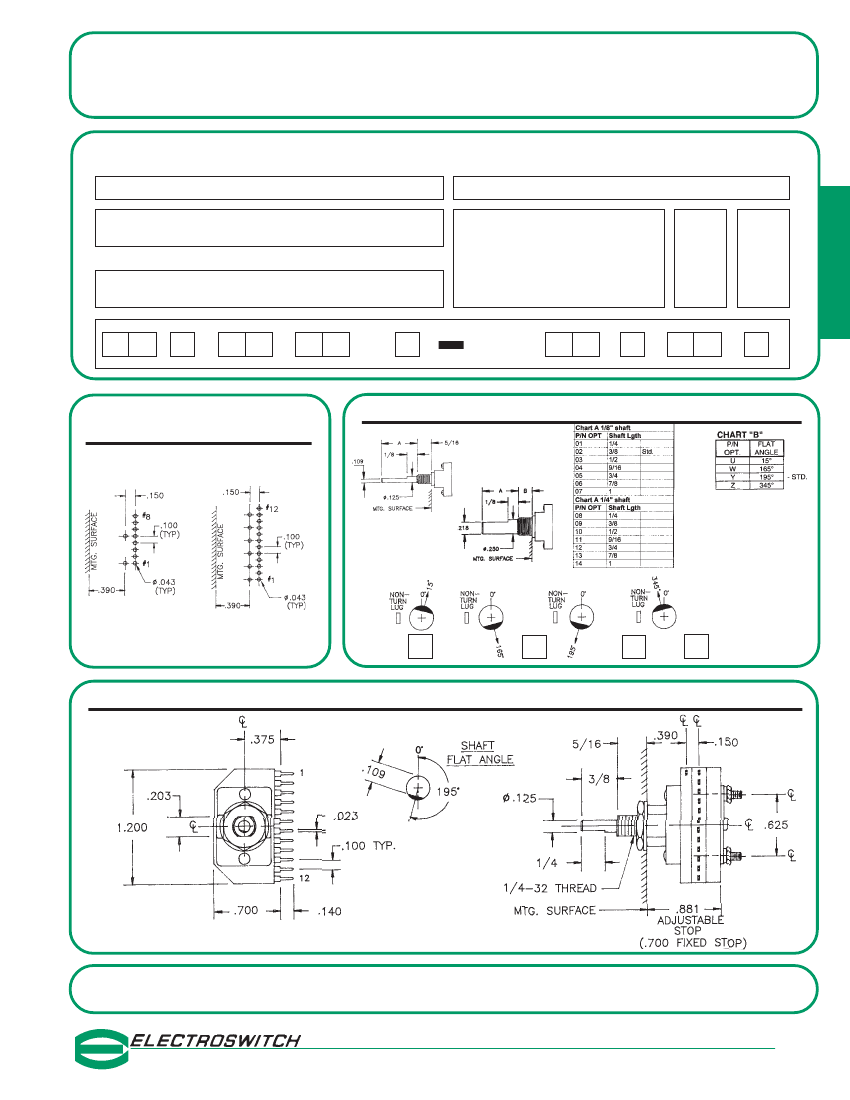

DIMENSIONS
-
8
PIN DESIGN
C2P - STANDARD 8–PIN PER DECK ARRANGEMENT
A
195°
1/4" DIAMETER SHAFTS ARE AVAILABLE.
CONTACT FACTORY.
•
ELECTRONIC PRODUCTS
UNIT OF ELECTRO SWITCH CORP.
2010 Yonkers Road
Raleigh, NC 27604
Telephone: (888) ROTARYS or (919) 833-0707
Fax: (800) 909-9171 or (919) 833-8016
8
ADDITIONAL OPTIONS AND
ORDERING INFORMATION
C2/C3 - SERIES
TERMINAL
TYPE
INDEX
ANGLE
30°
60°
90°
STOP
TYPE
F - FIXED
C - CONT.
A - ADJ.
SEE
CHART
"A"
SEE
CHART
"B"
SHAFT/
BUSHING
SHAFT
FLAT
How to Order Additional Options:
2 DIGIT
SERIES
C2
INSULATION
TYPE
TOTAL
POLES
ACTIVE
POSITIONS
08 - MAX @ 30°
04 - MAX @ 60°
03 - MAX @ 90°
CONTACT
TYPE
N - NON
SHORTING
S - SHORTING
P-POLYESTER 01 - MIN.
C3
P-POLYESTER 01 - MIN.
12 - MAX @ 30°
06 - MAX @ 60°
04 - MAX @ 90°
N - NON
SHORTING
S - SHORTING
C
CUSTOMERS SPECIFIED ORDER NUMBER FOR STANDARD OPTIONS
ADDITIONAL OPTIONS
(SPECIFY)
(SPECIFY) (SPECIFY)
(SPECIFY)
P
(SPECIFY)
(SPECIFY)
(SPECIFY)
PRINTED CIRCUIT
BOARD PATTERN
C2
8–PIN DECK
C3
12–PIN DECK
SHAFT AND FLAT OPTIONS
SHAFT AS VIEWED
WITH NON-TURN LUG
AT 9 O'CLOCK AND
SHAFT IN EXTREME
CCW POSITION AND
STRUT BOLTS
ORIENTED VERTICALLY.
NOTES:
1. The
standard
spacing for the
row of terminals to the mounting
2. The
standard
spacing for the
row of terminals to the mounting
1/8” dia. shaft from the first
surface is .390 in.
1/4” dia. shaft from the first
surface is .481 in.
U
W
Y
Z
C
3
-
DIMENSIONS
-
12
PIN DESIGN
C3P - STANDARD 12–PIN PER DECK ARRANGEMENT
NOTE:
1. ONE DECK EQUALS
TWO WAFERS.
2. ADD .300" FOR EACH ADDITIONAL DECK.
1/4" DIAMETER SHAFTS ARE AVAILABLE.
3. 12 FIXED POSITION USES ADJUSTABLE STOP DIMENSIONS.
CONTACT FACTORY.
CUSTOM SWITCHES ARE AVAILABLE. CONTACT THE FACTORY WITH YOUR COMPLETE SPECIFICATIONS.
•
ELECTRONIC PRODUCTS
UNIT OF ELECTRO SWITCH CORP.
2010 Yonkers Road
Raleigh, NC 27604
Telephone: (888) ROTARYS or (919) 833-0707
Fax: (800) 909-9171 or (919) 833-8016
