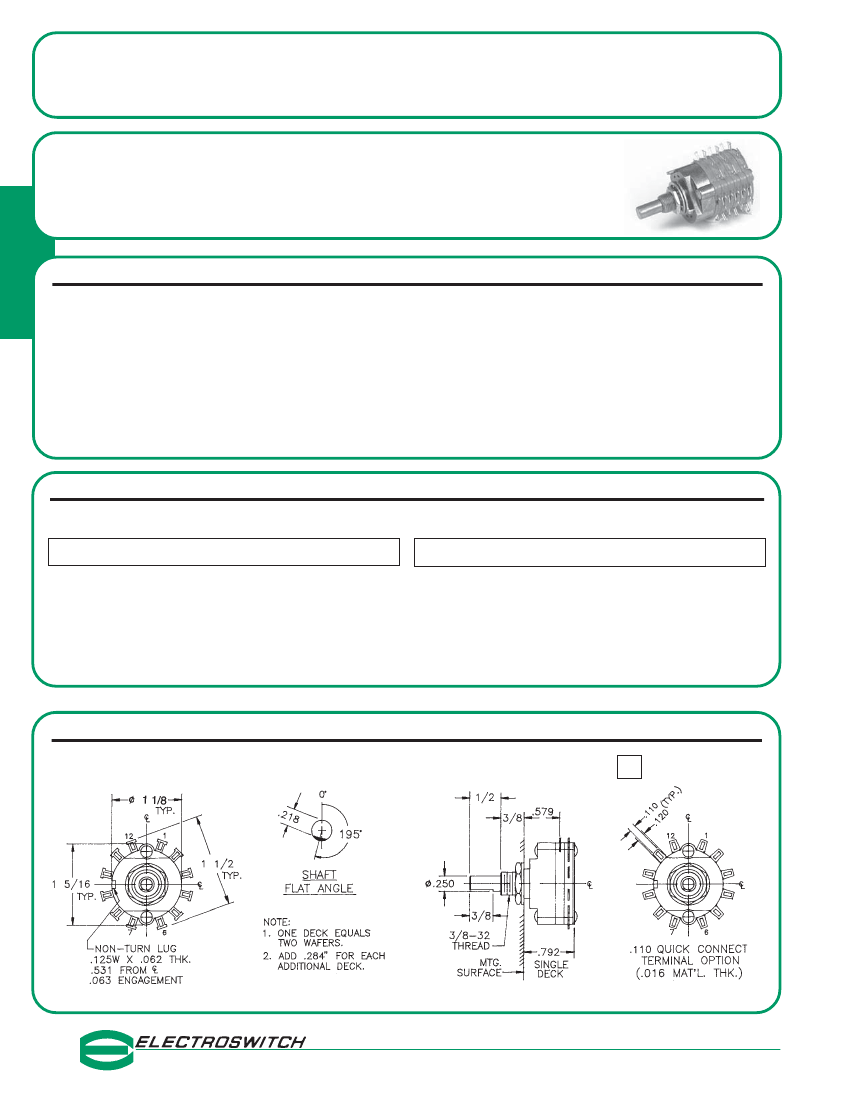

C4 - SERIES
1.5" DIAMETER 0.5 AMP @ 28 VDC
SPECIFICATIONS AND ORDERING INFORMATION
The C4 Series provides a versatile, fully enclosed design, that helps keep
dirt and moisture out of the contact area while locking in life time lubricants.
IP67 Rating Available.
C
SPECIFICATIONS
ELECTRICAL
Current and Voltage Rating:
Make and break resistive load
0.5 amp @ 28 VDC; 0.3 amp @ 125 VAC.
Current Carrying Capacity:
15 amps.
Dielectric Strength:
1,000 VAC between current carrying parts and
ground.
Contact Resistance:
Average initial 3 milliohms.
Insulation Resistance:
In excess of 10,000 megohms.
Hardware:
Mounting nut and lockwasher are shipped assembled.
MECHANICAL
Materials and Finishes:
All parts utilize non-corrosive materials
as standard.
Terminals and Contacts:
Brass with silver plate as standard.
Insulation:
Diallyl phthalate.
Index:
Dual-ball, hill and valley.
Index Life:
25,000 cycles minimum.
Index Torque:
Switches have lowest practical torque consistent
with crisp detenting and smooth, reliable operation.
Index Angles:
30° standard, 36°, 45°, 60°, and 90° available.
Index Stops:
Fixed standard, adjustable or continuous available.
Stop Strength:
15 in. lbs. minimum.
STANDARD PART NUMBER
SOLDER LUG - ADJUSTABLE STOPS
SWITCHES - 30° INDEXING - STOPS SET @ 2 POS.
ACTIVE
POLES/
POLES POSITIONS DECK
01
02
02
03
03
04
04
05
02-12
02-06
02-12
02-12
02-04
02-12
02-06
02-12
1
2
1
1
3
1
2
1
NO. OF
DECKS
1
1
2
3
1
4
2
5
SHORTING
C4D0112S - A
C4D0206S - A
C4D0212S - A
C4D0312S - A
C4D0304S - A
C4D0412S - A
C4D0406S - A
C4D0512S - A
NON-
SHORTING
C4D0112N - A
C4D0206N - A
C4D0212N - A
C4D0312N - A
C4D0304N - A
C4D0412N - A
C4D0406N - A
C4D0512N - A
FIG.
CA
CH
CA
CA
CK
CA
CH
CA
*
ACTIVE
POLES/
POLES POSITIONS DECK
06
06
06
08
09
10
12
15
02-06
02-04
02-12
02-06
02-04
02-06
02-04
02-04
2
3
1
2
3
2
3
3
NO. OF
DECKS
3
2
6
4
3
5
4
5
SHORTING
C4D0606S - A
C4D0604S - A
C4D0612S - A
C4D0806S - A
C4D0904S - A
C4D1006S - A
C4D1204S - A
C4D1504S - A
NON-
SHORTING
C4D0606N - A
C4D0604N - A
C4D0612N - A
C4D0806N - A
C4D0904N - A
C4D1006N - A
C4D1204N - A
C4D1504N - A
FIG.
*
CH
CK
CA
CH
CK
CH
CK
CK
* FIGURES ARE SHOWN ON PAGE 55.
DIMENSIONS
C4D STANDARD CONSTRUCTION
Q
•
ELECTRONIC PRODUCTS
UNIT OF ELECTRO SWITCH CORP.
2010 Yonkers Road
Raleigh, NC 27604
Telephone: (888) ROTARYS or (919) 833-0707
Fax: (800) 909-9171 or (919) 833-8016
10

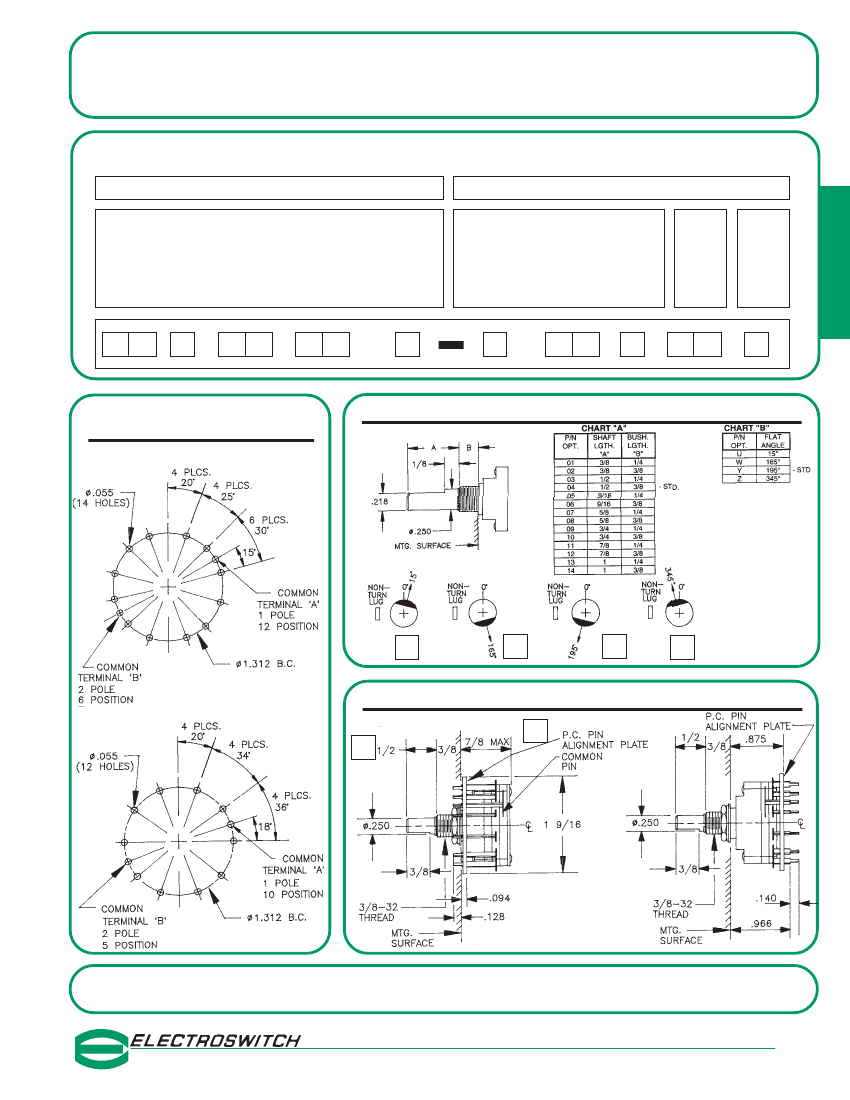

ADDITIONAL OPTIONS AND ORDERING INFORMATION
C4 - SERIES
INDEX
ANGLE
30°
36°
45°
60°
90°
STOP
TYPE
F - FIXED
A- A
(30°,60°,90°
ONLY)
How to Order Additional Options:
2 DIGIT
SERIES
C4
INSULATION
TYPE
D - DIALLYL
TOTAL
POLES
01 - MIN.
ACTIVE
POSITIONS
12 - MAX @ 30°
10 - MAX@ 36°
08 - MAX @ 45°
06 - MAX @ 60°
04 - MAX @ 90°
CONTACT
TYPE
S - SHORTING
N - NON
SHORTING
TERMINAL
TYPE
L - SOLDER LUG
P - FRONT P.C.
(NOT IN 45°)
SHAFT/
BUSHING
SHAFT
FLAT
D
J
.
R - REAR P.C.
(30° & 36° ONLY)
Q - QUICK
CONNECT
C - CONT.
SEE
CHART
"A"
SEE
CHART
"B"
C
CUSTOMERS SPECIFIED ORDER NUMBER FOR STANDARD OPTIONS
ADDITIONAL OPTIONS
(SPECIFY)
(SPECIFY)
(SPECIFY) (SPECIFY)
(SPECIFY)
C
4
D
(SPECIFY)
(SPECIFY)
(SPECIFY)
PRINTED CIRCUIT
BOARD HOLE PATTERNS
30
°
INDEX, 1 AND 2 POLE
SHAFT
,
BUSHING
,
AND FLAT OPTIONS
SHAFT AS VIEWED
WITH NON-TURN LUG
AT 9 O'CLOCK AND
SHAFT IN EXTREME
CCW POSITION AND
STRUT BOLTS
ORIENTED VERTICALLY.
U
W
Y
Z
PRINTED CIRCUIT BOARD TERMINAL OPTIONS
36
°
INDEX, 10 POSITION
FRONT PRINTED CIRCUIT
R
REAR PRINTED CIRCUIT
P
CUSTOM SWITCHES ARE AVAILABLE. CONTACT THE FACTORY WITH YOUR COMPLETE SPECIFICATIONS.
•
ELECTRONIC PRODUCTS
UNIT OF ELECTRO SWITCH CORP.
2010 Yonkers Road
Raleigh, NC 27604
Telephone: (888) ROTARYS or (919) 833-0707
Fax: (800) 909-9171 or (919) 833-8016
11
