D6 - SERIES
SPECIFICATIONS AND ORDERING INFORMATION
1.687" DIAMETER 1.5 AMPS @ 28 VDC

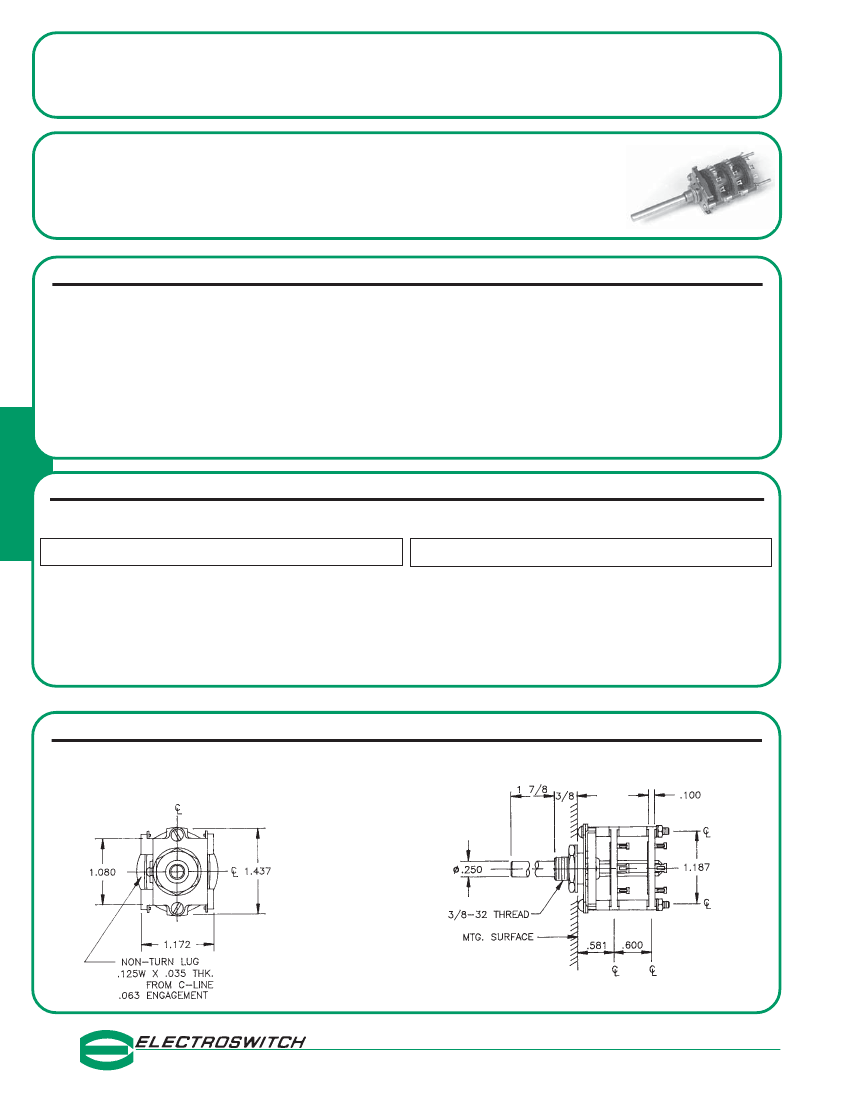

The D6 Series is one of our more versatile rotary switches. A 30° index
angle, solder lug terminals, and diallyl phthalate insulation are
standard. However, additional indexes of 36°, 45°, and 60° and insulation
sections of glass epoxy and ceramic are available. Adjustable stops are
available on indexes of 30° and 60°.
SPECIFICATIONS
ELECTRICAL
Current and Voltage Rating:
Make and break resistive load
1.5 amps @ 28 VDC; 0.5 amp @ 115 VAC.
Current Carrying Capacity:
9 amps.
Dielectric Strength:
1,500 VAC between current carrying parts and
ground.
Contact Resistance:
Average initial 3.5 milliohms.
Insulation Resistance:
Diallyl in excess of 900,000 megohms
Glass in excess of 750,000 megohms.
Ceramic in excess of 1,000,000 megohms.
Hardware:
Mounting nut and lockwasher are shipped assembled.
MECHANICAL
Materials and Finishes:
All parts utilize non-corrosive materials
as standard.
Clips and Rotors:
Brass with silver plate as standard.
Insulation:
Diallyl phthalate, glass, or ceramic.
Index:
Dual-ball, side thrust design.
Index Life:
25,000 cycles minimum.
Index Torque:
Switches have lowest practical torque consistent
with crisp detenting and smooth, reliable operation.
Index Angles:
Positive 30° standard, 36°, 45°, and 60° available.
Index Stops:
Adjustable standard, fixed or continuous.
Stop Strength:
25 in. lbs. minimum.
D
STANDARD PART NUMBER
DIALLYL PHTHALATE INSULATION
SWITCHES - 30° INDEX - ADJUSTABLE STOPS - SOLDER LUG TERMINALS
ACTIVE
POLES/
NO. OF
POLES POSITIONS SECTION SECTIONS
01
02
02
03
03
04
04
05
02-12
02-12
02-06
02-12
02-05
02-12
02-06
02-12
1
1
2
1
3
1
2
1
1
2
1
3
1
4
2
5
SHORTING
D6D0112S
D6D0212S
D6D0206S
D6D0312S
D6D0305S
D6D0412S
D6D0406S
D6D0512S
NON-
SHORTING
D6D0112N
D6D0212N
D6D0206N
D6D0312N
D6D0305N
D6D0412N
D6D0406N
D6D0512N
FIG.
DD
DD
DL
DD
DO
DD
DL
DD
*
ACTIVE
POLES/
NO. OF
POLES POSITIONS SECTION SECTIONS
05
06
06
06
08
09
10
10
02-03
02-12
02-06
02-05
02-06
02-05
02-03
02-06
5
1
2
3
2
3
5
2
1
6
3
2
4
3
2
5
SHORTING
D6D0503S
D6D0612S
D6D0606S
D6D0605S
D6D0806S
D6D0905S
D6D1003S
D6D1006S
NON-
SHORTING
D6D0503N
D6D0612N
D6D0606N
D6D0605N
D6D0806N
D6D0905N
D6D1003N
D6D1006N
FIG.
DR
DD
DL
DO
DL
DO
DR
DL
*
* FIGURES ARE SHOWN ON PAGES 55 AND 56.

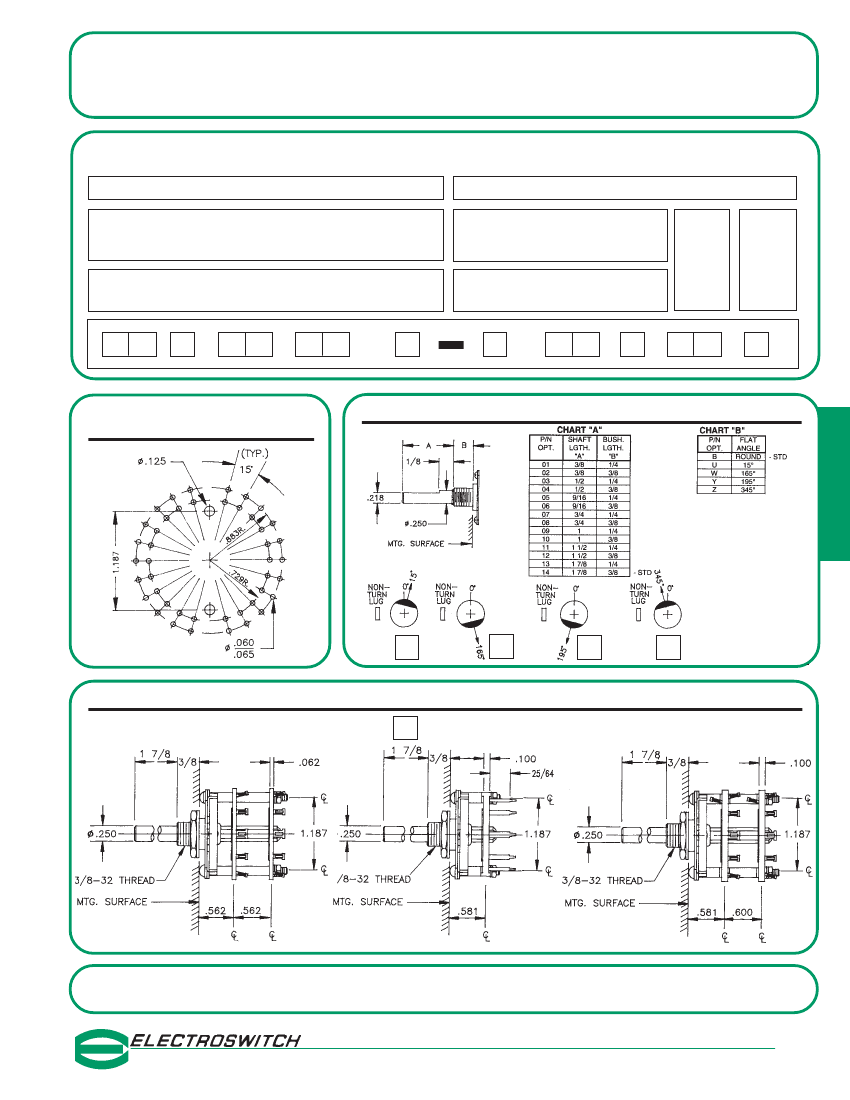

DIMENSIONS
STANDARD CONSTRUCTION
D6D
- DIALLYL PHTHALATE CONSTRUCTION
.4 3 7
•
ELECTRONIC PRODUCTS
UNIT OF ELECTRO SWITCH CORP.
2010 Yonkers Road
Raleigh, NC 27604
Telephone: (888) ROTARYS or (919) 833-0707
Fax: (800) 909-9171 or (919) 833-8016
28
ADDITIONAL OPTIONS AND ORDERING INFORMATION
D6 - SERIES
INDEX
ANGLE
30°
36°
45°
60°
30°
60°
STOP
TYPE
A - ADJ.
(30°,60° ONLY)
How to Order Additional Options:
2 DIGIT
SERIES
D6
INSULATION
TYPE
D - DIALLYL
(30°,45°,60°)
TOTAL
POLES
01 - MIN.
ACTIVE
POSITIONS
12 - MAX @ 30°
10 - MAX @ 36°
08 - MAX @ 45°
06 - MAX @ 60°
12 - MAX @ 30°
06 - MAX @ 60°
CONTACT
TYPE
S - SHORTING
N - NON
SHORTING
TERMINAL
TYPE
L - SOLDER LUG
R - REAR P.C.
(NO 36°)
SHAFT/
BUSHING
SHAFT
FLAT
G - GLASS
(30°,36°,45°,60°)
F - FIXED
C - CONT.
A - ADJ.
F - FIXED
C - CONT.
D6
C - CERAMIC
(30°,60°)
01 - MIN.
S - SHORTING
N - NON
SHORTING
L - SOLDER LUG
SEE
CHART
“A”
SEE
CHART
“B”
CUSTOMERS SPECIFIED ORDER NUMBER FOR STANDARD OPTIONS
ADDITIONAL OPTIONS
(SPECIFY)
(SPECIFY)
(SPECIFY) (SPECIFY)
(SPECIFY)
D
6
(SPECIFY)
(SPECIFY)
(SPECIFY)
PRINTED BOARD
MOUNTING PATTERN
SHAFT
,
BUSHING
,
AND FLAT OPTIONS
D
SHAFT AS VIEWED
WITH NON-TURN LUG
AT 9 O'CLOCK AND
SHAFT IN EXTREME
CCW POSITION AND
STRUT BOLTS
ORIENTED VERTICALLY.
U
INSULATION OPTIONS
D6G
- GLASS EPOXY INSULATION
W
Y
Z
R
REAR P.C.
D6C
- CERAMIC CONSTRUCTION
CUSTOM SWITCHES ARE AVAILABLE. CONTACT THE FACTORY WITH YOUR COMPLETE SPECIFICATIONS.
•
ELECTRONIC PRODUCTS
UNIT OF ELECTRO SWITCH CORP.
2010 Yonkers Road
Raleigh, NC 27604
Telephone: (888) ROTARYS or (919) 833-0707
Fax: (800) 909-9171 or (919) 833-8016
29
