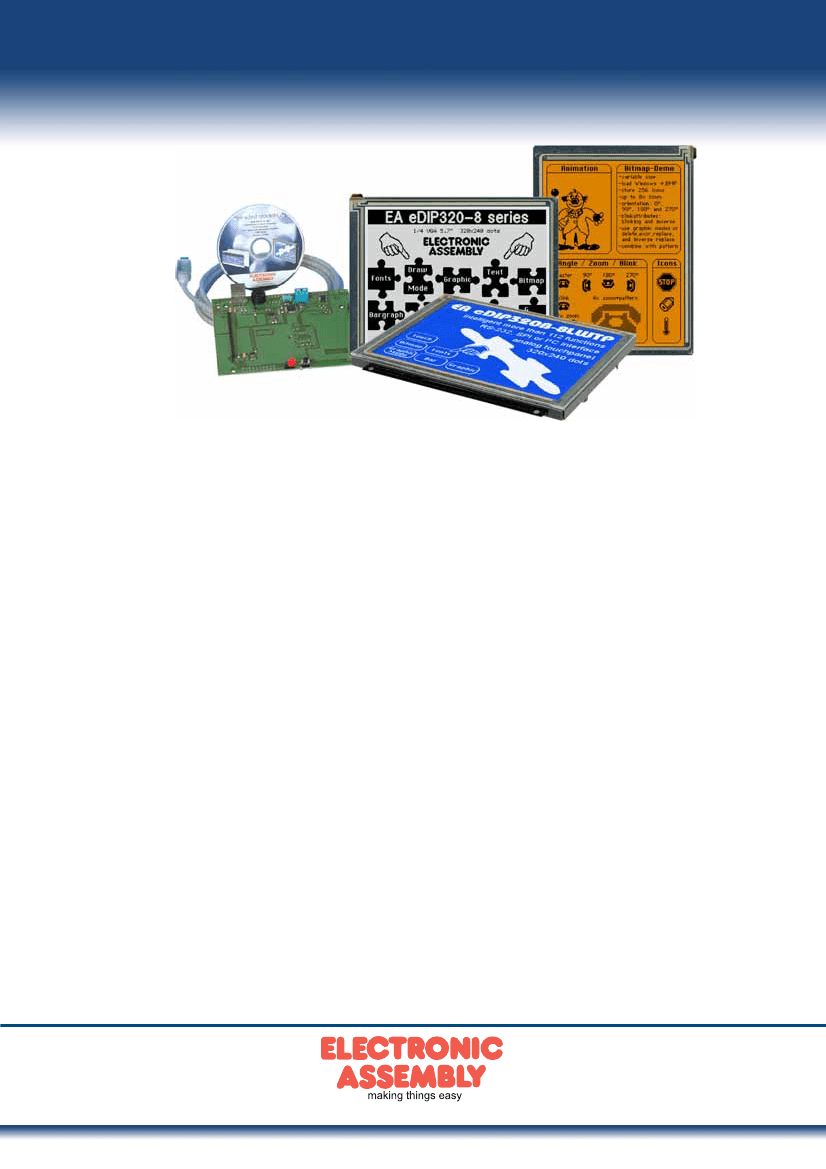

CONTROL UNIT
320x240 WITH INTELLIGENCE
RST !
I
RLD F
WO
08.2011
TECHNICAL DATA
*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
Dimensions:
138x105x10mm
LCD GRAPHIC DISPLAY WITH A RANGE OF GRAPHIC FUNCTIONS
8 BUILT-IN FONTS
FONT ZOOM FROM approx. 2mm TO approx. 80mm, also rotated by 90°
3 DIFFERENT INTERFACE ONBOARD: RS-232, I²C-BUS OR SPI-BUS
320x240 DOTS WITH LED BACKLIGHT BLUE NEGATIVE OR
BLACK&WHITE POSITIVE, FSTN TECHNOLOGY AND AMBER
POWER SUPPLY +5V@ typ. 50mA / 240mA (WITHOUT / WITH LED BACKLIGHT)
POSITIONING
ACCURATE TO THE PIXEL
WITH ALL FUNCTIONS
DRAW LINE, DOT, AREA, AND/OR/EXOR, BARGRAPH...
CLIPBOARD FUNCTION, PULL-DOWN MENU
UP TO 16 PAGES á 256 PICTURES INTERNALY STORED
UP TO 16 PAGES á 768 MACROS PROGRAMMABLE (80kB ON-BOARD FLASH)
MIX TEXT AND GRAPHIC, FLASHING ATTRIBUTE: ON/OFF/ INVERT
BACKLIGHT BRIGHTNESS PER SOFTWARE
ANALOGUE TOUCH PANEL: VARIABLE GRID
FREE DEFINABLE KEY AND SWITCH
POWER-DOWN-MODE (TYP. 150µA) WITH WAKEUP BY TOUCH
ORDERING CODES
320x240 DOTS, WHITE LED BACKLIGHT, BLUE NEGATIVE
AS ABOVE, BUT WITH TOUCH PANEL
320x240 DOTS, WHITE LED BACKLIGHT, POSITIVE MODE, FSTN
AS ABOVE, BUT WITH TOUCH PANEL
320x240 DOTS, AMBER LED BACKLIGHT, POSITIVE MODE, FSTN
AS ABOVE, BUT WITH TOUCH PANEL
MONTING FRAME (ALUMINIUM), BLACK ANODIZED
PROGRAMMER FOR USB INCL. CABLE, CD FOR WIN98/ME/2000/XP
STARTER KIT, (1x EA eDIP320B-8LWTP + USB-PROGRAMMER + CD)
EA eDIP320B-8LW
EA eDIP320B-8LWTP
EA eDIP320J-8LW
EA eDIP320J-8LWTP
EA eDIP320J-8LA
EA eDIP320J-8LATP
EA 0FP321-8SW
EA 9778-1USB
EA START-eDIP320
Zeppelinstraße 19 · D-82205 Gilching · Phone +49-(0)8105-778090 · Fax +49-(0)8105-778099 · www.lcd-module.de · info@lcd-module.de
EA eDIP320-8
Page 2
Specifications may be changed without
prior notice. Printing error reserved
Documentation of revision
Date
9.11.2006
3.4.2007
Type
V1.0
bug fix:
- corrupted character chain
V1.1
- bargraph return code fixed
- single picture for touch keys
V1.2
changed specification of pull-up resistor (RESET Changed specification, because of product
pin)
change notification (SC112002) of ATMEL.
Old
New
1st. edition
Reason / Description
9.6.2011
CONTENTS
GENERAL ...............................................................................................................................3
ELECTRICAL SPECIFICATIONS ............................................................................................ 4
RS-232 .................................................................................................................................... 5
SPI ..........................................................................................................................................6
I²C ........................................................................................................................................... 7
SOFTWARE PROTOCOL .................................................................................................... 8 - 9
TOUCH PANEL ......................................................................................................................10
TERMINAL MODE .................................................................................................................11
CHARACTER SETS ............................................................................................................ 12-13
COMMANDS/FUNCTIONS IN TABULAR FORMAT ........................................................... 14 - 16
RESPONSES OF THE OPERATING PANEL .........................................................................17
COMMAND TRANSFER/PARAMETERS ..............................................................................17
TOP VIEW, POWER DOWN ..................................................................................................18
MACRO PROGRAMMING ................................................................................................. 19 - 21
MULTILINGUAL CAPABILITY, MACRO PAGES .....................................................................21
USB PROGRAMMING BOARD .............................................................................................22
DIMENSIONS .................................................................................................................... 23 - 24
Specifications may be changed without
prior notice. Printing error reserved
EA eDIP320-8
Page 3
GENERAL
The EA eDIP series of displays are the world’s first displays with integrated intelligence. In addition
to a variety of integrated fonts that can be used with pixel accuracy, they offer a whole range of
sophisticated graphics functions.
The displays are ready for operation immediately with an operating voltage of 5V. They are controlled
via one of the 3 integrated interfaces: RS-232, SPI or I²C. The displays are “programmed” by means
of high-level language-type graphics commands. There is no longer any need for the time-consuming
programming of character sets and graphics routines. The ease of use of this display with its touch
panel dramatically reduces development times.
HARDWARE
The display is designed to work at an operating voltage of +5V. Data transfer is either serial and
asynchronous in RS-232 format or synchronous via the SPI or I²C specification. To improve data
security, a simple protocol is used for all types of transfer.
ANALOG TOUCH PANEL
All versions are also available with an integrated touch panel: You can make entries and menu or bar
graph settings by touching the display. The labeling of the “keys” is flexible and can also be changed
during runtime (different languages, icons). The drawing of the individual “keys” and the labeling is
handled by the integrated software.
LED ILLUMINATION: BLUE, WHITE, AMBER
All displays are equipped with modern, energy-saving LED illumination. Brightness can be varied
0~100% by command. While the black&white display (J-LW) and the amber one (J-LA) can also be
read with the illumination switched off entirely, the blue-white display (B-LW) needs at least minimal
illumination if it is to be read.
We recommend the black&white or amber version for use in direct sunlight. In all other cases we
recommend the very high-contrast blue-white version.
In 24-hour operation, the illumination of the J-LW and B-LW types should be dimmed or switched off
as often as possible to increase their lifetime. The amber version (J-LA) is also suitable for continuous
use at 100% illumination (MTBF 100,000 hours).
SOFTWARE
This display is programmed by means of commands, such as
Draw a rectangle from (0,0) to (64,15).
No additional software or drivers are required. Strings and images can be placed with
pixel accuracy.
Flashing attributes can be assigned as often as you like. Text and graphics can be combined at any
time. Up to 32 different character sets can be used. Each character set and the images can be
zoomed from 2 to 8 times and rotated in 90° steps. With the largest character set, the words and
numbers displayed will fill the screen.
ACCESSORIES
PROGRAMMER FOR INTERNAL DATA FLASH MEMORY
The display is shipped fully programmed and with all fonts. The additional programmer is thus generally
not required.
However, if the internal character sets have to be changed or extended, or if images or macros have
to be stored internally, the USB programmer EA 9778-1USB, which is available as an accessory, will
burn the data/images you have created into the on-board data flash memory (80 kB) permanently.
The programmer runs under Windows and is connected to the PC’s USB interface. It is shipped with
an interface cable and the installation software.
EA eDIP320-8
Page 4
Specifications may be changed without
prior notice. Printing error reserved
SPEZIFICATION AND CHARACTERISTICS
Characteristics
Value
Operating Temperature
Storage Temperature
Storage Humidity
Operating Voltage
Input Low Voltage
Input High Voltage
Input High Voltage
Input Leakage Current
Input Pull-up Resistor
Reset Pull-up Resistor
Output Low Voltage
Output High Voltage
Output Current
White Backlight
100%
Power Supply
Amber Backlight
100%
Backlight off
Powerdown
(see page 18)
5
230
190
50
150
4.0
20
Pin Reset only
except Reset
Pin MOSI only
20
65
< 40°C
4.5
-0.5
0.9*VDD
0.6*VDD
5.0
Condition
min.
-20
-30
typ.
max.
+70
+80
90
5.5
0.2*VDD
VDD+0.5
VDD+0.5
1
50
85
0.7
Unit
°C
°C
%RH
V
V
V
V
uA
kOhms
kOhms
V
V
mA
mA
mA
mA
µA

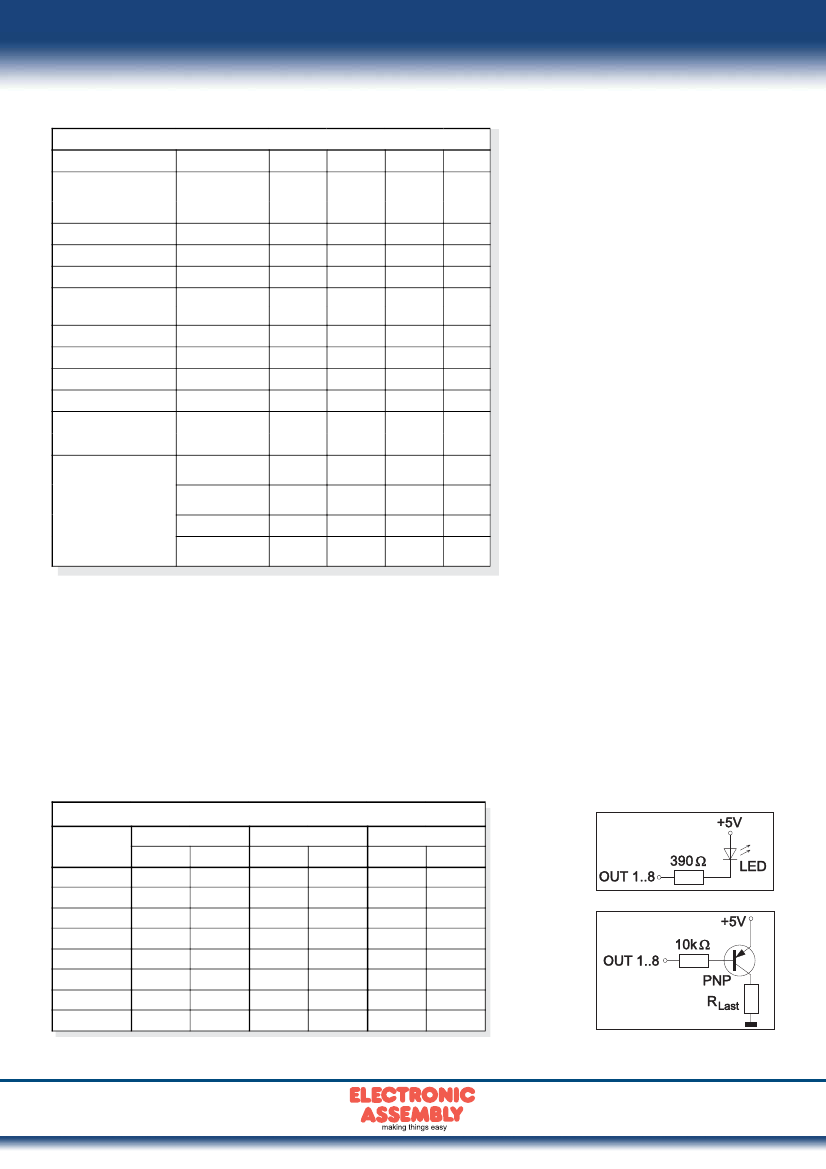

OUTPUTS
The EA eDIP320 offers up to 8 outputs, which can be used to control LEDs, for example. The
configuration pins used depend on the interface selected (RS232, SPI or I²C). The configuration pins
(open drain with internal pullup) are then evaluated as 1=HIGH level.
Each output can be controlled by means of the ‘ESC YW n1 n2’ command. Current can only flow
when the level is at L (open drain with internal pullup). Each output can supply a maximum of 10 mA.
It is thus possible to connect an LED to an output directly. Higher currents can be connected by using
an external transistor.
Assignment output <-> pin no.
RS232/RS422
output
OUT1
OUT2
OUT3
OUT4
OUT5
OUT6
OUT7
OUT8
6
7
8
9
13
14
15
17
BAUD0
BAUD1
BAUD2
ADR0
WUP
ADR1
ADR2
DPROT
10
12
13
14
15
17
SPI
DORD
OUT2
WUP
CPOL
CPHA
DPROT
6
7
8
9
10
11
13
17
I2C
BA0
BA1
SA0
SA1
SA2
BA2
WUP
DPROT
pin no. symbol pin no. symbol pin no. symbol
Specifications may be changed without
prior notice. Printing error reserved
EA eDIP320-8
Page 5
Pinout eDIP320-8: RS-232/RS-422 mode
Pin
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
Symbol
GND
VDD
VADJ
VOUT
RESET
BAUD0
BAUD1
BAUD2
ADR0
RxD
TxD
EN485
WUP
ADR1
ADR2
BUZZ
DPROT
In/Out
-
-
In
Out
-
In
In
In
In
In
Out
Out
In
In
In
Out
In
Function
Ground Potential for logic (0V)
Power supply for logic (+5V)
Operating voltage for LC driving (input)
Output voltage for LC driving
L: Reset
Baud Rate 0
Baud Rate 1
Baud Rate 2
Address 0 for RS-485
Receive Data
Transmit Data
Transmit Enable for RS-485 driver
L: (Power-On) disable Power-On-Macro
L: Wakeup from Powerdownmode
Address 1 for RS-485
Address 2 for RS-485
Buzzer output
L: Disable Smallprotokoll
do not connect for normal operation
L: Normal Operation
H: Powerdownmode
L: Writeprotect for DataFlash
open-drain with internal pullup 20..50k
IN (Power-On) L: Testmode
OUT L: data in sendbuffer
internal use, do not connect
internal use, do not connect
do not connect, reserved
do not connect, reserved
Pin Symbol Function
25
N.C.
not connected
26
N.C.
not connected
27
N.C.
not connected
28
N.C.
not connected
29
N.C.
not connected
30
N.C.
not connected
31
N.C.
not connected
32
N.C.
not connected
33
N.C.
not connected
34
N.C.
not connected
35
N.C.
not connected
36
N.C.
not connected
37
38
39
40
41
N.C.
N.C.
N.C.
N.C.
N.C.
not connected
not connected
not connected
not connected
not connected

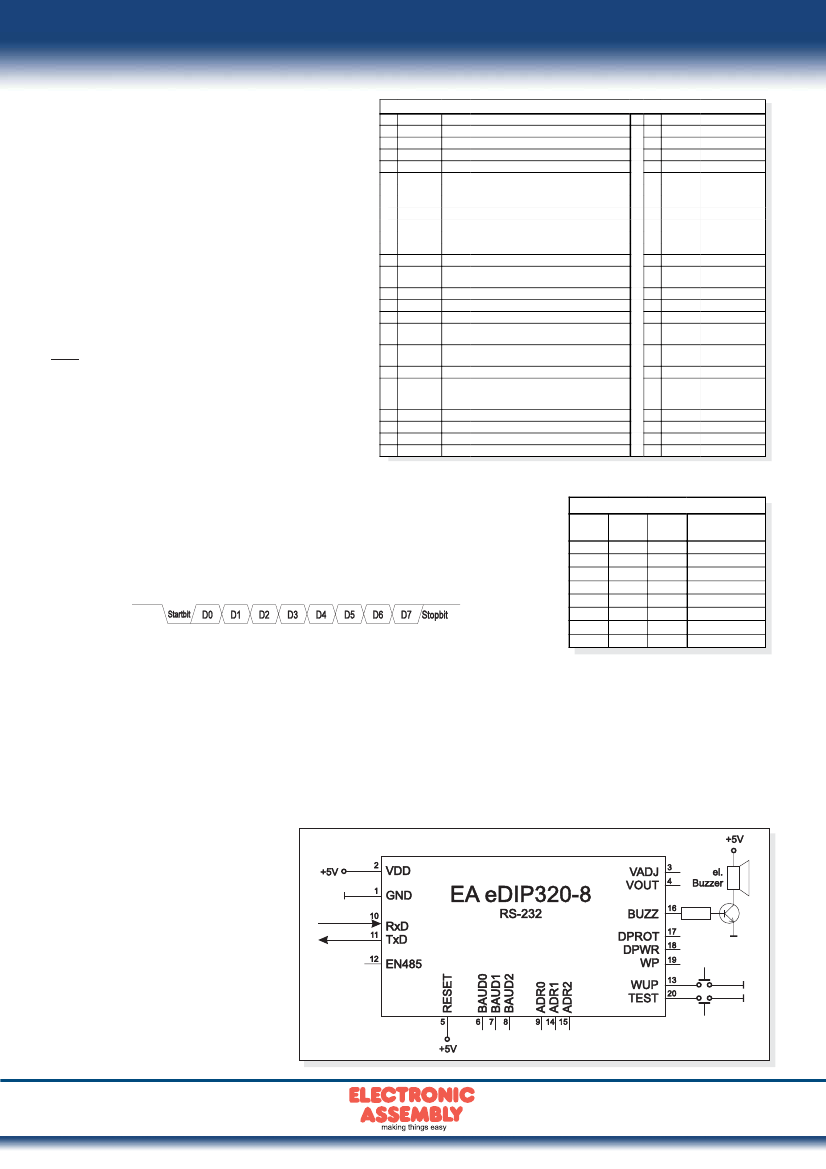

RS-232 INTERFACE
If the display is wired as shown below, the
RS-232 interface is selected. The pin
assignment is specified in the table on the
right.
The RxD and TxD lines lead 5V (CMOS level)
to a microcontroller, for example, for direct
connection.
If “genuine” RS-232 levels are required (e.g.
for connection to a PC), an external level
converter (e.g. MAX232) is required.
Note:
18
DPWR
Out
42
N.C.
not connected
The pins BAUD 0 to 2, ADR 0 to 2, WUP, DPROT and TEST/
19
WP
In
43
N.C.
not connected
SBUF have an internal pullup, which is why only the LO level
TEST
IN
20
44
N.C.
not connected
SBUF
Out
(0=GND) is to be actively applied. These pins must be left
open for a Hi level.
21
PDI
45
N.C.
not connected
22
PDO
46
N.C.
not connected
For RS232 operation (without addressing) the pins ADR 0 to
23
N.C.
47
N.C.
not connected
ADR 2 must be left open.
24
N.C.
48
N.C.
not connected
On pin 20 (SBUF) the display indicates with a low level that
data is ready to be retrieved from the internal send buffer. The line can be connected to an interrupt input of the host system, for example.
BAUD RATES
The baud rate is set by means of pins 6, 7 and 8 (baud 0 to 2). The
data format is set permanently to 8 data bits, 1 stop bit, no parity.
RTS/CTS handshake lines are not required. The required control is
taken over by the integrated software protocol (see pages 8 and 9).
Baud Rates
Baud0 Baud1 Baud2
0
1
0
1
0
1
0
1
0
0
1
1
0
0
1
1
0
0
0
0
1
1
1
1
RS-485 INTERFACE
With an external converter (e.g. SN75176), the EA eDIP320 can be connected to a 2-wire RS-485
bus. Large distances of up to 1200 m can thus be implemented (remote display). Several EA eDIP320
displays can be operated on a single RS-485 bus by setting addresses.
We recommend the EA 9778-1RS485 board for development.
Addressing:
- Up to eight hardware addresses (0 to 7) can be set by means of pins ADR0 to ADR2.
- The eDIP with the address 7 is selected and ready to receive after power-on.
- The eDIPs with the addresses 0 to 6 are deselected after power-on.
- Up to 246 fur ther software
addresses can be set by means
of the ‘#KA adr’ command in the
power-on macro (set the eDIP
externally to the address 0).
data format
8,N,1
1200
2400
4800
9600
19200
38400
57600
115200
application example
Talking
京公网安备 11010802033920号
EEWORLD
