BA159A1G

Description
Rectifier Diode, 1 Element, 1A, 1000V V(RRM), Silicon, DO-41
CategoryDiscrete semiconductor    diode
File Size417KB,4 Pages
ManufacturerTaiwan Semiconductor
Websitehttp://www.taiwansemi.com/
Environmental Compliance
Download Datasheet Parametric View All

BA159A1G Overview

Rectifier Diode, 1 Element, 1A, 1000V V(RRM), Silicon, DO-41

BA159A1G Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
MakerTaiwan Semiconductor
package instructionO-PALF-W2
Reach Compliance Codecompliant
ECCN codeEAR99
Other featuresHIGH RELIABILITY, LOW POWER LOSS
Shell connectionISOLATED
ConfigurationSINGLE
Diode component materialsSILICON
Diode typeRECTIFIER DIODE
JEDEC-95 codeDO-41
JESD-30 codeO-PALF-W2
Number of components1
Number of terminals2
Maximum operating temperature150 °C
Minimum operating temperature-55 °C
Maximum output current1 A
Package body materialPLASTIC/EPOXY
Package shapeROUND
Package formLONG FORM
Maximum repetitive peak reverse voltage1000 V
Maximum reverse recovery time0.25 µs
surface mountNO
Terminal formWIRE
Terminal locationAXIAL

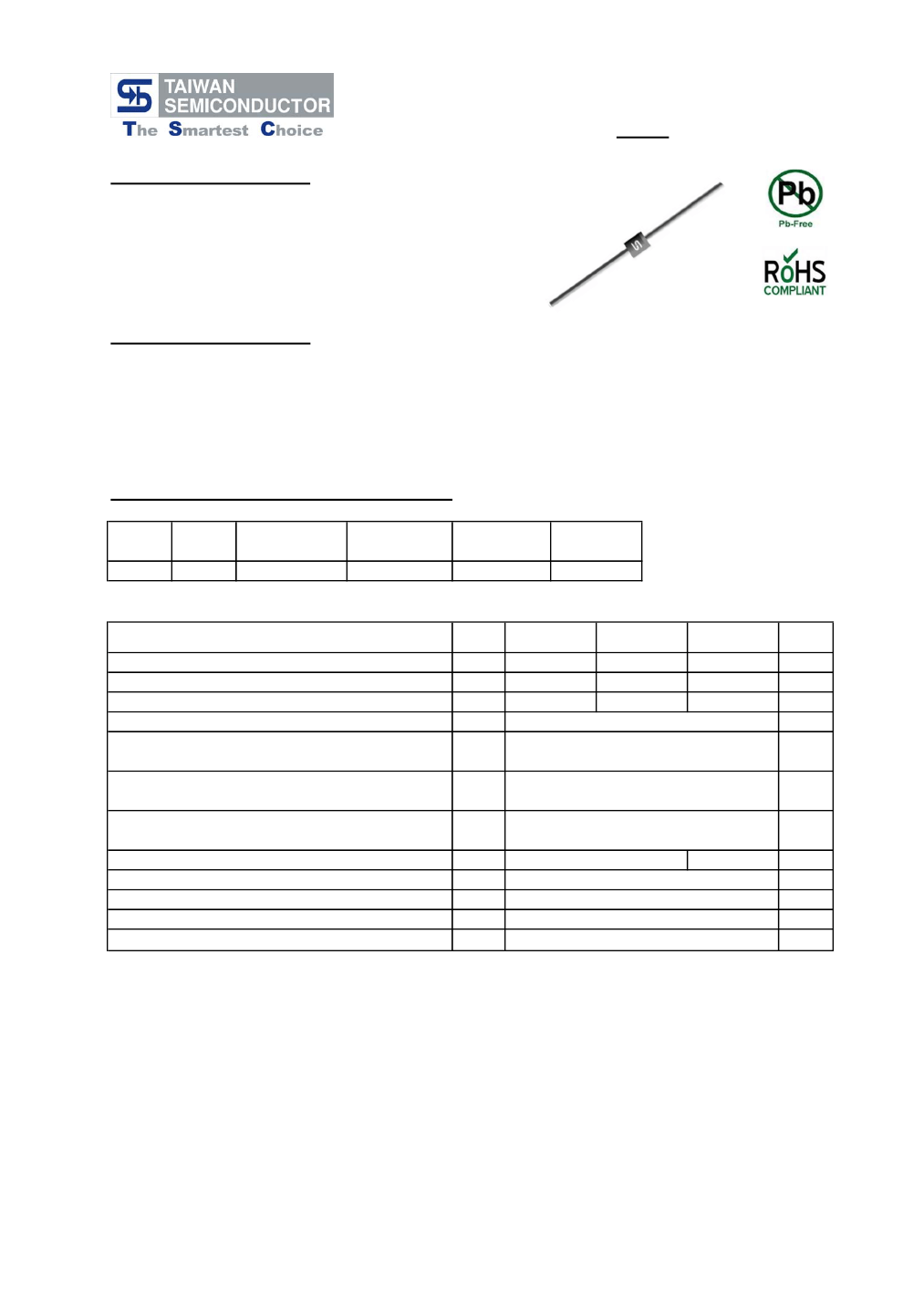

BA157 - BA159
1.0AMP Fast Recovery Rectifiers
DO-41
Features
High efficiency, Low VF
High current capability
High reliability
High surge current capability
Low power loss
Green compound with suffix "G" on packing
code & prefix "G" on datecode
Mechanical Data
Cases: DO-41 Molded plastic
Epoxy: UL 94V-0 rate flame retardant
Lead: Pure tin plated, lead free, solderable per
MIL-STD-202, Method 208 guaranteed
Polarity: Color band denotes cathode end
High temperature soldering guaranteed: 260℃/10s
Weight: 0.34 grams

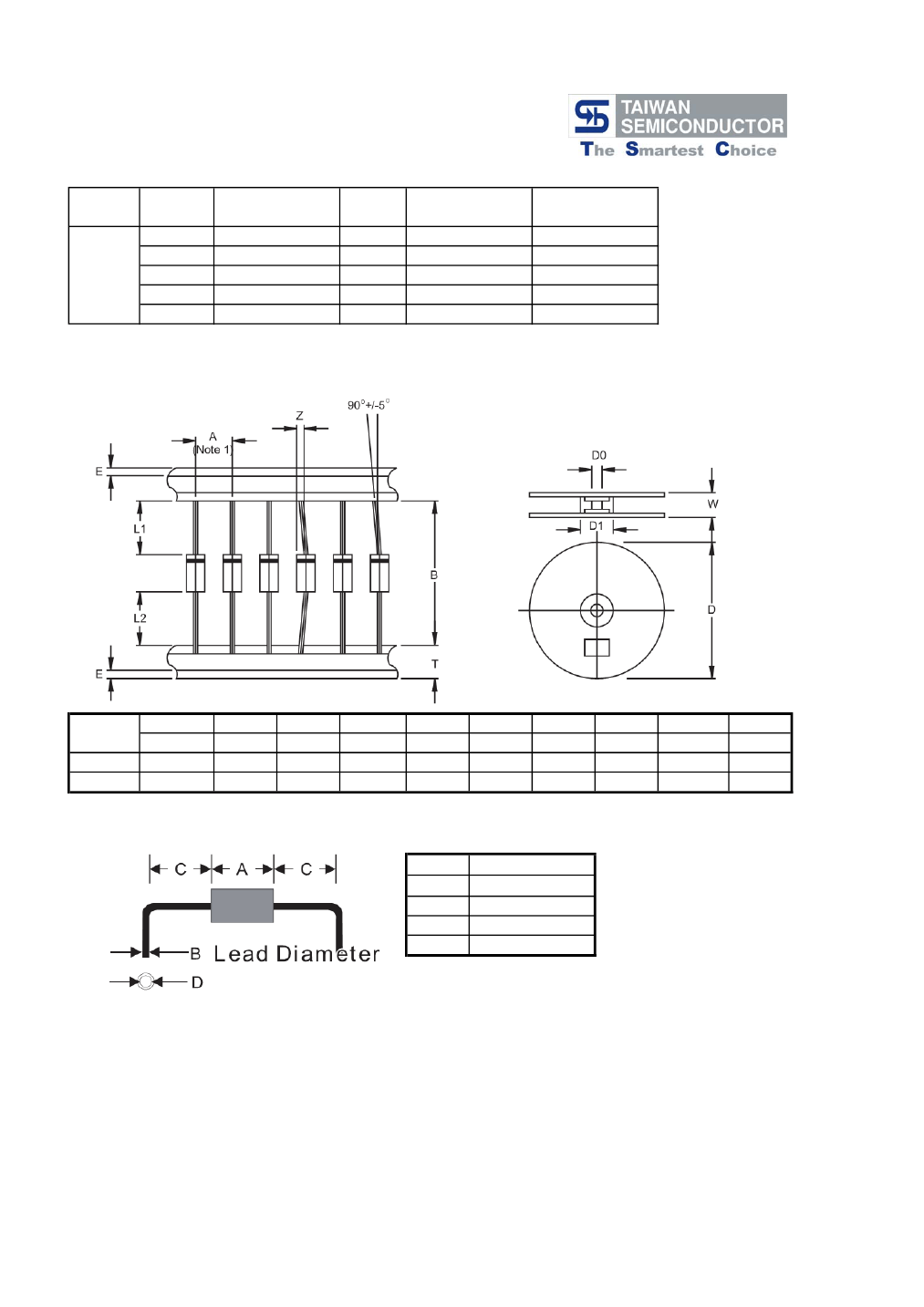

Ordering Information (example)
Part No.
BA157
Package
DO-41
Packing
3K / AMMO box
INNER
TAPE
52mm
Packing code
A0
Packing code
(Green)
A0G
Maximum Ratings and Electrical Characteristics
Rating at 25
ambient temperature unless otherwise specified.
Parameter
Maximum Recurrent Peak Reverse Voltage
Maximum RMS Voltage
Maximum DC Blocking Voltage
Maximum Average Forward Rectified Current
Peak Forward Surge Current, 8.3 ms Single Half Sine-wave
Superimposed on Rated Load (JEDEC method)
Maximum Instantaneous Forward Voltage (Note 1)
@1A
Maximum DC Reverse Current at
Rated DC Blocking Voltage
@ T
A
=25
@ T
A
=125
Symbol
V
RRM
V
RMS
V
DC
I
F(AV)
I
FSM
V
F
I
R
Trr
Cj
R
θjA
T
J
T
STG
BA157
400
280
400
BA158
600
420
600
1
30
1.2
5
150
150
10
65
- 55 to + 150
- 55 to + 150
BA159
1000
700
1000
Units
V
V
V
A
A
V
uA
uA
Maximum Reverse Recovery Time (Note 2)
Typical Junction Capacitance (Note 3)
Typical Thermal Resistance
Operating Temperature Range
Storage Temperature Range
Note 1: Pulse Test with PW=300 usec, 1% Duty Cycle
250
O
nS
pF
C/W
O
O
C
C

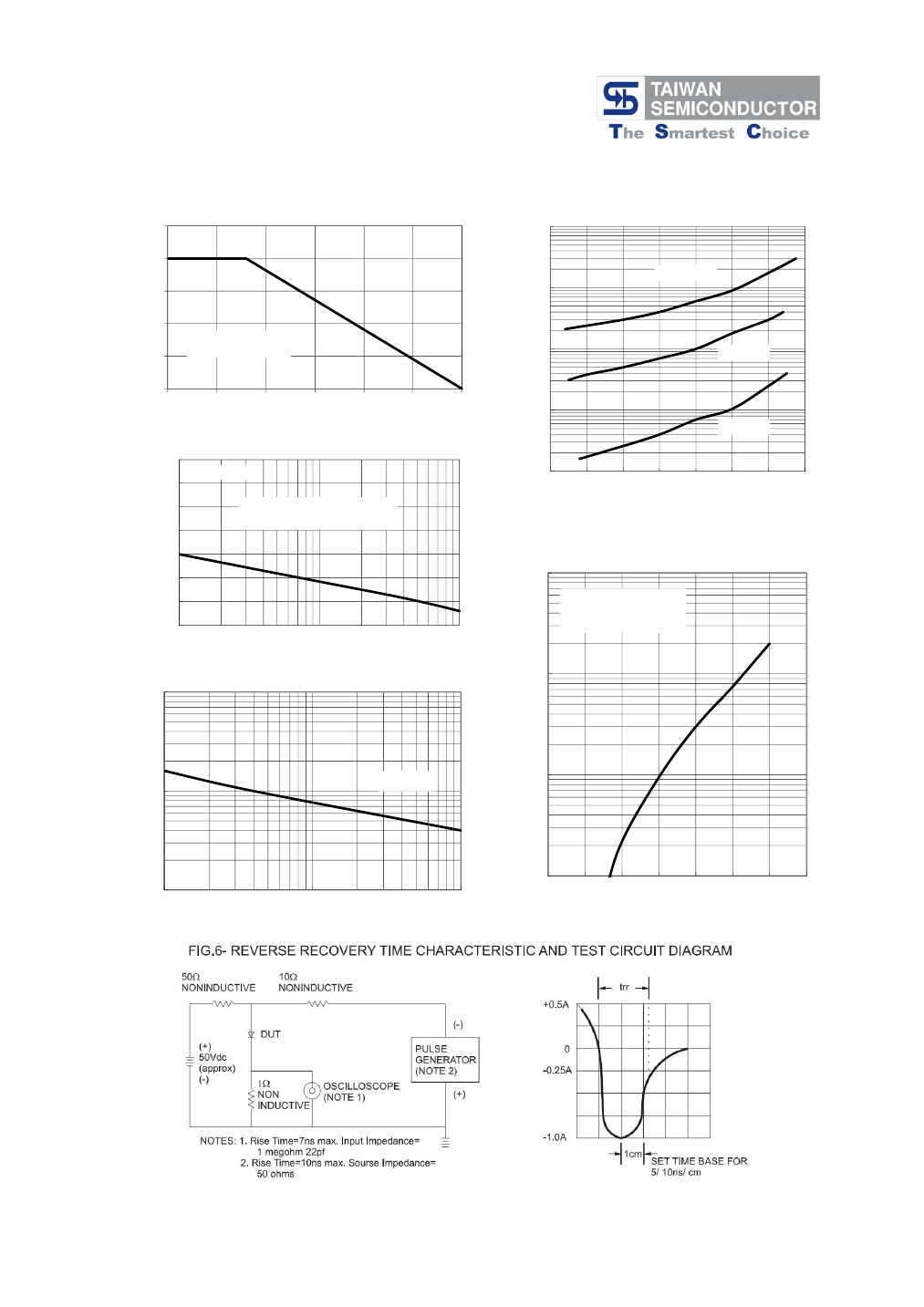

Note 2: Reverse Recovery Test Conditions: I
F
=0.5A, I
R
=1.0A, I
RR
=0.25A
Note 3: Measured at 1 MHz and Applied Reverse Voltage of 4.0V D.C.
