FR603-H

Description
Rectifier Diode, 1 Phase, 1 Element, 6A, 200V V(RRM), Silicon,
CategoryDiscrete semiconductor    diode
File Size97KB，6 Pages
ManufacturerFORMOSA
Websitehttp://www.formosams.com/
Download Datasheet Parametric Compare View All

FR603-H Overview

Rectifier Diode, 1 Phase, 1 Element, 6A, 200V V(RRM), Silicon,

FR603-H Parametric

Parameter NameAttribute value
MakerFORMOSA
Reach Compliance Codeunknown
ECCN codeEAR99
applicationEFFICIENCY
Shell connectionISOLATED
ConfigurationSINGLE
Diode component materialsSILICON
Diode typeRECTIFIER DIODE
Maximum forward voltage (VF)1.3 V
JESD-30 codeO-PALF-W2
Maximum non-repetitive peak forward current300 A
Number of components1
Phase1
Number of terminals2
Maximum operating temperature125 °C
Minimum operating temperature-55 °C
Maximum output current6 A
Package body materialPLASTIC/EPOXY
Package shapeROUND
Package formLONG FORM
Maximum repetitive peak reverse voltage200 V
Maximum reverse current5 µA
Maximum reverse recovery time0.15 µs
surface mountNO
Terminal formWIRE
Terminal locationAXIAL

FR603-H Preview

Axial Leaded Fast Recovery Rectifiers
FR601 THRU FR607
List
Formosa MS
List................................................................................................. 1
Package outline............................................................................... 2
Features.......................................................................................... 2
Mechanical data............................................................................... 2
Maximum ratings .............................................................................. 2
Rating and characteristic curves........................................................ 3
Pinning information........................................................................... 4
Marking........................................................................................... 4
Taping & bulk specifications for AXIAL devices.................................... 4
Suggested thermal profiles for soldering processes............................. 5
High reliability test capabilities........................................................... 6
http://www.formosams.com/
TEL:886-2-22696661
FAX:886-2-22696141
Document ID
Issued Date
2009/02/10
Revised Date
2010/03/10
Revision
C
Page.
6
Page 1
DS-222223
Axial Leaded Fast Recovery Rectifiers
FR601 THRU FR607
6.0A Axial Leaded Fast Recovery
Rectifiers - 50V-1000V
Package outline
Features
•
Axial lead type devices for through hole design.
•
High current capability.
•
Fast switching for high efficiency.
•
High surge capability.
•
Silicon rubber coating chip junction.
•
Lead-free parts meet RoHS requirments.
•
Suffix "-H" indicates Halogen-free parts, ex. FR601-H.
Formosa MS
P600
.360(9.10)
.340(8.60)
1.0(25.4)
MIN.
.360(9.10)
.340(8.60)
Mechanical data
•
Epoxy : UL94-V0 rated flame retardant
•
Case : Molded plastic, P600
•
Lead : Axial leads, solderable per MIL-STD-202,
Method 208 guranteed
.052(1.32)
.048(1.22)
1.0(25.4)
MIN.
•
Polarity: Color band denotes cathode end
•
Mounting Position : Any
•
Weight : Approximated 1.75 gram
Dimensions in inches and (millimeters)
Maximum ratings and Electrical Characteristics
(AT
PARAMETER
Forward rectified current
Forward surge current
See Fig.1
CONDITIONS
T
A
=25
o
C unless otherwise noted)
Symbol
I
O
I
FSM
I
R
C
J
T
STG
-65
100
+175
MIN.
TYP.
MAX.
6.0
300
5.0
150
UNIT
A
A
8.3ms single half sine-wave (JEDEC methode)
V
R
= V
RRM
T
J
= 25
O
C
V
R
= V
RRM
T
J
= 100 C
f=1MHz and applied 4V DC reverse voltage
O
Reverse current
Diode junction capacitance
Storage temperature
*1
V
RRM
(V)
50
100
200
400
600
800
1000
V
RMS
*2
(V)
35
70
140
280
420
560
700
μA
pF
O
C
SYMBOLS
FR601
FR602
FR603
FR604
FR605
FR606
FR607
*3
V
R
(V)
50
100
200
400
600
800
1000
*4
V
F
(V)
*5
t
rr
(ns)
Operating
temperature
T
J
, (
O
C)
*1 Repetitive peak reverse voltage
*2 RMS voltage
150
1.30
250
500
-55 to +125
*3 Continuous reverse voltage
*4 Maximum forward voltage@I
F
=6.0A
*5 Maximum Reverse recovery time, note 1
Note 1. Reverse recovery time test condition, I
F
=0.5A, I
R
=1.0A, I
RR
=0.25A
http://www.formosams.com/
TEL:886-2-22696661
FAX:886-2-22696141
Document ID
Issued Date
2009/02/10
Revised Date
2010/03/10
Revision
C
Page.
6
Page 2
DS-222223

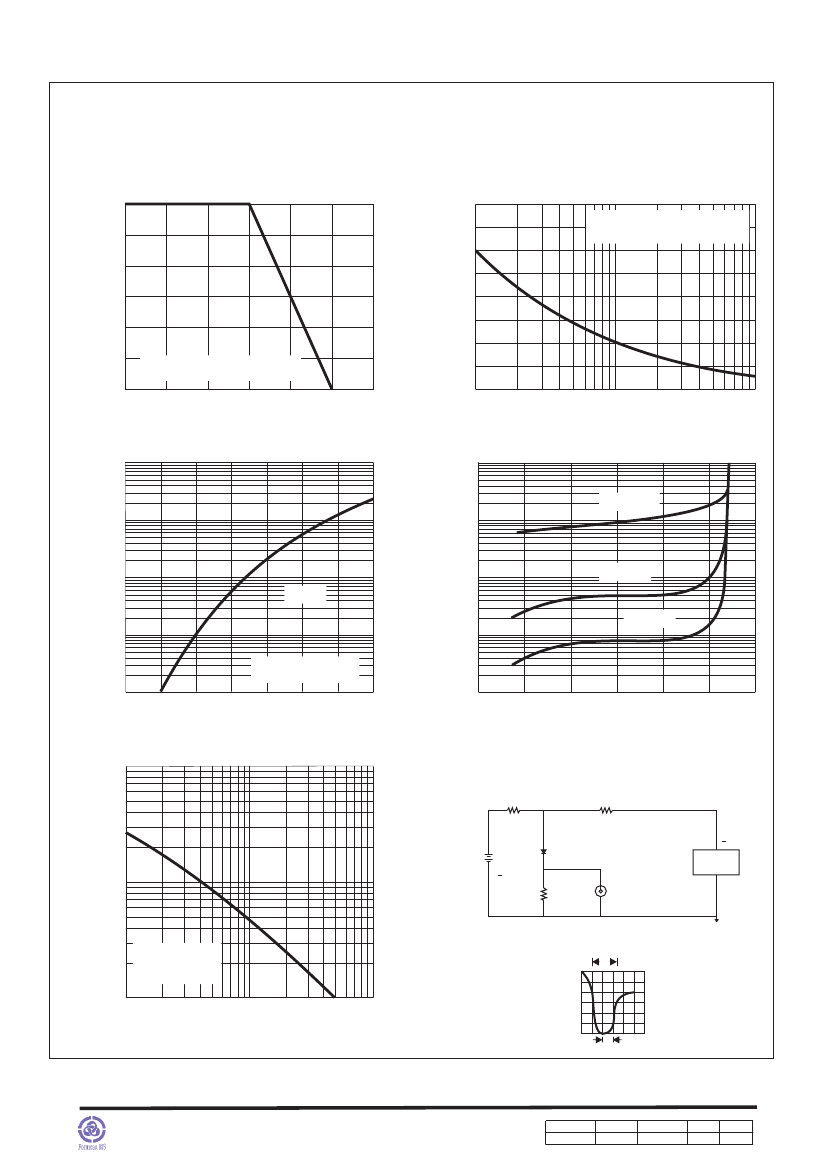

Rating and characteristic curves (FR601 THRU FR607)
Fig.1 - Forward Current Derating Curve
Peak Forward Surge Current
Amperes
400
350
300
250
200
150
100
50
0
8.3mS single half sine-wave
8.3mS single half sine-wave
(JEDEC Method)
(JEDEC Method)
Fig. 2 - Maximum Non-Repetitive Peak
Forward Surge Current
6.0
Average Forward Current
Amperes
5.0
4.0
3.0
2.0
1.0
0
single phase half wave 60Hz
resistive or inductive load
25
50
75
100
125
O
150
1
10
100
Lead Temperature, TL ( C)
Fig. 3 - Typical Instantaneour Forward
Characteristics
Instantaneous Reverse Current,
uA
Number of Cycles at 60 Hz
Fig. 4 - Typical Instantaneous Reverse
Characteristics
Instantaneous Forward Current,
Amperes
1000
100
T
J
=100
O
C
100
10
10
T
J
=25
O
C
1
T
J
=75
O
C
T
J
=25
O
C
1.0
pulse width=300us
1% duty cycle
0.1
0.1
0.4
0.6
0.8
1.0
1.2
1.4
1.6
1.8
0.01
0
20
40
60
80
100
120
Instantaneous Forward Voltage, Volts
Percent of Rated Peak Reverse Voltage,(%)
Fig. 5 - Typical Junction Capacitance
1000
Fig. 6 - Test Circuit Diagram and Reverse
Recovery Time Characteristic
50
W
NONINDUCTIVE
10
W
NONINDUCTIVE
Junction Capacitance, pF
(+)
25Vdc
(approx.)
D.U.T.
( )
PULSE
GENERATOR
(NOTE 2)
(+)
OSCILLISCOPE
(NOTE 1)
100
( )
1
W
NON-
INDUCTIVE
NOTES: 1. Rise Time= 7ns max., Input Impedance= 1 megohm.22pF.
T
J
=25
O
C
f=1.0MHz
Vsig=50mVp-p
10
2. Rise Time= 10ns max., Source Impedance= 50 ohms.
trr
+0.5A
|
|
|
|
|
|
|
|
0
1.0
10
100
-0.25A
Reverse Voltage, Volts
-1.0A
1cm
SET TIME BASE FOR
50 / 10ns / cm
http://www.formosams.com/
TEL:886-2-22696661
FAX:886-2-22696141
Document ID
Issued Date
2009/02/10
Revised Date
2010/03/10
Revision
C
Page.
6
Page 3
DS-222223
Axial Leaded Fast Recovery Rectifiers
FR601 THRU FR607
Pinning information
Pin
Pin1
Pin2
cathode
anode
Simplified outline
Formosa MS
Symbol
1
2
1
2
Marking
Type number
FR601
FR602
FR603
FR604
FR605
FR606
FR607
Marking code
FR601
FR602
FR603
FR604
FR605
FR606
FR607

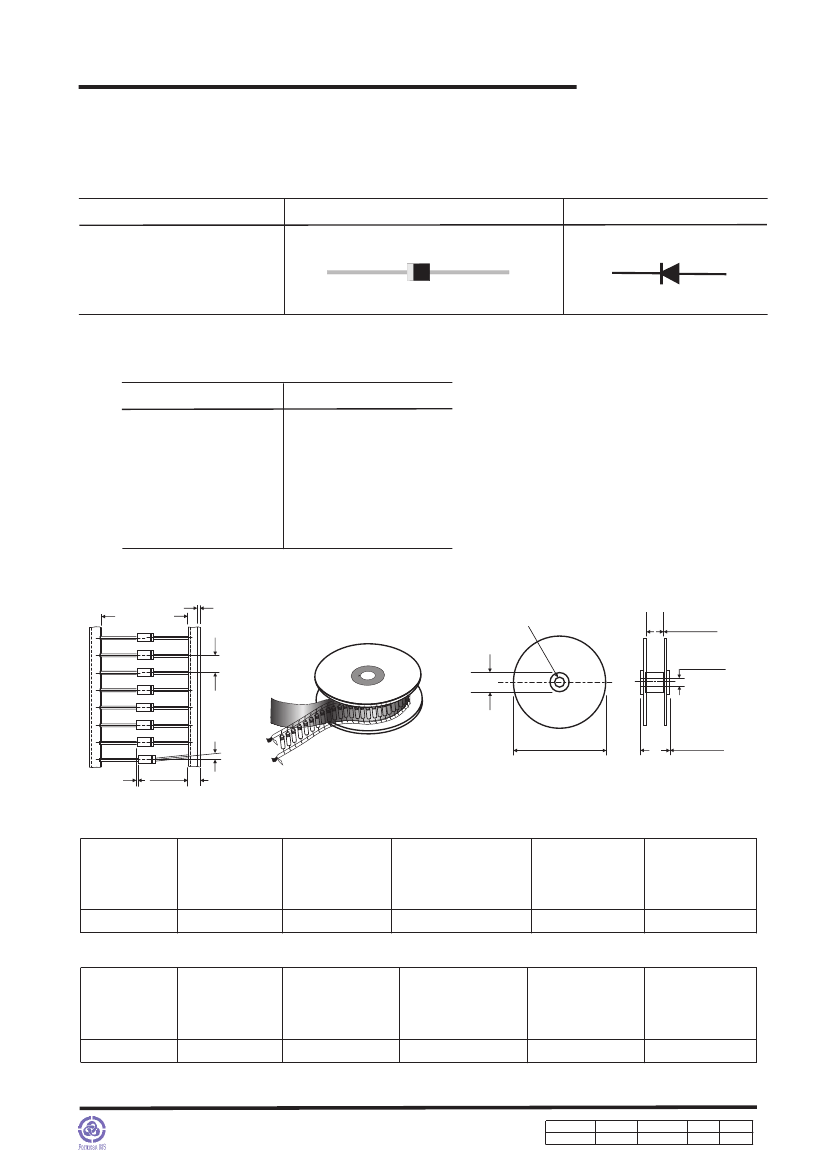

Taping & bulk specifications for AXIAL devices
52.4mm
17mm DIA.
55mm Max.
A
72mm DIA.
17mm DIA.
355mm
Max OFF
Alignment
1.2mm
71mm Max.
OFF Center
both sids
1.0mm
6.3mm
REEL PACKING
DEVICE
CASE
TYPE
P600
1,000
Q'TY 1
(PCS / REEL)
COMPONENT
SPACING
"A" in FIG. A
5 mm
CARTON
SIZE
(m/m)
360 * 340 * 370
4,000
Q'TY 2
(PCS / CARTON)
APPROX.
CROSS
WEIGHT(kg)
9.5
AMMO PACKING
DEVICE
CASE
TYPE
P600
500
Q'TY 1
(PCS / BOX)
INNER
BOX SIZE
(m/m)
260 * 83 * 160
CARTON
SIZE
(m/m)
440 * 270 * 340
5,000
Q'TY 2
(PCS / CARTON)
APPROX.
CROSS
WEIGHT(kg)
12.0
http://www.formosams.com/
TEL:886-2-22696661
FAX:886-2-22696141
Document ID
Issued Date
2009/02/10
Revised Date
2010/03/10
Revision
C
Page.
6
Page 4
DS-222223
Axial Leaded Fast Recovery Rectifiers
FR601 THRU FR607
BULK PACKING
DEVICE
CASE
TYPE
P600
250
Q'TY 1
(PCS / BOX)
INNER
BOX SIZE
(m/m)
305 * 73 * 40
CARTON
SIZE
(m/m)
347 * 320 * 271
Formosa MS
Q'TY 2
(PCS / CARTON)
APPROX.
CROSS
WEIGHT(kg)
6,000
14.5
Suggested thermal profiles for soldering processes
1.Lead free temperature profile wave-soldering
280
260
240
220
200
Temperature(°C)
Peak soldering temperature not
to exceed 260ºC
180
160
140
120
100
80
60
40
20
0
0
20
Preheat
Max gradient 2ºC/s
Peak
Max well
time 5 Max
Cool Down
Max gradient-4ºC/s
Suggested gradient - 2ºC/s or
less
40
60
80
100 120 140 160 180 200 220 240
Time(Sec)
http://www.formosams.com/
TEL:886-2-22696661
FAX:886-2-22696141
Document ID
Issued Date
2009/02/10
Revised Date
2010/03/10
Revision
C
Page.
6
Page 5
DS-222223
More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >

FR603-H Related Products

FR603-H FR607-H FR602-H FR601-H FR604-H FR606-H FR605-H
Description Rectifier Diode, 1 Phase, 1 Element, 6A, 200V V(RRM), Silicon, Rectifier Diode, 1 Phase, 1 Element, 6A, 1000V V(RRM), Silicon, Rectifier Diode, 1 Phase, 1 Element, 6A, 100V V(RRM), Silicon, Rectifier Diode, 1 Phase, 1 Element, 6A, 50V V(RRM), Silicon, Rectifier Diode, 1 Phase, 1 Element, 6A, 400V V(RRM), Silicon, Rectifier Diode, 1 Phase, 1 Element, 6A, 800V V(RRM), Silicon, Rectifier Diode, 1 Phase, 1 Element, 6A, 600V V(RRM), Silicon,
Maker FORMOSA FORMOSA FORMOSA FORMOSA FORMOSA FORMOSA FORMOSA
Reach Compliance Code unknown unknown unknown unknown unknown unknown unknown
ECCN code EAR99 EAR99 EAR99 EAR99 EAR99 EAR99 EAR99
application EFFICIENCY EFFICIENCY EFFICIENCY EFFICIENCY EFFICIENCY EFFICIENCY EFFICIENCY
Shell connection ISOLATED ISOLATED ISOLATED ISOLATED ISOLATED ISOLATED ISOLATED
Configuration SINGLE SINGLE SINGLE SINGLE SINGLE SINGLE SINGLE
Diode component materials SILICON SILICON SILICON SILICON SILICON SILICON SILICON
Diode type RECTIFIER DIODE RECTIFIER DIODE RECTIFIER DIODE RECTIFIER DIODE RECTIFIER DIODE RECTIFIER DIODE RECTIFIER DIODE
Maximum forward voltage (VF) 1.3 V 1.3 V 1.3 V 1.3 V 1.3 V 1.3 V 1.3 V
JESD-30 code O-PALF-W2 O-PALF-W2 O-PALF-W2 O-PALF-W2 O-PALF-W2 O-PALF-W2 O-PALF-W2
Maximum non-repetitive peak forward current 300 A 300 A 300 A 300 A 300 A 300 A 300 A
Number of components 1 1 1 1 1 1 1
Phase 1 1 1 1 1 1 1
Number of terminals 2 2 2 2 2 2 2
Maximum operating temperature 125 °C 125 °C 125 °C 125 °C 125 °C 125 °C 125 °C
Minimum operating temperature -55 °C -55 °C -55 °C -55 °C -55 °C -55 °C -55 °C
Maximum output current 6 A 6 A 6 A 6 A 6 A 6 A 6 A
Package body material PLASTIC/EPOXY PLASTIC/EPOXY PLASTIC/EPOXY PLASTIC/EPOXY PLASTIC/EPOXY PLASTIC/EPOXY PLASTIC/EPOXY
Package shape ROUND ROUND ROUND ROUND ROUND ROUND ROUND
Package form LONG FORM LONG FORM LONG FORM LONG FORM LONG FORM LONG FORM LONG FORM
Maximum repetitive peak reverse voltage 200 V 1000 V 100 V 50 V 400 V 800 V 600 V
Maximum reverse current 5 µA 5 µA 5 µA 5 µA 5 µA 5 µA 5 µA
Maximum reverse recovery time 0.15 µs 0.5 µs 0.15 µs 0.15 µs 0.15 µs 0.5 µs 0.25 µs
surface mount NO NO NO NO NO NO NO
Terminal form WIRE WIRE WIRE WIRE WIRE WIRE WIRE
Terminal location AXIAL AXIAL AXIAL AXIAL AXIAL AXIAL AXIAL

Recommended Resources

Surround sound AD converter circuit a

Application example c of LM381

Air flow control device circuit diagram

Fluid Level Controller Circuit Diagram

Wanbao DQP-30AR electric air pump electric hot water bottle circuit diagram

820e computer motherboard circuit diagram_48

F240 burning problem
[color=#000][font=Arial][size=2]I encountered a problem when programming F240. If you can receive this email, I hope you can give me some tips. Thank you! [/size][/font][/color] [color=#000][font=Aria...
alasijia Microcontroller MCU
About the CAN and UART hardware connection diagram of the LPC2292 chip
I want to use LPC2292 to make a remote robot controller, and now I have a problem with the hardware connection. I don't know how to connect the UART interface. I hope someone can help me solve it. It ...
tjj104923185 Robotics Development
Code Composer C3x C4x version 4.10 installation package
Does anyone have the Code Composer C3x C4x version 4.10 installation package? I need to use the old version in my project. I searched Baidu for a long time but couldn't find it. If you have it, could ...
sudongpo2018 DSP and ARM Processors
Shanghai Maker Carnival
...
qinkaiabc Microcontroller MCU
List of Chinese IC design companies posted by netizens
List of IC design companies of National Integrated Circuit Center (Beijing area) Beijing Huahong NEC Integrated Circuit Design Co., Ltd. Beijing Huahong Integrated Circuit Design Co., Ltd. Beijing Box...
songbo MCU
CCS4 - I don't know how you feel about it
Feeling 1. Stupid! (:lol or maybe I am stupid)---In several files in the project root directory (or the specified directory), there are definitions and descriptions of procedures. One file can call th...
dontium Microcontroller MCU
Shortcut:   L0 L1 L2 L3 L4 L5 L6 L7 L8 L9 LA LB LC LD LE LF LG LH LI LJ LK LL LM LN LO LP LQ LR LS LT LU LV LW LX LY LZ M0 M1 M2 M3 M4 M5 M6 M7 M8 M9 MA MB MC MD ME MF MG MH MI MJ MK ML MM MN MO MP MQ MR MS MT MU MV MW MX MY MZ N0 N1 N2 N3 N4 N5 N6 N7 N8 NA NB NC ND NE NF NG NH NI NJ NK NL NM NN NO NP NQ NR NS NT NU NV NX NZ O0 O1 O2 O3 OA OB OC OD OE OF OG OH OI OJ OK OL OM ON OP OQ OR OS OT OV OX OY OZ P0 P1 P2 P3 P4 P5 P6 P7 P8 P9 PA PB PC PD PE PF PG PH PI PJ PK PL PM PN PO PP PQ PR PS PT PU PV PW PX PY PZ Q1 Q2 Q3 Q4 Q5 Q6 Q8 Q9 QA QB QC QE QF QG QH QK QL QM QP QR QS QT QV QW QX QY R0 R1 R2 R3 R4 R5 R6 R7 R8 R9 RA RB RC RD RE RF RG RH RI RJ RK RL RM RN RO RP RQ RR RS RT RU RV RW RX RY RZ

Popular Components

  1. 695D335X9010A2T
  2. SP1-031-S522/01-96/2
  3. D38999/26MJ90PAL
  4. H3M37RA29APM44
  5. DA9122-XXV76
  6. SQS20B1272FLLF
  7. CE1812A-122-G050GBS
  8. WBC-T0303GS-05-54R9-CD
  9. P4KE130
  10. SD850YST/R13
  11. RS2103XH
  12. 0402WGF9100TCE

Popular Articles

  1. The difference between low voltage pulse and multiple pulse of cable fault tester
  2. The State Intellectual Property Office declared that one of Tesek's "semiconductor testing device" patents was completely invalid
  3. Highlighting its innovative capabilities! Volkswagen introduces OTA wireless updates for the ID. series
  4. Poly launches new professional-grade video conferencing equipment to bring a quality leap forward for hybrid working
  5. Solution to the Positioning Accuracy of Stepper Motors
  6. Synopsys Named a Leader in Forrester Wave for Software Composition Analysis
  7. S3C2440 startup code analysis start.s
  8. Flowing light based on AT89c51 microcontroller, interrupt timing, button control
  9. Shengbang shares ended 2021 perfectly with shipments of 20 billion pieces
  10. PIC16F15323 microcontroller (ADC) -- assembly + C language

Technical ResourceMore

  1. Power supply and distribution technology
  2. MK_Electro Vacuum Devices Handbook 477 pages 5.6M.pdf
  3. Prime Time 1.20
  4. [Follow Me Season 3 Episode 4] Complete Task Code
  5. CAM350 9.5.20
  6. MTK Modis Doc
  7. Visual C++-TurboC Serial Communication Programming Practice Complete Edition by Gong Jianwei and Xiong Guangming
  8. Hitachi-H8/3048 Series MCU Application Technology-330 pages-14.0M.rar
  9. Microwave Office 2006 Software Download
  10. Follow Me Season 3 Episode 3 Code Summary

EEWorld
subscription
account

EEWorld
service
account

Automotive
development
circle

Robot
development
community

About Us Customer Service Contact Information Datasheet Sitemap LatestNews
Index Files: 1228  2803  488  2649  2830  25  57  10  54  17
Datasheet   0 1 2 3 4 5 6 7 8 9 A B C D E F G H I J K L M N O P Q R S T U V W X Y Z
Room 1530, 15th Floor, Building B, No. 18 Zhongguancun Street, Haidian District, Beijing Telephone: (010) 82350740 Postal Code: 100190
Copyright © 2005-2026 EEWORLD.com.cn, Inc. All rights reserved 京ICP证060456号 京ICP备10001474号-1 电信业务审批[2006]字第258号函 京公网安备 11010802033920号
