Platinum Temperature
Sensor
RTD Series
•
Small surface mount package
•
High stability Platinum based sensor
•
High resolution, accuracy and interchangeability
•
Compatible with automatic placement equipment
•
Wide temperature range - Very fast response time
IRC Adv
Division
IRC Advanced Film Division

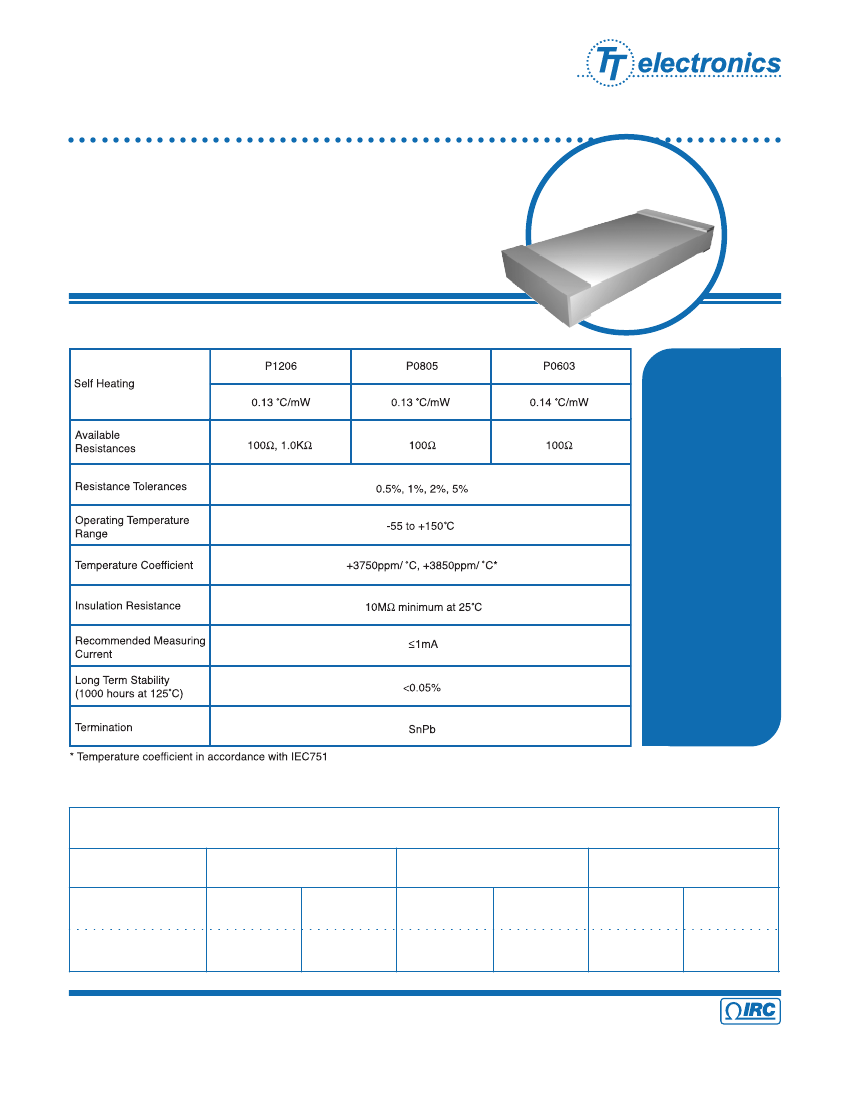

Electrical Data
The temperature
sensor is a con-
ventional thin
film platinum
RTD in a surface
mount package
designed for
temperature
sensing, over-
temperature
protection and
temperature
compensation in
any application
where printed
circuit board
temperature
sensing is de-
sired.
Performance Data
Settling Response Time
P1206
Rapidly Stirred Oil
Air @ 1m/s
0.2s
(t
0.5
)
1.8s
(t
0.5
)
0.6s
(t
0.9
)
6s
(t
0.9
)
0.1s
(t
0.5
)
1.2s
(t
0.5
)
P0805
0.4s
(t
0.9
)
4.2s
(t
0.9
)
0.1s
(t
0.5
)
1.1s
(t
0.5
)
P0603
0.4s
(t
0.9
)
3.7s
(t
0.9
)
General Note
IRC reserves the right to make changes in product specification without notice or liability.
All information is subject to IRC’s own data and is considered accurate at time of going to print.
© IRC Advanced Film Division
• Corpus Christi Texas 78411 USA
Telephone: 361 992 7900 • Facsimile: 361 992 3377 • Email: afdsales@irctt.com • Website: www.irctt.com
○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○
A subsidiary of
T T electronics plc
RTD Series Issue April 2003
Platinum Temperature
Sensor
Physical Data
L
IRC Adv
Division
IRC Advanced Film Division
a
TOP
W
BOTTOM
SIDE
b
H
L
P 0603
P 0805
P 1206
0.063"±.004"
0.081"±.005"
0.126"±.006"
W
0.031"±.004"
0.050"±.005"
0.063"±.005"
H
0.020"±.004"
0.020"±.006"
0.024"±.004"
a
0.008"±.004"
0.016"±.008"
0.016"±.008"
b
0.008"±.004"
0.016"±.008"
0.016"±.008"
Ordering Data
RTD - P1206 - 40 -
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
1001 -
○
○
○
D
○
○
○
○
P1206 = 1206 chip sensor
P0805 = 0805 chip sensor
P0603 = 0603 chip sensor
○
○
○
○
○
○
○
○
○
○
40 = +3750ppm/°C ±100ppm/°C
42 = +3850ppm/°C ±100ppm/°C
43 = +3850ppm/°C ± 50ppm/°C
For additional information or to discuss your specific requirements,
please contact our Applications Team using the contact details below.
© IRC Advanced Film Division
• Corpus Christi Texas 78411 USA
Telephone: 361 992 7900 • Facsimile: 361 992 3377 • Email: afdsales@irctt.com • Website: www.irctt.com
RTD Series Issue April 2003
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
Temperature Coefficient
○
○
○
○
○
○
○
○
○
○
○
○
Model
Tolerance Code
D
F
G
J
= ±0.5%
= ±1.0%
= ±2.0%
= ±5.0%
○
○
○
○
Resistance Code
Standard 4 Digit Resistance Code
Ex: 1000 = 100Ω; 1001 = 1000Ω
