Oscilent Corporation
PRODUCT SPECIFICATION
REV A January 2011
Oscilent Controlled Document
Ordering Code / Part Number
Product Description
813-SL67.5M-20A
67.50MHz IF SAW Filter 20.30MHz Bandwidth
Specification Contents
o
o
o
o
o
o
o
Mechanical Dimensions
Test Circuit
Maximum Ratings
Electrical Specification
Frequency Response
Smith Chart
VSWR
Notes
o
o
o
o
Electrostatic Sensitive Device (ESD)
Avoid excessive ultrasonic exposure
Solderability compatible with JEDEC J-STD-020C Pb-free process, 260°C peak reflow temperature
This product complies with EU directive 2002/95/EC (RoHS compliance)
Oscilent Corporation
Telephone: 1.949.252.0522
Fax: 1.949.252.0522
Email: sales@oscilent.com
Product Specification
www.oscilent.com
Oscilent Part Number
813-SL67.5M-20A
January 2011 Rev A
67.50MHz IF SAW Filter 20.30MHz Bandwidth
Mechanical Dimensions
(mm)
Pin Description
A, B, C, D, F, G, H, I, J, L Ground
K Input
E Output
Test Circuit
Test Fixture & Values
Input L1 = 120 nH, C1 = 75 pF
Output L2 = 33 nH, L3 = 120 nH
Source/Load Impedance 50
Ω
Product Specification
P. 1
www.oscilent.com
Oscilent Part Number
813-SL67.5M-20A
January 2011 Rev A
67.50MHz IF SAW Filter 20.30MHz Bandwidth
Maximum Ratings
Parameters Description
Operating Temperature Range
Storage Temperature Range
Maximum DC Voltage
Maximum Input Power
Source Impedance (single ended)
(1)
Load Impedance (single ended)
(1)
Unit
°C
°C
V
dBm
Ω
Ω
Minimum
-20
-40
-
-
-
-
Typical
-
-
-
-
50
50
Maximum
70
85
10
10
-
-
Notes: With Matching Network (Ref. Testing Environment Circuit as shown above).
Those impedances could be modified with different impedance values and/or structures, if necessary.
Electrical Specification
Parameters Description
Center Frequency (Fo)
Insertion Loss at Fo
Group Delay Variation at Fo±9.52MHz
Absolute Delay Time at Fo
Amplitude Ripple at Fo±9.52MHz
Bandwidth at -1dB
Bandwidth at -3dB
Bandwidth at -40dB
Relative Attenuation
Lower Sidelobe
Upper Sidelobe
Temperature Coefficient
dB
dB
ppm/°C
40
40
-
47
47
-86
-
-
-
Unit
MHz
dB
ns
us
dB
MHz
MHz
MHz
Minimum
-
-
-
-
-
-
20.90
-
Typical
67.50
13.20
35
1.04
0.38
20.30
21.05
24.30
Maximum
-
15.50
60
-
0.90
-
-
24.60
Product Specification
P. 2
www.oscilent.com
Oscilent Part Number
813-SL67.5M-20A
January 2011 Rev A
67.50MHz IF SAW Filter 20.30MHz Bandwidth

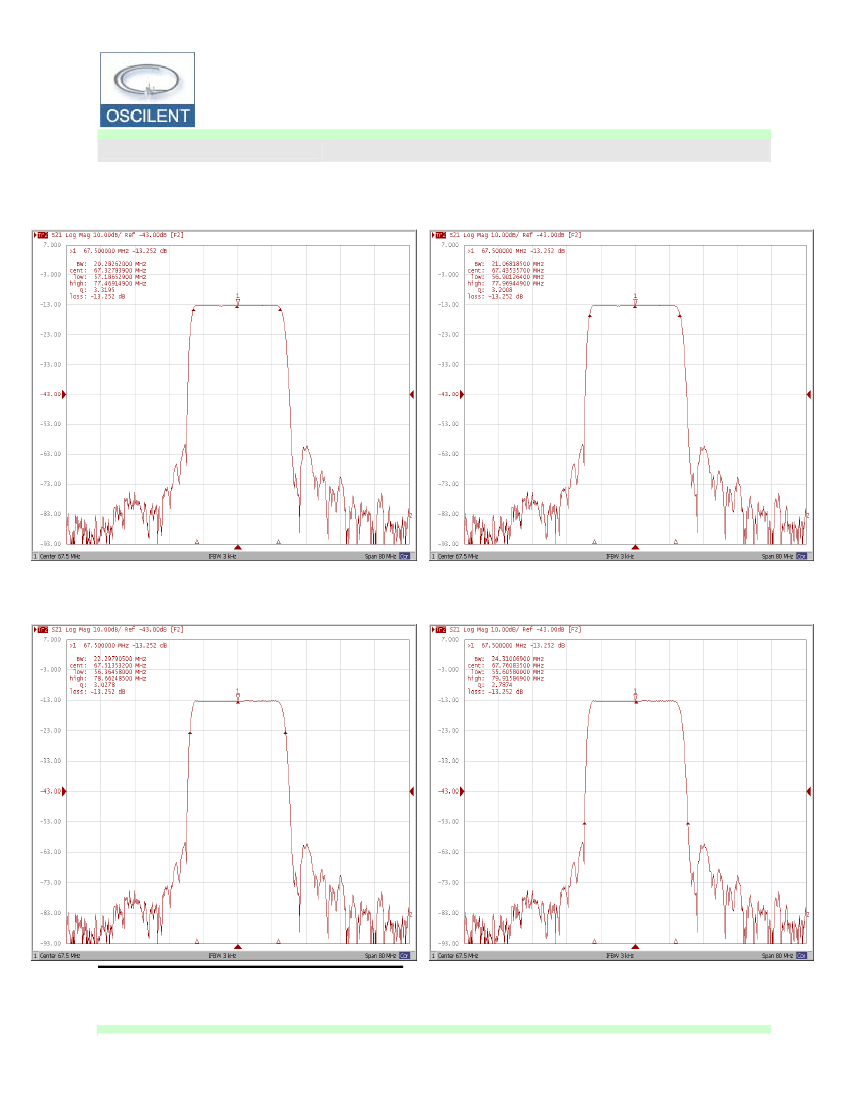

Frequency Response
Bandwidth at –1.0 dB
Bandwidth at –3.0 dB
Bandwidth at –10.0 dB
Bandwidth at –40.0 dB
Frequency Characteristics
Product Specification
P. 3
www.oscilent.com
Oscilent Part Number
813-SL67.5M-20A
January 2011 Rev A
67.50MHz IF SAW Filter 20.30MHz Bandwidth

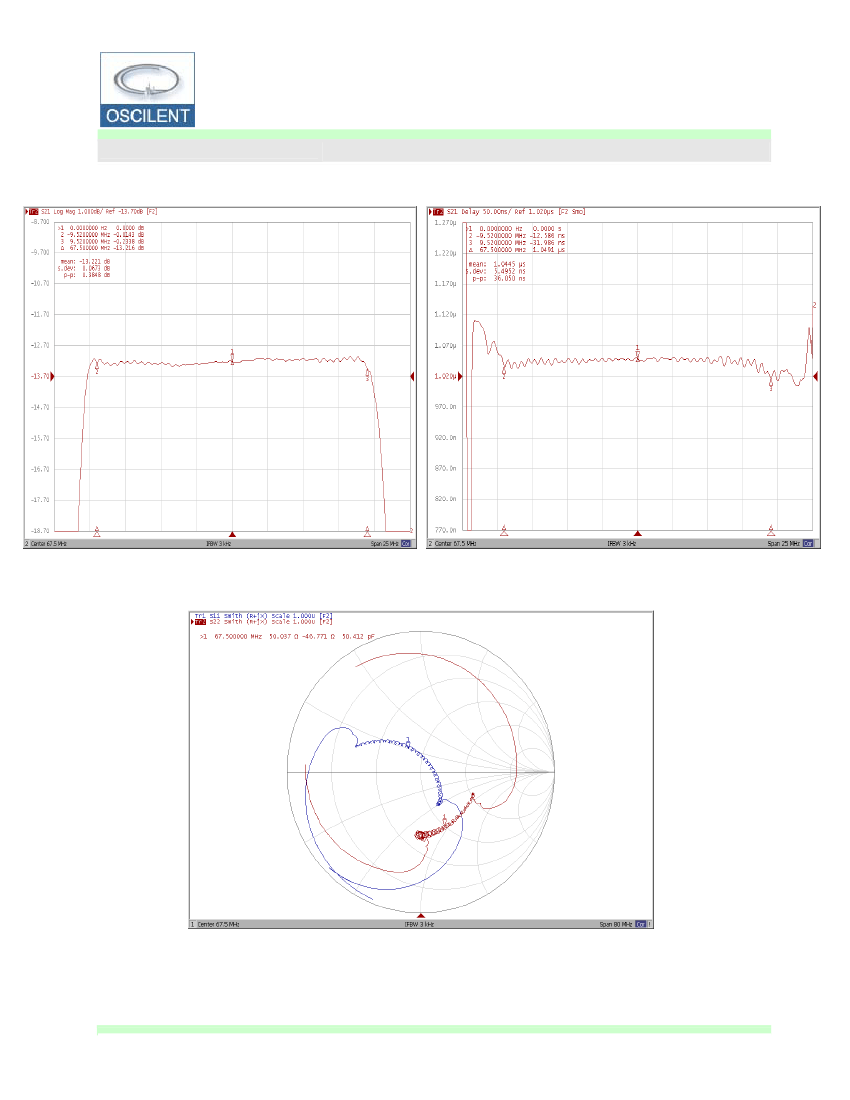

Group Delay Variation at Fo±9.52MHz
Ripple Variation at Fo±9.52MHz
Smith Chart
Product Specification
P. 4
www.oscilent.com
