HC-51/US2002-FREQ datasheet, PDF

Datasheet> All Categories > Passive components> Crystal/resonator> HC-51/US2002-FREQ

HC-51/US2002-FREQ: DescriptionSeries - 3Rd Overtone Quartz Crystal, 15MHz Min, 90MHz Max; CategoryPassive components Crystal/resonator; File Size41KB，1 Pages; ManufacturerVectron International, Inc.; Websitehttp://www.vectron.com/

Download Datasheet Parametric View All

HC-51/US2002-FREQ Overview

Series - 3Rd Overtone Quartz Crystal, 15MHz Min, 90MHz Max

HC-51/US2002-FREQ Parametric

Parameter Name	Attribute value
Maker	Vectron International, Inc.
Reach Compliance Code	unknown
Other features	AT CUT CRYSTAL
Crystal/Resonator Type	SERIES - 3RD OVERTONE
frequency stability	0.0025%
frequency tolerance	10 ppm
Manufacturer's serial number	HC-51/U
Installation features	THROUGH HOLE MOUNT
Maximum operating frequency	90 MHz
Minimum operating frequency	15 MHz
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
physical size	L19.4XB9.1XH19.7 (mm)
Series resistance	40 Ω
surface mount	NO

Preview

Download Datasheet

View All

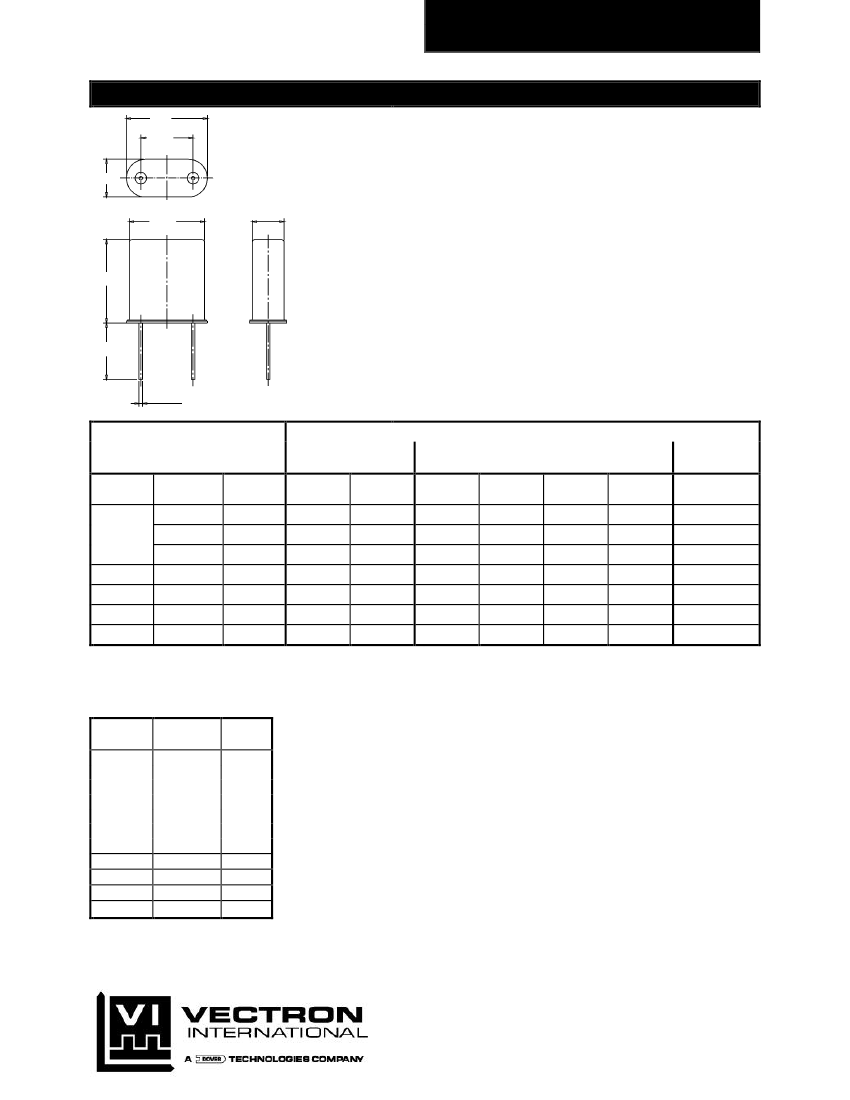

HC-51/U

Quartz Crystal Units AT-Cut, 0.8 - 300 MHz

19.4

12.34

9.1

17.88

7.62

DIN 45110: K6B

IEC 122-3: DZ

NFC-93-601: n

MIL-H-10056: HC-51/U

Welded metal enclosure

(inert atmosphere)

with wire leads

19.7

13.7

∅

0.83

All dimensions in mm (max)

Temperature Stability in the Temperature Range

HC-51/U

Overtone Frequency Type

[MHz]

0.8...3.0

1.OT

3.OT

5.OT

7.OT

9.OT

3.0...8.0

8.0...30

15...90

50...160

110...210

150...300

XS 17xx

XS 18xx

XS 19xx

XS 20xx

XS 21xx

XS 21xxx

-55°C...+105°C

50ppm

01A

01B

25ppm

02A

02B

20ppm

03A

03B

-20°C..+70°C

10ppm

04A

7ppm

06A

06B

5ppm

-----

07A

07B

Nom.Temp.

5°C

)

±2ppm

05A

05B

Calibration tolerance:

10 ppm

)Nom. Temp. = Nominal temperature for oven application to be given with the order.

R1max

[Ω]

800

500

200

100

180

Standard resonance for fundamental crystals: load resonance with C

= 30

0.5pF

Overtone crystals: series mode

Shunt capacitance: C

= 7pF max

Motional Resistance R1

Overtone Frequenc

y [MHz]

1. OT

0.8...1.5

1. OT

1.5...2.0

1. OT

2.0...3.0

1. OT

3.0...5.0

1. OT

5.0...8.0

1. OT

8.0...15

1. OT

15...30

3. OT

15...90

5. OT

40...150

7. OT

100...210

9. OT

150...300

Crystal units with different tolerances or additional data upon request.

Modifications:

HC-51/U-S; 0.8 - 1, 5MHz: 6-point mounting for exposure to extreme accelerations (shock and vibration).

166 Glover Avenue

Norwalk, CT 06856

Tel: 1-88-VECTRON-1

Fax: 1-888-FAX-VECTRON

www.vectron.com
