CR8U-010 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> CR8U-010

CR8U-010: DescriptionRectifier Diode, 1 Phase, 1 Element, 8A, 100V V(RRM), Silicon, TO-220,; CategoryDiscrete semiconductor diode; File Size55KB，1 Pages; ManufacturerCentral Semiconductor

Download Datasheet Parametric Compare View All

CR8U-010 Overview

Rectifier Diode, 1 Phase, 1 Element, 8A, 100V V(RRM), Silicon, TO-220,

CR8U-010 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Central Semiconductor
Reach Compliance Code	unknown
ECCN code	EAR99
application	ULTRA FAST RECOVERY
Shell connection	CATHODE
Configuration	SINGLE
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
Maximum forward voltage (VF)	1 V
JEDEC-95 code	TO-220
JESD-30 code	R-PSFM-T2
JESD-609 code	e0
Maximum non-repetitive peak forward current	125 A
Number of components	1
Phase	1
Number of terminals	2
Maximum operating temperature	150 °C
Minimum operating temperature	-65 °C
Maximum output current	8 A
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	FLANGE MOUNT
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	100 V
Maximum reverse recovery time	0.035 µs
surface mount	NO
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal location	SINGLE
Maximum time at peak reflow temperature	NOT SPECIFIED

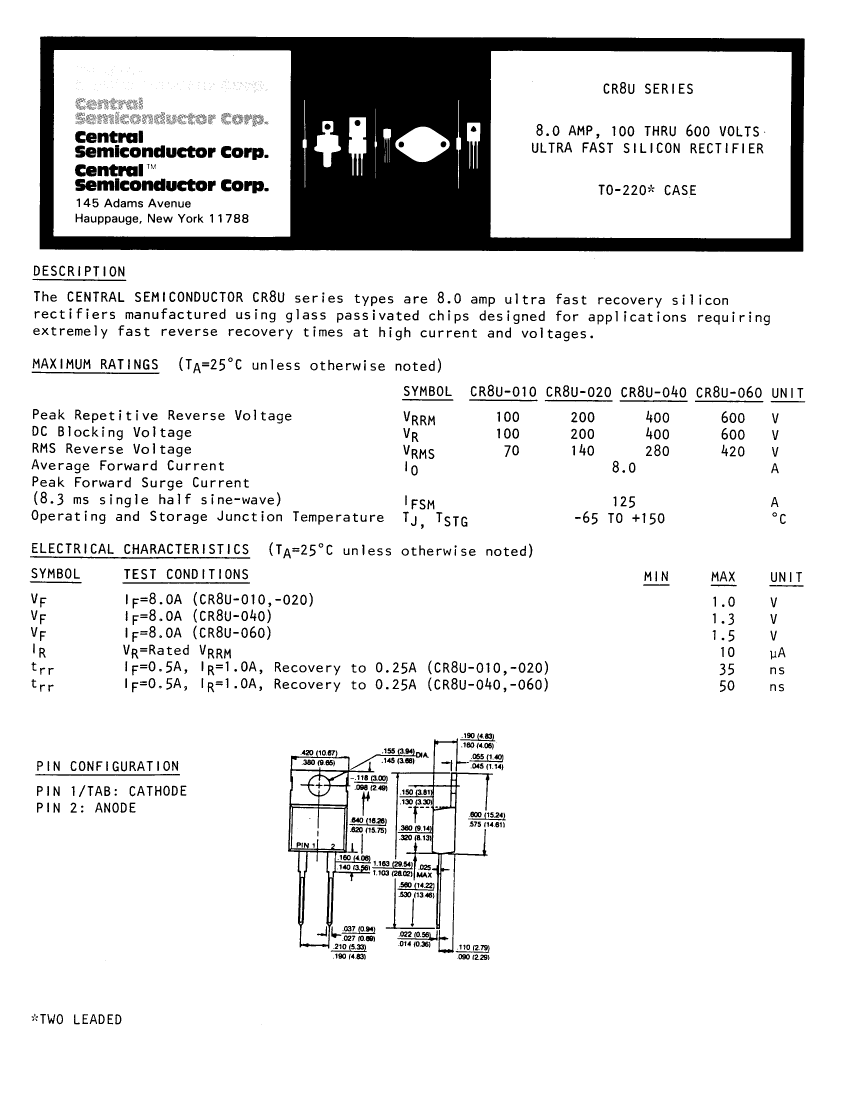

Preview

Download Datasheet

View All

145 Adams Avenue, Hauppauge, NY 11788 USA

Tel: (631) 435-1110 • Fax: (631) 435-1824

CR8U-010 Related Products

	CR8U-010	CR8U-060	CR8U-020	CR8U-040
Description	Rectifier Diode, 1 Phase, 1 Element, 8A, 100V V(RRM), Silicon, TO-220,	Rectifier Diode, 1 Phase, 1 Element, 8A, 600V V(RRM), Silicon, TO-220,	Rectifier Diode, 1 Phase, 1 Element, 8A, 200V V(RRM), Silicon, TO-220,	Rectifier Diode, 1 Phase, 1 Element, 8A, 400V V(RRM), Silicon, TO-220,
Is it lead-free?	Contains lead	Contains lead	Contains lead	Contains lead
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible
Maker	Central Semiconductor	Central Semiconductor	Central Semiconductor	Central Semiconductor
Reach Compliance Code	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99
application	ULTRA FAST RECOVERY	ULTRA FAST RECOVERY	ULTRA FAST RECOVERY	ULTRA FAST RECOVERY
Shell connection	CATHODE	CATHODE	CATHODE	CATHODE
Configuration	SINGLE	SINGLE	SINGLE	SINGLE
Diode component materials	SILICON	SILICON	SILICON	SILICON
Diode type	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE
Maximum forward voltage (VF)	1 V	1.5 V	1 V	1.3 V
JEDEC-95 code	TO-220	TO-220	TO-220	TO-220
JESD-30 code	R-PSFM-T2	R-PSFM-T2	R-PSFM-T2	R-PSFM-T2
JESD-609 code	e0	e0	e0	e0
Maximum non-repetitive peak forward current	125 A	125 A	125 A	125 A
Number of components	1	1	1	1
Phase	1	1	1	1
Number of terminals	2	2	2	2
Maximum operating temperature	150 °C	150 °C	150 °C	150 °C
Minimum operating temperature	-65 °C	-65 °C	-65 °C	-65 °C
Maximum output current	8 A	8 A	8 A	8 A
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum repetitive peak reverse voltage	100 V	600 V	200 V	400 V
Maximum reverse recovery time	0.035 µs	0.05 µs	0.035 µs	0.05 µs
surface mount	NO	NO	NO	NO
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal location	SINGLE	SINGLE	SINGLE	SINGLE
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
