ZMM5221B-13 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> ZMM5221B-13

ZMM5221B-13: DescriptionZener Diode, 2.4V V(Z), 5%, 0.5W, Silicon, Unidirectional, DO-213AA, ROHS COMPLIANT, HERMETIC SEALED, GLASS PACKAGE-2; CategoryDiscrete semiconductor diode; File Size77KB，5 Pages; ManufacturerDiodes Incorporated; Environmental Compliance

Download Datasheet Parametric View All

ZMM5221B-13 Overview

Zener Diode, 2.4V V(Z), 5%, 0.5W, Silicon, Unidirectional, DO-213AA, ROHS COMPLIANT, HERMETIC SEALED, GLASS PACKAGE-2

ZMM5221B-13 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	conform to
Maker	Diodes Incorporated
Parts packaging code	DO-213AA
package instruction	ROHS COMPLIANT, HERMETIC SEALED, GLASS PACKAGE-2
Contacts	2
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	HIGH RELIABILITY
Shell connection	ISOLATED
Configuration	SINGLE
Diode component materials	SILICON
Diode type	ZENER DIODE
JEDEC-95 code	DO-213AA
JESD-30 code	O-LELF-R2
JESD-609 code	e2
Humidity sensitivity level	1
Number of components	1
Number of terminals	2
Maximum operating temperature	175 °C
Minimum operating temperature	-65 °C
Package body material	GLASS
Package shape	ROUND
Package form	LONG FORM
Peak Reflow Temperature (Celsius)	260
polarity	UNIDIRECTIONAL
Maximum power dissipation	0.5 W
Certification status	Not Qualified
Nominal reference voltage	2.4 V
surface mount	YES
technology	ZENER
Terminal surface	Tin/Silver (Sn/Ag)
Terminal form	WRAP AROUND
Terminal location	END
Maximum time at peak reflow temperature	40
Maximum voltage tolerance	5%
Working test current	20 mA

Preview

Download Datasheet

View All

ZMM5221B - ZMM5267B

500mW SURFACE MOUNT ZENER DIODE

NOT RECOMMENDED FOR NEW DESIGN

SUGGESTED REPLACEMENT MMSZ52xx

Features

500mW Power Dissipation

Outline Similar to JEDEC DO-213AA

Hemetic Glass Package

Lead Free Finish, RoHS Compliant (Note 3)

Mechanical Data

Case: MiniMELF

Case Material: Molded Plastic. UL Flammability

Classification Rating 94V-0

Moisture Sensitivity: Level 1 per J-STD-020C

Terminals: Finish - Sn97.5Ag2.5. Solderable per

MIL-STD-202, Method 208

Polarity: Cathode Band

Ordering Information: See Last Page

Marking: Cathode Band Only

Weight: 0.034 grams (approximate)

Dim

MiniMELF

Min

3.30

1.30

0.28

Max

3.70

1.60

0.50

All Dimensions in mm

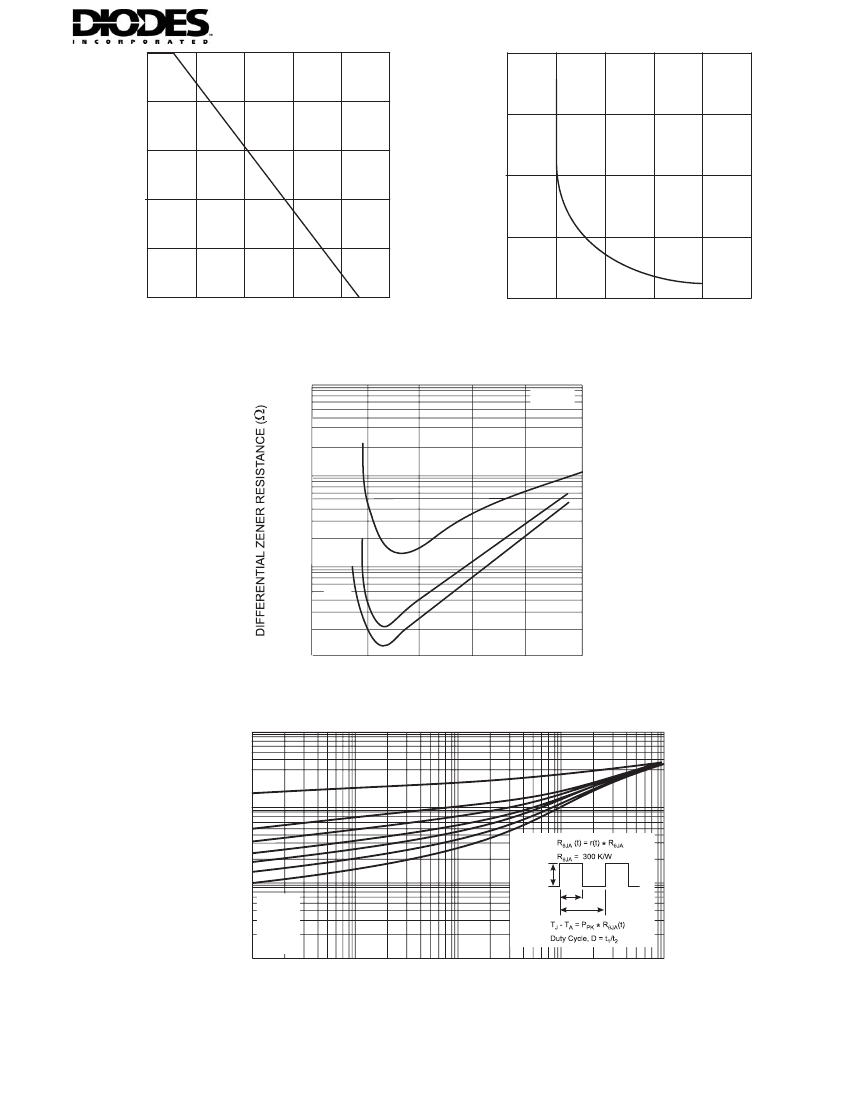

Maximum Ratings and Electrical Characteristics

Characteristic

Power Dissipation

Thermal Resistance, Junction to Ambient Air

Forward Voltage

(Note 1)

qJA

@ T

= 25°C unless otherwise specified

Value

500

300

1.5

-65 to +175

Unit

°C /W

Symbol

@ I

= 200mA

Operating and Storage Temperature Range

Notes:

STG

1. Valid provided that electrodes are kept at ambient temperature.

2. Tested with pulses, T

100ms.

3. EC Directive 2002/95/EC (RoHS) revision 13.2.2003. Glass and High Temperature Solder Exemptions Applied where applicable,

see

EU Directive Annex Notes 5 and 7.

DS30024 Rev. 5 - 3

1 of 5

www.diodes.com

ZMM5221B-ZMM5267B

Diodes Incorporated
