104138-1400 Overview

IllumiMate™ 1.00mm Pitch Wire-to-Board Crimp Housing, Single Row, Side Positive

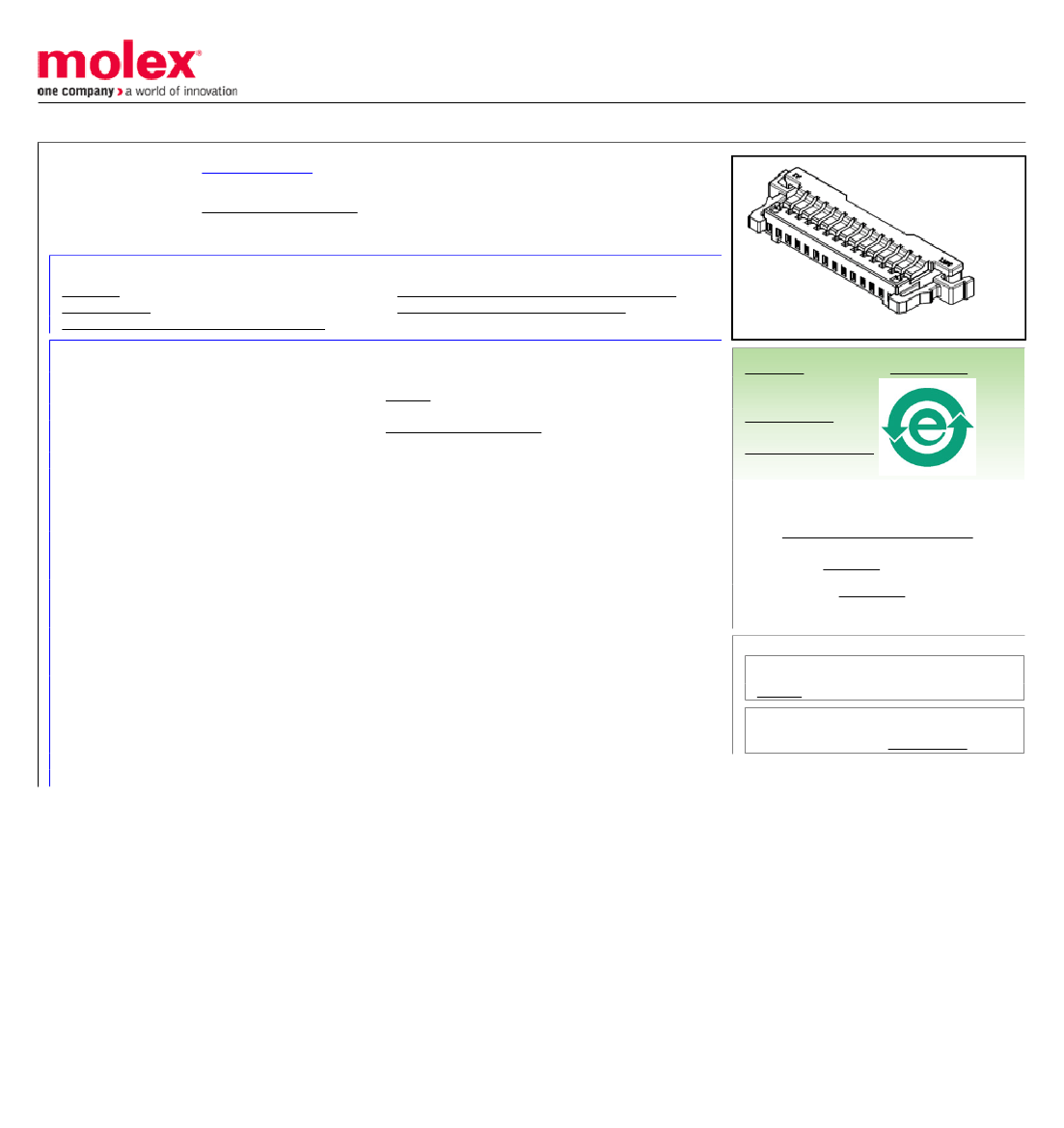

This document was generated on 04/02/2014
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
Status:
Overview:
Description:
104138-1400
Active
Wire-to-Board Connectors
IllumiMate™ 1.00mm Pitch Wire-to-Board Crimp Housing, Single Row, Side Positive
Locks, 14 Circuits
Documents:
3D Model
Drawing (PDF)
Product Specification PS-104139-001 (PDF)
Packaging Specification PK-104138-001 (PDF)
RoHS Certificate of Compliance (PDF)
image - Reference only
EU RoHS
ELV and RoHS
Compliant
REACH SVHC
Contains SVHC: No
Low-Halogen Status
Low-Halogen
China RoHS
Series
General
Product Family
Series
Application
Overview
Product Name
UPC
Crimp Housings
104138
Wire-to-Board
Wire-to-Board Connectors
IllumiMate™
884982700635
Physical
Circuits (maximum)
Color - Resin
Gender
Glow-Wire Compliant
Net Weight
Number of Rows
Packaging Type
Panel Mount
Pitch - Mating Interface
Pitch - Termination Interface
Temperature Range - Operating
14
Natural
Receptacle
No
0.165/g
1
Bag
N/A
1.00mm
1.00mm
-25°C to +130°C
Need more information on product
environmental compliance?
Email productcompliance@molex.com
For a multiple part number RoHS Certificate of
Compliance, click here
Please visit the Contact Us section for any
non-product compliance questions.
Material Info
Reference - Drawing Numbers
Packaging Specification
Product Specification
Sales Drawing
PK-104138-001
PS-104139-001
SD-104138-001, SD-104138-002
Search Parts in this Series
104138Series
Mates With
IllumiMate™ Housing 104139-1410
This document was generated on 04/02/2014
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
