20 STERN AVE.
SPRINGFIELD, NEW JERSEY 07081
U.S.A.
PELEPHONE: (973) 376-2922
(212) 227-6005
FAX: (973) 376-8960

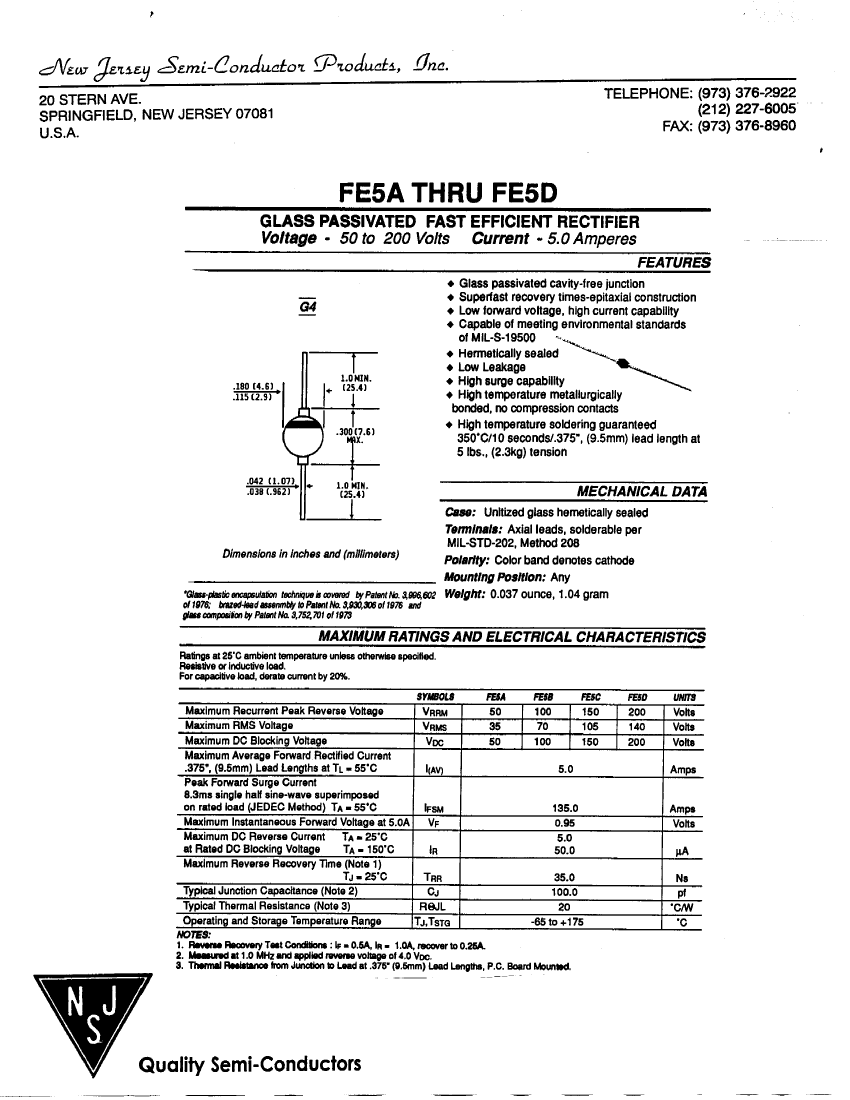

FE5A THRU FE5D
GLASS PASSIVATED FAST EFFICIENT RECTIFIER
Voltage
• 50 to 200 Volts
Current
• 5.0 Amperes
FEATURES
• Glass passivated cavity-free junction
« Superfast recovery times-epitaxial construction
• Low forward voltage, high current capability
• Capable of meeting environmental standards
ofMIL-S-19500
• Hermetically seated
4> Low Leakage
• High surge capability
• High temperature metallurgical^
bonded, no compression contacts
• High temperature soldering guaranteed
350*0/10 seconds/.375", (9.5mm) lead length at
5 Ibs., (2.3kg) tension
MECHANICAL DATA
Case:
Unitized glass hemetically sealed
Terminals:
Axial leads, solderable per
MIL-STD-202, Method 208
Polarity:
Color band denotes cathode
Mounting Position:
Any
Weight:
0.037 ounce, 1.04 gram
G4
1.0 HIM.
I
«.
(25.4)
|
.300(7.6)
Dimensions in inches and (millimeters)
•Gla$f-plastic encapsulation technique
B covered
ty Patent No. 3,906,601
011976: braztf-leadatisinmty to Patent No. 3,930,306 011976 ami
Slut composiion by Patent No. 3,752.701 ol 1973
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
Ratings at 25'C ambient temperature unless otherwise specified.
Resistive or inductive load.
For capacitive load, derate current by 20%.
SYMBOLS
Maximum Recurrent Peak Reverse Voltage
Maximum RMS Voltage
VRRM
VRMS
FESA
FESB
FEfC
PESO
UNITS
Volts
Volts
Volte
Amps
Maximum DC Blocking Voltage
VDC
Maximum Average Forward Rectified Current
.375", (9.5mm) Lead Lengths at TL - 55'C
5.0
I(AV)
Peak Forward Surge Current
8.3ms single half sine-wave superimposed
on rated load (JEDEC Method) TA - 55'C
135.0
IFSM
Maximum Instantaneous Forward Voltage at 5.0A
0.95
VF
Maximum DC Reverse Currant
TA - 25'C
5.0
at Rated DC Blocking Voltage
TA - 1 50'C
50.0
IR
Maximum Reverse Recovery Time (Note 1)
Tj-25'C
TRR
35.0
Typical Junction Capacitance (Note 2)
Cj
100.0
Typical Thermal Resistance (Note 3)
20
R8JL
Operating and Storage Temperature Range
-65 to +1 75
TjJSTQ
NOTES:
1. Reveiie Recovery Test CondWons: IF-O.SA.IR- 1.0A, recover to 0.26A.
2. Measured at 1.0 MHz and applied reverse voltage of 4.0 VDC.
3. Thermal Resistance from Junction to Lead at .375* (9.5mm) Lead Lengths, P.C. Board MounMd.
SO
35
50
100
70
100
150
105
150
200
140
200
Amps
Volts
HA
Ns
Pf
•c/w
•c
Quality Semi-Conductors
