BZT52C10S-T1-LF

Description
Zener Diode, 10V V(Z), 5%, 0.2W, Silicon, Unidirectional, ROHS COMPLIANT, PLASTIC PACKAGE-2
CategoryDiscrete semiconductor    diode
File Size89KB,5 Pages
ManufacturerWon-Top Electronics Co., Ltd.
Websitehttps://www.wontop.com/
Environmental Compliance
Download Datasheet Parametric View All

BZT52C10S-T1-LF Overview

Zener Diode, 10V V(Z), 5%, 0.2W, Silicon, Unidirectional, ROHS COMPLIANT, PLASTIC PACKAGE-2

BZT52C10S-T1-LF Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
MakerWon-Top Electronics Co., Ltd.
package instructionR-PDSO-G2
Contacts2
Reach Compliance Codecompliant
ECCN codeEAR99
ConfigurationSINGLE
Diode component materialsSILICON
Diode typeZENER DIODE
JESD-30 codeR-PDSO-G2
Humidity sensitivity level2
Number of components1
Number of terminals2
Maximum operating temperature150 °C
Minimum operating temperature-65 °C
Package body materialPLASTIC/EPOXY
Package shapeRECTANGULAR
Package formSMALL OUTLINE
Peak Reflow Temperature (Celsius)260
polarityUNIDIRECTIONAL
Maximum power dissipation0.2 W
Nominal reference voltage10 V
surface mountYES
technologyZENER
Terminal formGULL WING
Terminal locationDUAL
Maximum time at peak reflow temperatureNOT SPECIFIED
Maximum voltage tolerance5%
WTE
POWER SEMICONDUCTORS
BZT52C2V4S – BZT52C51S
Pb
200mW SURFACE MOUNT ZENER DIODE
Features
Planar Die Construction
200mW Power Dissipation
2.4 – 51V Nominal Zener Voltage
5% Standard Vz Tolerance
Designed for Surface Mount Application
C
Plastic Material – UL Recognition Flammability
Classification 94V-O
E
A
SOD-323
Dim
A
Min
2.30
1.60
1.15
0.25
0.09
0.20
0.80
Max
2.75
1.80
1.35
0.40
0.18
0.40
1.00
0.12
D
B
B
C
D
E
G
H
J
Mechanical Data
Case: SOD-323, Molded Plastic
Terminals: Plated Leads Solderable per
MIL-STD-202, Method 208
Polarity: Cathode Band
Weight: 0.004 grams (approx.)
Marking: Device Code, See Page 2
Lead Free: For RoHS / Lead Free Version,
Add “-LF” Suffix to Part Number, See Page 5
G
H
J
All Dimensions in mm

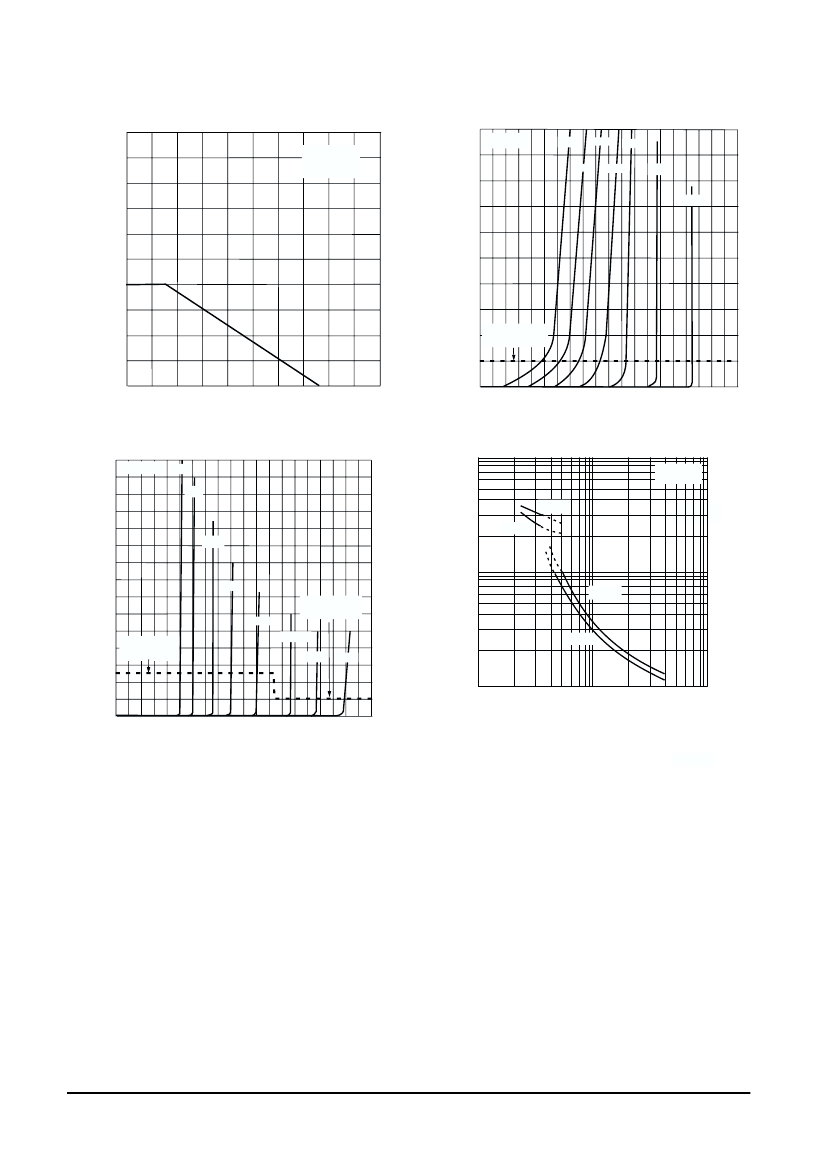

Maximum Ratings
@T
A
=25°C unless otherwise specified
Characteristic
Peak Pulse Power Dissipation at T
A
= 25°C (Note 1)
Forward Voltage @ I
F
= 10mA
Thermal Resistance Junction to Ambient (Note 1)
Operating and Storage Temperature Range
Symbol
P
d
V
F
R
θJA
T
j
, T
STG
Value
200
0.9
625
-65 to +150
Unit
mW
V
°C/W
°C
Note: 1. Valid provided that device terminals are kept at ambient temperature.
BZT52C2V4S – BZT52C51S
1 of 5
© 2006 Won-Top Electronics
