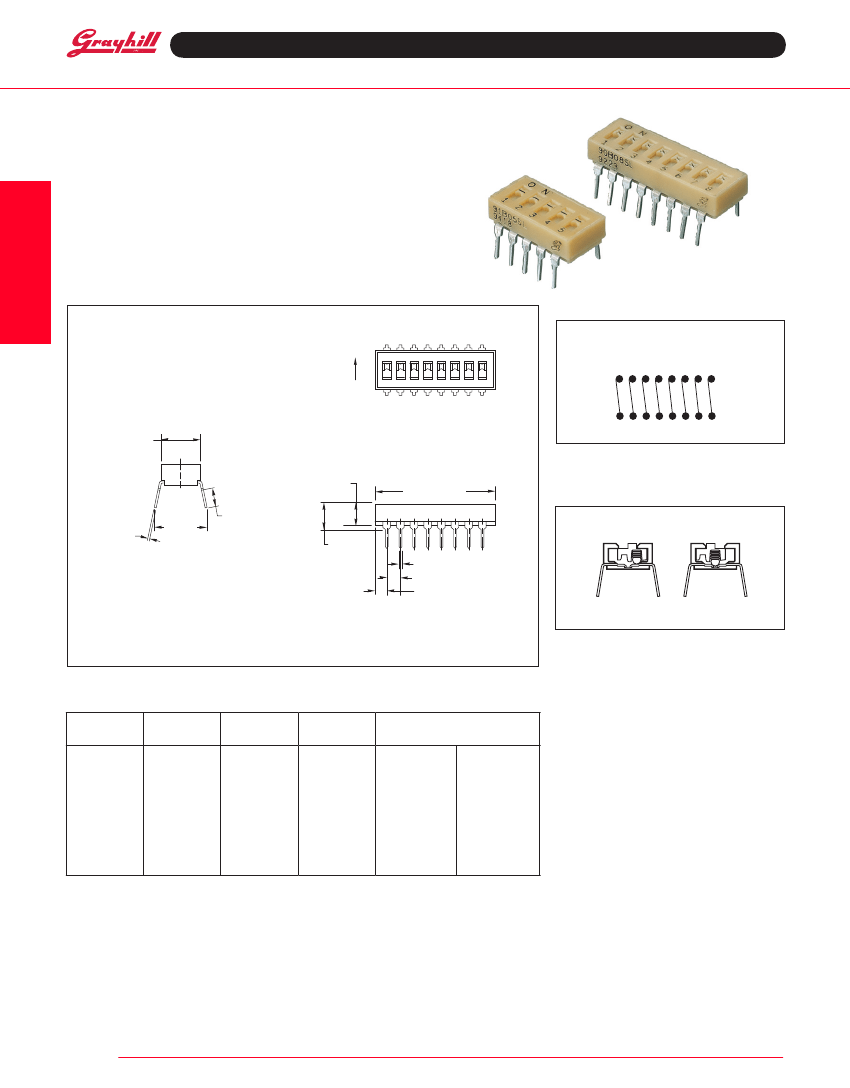

Thru-Hole DIP Switches
SerieS 90B and 90GB
Machine insertable MidiP
featureS
• Tested for TO-116 Equipment
• Up to 10 Positions
• High Pressure, Reliable Contacts
• Molded (Sealed) Base and
Optional Top Seal
• RoHS Compliant
diMenSiOnS
in inches (and millimeters)
DIP Switches
CiRCUiTRy
O N
1
2
3
4
5
6
7
8
Switch is packaged as shown
here with all positions on.
As viewed from the top of the switch in the
positions shown in the drawing.
.290
(7,37)
MAX.
.165 ± .005
(4,19 ± 0,13)
.135 ± .010
(3,43 ± 0,25)
TYP.
OPEN
Series
CONTACT SySTEM
90HBW
CLOSED
C
L
.375
± .010
(9,53
± 0,25)
LENGTH ± .010 (0,25)
SEE CHART
.012 ± .001
(0,30 ± 0,03)
TYP.
DESIGNED FOR
.100 X .300 (2,54 X 7,62)
ON CENTER HOLES
.195
(4,95)
MAX.
.020 ± .002 (0,51 ± 0,05) TYP.
.100 ± .005 (2,54 ± 0,13) TYP.
.085 ± .005 (2,16 ± 0,13) TYP.
90B
90GB
76
OrderinG infOrMatiOn: tube Packaging
(each tube is 19.5 inches long)
No. of
Positions
2
3
4
5
6
7
8
9
10
length
inches
.270"
.370"
.470"
.570"
.670"
.770"
.870"
.970"
1.070"
length
Metric
6,9 mm
9,4 mm
11,9 mm
14,5 mm
17,0 mm
19,6 mm
22,1 mm
24,6 mm
27,2 mm
number
Per tube
60
47
37
31
26
23
20
18
16
Part number
90B02St
90B03ST
90B04St
90B05St
90B06ST
90B07St
90B08St
90B09St
90B10St
90GB02St
90GB03ST
90GB04St
90GB05St
90GB06ST
90GB07St
90GB08St
90GB09St
90GB10St
additiOnal infOrMatiOn
Please visit our website for accessories.
78
Available from your local Grayhill Distributor.
For prices and discounts, contact a local
Sales Office, an authorized local Distributor or
Grayhill.
*The "S"in the part number denotes top tape seal versions. To order without top tape seal, leave
the "S" off the part number when ordering.
**Style "GB" contains 30µ gold plated terminals.
* To order, add L as a final suffix to the part number. For example, 76RSB08 becomes 76RSB08L; and 90B08S becomes 90B08SL.
Grayhill, Inc. • 561 Hillgrove Avenue • LaGrange, Illinois 60525-5997 • USA • Phone: 708-354-1040 • Fax: 708-354-2820 • www.grayhill.com
Thru-Hole DIP Switches
SpeCIFICATIOnS: Standard Styles
Ratings
Mechanical Life: Operations per switch position
Make-and-break Current Rating: Operations
per switch position at these resistive loads
1 mA, 5 Vdc; 50 mA, 30 Vdc; or 150 mA, 30 Vdc:
10 mA, 30 Vdc; or 10 mA, 50 mVdc:
10 mA, 50 mVdc; or 25 mA, 24 Vdc; or 100 mA, 6 Vdc:
Contact Resistance: Initially:
After life, at 10 mA, 50 mVdc, open circuit:
Insulation Resistance:
Minimum, at 100 Vdc between adjacent closed
contacts and also across open switch contacts
Initially (Mohms):
After life (Mohms):
Dielectric Strength: Minimum voltage (AC,
RMS) measured between adjacent closed
contacts and also across open switch contacts.
lnitially:
After life:
Current Carry Rating: Maximum rise of 20°C
Switch Capacitance: At 1 megahertz
Operating Temperature Range:
Storage Temperature Range:
76
2,000
78
2,000
90B
2,000
2,000
—
—
≤
30 mΩ
≤
100 mΩ
2,000
—
—
≤
30 mΩ
≤
100 mΩ
—
2,000
2,000
DIP Switches
≤
20 mΩ
≤
100 mΩ
5,000
1,000
5,000
1,000
5,000
1,000
750 V
500 V
5A
2 pF
-40°C to + 85°C
-55°C to + 85°C
750 V
500 V
4A
2 pF
-40°C to + 85°C
-55°C to + 85°C
500 V
500 V
3A
2 pF
-40°C to + 85°C
-55°C to + 85°C
Mechanical Ratings
Soldering Information
Series 90 MIDIp and Series 76 recessed rocker
(76RSB style) sealed switches have been
tested to eIA Standard RS-448-2. Similar
performance can be expected from other
sealed Series 76 and 78 DIp switches.
Solderability:
per MIL-STD-202, Method 208
Resistance to Soldering Heat:
76RSB:
passes eIA Standard using two, four, and six
second soldering time. 90: per MIL-S-83504,
six second test.
Fluxing:
per eIA RS-448-2 with flux touching
switch body.
Cleaning:
76, 78 and 90 series tape sealed
products: passes immersion test using water/
detergent. Acceptable solutions include 1-1-1
trichlorethane, freon, (TF, Te, or TMS),
isopropyl alcohol, detergent (140°F maximum).
Terpene acceptable for Series 90 only.
Solutions which are not recommended include
acetone, methylene chloride, freon TMC.
*For the most current soldering & cleaning processing
guidelines, reference Grayhill Dip Switch Processing
Information, Bulletin 1234
Materials and Finishes
Vibration Resistance:
per Method 204, Test
Condition B, 1 mS opening (10 mS allowed)
Mechanical Shock:
per Method 213, Test
Condition A. 1 mS opening (10 mS allowed)
Thermal Shock Resistance:
per specification;
no failures; passes contact resistance.
Terminal Strength:
per specification
Thermal Aging:
1,000 hours at 85°C; no failures.
Environmental Ratings
Meets all requirements of MIL- S-83504.**
Where Grayhill performance is superior, the MIL
spec is listed in parentheses.
Moisture Resistance:
per MIL-STD-202,
Method 106.
Shorting Member (Ball):
Brass, gold-plated
over nickel barrier.
Base Contacts:
Copper alloy, gold-plated
over nickel barrier.
Terminals:
Copper alloy, matte tin plated over
nickel barrier.
Non-Conductive Parts:
Thermoplastic
(UL94V-O)
Potting Material:
epoxy, 76,78 only.
Protective Cover:
76,78, only-polycarbonate.
Tape Seal:
76, 78: polyester film
90:
polyimide film
Tape Seal Integrity:
passes gross leak test
using 125°C flourinert for 20 seconds minimum.
Reference MIL-STD-202, Method 112.
Reflow Soldering
profile:
(260°C
peak Temperature)
Recommended Soldering Conditions:
WAVe SOLDeRInG: 260°C maximum solder temperature for 5 seconds max.
** note: 100% matte tin terminal plating does not meet MIL-S-83504 for lead content.
