SMB4004 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> SMB4004

SMB4004: DescriptionRectifier Diode, 1 Element, 1A, 400V V(RRM), Silicon, DO-214AA, SMBJ, 2 PIN; CategoryDiscrete semiconductor diode; File Size85KB，3 Pages; ManufacturerMicrosemi; Websitehttps://www.microsemi.com

Download Datasheet Parametric Compare View All

SMB4004 Overview

Rectifier Diode, 1 Element, 1A, 400V V(RRM), Silicon, DO-214AA, SMBJ, 2 PIN

SMB4004 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Maker	Microsemi
package instruction	SMBJ, 2 PIN
Reach Compliance Code	compliant
ECCN code	EAR99
Configuration	SINGLE
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
Maximum forward voltage (VF)	1.1 V
JEDEC-95 code	DO-214AA
JESD-30 code	R-PDSO-C2
JESD-609 code	e0
Maximum non-repetitive peak forward current	50 A
Number of components	1
Number of terminals	2
Maximum operating temperature	175 °C
Minimum operating temperature	-65 °C
Maximum output current	1 A
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	400 V
Maximum reverse recovery time	1.8 µs
surface mount	YES
Terminal surface	TIN LEAD
Terminal form	C BEND
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED

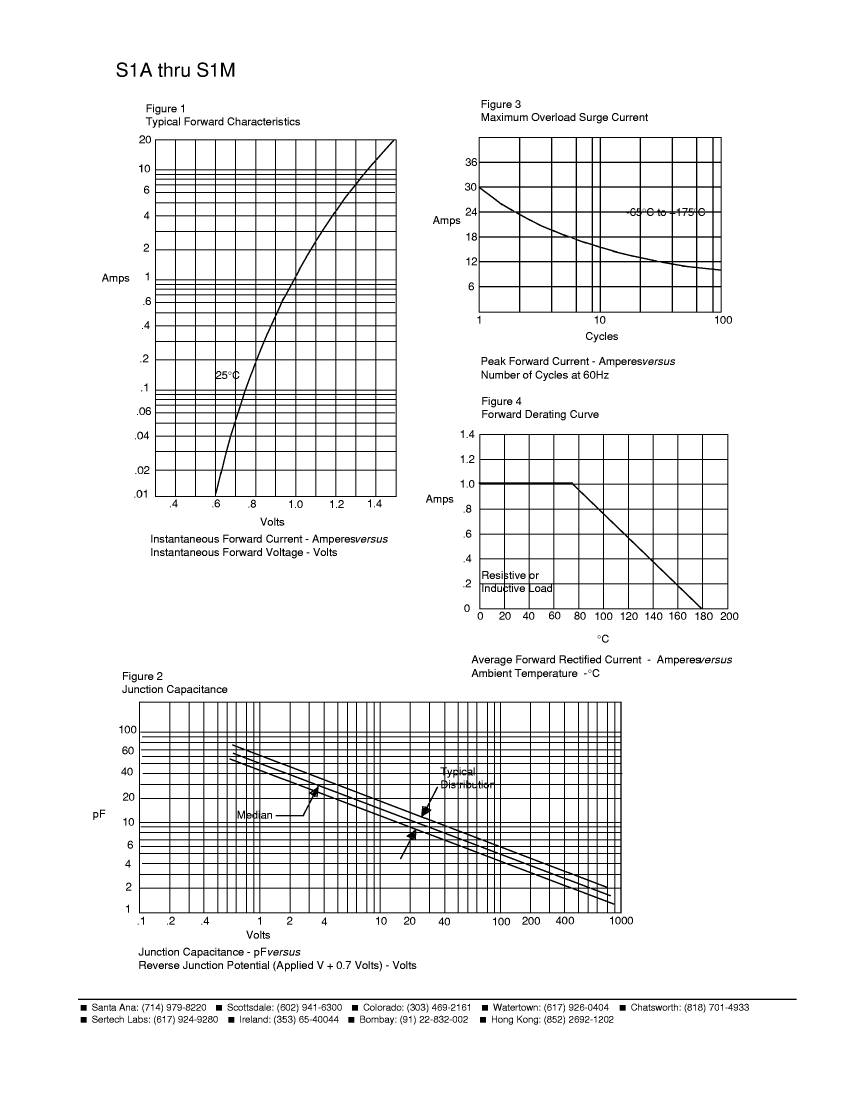

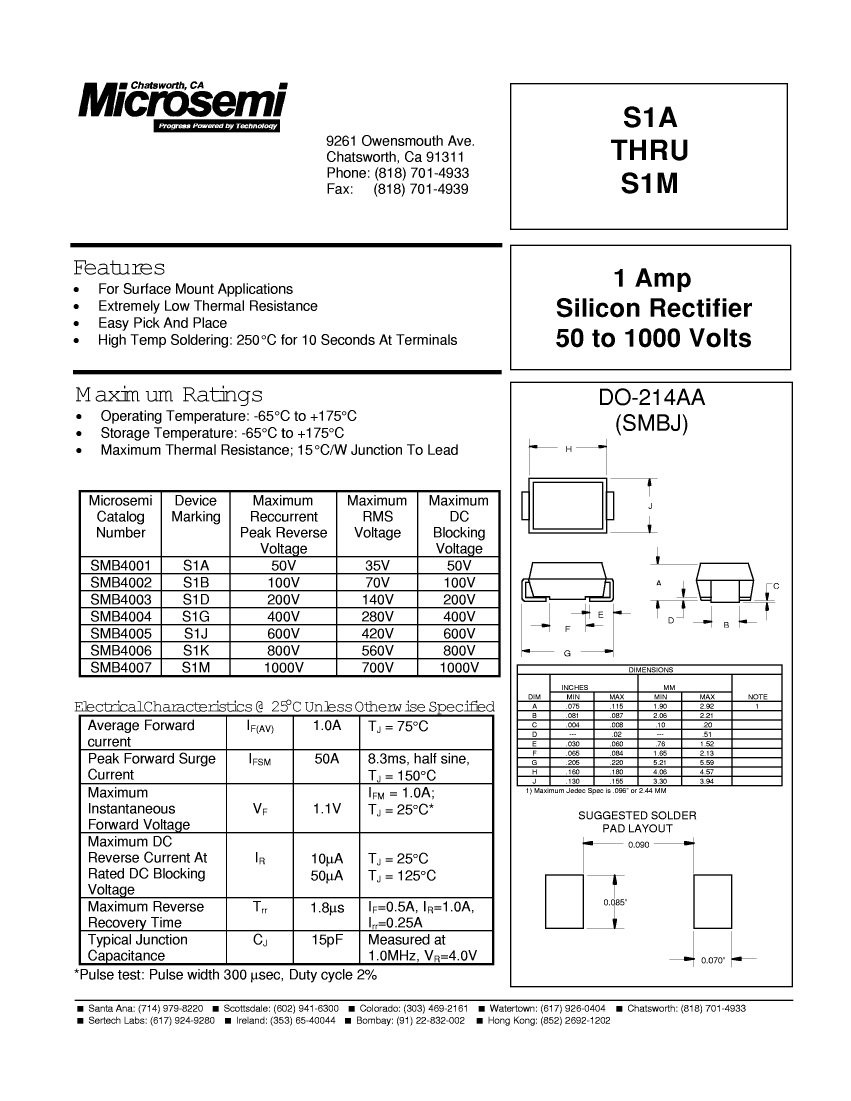

Preview

Download Datasheet

View All

SMB4004 Related Products

	SMB4004	SMB4001	SMB4002	SMB4003	SMB4005	SMB4007	SMB4006
Description	Rectifier Diode, 1 Element, 1A, 400V V(RRM), Silicon, DO-214AA, SMBJ, 2 PIN	Rectifier Diode, 1 Element, 1A, 50V V(RRM), Silicon, DO-214AA	Rectifier Diode, 1 Element, 1A, 100V V(RRM), Silicon, DO-214AA	Rectifier Diode, 1 Element, 1A, 200V V(RRM), Silicon, DO-214AA, SMBJ, 2 PIN	Rectifier Diode, 1 Element, 1A, 600V V(RRM), Silicon, DO-214AA, SMBJ, 2 PIN	Rectifier Diode, 1 Element, 1A, 1000V V(RRM), Silicon, DO-214AA, SMBJ, 2 PIN	Rectifier Diode, 1 Element, 1A, 800V V(RRM), Silicon, DO-214AA, SMBJ, 2 PIN
package instruction	SMBJ, 2 PIN	R-PDSO-C2	R-PDSO-C2	R-PDSO-C2	R-PDSO-C2	R-PDSO-C2	R-PDSO-C2
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Configuration	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Diode component materials	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON
Diode type	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE
Maximum forward voltage (VF)	1.1 V	1.1 V	1.1 V	1.1 V	1.1 V	1.1 V	1.1 V
JEDEC-95 code	DO-214AA	DO-214AA	DO-214AA	DO-214AA	DO-214AA	DO-214AA	DO-214AA
JESD-30 code	R-PDSO-C2	R-PDSO-C2	R-PDSO-C2	R-PDSO-C2	R-PDSO-C2	R-PDSO-C2	R-PDSO-C2
JESD-609 code	e0	e0	e0	e0	e0	e0	e0
Maximum non-repetitive peak forward current	50 A	50 A	50 A	50 A	50 A	50 A	50 A
Number of components	1	1	1	1	1	1	1
Number of terminals	2	2	2	2	2	2	2
Maximum operating temperature	175 °C	175 °C	175 °C	175 °C	175 °C	175 °C	175 °C
Maximum output current	1 A	1 A	1 A	1 A	1 A	1 A	1 A
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum repetitive peak reverse voltage	400 V	50 V	100 V	200 V	600 V	1000 V	800 V
Maximum reverse recovery time	1.8 µs	1.8 µs	1.8 µs	1.8 µs	1.8 µs	1.8 µs	1.8 µs
surface mount	YES	YES	YES	YES	YES	YES	YES
Terminal surface	TIN LEAD	TIN LEAD	TIN LEAD	TIN LEAD	TIN LEAD	TIN LEAD	TIN LEAD
Terminal form	C BEND	C BEND	C BEND	C BEND	C BEND	C BEND	C BEND
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
Is it lead-free?	Contains lead	Contains lead	Contains lead	Contains lead	-	Contains lead	-
Maker	Microsemi	Microsemi	-	-	-	Microsemi	Microsemi
Minimum operating temperature	-65 °C	-	-	-65 °C	-65 °C	-65 °C	-65 °C
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	-
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	-
Base Number Matches	-	1	1	1	1	-	-
