Non-Washable Tactile Switches
SErIES 95c
12mm Square
FEaturES
• Excellent Tactile Feedback
• Surface Mount Versions Compatible
with SMT Assembly Including
Infrared and Vapor Phase
• Ultraminiature and Lightweight
Structure Suitable for High Density
Mounting
applIcatIONS
Used in applications such as consumer
electronics, audio equipment, PCs, VCRs,
cable boxes, modems, communications
equipment, controls, security and alarm
equipment, and test and measurement
equipment.
thru-Hole
Gull Wing

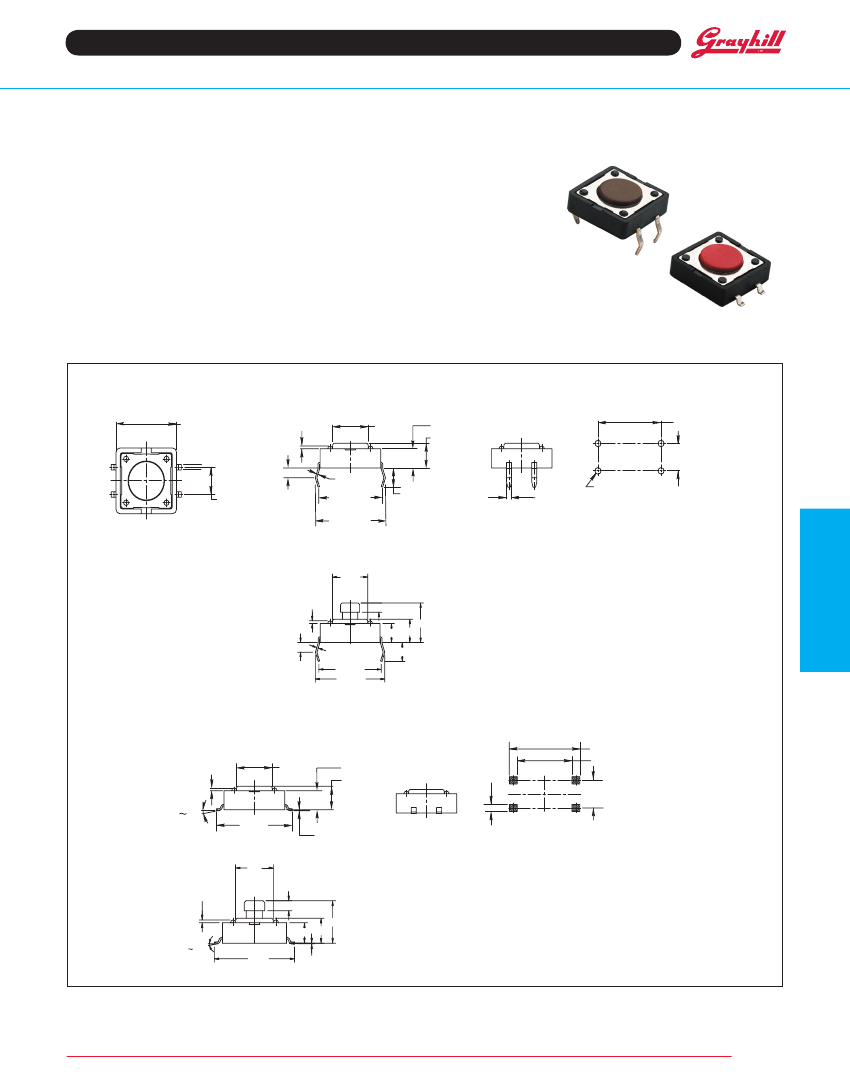

DIMENSIONS
in inches (and millimeters)
Thru-Hole
.472 (11,99)
Top View
C
L
.020
(0,50)
MAX.
Front View
C
L
Ø.278
(Ø7,10)
.138 (3,50)
"H" DIM.
See
Ordering
Information
Side View
C
L
.492
±0.004
(12,50
±0,10)
.197
±.004
(5,00
±0,10)
C
L
.197
(5,00)
.071
+0-0.02
(1,80
+0-0,5)
.012 (0,30)
.492
±.020
(12,50
±0,50)
.547
±.020
(13,90
±0,50)
.138
±.020
(3,50
±0,50)
.040 (1,00)
4x
Ø.047
±.002
(4x
Ø1,20
±0,05)
P.C.B. LAYOUT
Tact Switches
.278
DIA.
.020 MAX.
C
L
.067
.287
.138 .169
.012
.071 +.000
-.020
.492±.020
.547±.020
.138±.020
Gull Wing
.020
(0,50)
MAX.
C
L
Ø.278
(Ø7,10)
.138 (3,50)
"H" DIM.
See
Ordering
Information
.004
±.004
(0,10
±0,10)
C
L
.063
(1,60)
.610 (15,50)
.488 (12,40)
.197
(5,00)
P.C.B. LAYOUT
0˚ 10˚
.590
(15,00)
.278
DIA.
.020 MAX.
C
L
.067
.287
.138 .169
0˚ 10˚
.590
.004±.004
Grayhill, Inc. • 561 Hillgrove Avenue • LaGrange, Illinois
60525-5997 • USA • Phone: 708-354-1040 • Fax: 708-354-2820 • www.grayhill.com
Non-Washable Tactile Switches
SpEcIFIcatIONS
Materials
Base:
UL94V-0 Nylon thermoplastic
cover: Stainless steel, tin-plated
actuator:
UL94V-0 Nylon thermoplastic
terminal: Brass with silver-plating
contact: Stainless steel with silver-plating
cap: Thermoplastic ABS
Insulation resistance:
100 MΩ min. at
500Vdc
Dielectric Strength: No dielectric breakdown
after 250V for one minute
contact arrangement: single pole, single
throw
cIrcuItry
T1
T2
T3
T4
Electrical
Environmental
rating:
50mA, 12 Vdc
life: 160g: 1,000,000 cycles/
260g: 500,000 cycles
actuator travel:
.014” ± .004”
contact resistance: 100 mΩ max.
OrDErING INFOrMatION
Operating temp. range: -25 to 70°C
Storage temp. range:
-30 to 80°C
Mechanical Shock:
MIL-STD-202F, Method,
213B, Test Condition A. Gravity: 50G’s (peak
value), 11 msec. Direction and times: 6 sides and
3 times in each direction. High reliability.
Vibration:
MIL-STD-202F, Method 201A.
Passed 6 hours (2 hours in each) of three
perpendicular planes at a cycle of 10-55-10Hz/1
minute.
Stop Strength:
Place the switch such that
vertical, a static load of 3kg shall be applied in
the direction of stem operation for a period of
15 seconds.
Soldering process
Series
Size:
12 = 12mm Square
Height (“H”):
A = .169 (4,29); B = .335 (8,51); C = Square .287 (7,29)
95c12a3GWrt
roHS compliant
packaging:
Blank = Tube or Bulk, R = Tape and Reel (see pkg note)
terminal Style:
Blank = Thru-hole, GW = Gull Wing
Operating Force (actuator color):
3 = 160g (Brown), 4 = 260g (Red)
available from your local Grayhill component Distributor.
For prices and discounts, contact a local Sales Office, an authorized local distributor, or Grayhill.
Hand Soldering:
Use a soldering iron of
30 watts, controlled at 350°C for 5 seconds
maximum while applying solder.
reflow Soldering
(surface mount versions only):
Peak temperature 260°C (500°F).
Wave Soldering:
260C° (500°F) maximum
for 5 seconds subject to PCB .063 in. (1,6mm)
thickness.
packaging
Thru-Hole: Bulk, 500 pcs/bag.
Surface Mount: 40 pcs/tube, 700 pcs/reel
(.169” height), 500 pcs/reel (.335” and .287”
height).
DEcOratIVE capS
(for use with “C” style square actuators)
Tact Switches
.472
.452 DIA.
.157
.059
.059
.224
PART
NUMBER
95CAP-100
95CAP-101
.079
SWITCH
SIZE
12mm
12mm
12mm
12mm
12mm
12mm
12mm
12mm
12mm
12mm
12mm
12mm
12mm
12mm
SHAPE
SQUARE
SQUARE
SQUARE
SQUARE
SQUARE
SQUARE
ROUND
ROUND
ROUND
ROUND
ROUND
ROUND
ROUND
COLOR
YELLOW
BLUE
RED
BLACK
GREEN
ORANGE
YELLOW
BLUE
RED
NATURAL
BLACK
GREEN
ORANGE
FIGURE
3
3
3
3
3
3
3
4
4
4
4
4
4
4
95CAP-102
95CAP-103
95CAP-104
95CAP-105
95CAP-106
95CAP-110
95CAP-111
95CAP-112
95CAP-113
95CAP-114
95CAP-115
95CAP-116
SQUARE NATURAL
.512 DIA.
12mm Square
figure 3
12mm Round
figure 4
