1mm Pitch Cable-to-Board Connectors supporting LVDS signal
FX15 Series
Space saving, Equal length transmission lines
Patent
pending
Termination side: 0.5 mm pitch, 1-row construction
Mating side: 1 mm pitch, staggered 2-row construction
Contacts consolidated into 1 row for equal length transmission lines
Fig.1
s

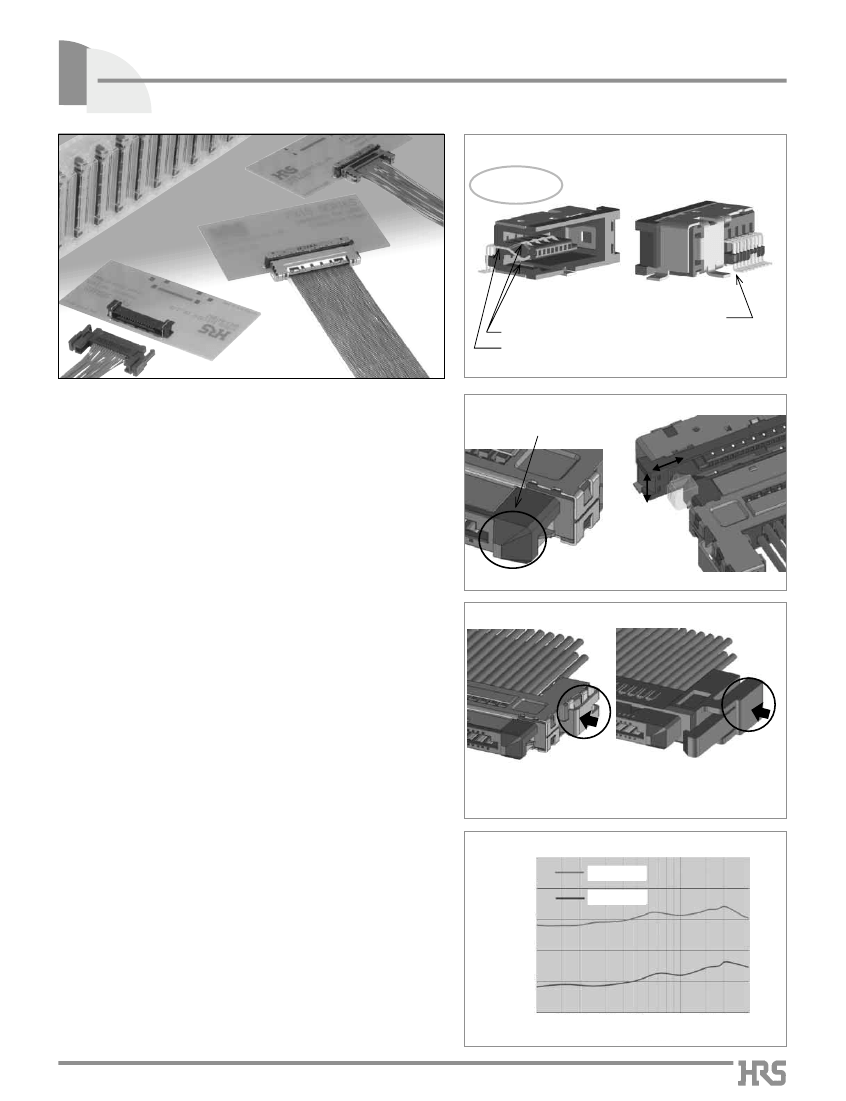

Features
1. Space saving
Reduction in space is achieved by designing the
contacts in 2-row staggered 1 mm pitch on the mating
side and on a single row 0.5 mm pitch on the termination
lines preventing deterioration of LVDS signal within the
connector (Fig.1).
1.5mm
Fig.2
3. Different types
Availability of types with or without metal shields allows
flexibility of applications and cost reduction.
Side latch -locks
4. Self alignment and self-guiding
Built-in guide posts allow secure self-alignment within
±1.5 mm (Fig.2).
5. Secure and complete mating / unmating
Side latch-locks assure and confirm complete and
secure mating of plugs to receptacles while permitting
ease of disconnection (Fig. 3).
6. Enhanced shielding effectiveness
Availability of version with enlarged metal shields
(preventing intrusion or emission of the electromagnetic
interference) further protects the integrity of LVDS signal
(FX15S series, Fig.4)
With metal shields
(FX15 and FX15S Series)
Fig.3
Without metal shields
(FX15M Series)
High Shielding Effectiveness
0
Emission Noise Level (dBm)
7. RoHS compliant
All components and materials comply with the
reqirements of EU Directive 2002/95/EC.
Without metal
-10
-20
With metal
s
Applications
FPD-TV, FPD panels and other applications requiring
secure and reliable connection and transmission signal
integrity.
Fig.4
-30
-40
-50
0.1 0.2
0.3
0.5
1
1.5
2
3
Frequency (GHz)
B273
The product information in this catalog is for reference only. Please request the Engineering Drawing for the most current and accurate design information.
All non-RoHS products have been discontinued, or will be discontinued soon. Please check the products status on the
Hirose website RoHS search at www.hirose-connectors.com, or contact your Hirose sales representative.
sProduct
Specifications
Ratings
Item
1. Contact resistance
2. Insulation resistance
3. Withstanding voltage
4. Insertion-Extraction force
5. Durability
(mating/un-mating)
6. Vibration
7. Shock
8. Humidity
Current rating
Voltage rating
0.5A
100V AC
Operating temperature range
Storage temperature range
-55ç to +80ç (Note 1)
-10ç to +60ç (Note 2)
Specification
60 m ohms max. (Note 3)
500 M ohms min.
No flashover or insulation breakdown.
0.2N min., 30N max.
Contact resistance: 80 m ohms max.(Note 3)
No electrical discontinuity of 1 µs or more.
No electrical discontinuity of 1 µs or more.
Contact resistance: 80 m ohms max.
No damage, cracks, or parts dislocation.(Note 3)
Contact resistance: 80 m ohms max. (Note 3)
Insulation resistance: 500 M ohms min.
Contact resistance: 80 m ohms max. (Note 3)
No corrosions
Conditions
1 mA
100V DC
300V AC/one minute
With corresponding connector
50 cycles
Frequency: 10 to 55 Hz, single amplitude of 0.76mm, 2 hours, 3 axis
Acceleration of 490m/s
2
, 11ms durations, sine half-wave waveform, 3 cycles, 3axis.
96 hours at 40ç, RH 90% to 95%
Temperature : -55ç
¡
+15ç to +35ç
¡
+85ç
¡
+15ç to +35ç
Time
: 30
¡
5
¡
30
¡
5 (Minutes) 5 cycles
5% water solution for 48 hours.
9. Temperature cycle
10. Salt spray
Note 1: Includes temperature rise caused by current flow.
Note 2: The term “storage” refers to products stored for long period of time prior to mounting and use. Operating temperature range
and humidity range covers non-conducting condition of installed connectors in storage, shipment or during transportation.
Note 3: Includes wire conductor resistance (12mm long).
Note 4: Information contained in this catalog represents general requirements for this Series. Contact us for the drawings and
specifications for a specific part number shown.
sMaterials
and Finishes
q
Receptacle
Component
Insulator
Contact
Metal shields (with shields)
Metal fittings (without shields)
Material
Polyamide
Phosphor bronze
FX15S : Nickel silver
FX15SC : Stainless steel
Phosphor bronze
Finish
Color: Black
Contact area: Gold plated
Termination area: Tin plated
FX15S : ---------------
FX15SC : Tin plated
Selective gold flash plated
Remarks
UL94V-0
---------------
---------------
---------------
q
Plug
Component
Insulator
Contact
Metal shields (with shields)
Metal latch-locks (with shields)
Metal shields, metal latch-looks
(micro-coaxial cable)
Material
Polyamide
Phosphor bronze
Nickel silver
Stainless steel
Stainless steel
Finish
Color: Black
Contact area: Gold plated
Termination area: Tin plated
---------------
---------------
Nickel plated
Remarks
UL94V-0
---------------
---------------
---------------
---------------
: FX15
Blank : With shields (or crimp contact)
15S : With shields – enhanced shielding
15SC : With shields – enhanced shielding
(PCB mounting pattern : VESA standard)
15M : Without shields
: Male contact
: Female contact
: 0.5 mm
SH
: Right angle
SV
: Straight
C
: Crimp
0.5SD : Micro-coaxial cable
GND : Separate ground plate
2830 : AWG 28 to 30
3032 : AWG 30 to 32
PCF : Reel/ plug contact
B
: Gold plated
P
S
sOrdering
information
q
Receptacle
1
Series Name
2
Configuration
FX15 S - 31 S - 0.5 SH
1
2
3
4
5
6
3
Number of contacts
4
Connector type
5
Contact pitch
6
Housing configuration
7
Termination
q
Plug
FX15 S - 31 P - C
1
2
3
4
7
q
Crimp contact
FX15 - 3032 PCF B
1
2
8
9
10
8
Applicable conductor
9
Packaging
10
Plating (contact area)
B274
The product information in this catalog is for reference only. Please request the Engineering Drawing for the most current and accurate design information.
All non-RoHS products have been discontinued, or will be discontinued soon. Please check the products status on the Hirose website RoHS search at www.hirose-connectors.com, or contact your Hirose sales representative.
FX15 Seriesq1mm Pitch Cable-to-Board Connectors supporting LVDS signal
sFX15

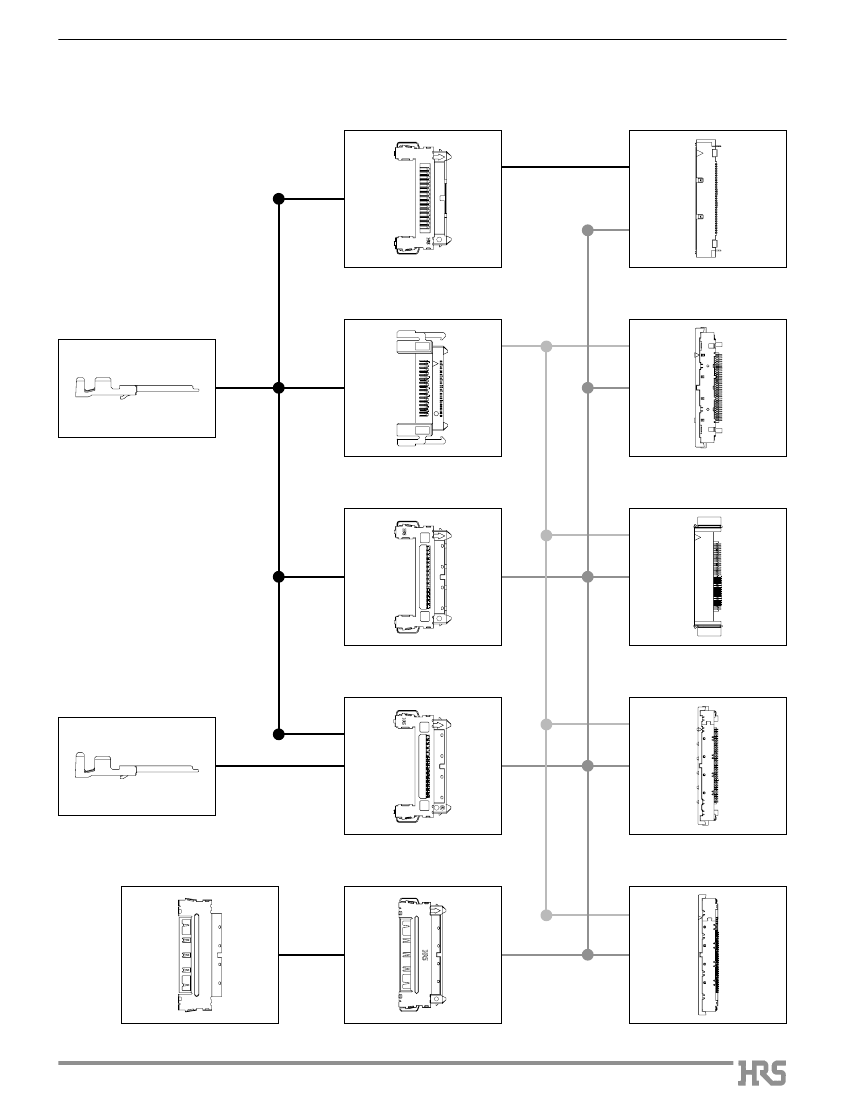

Series – Mating Diagram
Crimp contact
Plugs
With shields-standard
(FX15-31P-C)
Receptacles
Vertical, with shields
(FX15-31S-0.5SV)
Crimp contact
(FX15-3032-PCFB)
Without shields
(FX15M-P-C)
With shields – enhanced shielding
(FX15S-P-C)
Crimp contact
(FX15-2830-PCFB)
With shields – enhanced shielding
AWG#28 to 30
(FX15SW-31P-C)
B
Right angle, with shields
–enhanced shielding
(FX15S-S-0.5SH)
B
Right angle, without shields
(FX15M-S-0.5SH)
B
With shields – enhanced shielding
PCB mouting pattern : VESA standard
(FX15SC-S-0.5SH)
28
Ground plate
(FX15S-P-GND)
Micro-coaxial cable
(FX15S-P-0.5SD)
With shields – enhanced shielding
PCB mouting pattern : VESA standard
(FX15SC-S-0.5SV)
Ragarding the availability of the positions, contact your nearest Hirose representative.
A
B275
The product information in this catalog is for reference only. Please request the Engineering Drawing for the most current and accurate design information.
All non-RoHS products have been discontinued, or will be discontinued soon. Please check the products status on the
Hirose website RoHS search at www.hirose-connectors.com, or contact your Hirose sales representative.

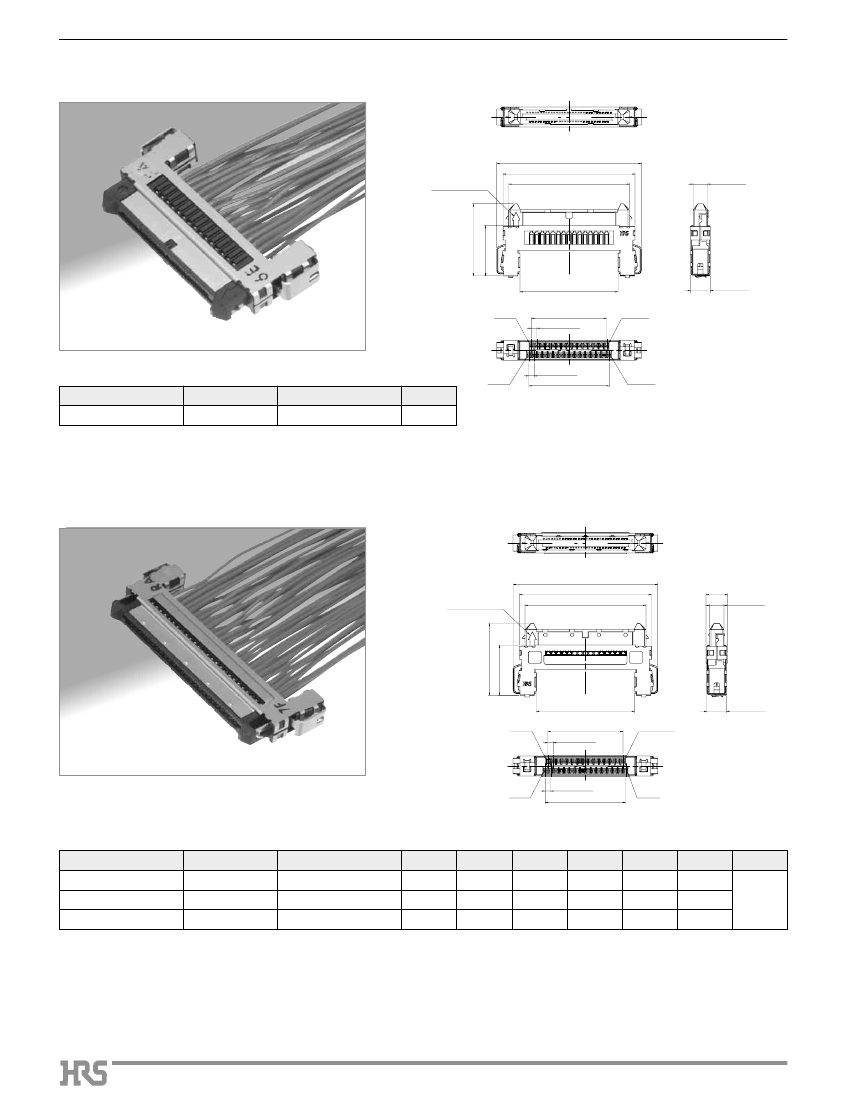

sPlugs
q
With shields (FX15-31P-C)
Polarizing mark
indicator
(27)
24.6±0.3
22.57±0.15
2.7±0.1
(13.45)
9.4±0.3
18.3±0.3
No.2
14±0.15
P=1±0.1
No.30
3.7±0.3
No.1
P=1±0.1
15±0.15
No.31
Part number
FX15-31P-C
CL No.
CL575-2101-2
Number of contacts
31
RoHS
YES
Note 1: Packaged in trays.
Note 2: Dimensions in parenthesis ( ) are reference dimensions.
q
With shields, enhanced shielding (FX15S-**P-C)
Polarizing mark
indicator
(A)
B±0.3
C±0.15
4±0.3
2.7±0.1
(13.45)
9.4±0.3
D±0.3
No.2
E±0.15
P=1±0.1
No.n-1
3.7±0.3
No.1
P=1±0.1
F±0.15
No.n
Part number
FX15S-31P-C
FX15S-41P-C
FX15S-51P-C
CL No.
CL575-2106-6
CL575-2107-9
CL575-2103-8
Number of contacts
31
41
51
A
27
32
37
B
24.6
29.6
34.6
C
22.6
27.6
32.6
D
18.3
23.3
28.3
E
14
19
24
F
15
20
25
RoHS
YES
Note 1: Packaged in trays.
Note 2: Dimensions in parenthesis ( ) are reference dimensions.
B276
The product information in this catalog is for reference only. Please request the Engineering Drawing for the most current and accurate design information.
All non-RoHS products have been discontinued, or will be discontinued soon. Please check the products status on the Hirose website RoHS search at www.hirose-connectors.com, or contact your Hirose sales representative.
FX15 Seriesq1mm Pitch Cable-to-Board Connectors supporting LVDS signal
q

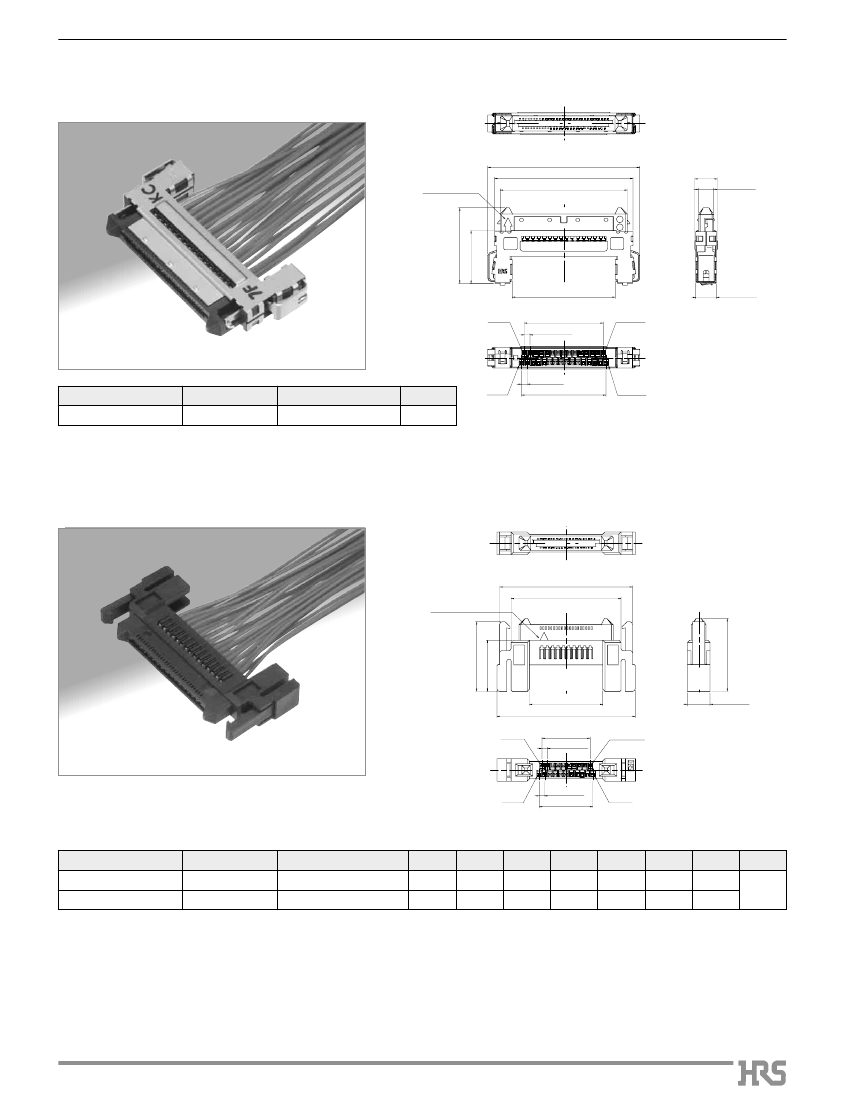

With shields – enhanced shielding
AWG#28 to 30 (FX15SW-31P-C)
Polarizing mark
indicator
(27)
24.6±0.3
22.57±0.15
4±0.3
2.7±0.1
(13.45)
9.4±0.3
B
28
18.3±0.3
No.2
14±0.15
P=1±0.1
A
3.7±0.3
No.30
Part number
FX15SW-31P-C
CL No.
CL575-2113-1
Number of contacts
31
RoHS
YES
No.1
P=1±0.1
15±0.15
No.31
Note 1: Packaged in trays.
Note 2: Dimensions in parenthesis ( ) are reference dimensions.
q
Without shields (FX15M-**P-C)
Polarizing mark
indicator
(A)
B±0.3
(13)
9.55±0.3
C±0.3
(D)
No.2
E±0.15
P=1±0.1
No.n-1
4.2±0.3
No.1
P=1±0.1
F±0.15
No.n
Part number
FX15M-21P-C
FX15M-31P-C
CL No.
CL575-2109-4
CL575-2108-1
Number of contacts
21
31
A
24.8
29.8
B
20.5
25.5
C
17.6
22.6
D
13.7
18.7
E
25.8
30.8
F
9
14
G
10
15
(13.6)
RoHS
YES
Note 1: Sold in package containing 100 pieces. Order by package.
Note 2: Dimensions in parenthesis ( ) are reference dimensions.
