CYStech Electronics Corp.
Low Dropout CMOS Voltage Regulators
Spec. No. : C505M3
Issued Date : 2003.03.21
Revised Date : 2014.01.03
Page No. : 1/12
LM1114
Features
output current 250mA
●
Highly accurate : output voltage+/-2%
●
Low power consumption : typ. 1μA
●
Small input/output differential:
0.45V typ at 160mA( 2.5V, 3.0V, 3.3V, 3.6V)
0.4V typ at 200mA(Vout=5V)
●
Pb-free lead plating and halogen-free package
●
Maximum
Applications
powered equipment
●
Palmtops
●
Portable cameras and video recorders
●
Reference voltage sources
●
Battery
Product Description
The LM1114 series is a group of positive voltage output, three-pin regulators, that provide a high
current even when the input/output voltage differential is small. Low power consumption and high
accuracy is achieved through CMOS and programmable fuse technologies.
The LM1114 consists of a high-precision voltage reference, an error correction circuit, and a current
limited output driver. Transient response to load variations is improved in comparison to the existing
ones.
Absolute Maximum Ratings
Parameter
Input Voltage
Output Current
Output Voltage
Continuous Total Power
Dissipation
Operating Ambient Temperature
Storage Temperature
Symbol
Vin
Iout
Vout
TO-92
SOT-89
P
D
Topr
Tstg
Ratings
12
500
Vss-0.3〜Vin+0.3
500
500
-40〜+85
-40〜+125
Units
V
mA
V
mW
℃
℃
Pin Configuration
TO-92
SOT-89
1
2
3
1
2
3
Vss Vin Vout
LM1114M3/A3
CYStek Product Specification
CYStech Electronics Corp.

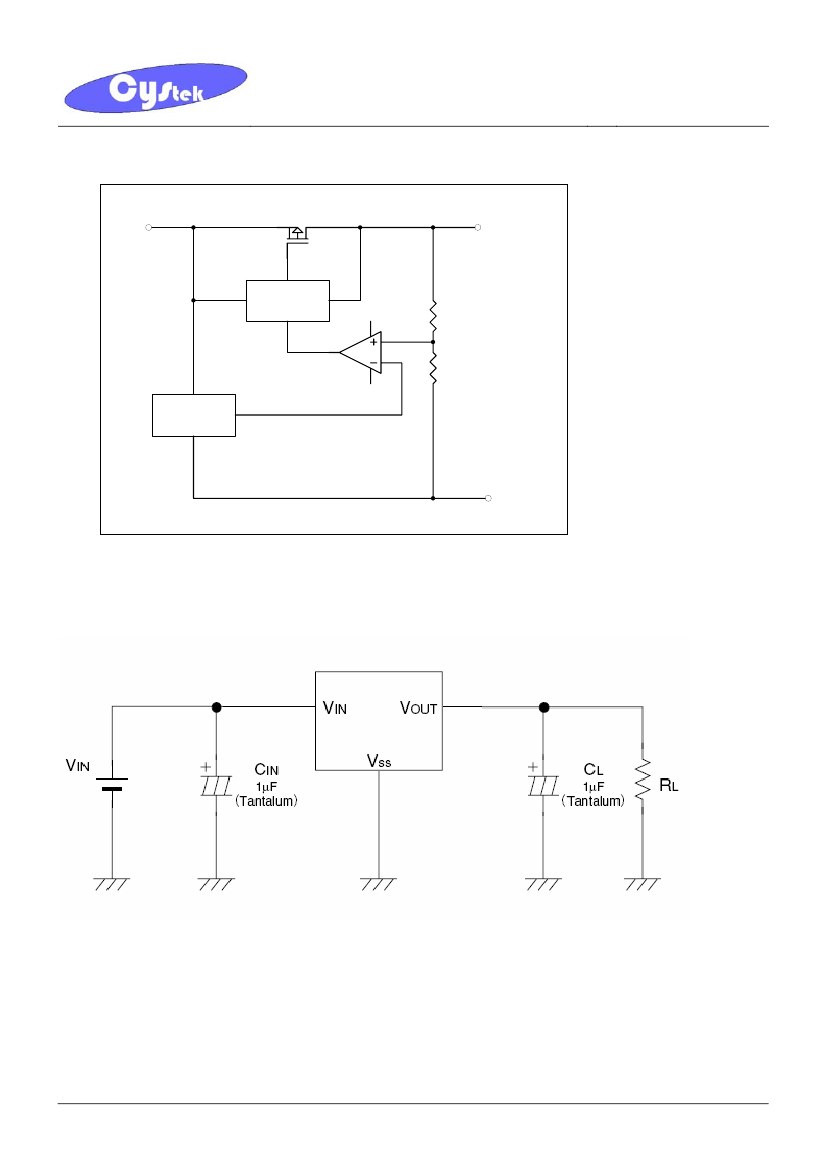

Block Diagram
Spec. No. : C505M3
Issued Date : 2003.03.21
Revised Date : 2014.01.03
Page No. : 2/12
V
IN
IN
V
V
OUT
V
OUT
Current
Limit
Voltage
Reference
V
SS
V
SS
Typical Application Circuit
LM1114M3/A3
CYStek Product Specification
CYStech Electronics Corp.
Ordering Information
Device
LM1114-1.8 A3-0-TB-G
LM1114-1.8 M3-0-T2-G
LM1114-2.5 A3-0-TB-G
Output Voltage
1.8V
1.8V
2.5V
Package
TO-92
(Pb-free lead plating and halogen-free package)
SOT-89
(Pb-free lead plating and halogen-free package)
TO-92
(Pb-free lead plating and halogen-free package)
SOT-89
(Pb-free lead plating and halogen-free package)
TO-92
(Pb-free lead plating and halogen-free package)
SOT-89
(Pb-free lead plating and halogen-free package)
TO-92
(Pb-free lead plating and halogen-free package)
SOT-89
(Pb-free lead plating and halogen-free package)
TO-92
(Pb-free lead plating and halogen-free package)
SOT-89
(Pb-free lead plating and halogen-free package)
TO-92
(Pb-free lead plating and halogen-free package)
SOT-89
(Pb-free lead plating and halogen-free package)
Spec. No. : C505M3
Issued Date : 2003.03.21
Revised Date : 2014.01.03
Page No. : 3/12
Shipping
Tape & Box / 2K
Tape & Reel / 1K
Tape & Box / 2K
Tape & Reel / 1K
LM1114-2.5 M3-0-T2-G
2.5V
LM1114-3.0 A3-0-TB-G
LM1114-3.0 M3-0-T2-G
LM1114-3.3 A3-0-TB-G
LM1114-3.3 M3-0-T2-G
LM1114-3.6A3-0-TB-G
LM1114-3.6M3-0-T2-G
LM1114-5.0 A3-0-TB-G
LM1114-5.0 M3-0-T2-G
3.0V
3.0V
3.3V
3.3V
3.6V
3.6V
5.0V
5.0V
Tape & Box / 2K
Tape & Reel / 1K
Tape & Box / 2K
Tape & Reel / 1K
Tape & Box / 2K
Tape & Reel / 1K
Tape & Box / 2K
Tape & Reel / 1K
Environment friendly grade : S for RoHS compliant products, G for RoHS compliant and
green compound products
Packing spec, T2 :1000 pcs/tape & reel, 7” reel ; TB : 2000 pcs/ tape & box
Product rank, zero for no rank products
Product name
LM1114M3/A3
CYStek Product Specification
CYStech Electronics Corp.
Spec. No. : C505M3
Issued Date : 2003.03.21
Revised Date : 2014.01.03
Page No. : 4/12
Electrical Characteristics @V
IN
=5V,Ta=25℃, C
IN
=1μF(tantalum),
C
OUT
=1μF(tantalum), unless otherwise noted
LM1114-1.8
Parameter
Output Voltage
Line Regulation
△Vout/△VinVout
Load Regulation
Current Consumption
Dropout Voltage
Conditions
Io=40mA,Vin=2.8V
Io=40mA,4V<Vin<10V
Vin=2.8V,1mA<Io<40mA
Vin=2.8V
Io=40mA
Io=80mA
Min
1.764
-
-
-
-
-
Typ
1.800
0.2
10
1
0.2
0.45
Max
1.836
0.3
30
4.5
0.36
0.7
Units
V
%/V
mV
μA
V
V
Circuit
1
1
1
2
1
1
LM1114-2.5
Parameter
Output Voltage
Line Regulation
△Vout/△VinVout
Load Regulation
Current Consumption
Dropout Voltage
Conditions
Io=40mA,Vin=4V
Io=40mA,4V<Vin<10V
Vin=4V,1mA<Io<80mA
Vin=4V
Io=80mA
Io=160mA
Min
2.450
-
-
-
-
-
Typ
2.500
0.2
15
1
0.2
0.45
Max
2.550
0.3
40
4.5
0.36
0.7
Units
V
%/V
mV
μA
V
V
Circuit
1
1
1
2
1
1
LM1114-3.0
Parameter
Output Voltage
Line Regulation
△Vout/△VinVout
Load Regulation
Current Consumption
Dropout Voltage
Conditions
Io=40mA,Vin=4.0V
Io=40mA,4.0V<Vin<10V
Vin=6V,1mA<Io<80mA
Vin=4.0V
Io=80mA
Io=160mA
Min
2.940
-
-
-
-
-
Typ
3.000
0.2
15
1
0.24
0.5
Max
3.060
0.3
40
4.5
0.36
0.7
Units
V
%/V
mV
μA
V
V
Circuit
1
1
1
2
1
1
LM1114-3.3
Parameter
Output Voltage
Line Regulation
△Vout/△VinVout
Load Regulation
Current Consumption
Dropout Voltage
Conditions
Io=40mA,Vin=4.3V
Io=40mA,4.3V<Vin<10V
Vin=6V,1mA<Io<80mA
Vin=4.3V
Io=80mA
Io=160mA
Min
3.234
-
-
-
-
-
Typ
3.300
0.2
15
1
0.22
0.45
Max
3.366
0.3
40
4.5
0.36
0.7
Units
V
%/V
mV
μA
V
V
Circuit
1
1
1
2
1
1
LM1114-3.6
Parameter
Output Voltage
Line Regulation
△Vout/△VinVout
Load Regulation
Current Consumption
Dropout Voltage
Conditions
Io=40mA,Vin=4.6V
Io=40mA,4.6V<Vin<10V
Vin=6V,1mA<Io<80mA
Vin=4.6V
Io=80mA
Io=160mA
Min
3.522
-
-
-
-
-
Typ
3.600
0.2
15
1
0.22
0.45
Max
3.672
0.3
40
4.5
0.36
0.7
Units
V
%/V
mV
μA
V
V
Circuit
1
1
1
2
1
1
LM1114M3/A3
CYStek Product Specification
CYStech Electronics Corp.
LM1114-5.0
Parameter
Output Voltage
Line Regulation
△Vout/△VinVout
Load Regulation
Current Consumption
Dropout Voltage
Conditions
Io=40mA,Vin=6.0V
Io=40mA,6.0V<Vin<10V
Vin=6V,1mA<Io<100mA
Vin=6.0V
Io=100mA
Io=200mA
Min
4.900
-
-
-
-
-
Typ
5.000
0.2
30
1
0.21
0.4
Max
5.100
0.3
70
4.5
0.3
0.6
Spec. No. : C505M3
Issued Date : 2003.03.21
Revised Date : 2014.01.03
Page No. : 5/12
Units
V
%/V
mV
μA
V
V
Circuit
1
1
1
2
1
1

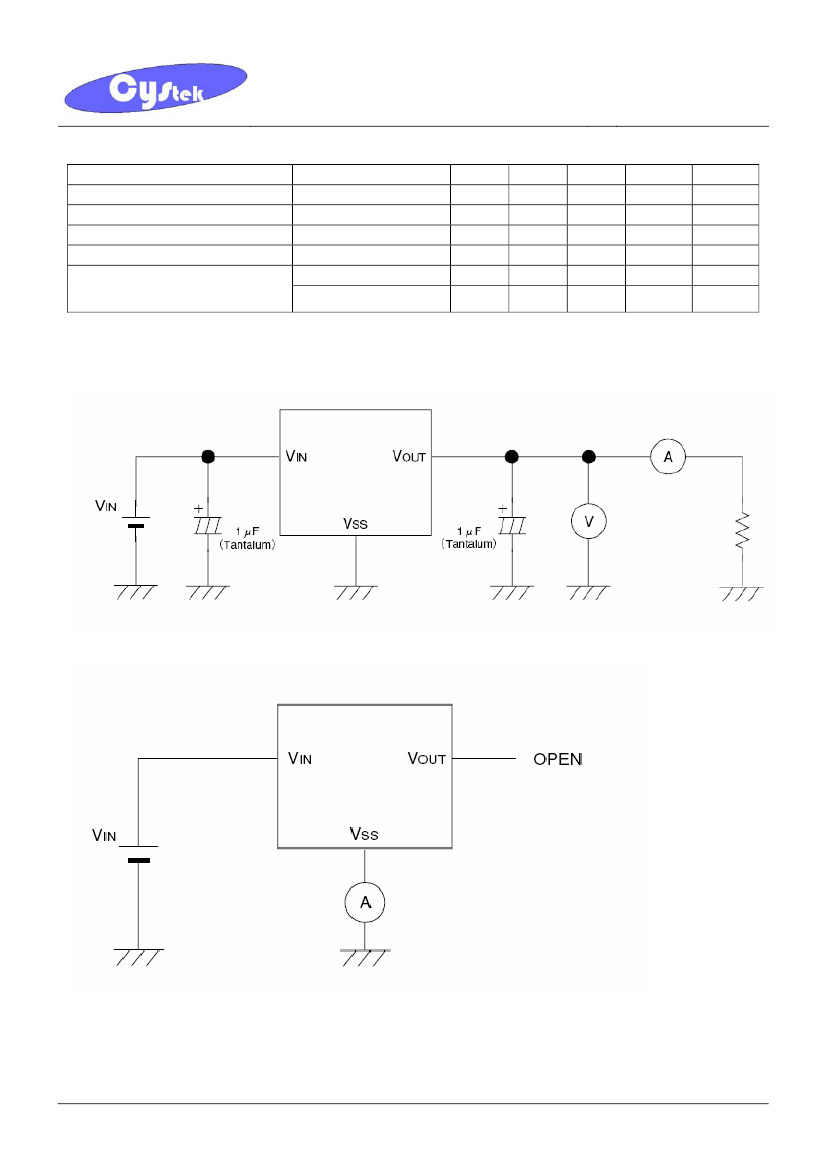

Test Circuits
Circuit 1
Circuit 2
LM1114M3/A3
CYStek Product Specification
