KM68BV4002J-15 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > storage> storage> KM68BV4002J-15

KM68BV4002J-15: DescriptionStandard SRAM, 512KX8, 15ns, BICMOS, PDSO36, 0.400 INCH, PLASTIC, SOJ-36; Categorystorage storage; File Size213KB，9 Pages; ManufacturerSAMSUNG; Websitehttp://www.samsung.com/Products/Semiconductor/

Download Datasheet Parametric Compare View All

KM68BV4002J-15 Overview

Standard SRAM, 512KX8, 15ns, BICMOS, PDSO36, 0.400 INCH, PLASTIC, SOJ-36

KM68BV4002J-15 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	SAMSUNG
Parts packaging code	SOJ
package instruction	SOJ, SOJ36,.44
Contacts	36
Reach Compliance Code	unknown
ECCN code	3A991.B.2.A
Maximum access time	15 ns
I/O type	COMMON
JESD-30 code	R-PDSO-J36
JESD-609 code	e0
length	23.5 mm
memory density	4194304 bit
Memory IC Type	STANDARD SRAM
memory width	8
Number of functions	1
Number of ports	1
Number of terminals	36
word count	524288 words
character code	512000
Operating mode	ASYNCHRONOUS
Maximum operating temperature	70 °C
Minimum operating temperature
organize	512KX8
Output characteristics	3-STATE
Exportable	YES
Package body material	PLASTIC/EPOXY
encapsulated code	SOJ
Encapsulate equivalent code	SOJ36,.44
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Parallel/Serial	PARALLEL
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	3.3 V
Certification status	Not Qualified
Maximum seat height	3.76 mm
Maximum standby current	0.03 A
Minimum standby current	3 V
Maximum slew rate	0.16 mA
Maximum supply voltage (Vsup)	3.6 V
Minimum supply voltage (Vsup)	3.13 V
Nominal supply voltage (Vsup)	3.3 V
surface mount	YES
technology	BICMOS
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	J BEND
Terminal pitch	1.27 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	10.16 mm

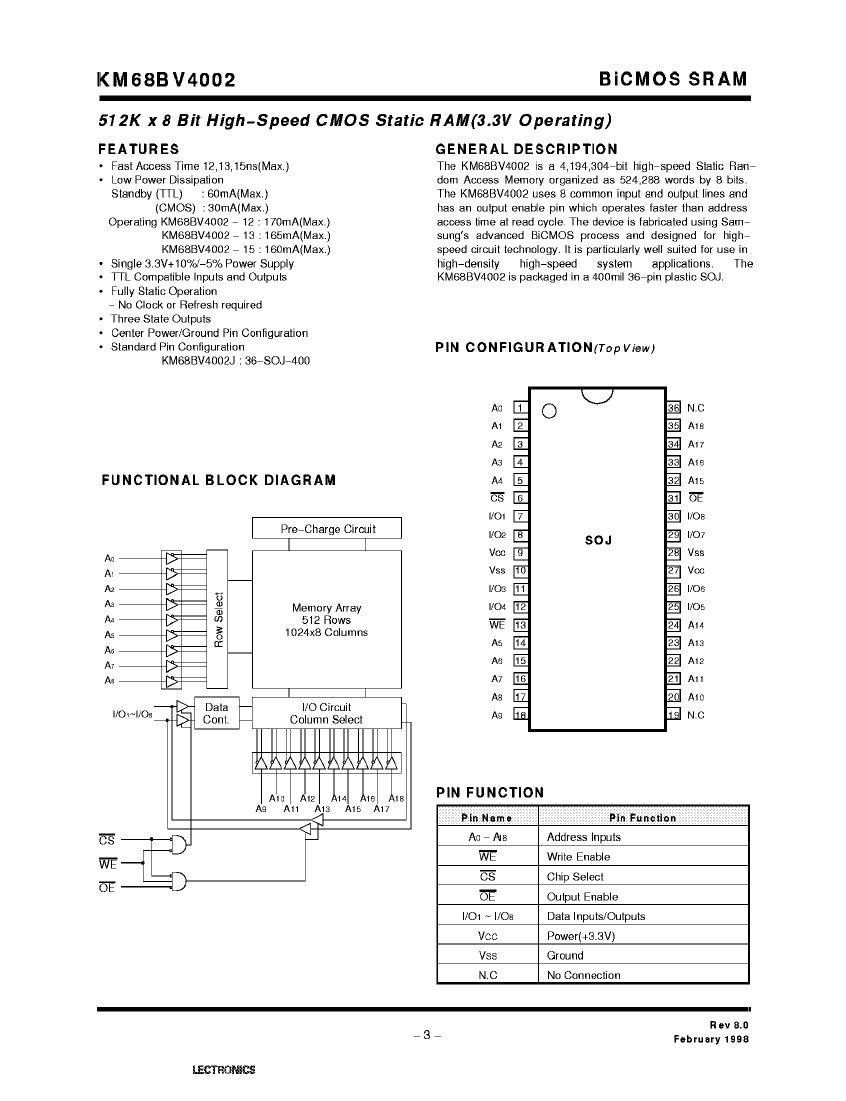

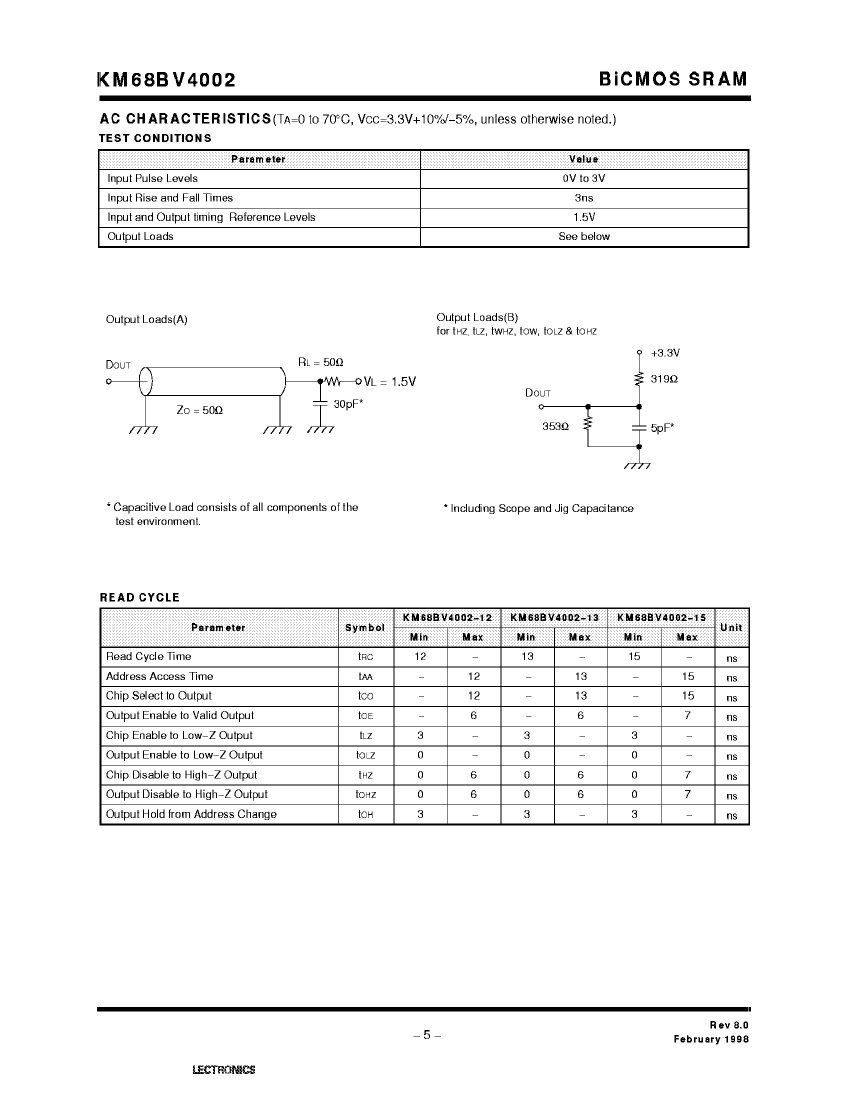

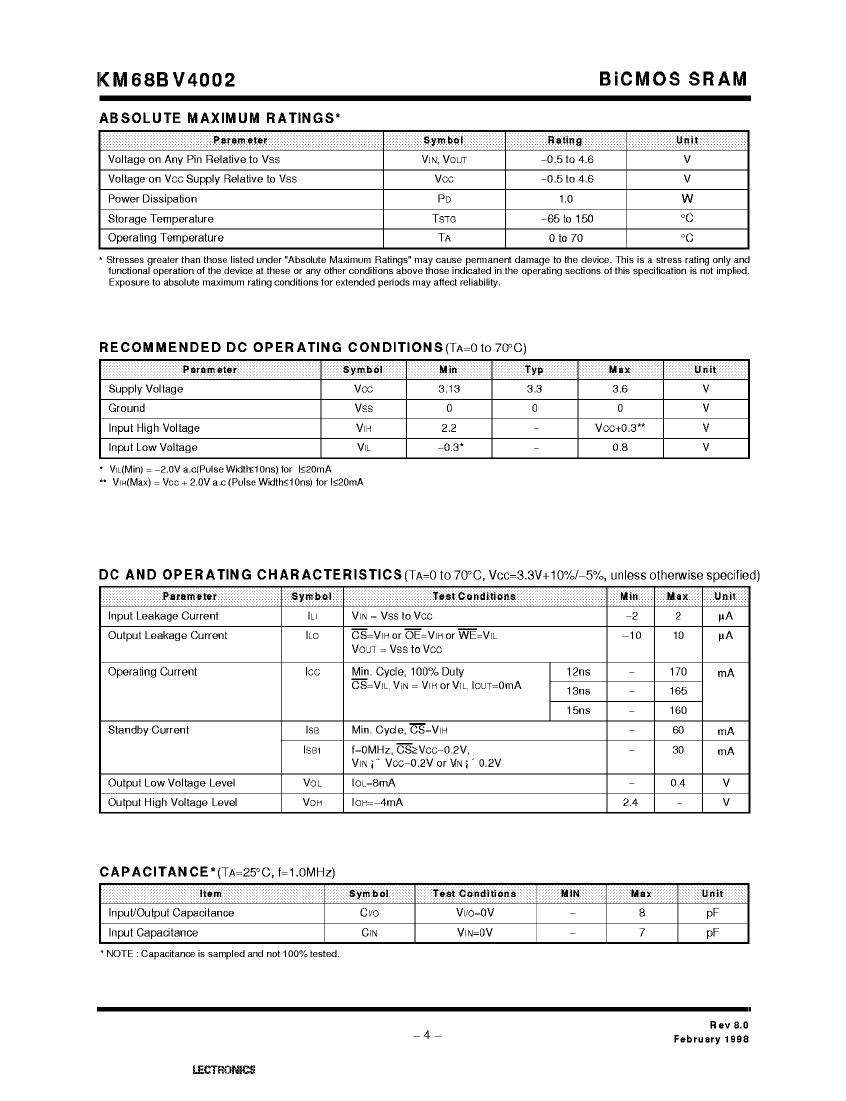

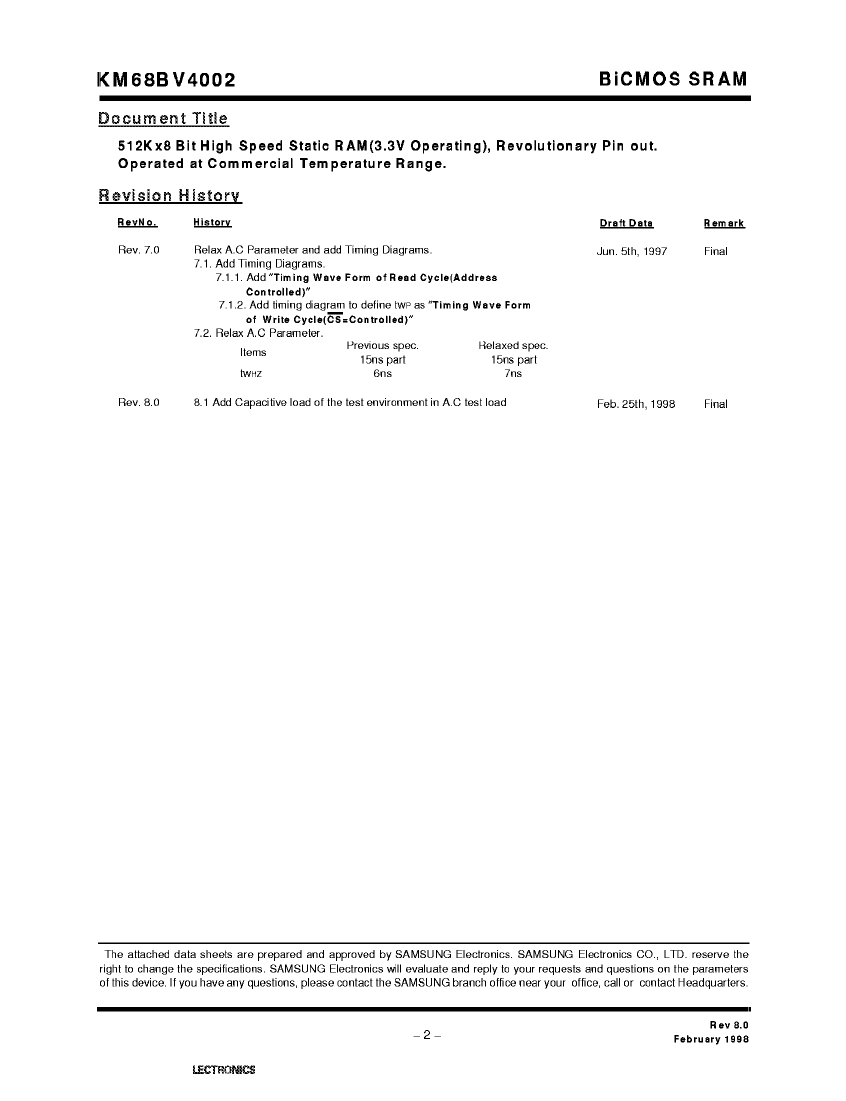

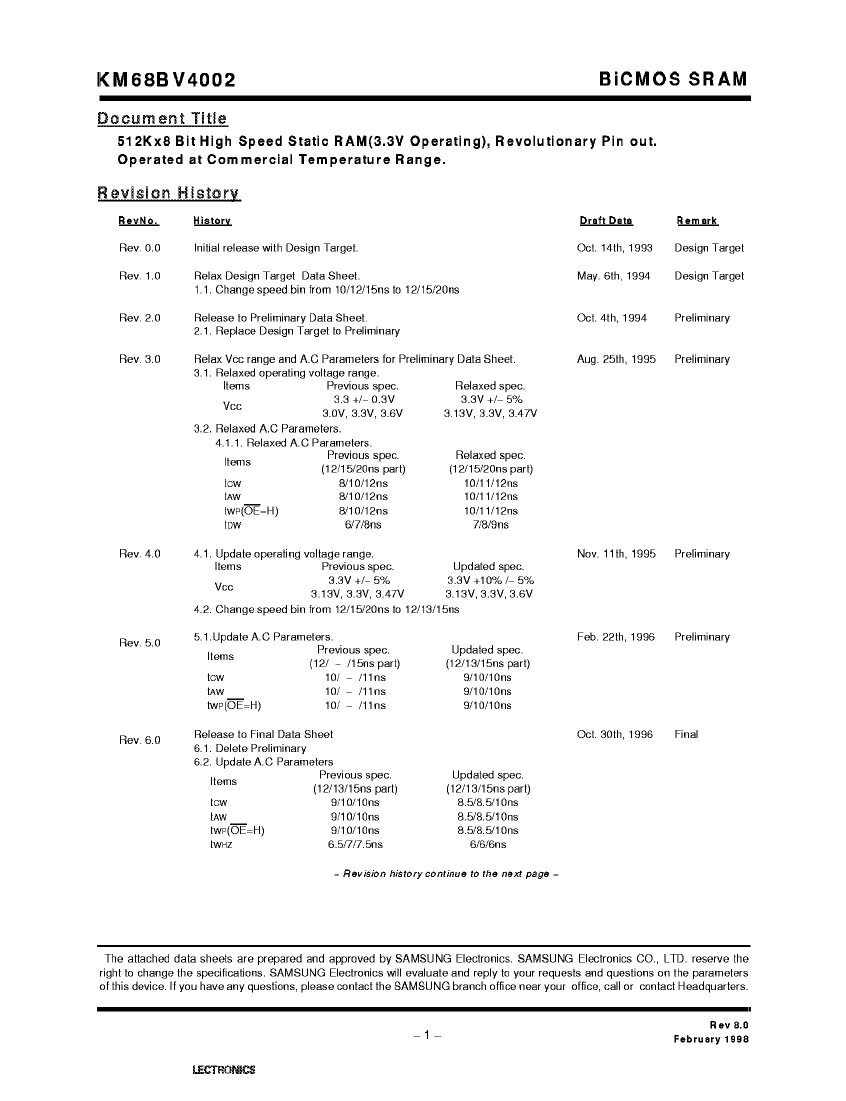

KM68BV4002J-15 Preview

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >

KM68BV4002J-15 Related Products

	KM68BV4002J-15	KM68BV4002J-12	KM68BV4002J-13
Description	Standard SRAM, 512KX8, 15ns, BICMOS, PDSO36, 0.400 INCH, PLASTIC, SOJ-36	Standard SRAM, 512KX8, 12ns, BICMOS, PDSO36, 0.400 INCH, PLASTIC, SOJ-36	Standard SRAM, 512KX8, 13ns, BICMOS, PDSO36, 0.400 INCH, PLASTIC, SOJ-36
Is it Rohs certified?	incompatible	incompatible	incompatible
Maker	SAMSUNG	SAMSUNG	SAMSUNG
Parts packaging code	SOJ	SOJ	SOJ
package instruction	SOJ, SOJ36,.44	SOJ, SOJ36,.44	SOJ, SOJ36,.44
Contacts	36	36	36
Reach Compliance Code	unknown	unknown	unknown
ECCN code	3A991.B.2.A	3A991.B.2.A	3A991.B.2.A
Maximum access time	15 ns	12 ns	13 ns
I/O type	COMMON	COMMON	COMMON
JESD-30 code	R-PDSO-J36	R-PDSO-J36	R-PDSO-J36
JESD-609 code	e0	e0	e0
length	23.5 mm	23.5 mm	23.5 mm
memory density	4194304 bit	4194304 bit	4194304 bit
Memory IC Type	STANDARD SRAM	STANDARD SRAM	STANDARD SRAM
memory width	8	8	8
Number of functions	1	1	1
Number of ports	1	1	1
Number of terminals	36	36	36
word count	524288 words	524288 words	524288 words
character code	512000	512000	512000
Operating mode	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS
Maximum operating temperature	70 °C	70 °C	70 °C
organize	512KX8	512KX8	512KX8
Output characteristics	3-STATE	3-STATE	3-STATE
Exportable	YES	YES	YES
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SOJ	SOJ	SOJ
Encapsulate equivalent code	SOJ36,.44	SOJ36,.44	SOJ36,.44
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE
Parallel/Serial	PARALLEL	PARALLEL	PARALLEL
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
power supply	3.3 V	3.3 V	3.3 V
Certification status	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	3.76 mm	3.76 mm	3.76 mm
Maximum standby current	0.03 A	0.03 A	0.03 A
Minimum standby current	3 V	3 V	3 V
Maximum slew rate	0.16 mA	0.17 mA	0.165 mA
Maximum supply voltage (Vsup)	3.6 V	3.6 V	3.6 V
Minimum supply voltage (Vsup)	3.13 V	3.13 V	3.13 V
Nominal supply voltage (Vsup)	3.3 V	3.3 V	3.3 V
surface mount	YES	YES	YES
technology	BICMOS	BICMOS	BICMOS
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	J BEND	J BEND	J BEND
Terminal pitch	1.27 mm	1.27 mm	1.27 mm
Terminal location	DUAL	DUAL	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
width	10.16 mm	10.16 mm	10.16 mm
