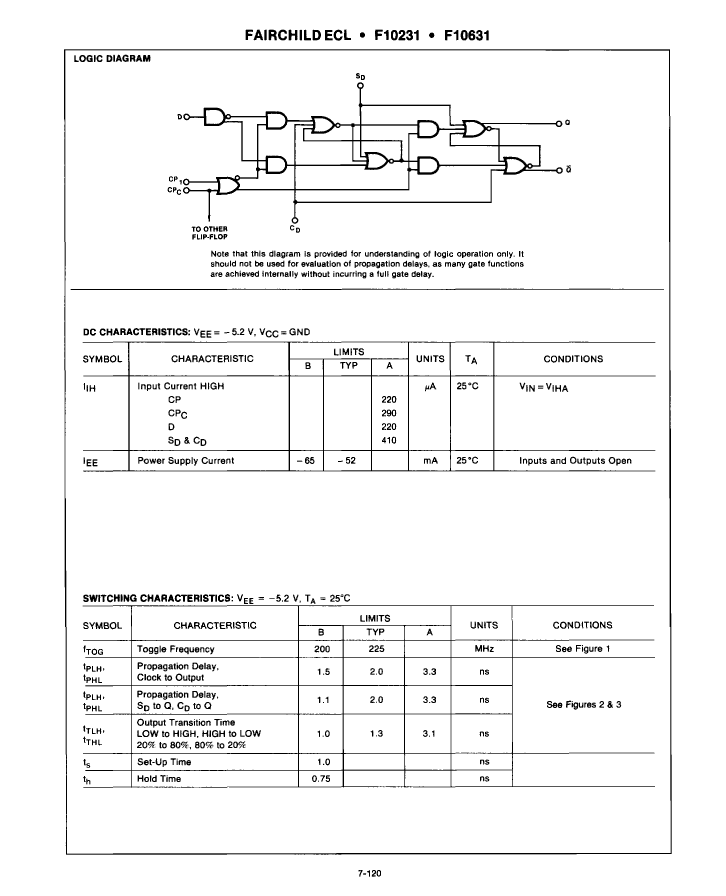

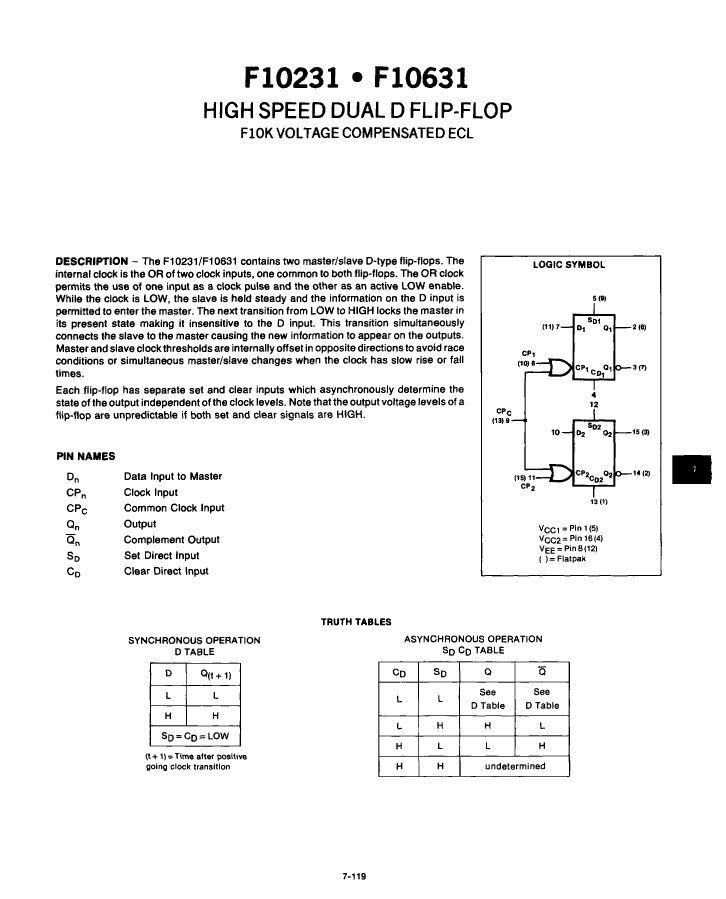

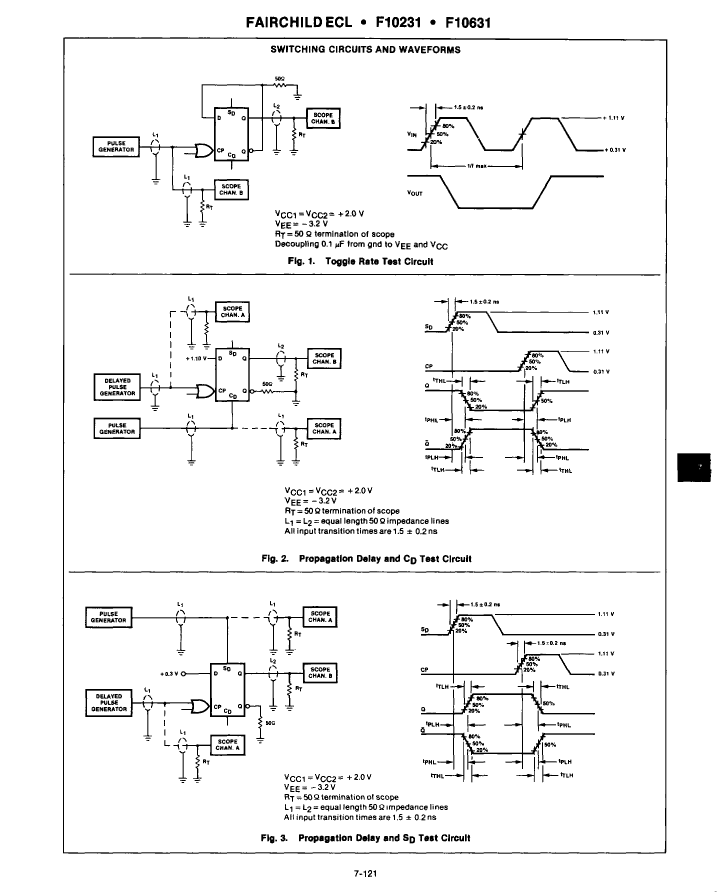

D Flip-Flop, 10K Series, 2-Func, Positive Edge Triggered, 1-Bit, Complementary Output, ECL, CDIP16, HERMETIC SEALED, CERAMIC, DIP-16
| Parameter Name | Attribute value |
| Is it Rohs certified? | incompatible |
| Maker | Fairchild |
| Parts packaging code | DIP |
| package instruction | DIP, DIP16,.3 |
| Contacts | 16 |
| Reach Compliance Code | unknown |
| Other features | WITH ADDITIONAL COMMON LATCH ENABLE |
| series | 10K |
| JESD-30 code | R-GDIP-T16 |
| JESD-609 code | e0 |
| length | 19.558 mm |
| Logic integrated circuit type | D FLIP-FLOP |
| Number of digits | 1 |
| Number of functions | 2 |
| Number of terminals | 16 |
| Maximum operating temperature | 75 °C |
| Minimum operating temperature | |
| Output characteristics | OPEN-EMITTER |
| Output polarity | COMPLEMENTARY |
| Package body material | CERAMIC, GLASS-SEALED |
| encapsulated code | DIP |
| Encapsulate equivalent code | DIP16,.3 |
| Package shape | RECTANGULAR |
| Package form | IN-LINE |
| Peak Reflow Temperature (Celsius) | NOT SPECIFIED |
| power supply | -5.2 V |
| Maximum supply current (ICC) | 65 mA |
| propagation delay (tpd) | 3.3 ns |
| Certification status | Not Qualified |
| Maximum seat height | 5.08 mm |
| surface mount | NO |
| technology | ECL |
| Temperature level | COMMERCIAL EXTENDED |
| Terminal surface | Tin/Lead (Sn/Pb) |
| Terminal form | THROUGH-HOLE |
| Terminal pitch | 2.54 mm |
| Terminal location | DUAL |
| Maximum time at peak reflow temperature | NOT SPECIFIED |
| Trigger type | POSITIVE EDGE |
| width | 7.62 mm |
| minfmax | 200 MHz |
| F10231DC | F10231FC | F10631FM | F10631DM | F10231PC | |
|---|---|---|---|---|---|
| Description | D Flip-Flop, 10K Series, 2-Func, Positive Edge Triggered, 1-Bit, Complementary Output, ECL, CDIP16, HERMETIC SEALED, CERAMIC, DIP-16 | D Flip-Flop, 10K Series, 2-Func, Positive Edge Triggered, 1-Bit, Complementary Output, ECL, CDFP16, CERPACK-16 | D Flip-Flop, 10K Series, 2-Func, Positive Edge Triggered, 1-Bit, Complementary Output, ECL, CDFP16, CERPACK-16 | D Flip-Flop, 10K Series, 2-Func, Positive Edge Triggered, 1-Bit, Complementary Output, ECL, CDIP16, HERMETIC SEALED, CERAMIC, DIP-16 | D Flip-Flop, 10K Series, 2-Func, Positive Edge Triggered, 1-Bit, Complementary Output, ECL, PDIP16, PLASTIC, DIP-16 |
| Is it Rohs certified? | incompatible | incompatible | incompatible | incompatible | incompatible |
| Parts packaging code | DIP | DFP | DFP | DIP | DIP |
| package instruction | DIP, DIP16,.3 | DFP, FL16,.3 | DFP, FL16,.3 | DIP, DIP16,.3 | DIP, DIP16,.3 |
| Contacts | 16 | 16 | 16 | 16 | 16 |
| Reach Compliance Code | unknown | unknown | unknown | unknown | unknown |
| Other features | WITH ADDITIONAL COMMON LATCH ENABLE | WITH ADDITIONAL COMMON LATCH ENABLE | WITH ADDITIONAL COMMON CLOCK | WITH ADDITIONAL COMMON CLOCK | WITH ADDITIONAL COMMON LATCH ENABLE |
| series | 10K | 10K | 10K | 10K | 10K |
| JESD-30 code | R-GDIP-T16 | R-CDFP-F16 | R-CDFP-F16 | R-GDIP-T16 | R-PDIP-T16 |
| JESD-609 code | e0 | e0 | e0 | e0 | e0 |
| length | 19.558 mm | 9.906 mm | 9.906 mm | 19.558 mm | 19.05 mm |
| Logic integrated circuit type | D FLIP-FLOP | D FLIP-FLOP | D FLIP-FLOP | D FLIP-FLOP | D FLIP-FLOP |
| Number of digits | 1 | 1 | 1 | 1 | 1 |
| Number of functions | 2 | 2 | 2 | 2 | 2 |
| Number of terminals | 16 | 16 | 16 | 16 | 16 |
| Maximum operating temperature | 75 °C | 75 °C | 125 °C | 125 °C | 75 °C |
| Output characteristics | OPEN-EMITTER | OPEN-EMITTER | OPEN-EMITTER | OPEN-EMITTER | OPEN-EMITTER |
| Output polarity | COMPLEMENTARY | COMPLEMENTARY | COMPLEMENTARY | COMPLEMENTARY | COMPLEMENTARY |
| Package body material | CERAMIC, GLASS-SEALED | CERAMIC, METAL-SEALED COFIRED | CERAMIC, METAL-SEALED COFIRED | CERAMIC, GLASS-SEALED | PLASTIC/EPOXY |
| encapsulated code | DIP | DFP | DFP | DIP | DIP |
| Encapsulate equivalent code | DIP16,.3 | FL16,.3 | FL16,.3 | DIP16,.3 | DIP16,.3 |
| Package shape | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR |
| Package form | IN-LINE | FLATPACK | FLATPACK | IN-LINE | IN-LINE |
| Peak Reflow Temperature (Celsius) | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED |
| power supply | -5.2 V | -5.2 V | -5.2 V | -5.2 V | -5.2 V |
| Maximum supply current (ICC) | 65 mA | 65 mA | 65 mA | 65 mA | 65 mA |
| propagation delay (tpd) | 3.3 ns | 3.3 ns | 3.3 ns | 3.3 ns | 3.3 ns |
| Certification status | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified |
| Maximum seat height | 5.08 mm | 1.905 mm | 1.905 mm | 5.08 mm | 5.08 mm |
| surface mount | NO | YES | YES | NO | NO |
| technology | ECL | ECL | ECL | ECL | ECL |
| Temperature level | COMMERCIAL EXTENDED | COMMERCIAL EXTENDED | MILITARY | MILITARY | COMMERCIAL EXTENDED |
| Terminal surface | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) |
| Terminal form | THROUGH-HOLE | FLAT | FLAT | THROUGH-HOLE | THROUGH-HOLE |
| Terminal pitch | 2.54 mm | 1.27 mm | 1.27 mm | 2.54 mm | 2.54 mm |
| Terminal location | DUAL | DUAL | DUAL | DUAL | DUAL |
| Maximum time at peak reflow temperature | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED |
| Trigger type | POSITIVE EDGE | POSITIVE EDGE | POSITIVE EDGE | POSITIVE EDGE | POSITIVE EDGE |
| width | 7.62 mm | 6.731 mm | 6.731 mm | 7.62 mm | 7.62 mm |
| minfmax | 200 MHz | 200 MHz | 200 MHz | 200 MHz | 200 MHz |
| Maker | Fairchild | - | Fairchild | Fairchild | Fairchild |
