VY1 Series
www.vishay.com
Vishay BCcomponents
AC Line Rated Ceramic Disc Capacitors
Class X1, 760 V
AC
, Class Y1, 500 V
AC
FEATURES
•
•
•
•
•
Complying with IEC 60384-14, 3
rd
edition
High reliability
Vertical (inline) kinked or straight leads
Singlelayer AC Disc capacitors
Material categorization:
For definitions of compliance please see
www.vishay.com/doc?99912
Available
APPLICATIONS
•
•
•
•
2
U2J
760
10
22
Radial
Y5S, Y5U
500
33
4700
Y5S, Y5U
760
QUICK REFERENCE DATA
DESCRIPTION
Ceramic Class
Ceramic Dielectric
Voltage (V
AC
)
Min. Capacitance (pF)
Max. Capacitance (pF)
Mounting
U2J
500
1
VALUE
X1, Y1 according to IEC 60384-14.3
Across-the-line
Line by-pass
Antenna coupling
DESIGN
The capacitors consist of a ceramic disc both sides of which
are silver-plated. Connection leads are made of tinned
copper having a diameter of 0.6 mm.
The capacitors may be supplied with vertical (inline) kinked
leads having a lead spacing of 10.0 mm and 12.5 mm.
Encapsulation is made of flammable resistant epoxy resin in
accordance with “UL 94 V-0”.
OPERATING TEMPERATURE RANGE
- 40 °C to + 125 °C
TEMPERATURE CHARACTERISTICS
See Ordering Information table
CAPACITANCE RANGE
10 pF to 4700 pF
CLIMATIC CATEGORY
40/125/21 according to EN 60068-1
RATED VOLTAGE U
R
IEC 60384-14.3:
(X1): 760 V
AC,
50 Hz
(Y1): 500 V
AC
, 50 Hz
COATING
According to UL 94 V-0
Epoxy resin, isolating, flame retardant
TEST VOLTAGE
Component test (100 %):
4000 V
AC
, 50 Hz, 2 s
Random sampling test (destructive test):
4000 V
AC
, 50 Hz, 60 s
Voltage proof of coating (destructive test):
4000 V
AC
, 50 Hz, 60 s
APPROVALS
IEC 60384-14.3
UL 60384-14
DIN EN 60384-14
CSA E60384-1:03, CSA E60384-14:09
PACKAGING
Bulk, tape and reel, taped ammopack
INSULATION RESISTANCE
10 000 M minimum
TOLERANCE OF CAPACITANCE
± 20 % (code M); ± 10 % (code K)
DISSIPATION FACTOR
2.5 % maximum
Revision: 18-Oct-13
Document Number: 28537
1
For technical questions, contact:
cdc@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
VY1 Series
www.vishay.com
Vishay BCcomponents

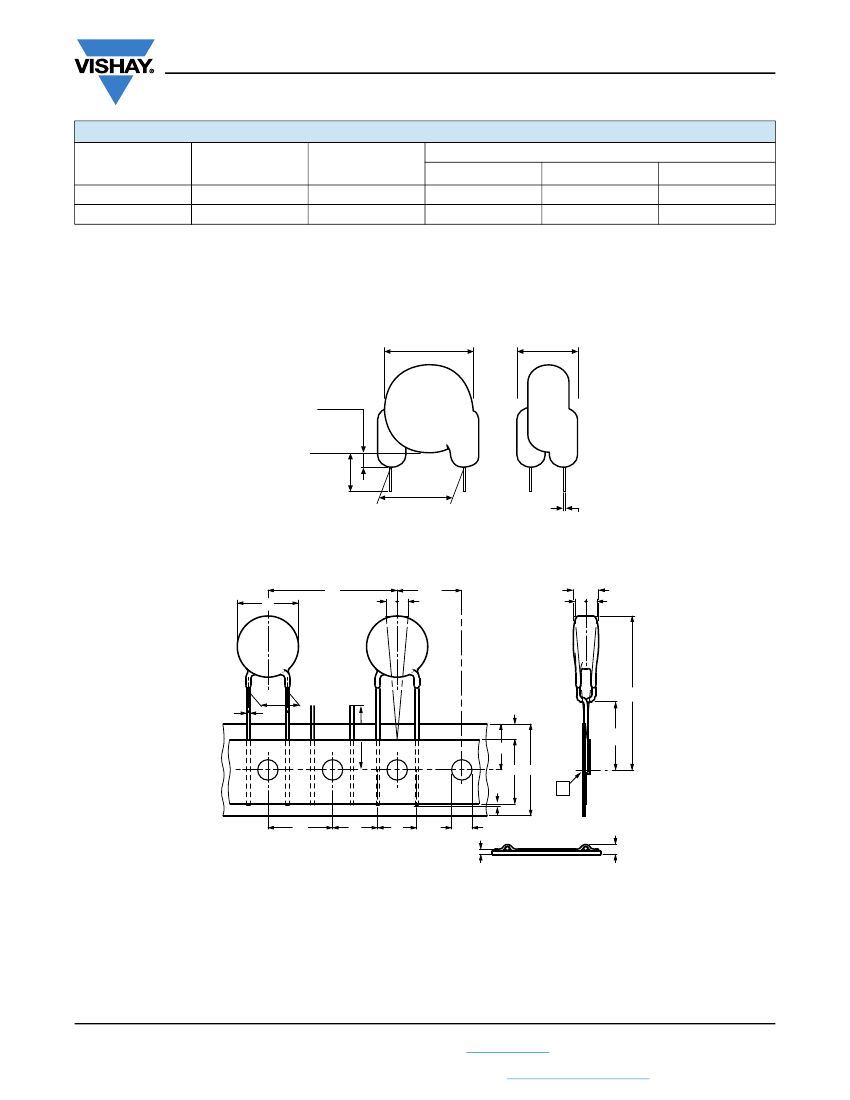

DIMENSIONS
F
e = 3.0 mm max.
SH
= 4.0 mm max.
Ø d 0.6 mm
D
T
L = 30.0 mm
± 5.0 mm
Capacitors with 10.0 mm and 12.5 mm lead
spacing
ORDERING INFORMATION
C
(pF)
10
15
22
33
47
68
100
150
220
330
470
680
1000
1500
2200
3300
3900
4700
10
15
22
33
47
68
100
150
220
330
470
680
1000
1500
2200
3300
3900
4700
TOL.
(%)
TEMP.
COEFFICIENT
BODY
DIAMETER
D
MAX.
(mm)
BODY
THICKNESS
T
MAX.
(mm)
LEAD
SPACING
F
(mm)
CLEAR TEXT CODE
15
TH
DIGIT:
T = REEL; U = AMMO; 3 = BULK
(1)
RoHS COMPLIANT
VY1100K31U2JQ6*V0
VY1150K31U2JQ6*V0
VY1220K31U2JQ6*V0
VY1330K31Y5SQ6*V0
VY1470K31Y5SQ6*V0
VY1680K31Y5SQ6*V0
VY1101K31Y5SQ6*V0
VY1151K31Y5SQ6*V0
VY1221K31Y5SQ6*V0
VY1331K31Y5SQ6*V0
VY1471M31Y5UQ6*V0
VY1681M31Y5UQ6*V0
VY1102M35Y5UQ6*V0
VY1152M41Y5UQ6*V0
VY1222M47Y5UQ6*V0
VY1332M59Y5UQ6*V0
VY1392M61Y5UQ6*V0
VY1472M63Y5UQ6*V0
VY1100K31U2JQ6*VX
VY1150K31U2JQ6*VX
VY1220K31U2JQ6*VX
VY1330K31Y5SQ6*VX
VY1470K31Y5SQ6*VX
VY1680K31Y5SQ6*VX
VY1101K31Y5SQ6*VX
VY1151K31Y5SQ6*VX
VY1221K31Y5SQ6*VX
VY1331K31Y5SQ6*VX
VY1471M31Y5UQ6*VX
VY1681M31Y5UQ6*VX
VY1102M35Y5UQ6*VX
VY1152M41Y5UQ6*VX
VY1222M47Y5UQ6*VX
VY1332M59Y5UQ6*VX
VY1392M61Y5UQ6*VX
VY1472M63Y5UQ6*VX
RoHS AND HALOGEN-FREE
VY1100K31U2JG6*V0
VY1150K31U2JG6*V0
VY1220K31U2JG6*V0
VY1330K31Y5SG6*V0
VY1470K31Y5SG6*V0
VY1680K31Y5SG6*V0
VY1101K31Y5SG6*V0
VY1151K31Y5SG6*V0
VY1221K31Y5SG6*V0
VY1331K31Y5SG6*V0
VY1471M31Y5UG6*V0
VY1681M31Y5UG6*V0
VY1102M35Y5UG6*V0
VY1152M41Y5UG6*V0
VY1222M47Y5UG6*V0
VY1332M59Y5UG6*V0
VY1392M61Y5UG6*V0
VY1472M63Y5UG6*V0
VY1100K31U2JG6*VX
VY1150K31U2JG6*VX
VY1220K31U2JG6*VX
VY1330K31Y5SG6*VX
VY1470K31Y5SG6*VX
VY1680K31Y5SG6*VX
VY1101K31Y5SG6*VX
VY1151K31Y5SG6*VX
VY1221K31Y5SG6*VX
VY1331K31Y5SG6*VX
VY1471M31Y5UG6*VX
VY1681M31Y5UG6*VX
VY1102M35Y5UG6*VX
VY1152M41Y5UG6*VX
VY1222M47Y5UG6*VX
VY1332M59Y5UG6*VX
VY1392M61Y5UG6*VX
VY1472M63Y5UG6*VX
U2J (N750)
± 10
Y5S (2C3)
8.0
5.0
10.0
± 20
Y5U (2E3)
9.0
10.5
12.0
15.0
15.5
16.0
U2J (N750)
± 10
Y5S (2C3)
8.0
5.0
12.5
± 20
Y5U (2E3)
9.0
10.5
12.0
15.0
15.5
16.0
Notes
• Straight leads are available on request
• Coating extension DR valid for straight leads only
• On request available: ± 10 % tolerance
(1)
15
th
digit of the clear text code number to be completed with the packaging code
Revision: 18-Oct-13
Document Number: 28537
2
For technical questions, contact:
cdc@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
VY1 Series
www.vishay.com
Vishay BCcomponents
BODY DIAMETER
D
MAX.
(mm)
12.0
16.0
PACKAGING
CAPACITANCE
VALUE
10 pF to 2200 pF
3300 pF to 4700 pF
PACKAGING QUANTITIES
BULK
1000
500
REEL
500
500
AMMO
750
750
SIZE CODE
31 to 47
51 to 63
Note
• The capacitors are supplied in bulk packaging (cardboard boxes), in tape on reel in ammopack
STRAIGHT LEADS
D max.
T max.
coating
extension
ΔR
3.0 max.
30 mm to 3.0 mm (ΔR)
F
d = 0.6 mm
P
D
ΔP
P
2
ΔP
Δh
T
Δh
F
Ød
L
W
1
W
0
W
A
e
P
0
P
1
F
D
0
t
detail A
t
1
W
2
H
0
H
1
Lead
spacing
10.0 mm and 12.5 mm,
sprocket
hole pitch 25.04 mm for lead
spacing
Revision: 18-Oct-13
Document Number: 28537
3
For technical questions, contact:
cdc@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
VY1 Series
www.vishay.com
Vishay BCcomponents
DIMENSIONS
(mm)
FIG. 2
16.0 max.
0.6 ± 0.05
25.4 ± 1
12.7 ± 0.3
7.7 or 6.4 ± 1.0
12.7 ± 1.5
10.0 or 12.5 + 0.6/- 0.4
± 1.0 max.
± 1.0 max.
18.0 + 1/- 0.5
5.0 min.
9.0 + 0.75/- 0.5
3.0 max.
40.0
16.0 ± 0.5
20.0 ± 0.5
11.0 max.
1.0 max.
4.0 ± 0.2
0.9 max.

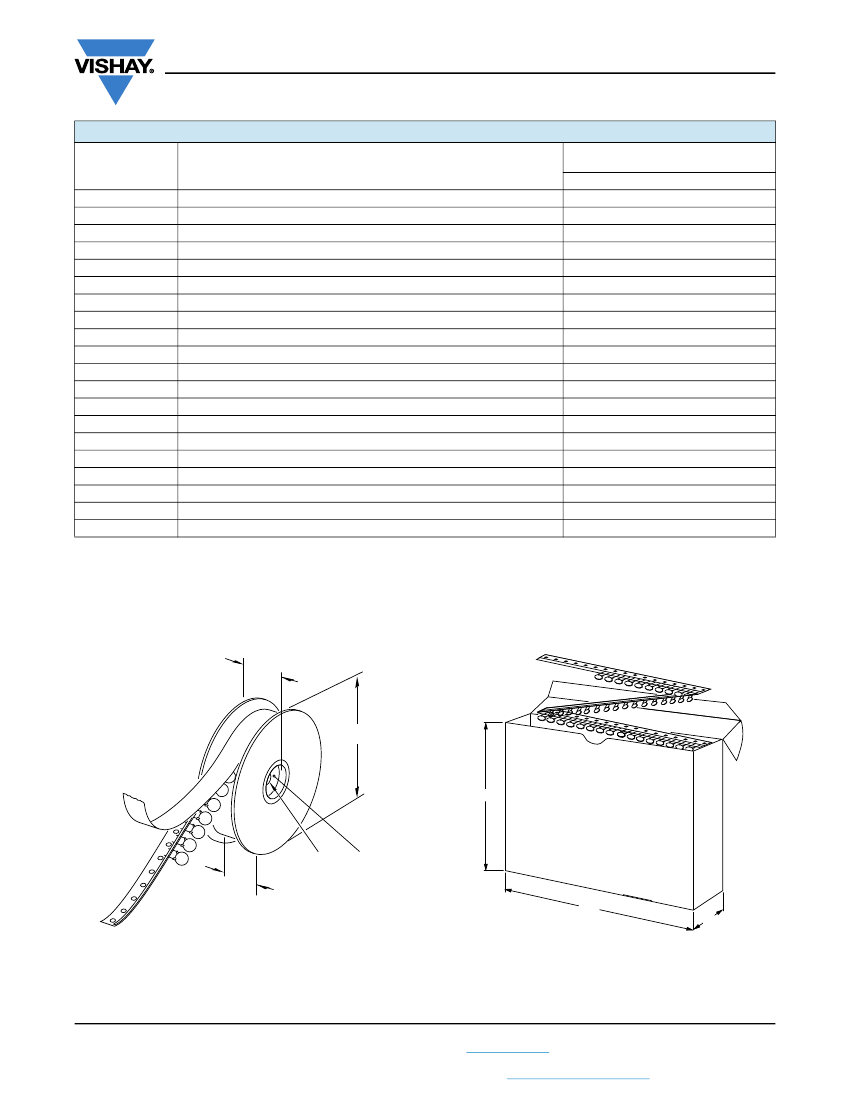

DIMENSIONS OF TAPE
SYMBOL
D
(1)
d
P
P
0
(2)
PARAMETER
Body diameter
Lead diameter
Pitch of component
Pitch of sprocket hole
Distance, hole center to lead
Distance, hole to center of component
Lead spacing
Average deviation across tape
Average deviation in direction of reeling
Carrier tape width
Hold-down tape width
Position of sprocket hole
Distance of hold-down tape
Maximum component height
Height to seating plane (for kinked leads)
Height to seating plane (for straight leads)
Length of cut leads
Length of lead protrusion
Diameter of sprocket hole
Total tape thickness
P
1 (3)
P
2 (3)
F
h
P
W
W
0
W
1
W
2
H
1
H
0
H
0
L
I
D
0
t
Notes
(1)
See Ordering Information table
(2)
Cumulative pitch error: ± 1 mm/20 pitches
(3)
Obliquity maximum 3°
REEL AND TAPE DATA
in millimeters
51 max.
355.6 ± 2.0
330
28 ± 1.5
45 max.
8.0
360
55
Reel with capacitors on tape
Ammopack with capacitors on tape
Revision: 18-Oct-13
Document Number: 28537
4
For technical questions, contact:
cdc@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
VY1 Series
www.vishay.com
Vishay BCcomponents

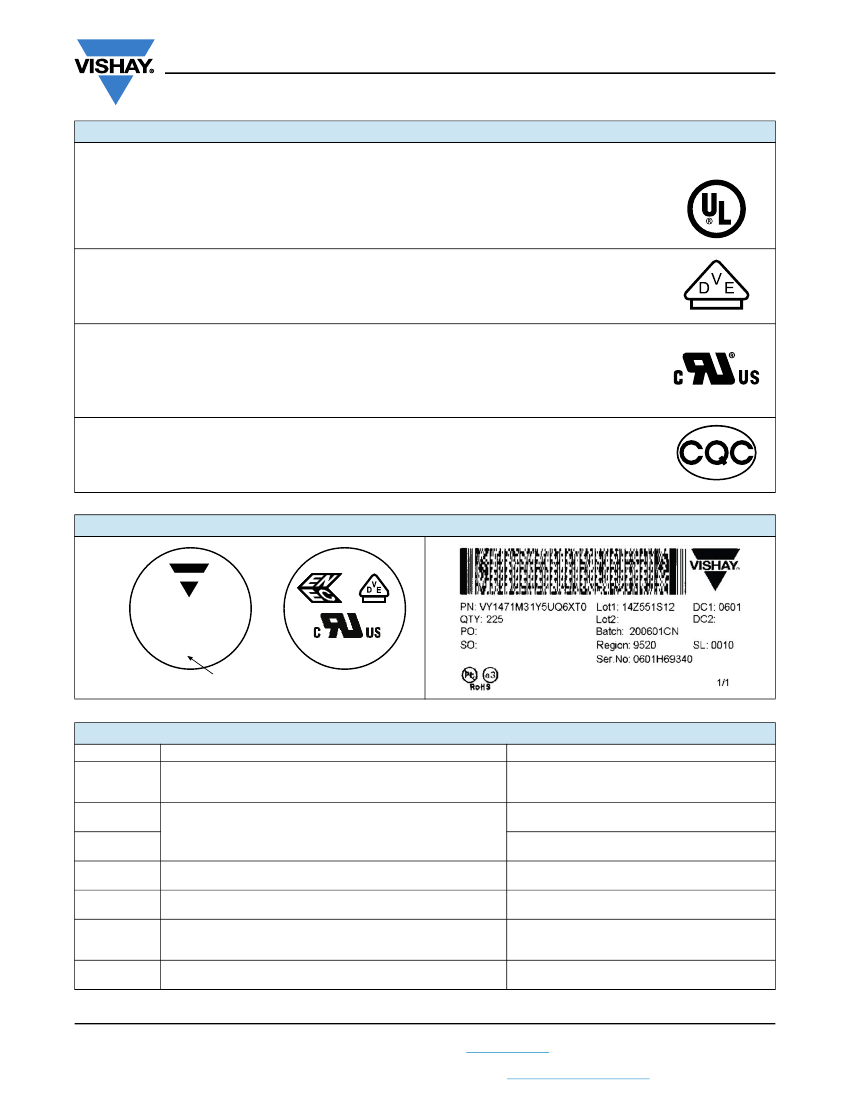

APPROVALS
IEC 60384-14.3 - Safety tests
This approval together with CB test certificate substitutes all national approvals.
CB Certificate
Y1-capacitor: CB test certificate:
X1-capacitor: CB test certificate:
VDE
Y1-capacitor: VDE marks approval:
X1-capacitor: VDE marks approval:
DIN EN 60384-14 VDE 0565-1-1:2006-04 - Safety tests
Underwriters Laboratories Inc./Canadian Standards Association
Y1-capacitor: CSA test certificate:
X1-capacitor: CSA test certificate:
UL 60384-14, CSA E60384-1:03, CSA E60384-14:09
Fixed capacitors for electromagnetic interference suppression and connection to the supply mains.
CQC
Y1-capacitor: CQC test certificate:
X1-capacitor: CQC test certificate:
C0042538
C0042538
10 pF to 4.7 nF
10 pF to 4.7 nF
500 V
AC
760 V
AC
E183844
E183844
10 pF to 4.7 nF
10 pF to 4.7 nF
500 V
AC
760 V
AC
40012673
40012673
10 pF to 4.7 nF
10 pF to 4.7 nF
500 V
AC
760 V
AC
US-19600-UL
US-19600-UL
10 pF to 4.7 nF
10 pF to 4.7 nF
500 V
AC
760 V
AC
MARKING
Sample
(2 sides)
10
VY1 472 M
Y1 500 ~
X1 760 ~
xxxx
250 ~
4 digit date code (year/week)
PERFORMANCE
TEST
Visual and
mechanical
inspection
Capacitance
(C)
Dissipation
factor (DF)
Insulation
resistance (IR)
Dielectric
strength
Temperature
characteristic
Impulse
voltage
TEST CONDITION
Optical inspection, dimensions measured with caliper
TEST LIMITS
No visible damage, marking legible
Capacitance within specified tolerance
DF
0.3 % for U2J and
DF
2.5 % for Y5S and Y5U
10 000 M min.
No failure
U2J: -750 ppm ± 120 ppm
Y5S: ± 22 %
Y5U: +22 %/-56 %
No failure
25 °C ± 3 °C , relative humidity (RH)
75 %,
1.0 V
RMS
± 0.2 V
RMS
at 1 kHz for Y5U and Y5S, and 1 MHz for U2J
Measured within 60 s ± 5 s after charging at 500 V
DC
4000 V
AC
at 50 Hz/60 Hz for 1 min, 50 mA max.
RH
75 %, 1.0 V
RMS
± 0.2 V
RMS
at 1 kHz for Y5U and Y5S,
and 1 MHz for U2J
3 pulses of 8 kV
Revision: 18-Oct-13
Document Number: 28537
5
For technical questions, contact:
cdc@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
