Control Knob Accessories
CONTROL KNOBS
Ideally Suited for Encoder and
Rotary Switches
FEATURES
• Standard Fit for Grayhill Encoder
and Rotary Switches
• Custom Materials, Styles, Colors
and Markings Available
• Standard Black or Gray
• Choice of Spring Clip (Press-On)
or Metal Insert with Set Screw
Versions
Contact Grayhill for special design
considerations
Optical and Mechanical
Encoders

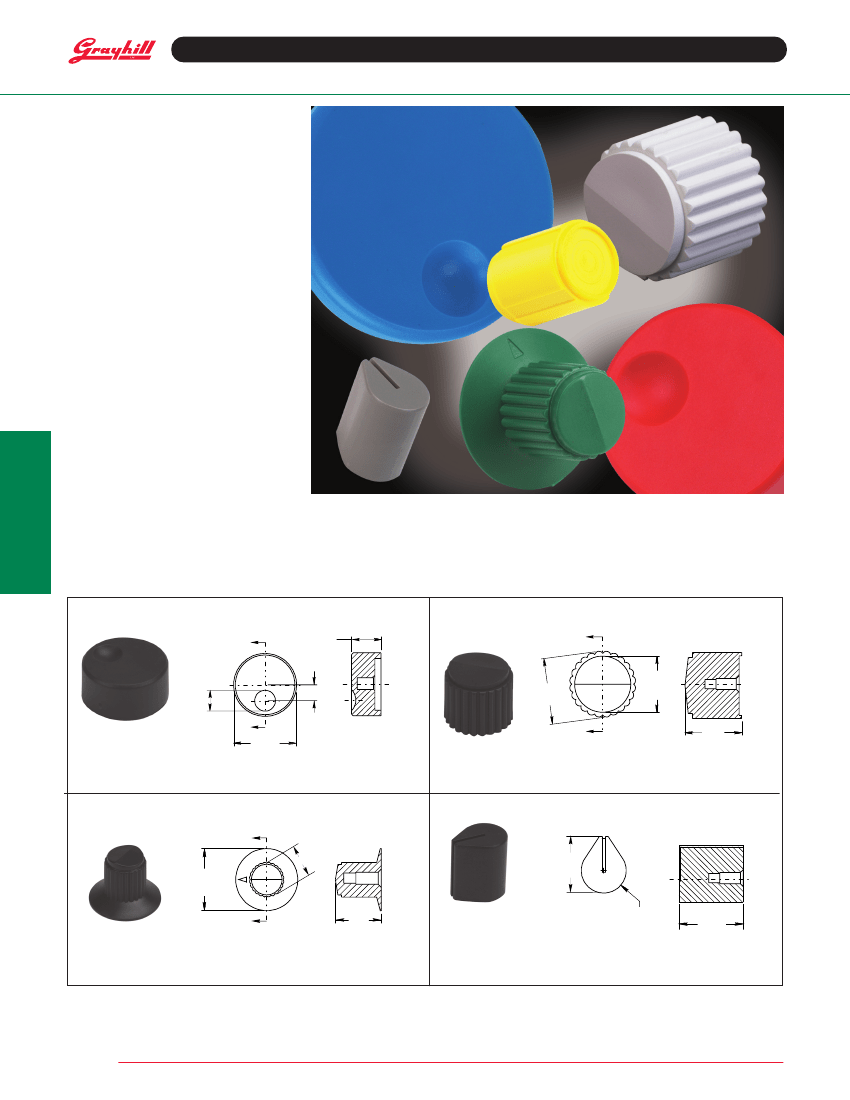

DIMENSIONS
Style 5013
In inches (and millimeters)
Top View
.620 (15,75)
Style 5014
Top View
.335 (8,51)
.440
(11,18)
DIA
.
.700
(17,78) DIA.
.593
(15,06)
DIA.
1.330
(33,78)
DIA.
.600
(15,24)
Available in .250 Dia. Shaft only.*
Style 5015
Top View
.500
(12,7)
DIA.
.894
(22,71)
DIA.
.662
(16,81)
Style 5017
Top View
.440
(11,2)
.350
(8,9)
DIA.
.500
(12,7)
Available in .125 and .157 (4mm) dia. shaft in spring clip
(press-on) version only.*
.
*See Ordering Information.
Encoder
68
Grayhill, Inc. • 561 Hillgrove Avenue • LaGrange, Illinois
60525-5997 • USA • Phone: 708-354-1040 • Fax: 708-354-2820 • www.grayhill.com
Control Knob Accessories

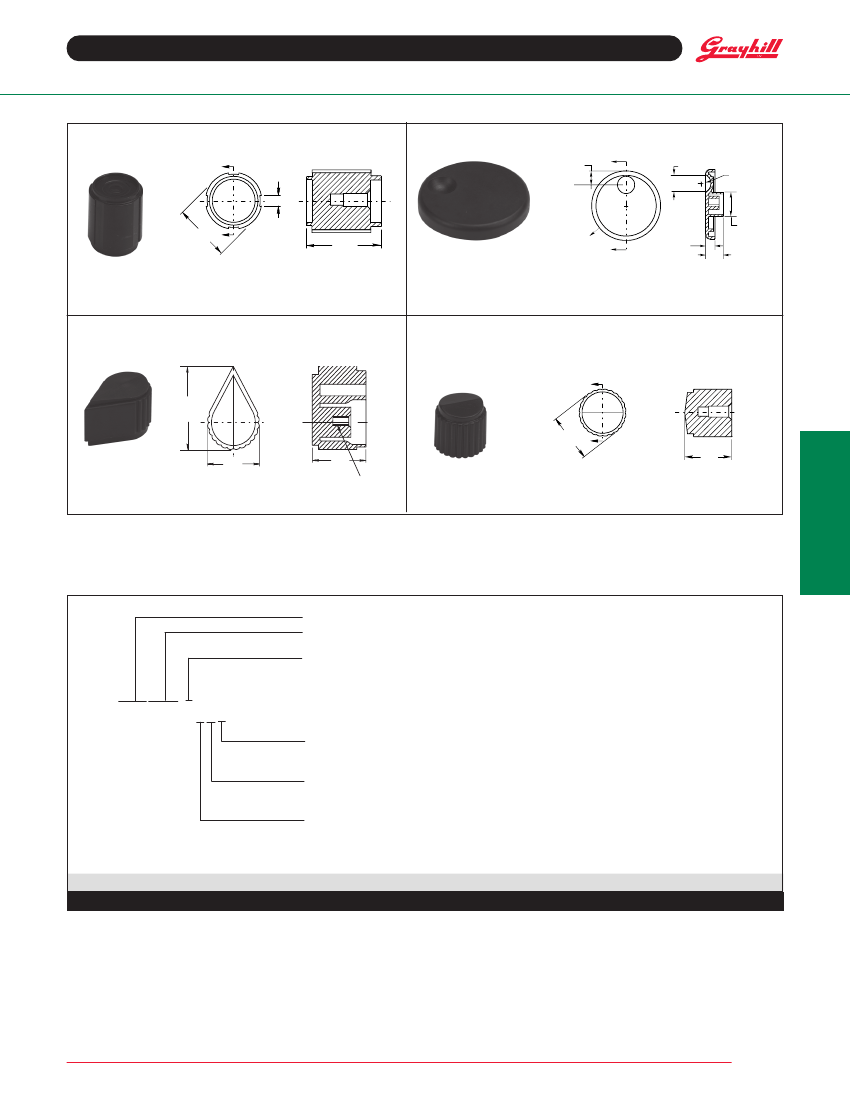

DIMENSIONS
Style 5019
In inches (and millimeters)
Top View
Style 5020
Top View
.315
(8,00)
.393
(9,98)
.220 R.
(5,59)
C
OF
L
.220
(5,59) R.
.092 (2,34)
TYP.
(4 PLACES)
.500
(12,7)
DIA.
.660
(16,76)
1.575 DIA.
(40,01)
.215
(5,46)
.400
(10,16)
.550
(13,97)
DIA.
Available in ABS, .250 dia. shaft in spring clip (press-on). The locking clip
is also available, requires a custom shaft.**
Style 5028
Top View
Style 5029
Top View
1.090
(27,69)
.500
(12,7)
DIA.
.710
(18,03)
DIA.
.730
(18,54)
SPRING
CLIP
.500
(12,7)
Optical and Mechanical
Encoders
*See Ordering Information.
**Contact Grayhill representative
ORDERING INFORMATION
Series
Style*:
5013, 5014, 5015, 5017, 5019, 5020, 5028, 5029
(see dimension drawings for style options)
Shaft Diameter:
J
= .125 dia. shaft
E
= .157 (4mm) dia. shaft
K
= .250 dia. shaft
11K5028-KCNB
Knob Color:
B
= Black
G
= Gray
Material:
A
= ABS (available on the styles 5017 and 5020 only)
N
= Nylon
Version:
C
= Spring Clip (press-on)
L
= Locking Clip (available on the style 5020 only)
M
= Metal Insert w/Set Screw(s)
Custom materials, styles and colors are available.
For prices and discounts, contact a local sales office or Grayhill.
Grayhill, Inc. • 561 Hillgrove Avenue • LaGrange, Illinois
60525-5997 • USA • Phone: 708-354-1040 • Fax: 708-354-2820 • www.grayhill.com
Encoder
69
