FR151 thru FR157
Taiwan Semiconductor
CREAT BY ART

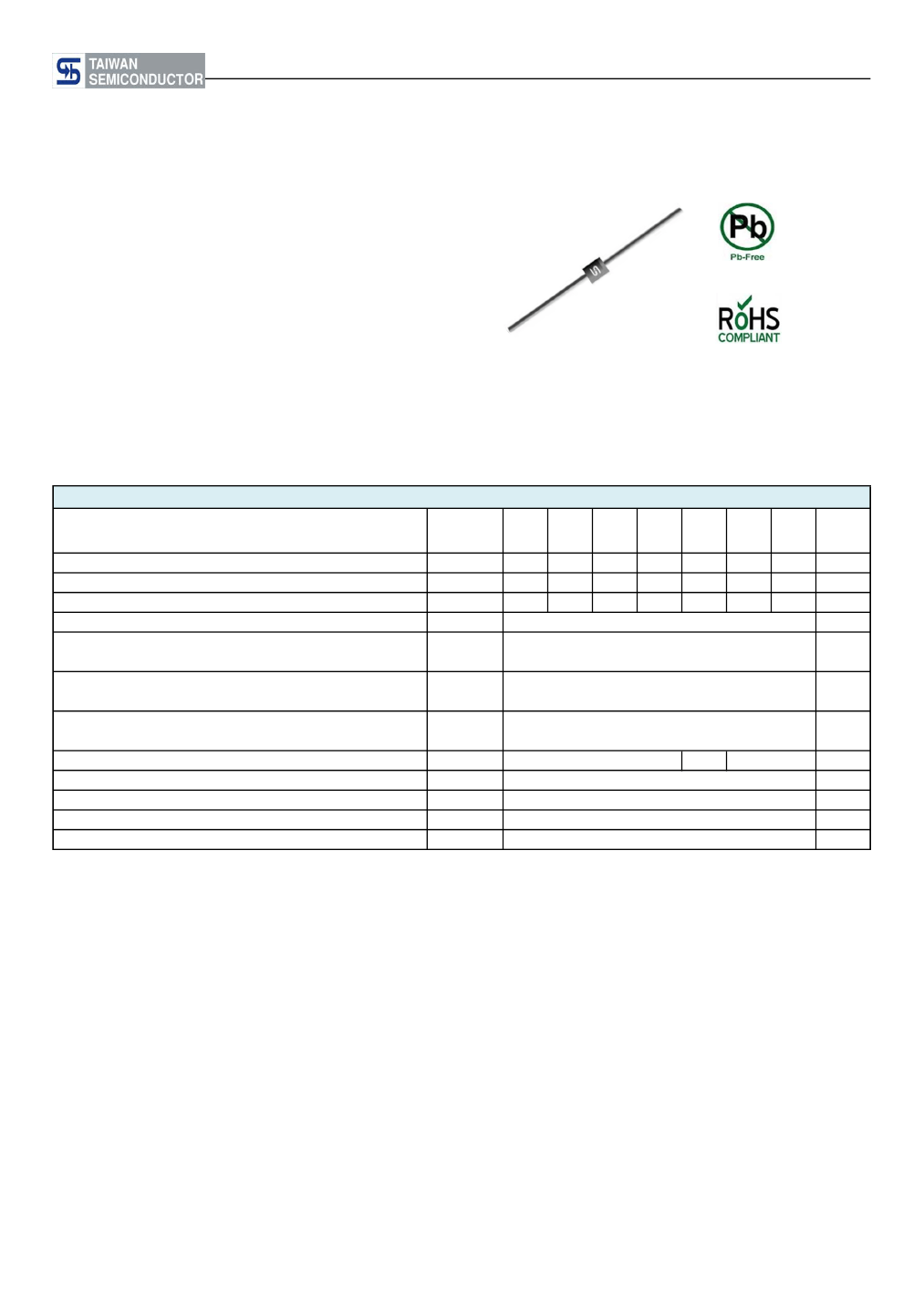

FEATURES
- High efficiency, Low VF
- High current capability
- High surge current capability
- Low power loss
- Compliant to RoHS Directive 2011/65/EU and
in accordance to WEEE 2002/96/EC
- Halogen-free according to IEC 61249-2-21 definition
Fast Recovery Rectifiers
MECHANICAL DATA
Case:
DO-204AC (DO-15)
Molding compound, UL flammability classification rating 94V-0
Base P/N with suffix "G" on packing code - green compound (halogen-free)
Terminal:
Matte tin plated leads, solderable per JESD22-B102
Meet JESD 201 class 1A whisker test
Weight:
0.4g (approximately)
DO-204AC (DO-15)
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
(T
A
=25
o
C unless otherwise noted)
PARAMETER
Maximum repetitive peak reverse voltage
Maximum RMS voltage
Maximum DC blocking voltage
Maximum average forward rectified current
Peak forward surge current, 8.3 ms single half sine-wave
superimposed on rated load
Maximum instantaneous forward voltage (Note 1)
@ 1.5 A
Maximum reverse current @ rated VR
T
J
=25
o
C
T
J
=125
o
C
Maximum reverse recovery time (Note 2)
Typical junction capacitance (Note 3)
Typical thermal resistance
Operating junction temperature range
Storage temperature range
Note 1: Pulse test with PW=300
μs,
1% duty cycle
Note 2: Reverse Recovery Test Conditions: I
F
=0.5A, I
R
=1.0A, I
RR
=0.25A
Note 3: Measured at 1 MHz and Applied Reverse Voltage of 4.0V DC
SYMBOL
V
RRM
V
RMS
V
DC
I
F(AV)
I
FSM
V
F
I
R
Trr
Cj
R
θJA
T
J
T
STG
150
20
60
- 55 to +150
- 55 to +150
O
FR
151
50
35
50
FR
152
100
70
100
FR
153
200
140
200
FR
154
400
280
400
1.5
50
1.2
5
150
FR
155
600
420
600
FR
156
800
560
800
FR
157
1000
700
1000
UNIT
V
V
V
A
A
V
μA
250
500
ns
pF
C/W
O
O
C
C
Document Number: DS_D1406011
Version: F14
FR151 thru FR157
Taiwan Semiconductor
CREAT BY ART
ORDERING INFORMATION
PART NO.
PACKING CODE
A0
R0
B0
Suffix "G"
GREEN COMPOUND
CODE
FR15x
(Note 1)
DO-15
DO-15
DO-15
1,500 / Ammo box
3,500 / 13" Paper reel
1,000 / Bulk packing
PACKAGE
PACKING
Note 1: "x" defines voltage from 50V (FR151) to 1000V (FR157)
EXAMPLE
PREFERRED P/N
FR151 A0
FR151 A0G
PART NO.
FR151
FR151
PACKING CODE
A0
A0
G
Green compound
GREEN COMPOUND
CODE
DESCRIPTION

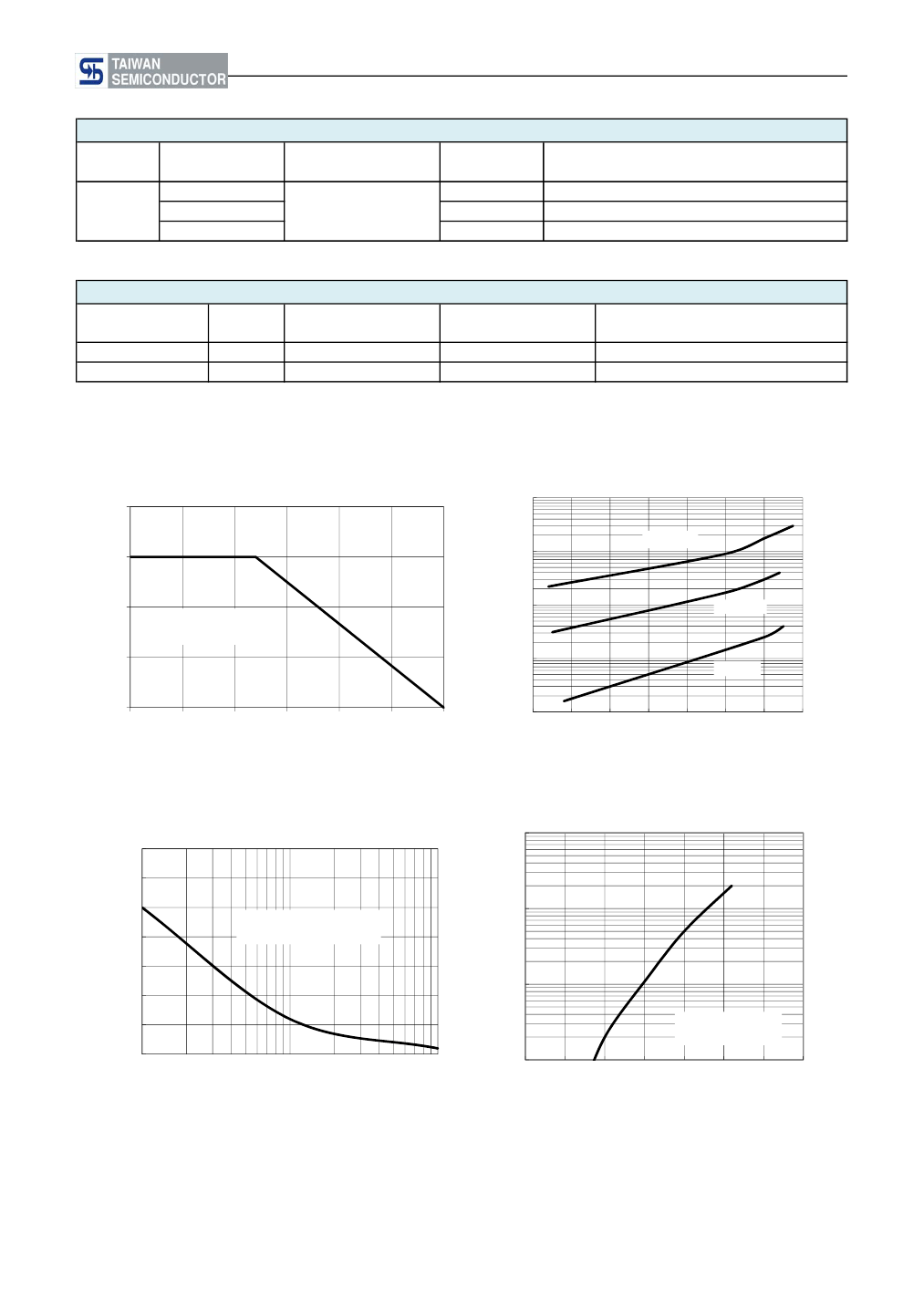

RATINGS AND CHARACTERISTICS CURVES
(TA=25℃ unless otherwise noted)
FIG.1 MAXIMUM FORWARD CURRENT DERATING
CURVE
INSTANTANEOUS REVERSE CURRENT (μA)
FIG. 2 TYPICAL REVERSE CHARACTERISTICS
1000
2
AVERAGE FORWARD CURRENT (A)
1.5
100
TJ=125℃
1
10
RESISTIVE OR
INDUCTIVE LOAD
TJ=75℃
0.5
1
TJ=25℃
0
0
25
50
75
100
125
150
0.1
0
20
40
60
80
100
120
140
PERCENT OF RATED PEAK REVERSE VOLTAGE (%)
AMBIENT TEMPERATURE (
o
C)
FIG. 3 MAXIMUM NON-REPETITIVE PEAK FORWARD
SURGE CURRENT
PEAK FORWARD SURGE CURRENT (A)
INSTANTANEOUS FORWARD CURRENT (A)
70
60
50
40
30
20
10
0
1
10
NUMBER OF CYCLES AT 60 Hz
100
8.3ms Single Half Sine Wave
FIG. 4 TYPICAL FORWARD CHARACTERISTICS
100
10
1
Pulse Width=300μs
1% Duty Cycle
0.1
0.4
0.6
0.8
1
1.2
1.4
FORWARD VOLTAGE (V)
1.6
1.8
Document Number: DS_D1406011
Version: F14
FR151 thru FR157
Taiwan Semiconductor
CREAT BY ART
FIG. 5 TYPICAL JUNCTION CAPACITANCE
f=1.0MHz
Vslg=50mVp-p
100
JUNCTION CAPACITANCE (pF)
10
1
10
REVERSE VOLTAGE (V)
100

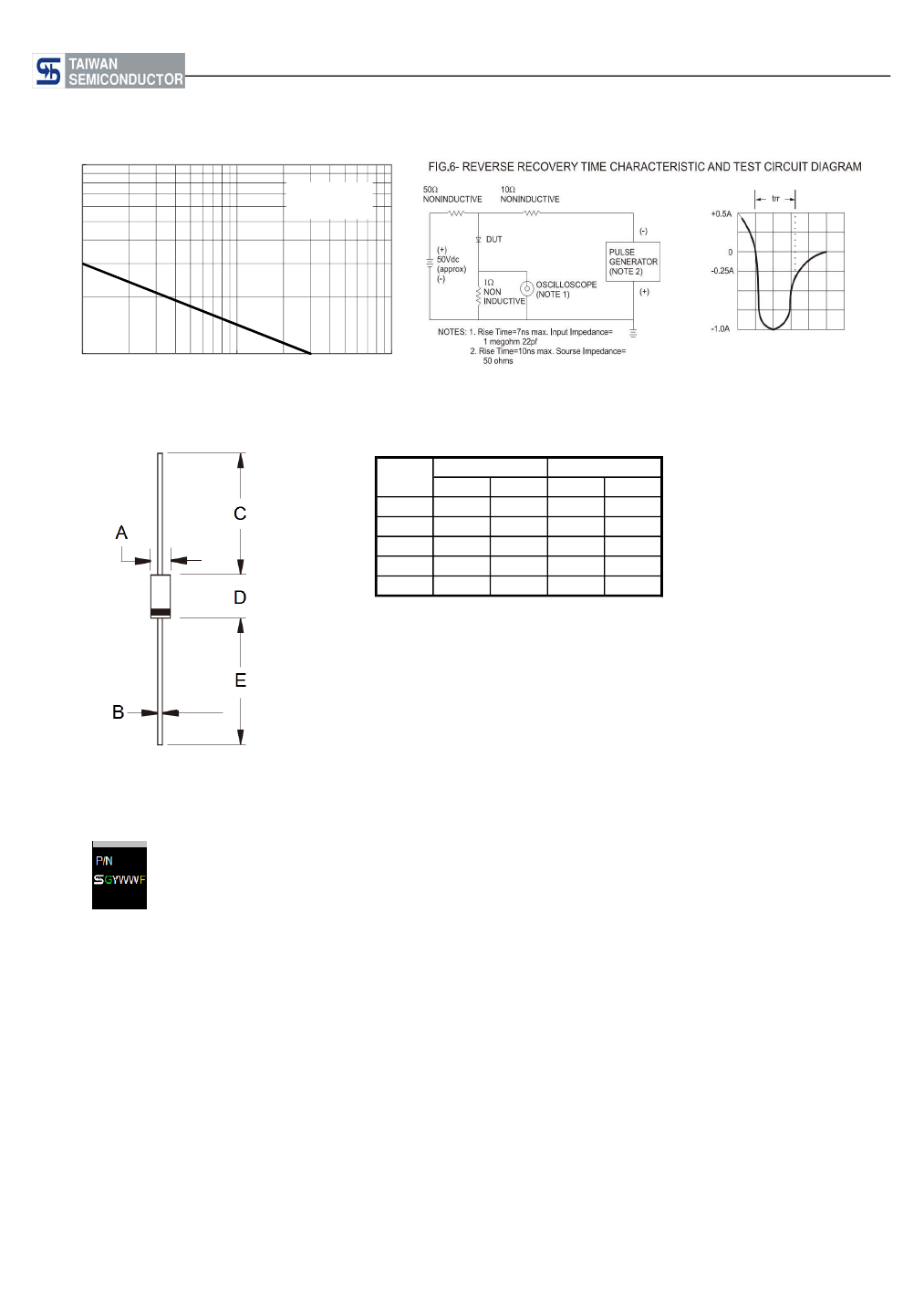

PACKAGE OUTLINE DIMENSIONS
Unit (mm)
Min
2.60
0.70
25.40
5.80
25.40
Max
3.60
0.90
-
7.60
-
Unit (inch)
Min
0.102
0.028
1.000
0.228
1.000
Max
0.142
0.035
-
0.299
-
DIM.
A
B
C
D
E
MARKING DIAGRAM
P/N =
G=
YWW =
F=
Specific Device Code
Green Compound
Date Code
Factory Code
Document Number: DS_D1406011
Version: F14
FR151 thru FR157
Taiwan Semiconductor
CREAT BY ART
Notice
Specifications of the products displayed herein are subject to change without notice. TSC or anyone on its behalf,
assumes no responsibility or liability for any errors inaccuracies.
Information contained herein is intended to provide a product description only. No license, express or implied,to
any intellectual property rights is granted by this document. Except as provided in TSC's terms and conditions of
sale for such products, TSC assumes no liability whatsoever, and disclaims any express or implied warranty,
relating to sale and/or use of TSC products including liability or warranties relating to fitness for a particular purpose,
merchantability, or infringement of any patent, copyright, or other intellectual property right.
The products shown herein are not designed for use in medical, life-saving, or life-sustaining applications.
Customers using or seling these products for use in such applications do so at their own risk and agree to fully
indemnify TSC for any damages resulting from such improper use or sale.
Document Number: DS_D1406011
Version: F14
